Every poorly maintained connection costs time, money and trust. One bad microduct connector can stop a whole cable-blowing job in minutes. Air leaks, pressure loss, stuck cables, digging things back up – often it’s a tiny, easy-to-miss part that’s to blame. For example, on a 1000 meter blow, even a small leak will kill your blowing distance. Long-haul fiber builds always expose how important microduct connector reliability really are.
We’ll look at two main causes here: mechanical structure and fit/tolerance issues. If you’ve seen these problems on site, this two-minute read is for you.

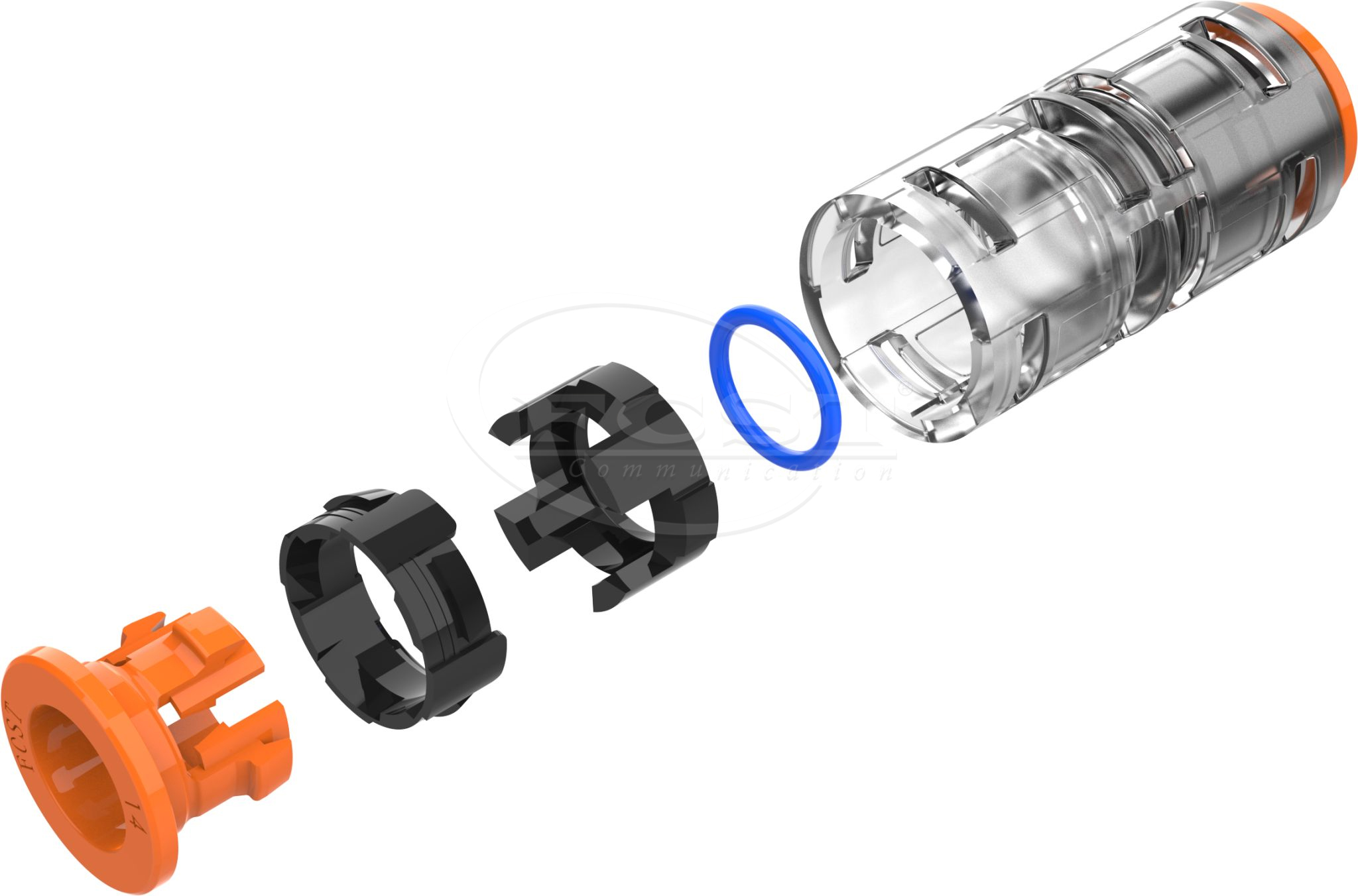

Start by checking that the micro duct connector’s internal parts are assembled correctly. If the connector and microduct are misaligned, you’ll get concentricity problems and big gaps. Need the right way to install? Here’s the detailed guide.
Then take the push-fit microduct connectors off and look inside – any burrs, leftover plastic, or cracks?
Here’s a quick reference table of common tolerances:
Parameter | Typical value / standard | Basis | What it means |
8.0 mm micro blowable cable OD tolerance | ±0.10 or ±0.15 mm | YD/T 1460; IEC 60794 5 | Different suppliers set tolerances based on blow distance & sealing needs |
6.0 mm micro blowable cable OD tolerance | ±0.10 or ±0.15 mm | YD/T 1460; IEC 60794 5 | Long blows need tighter OD consistency |
Butterfly drop cable size tolerance | 3.0±0.10 / 2.0±0.10 mm | YD/T 1997.1-2022 | For indoor FTTH flat drop cables |
Micro blowable cable (1.x mm unit) OD tolerance | Typically ±0.05 mm | IEC 60794-5; manufacturer datasheet | Smaller OD = needs better blow stability & sealing |
Connector ID design value | Usually 0.20–0.30 mm larger than cable OD | GB 51171-2016; manufacturer design specs | Trade off between blow efficiency, insertion force, and seal |
8 mm connector recommended ID | 8.20–8.30 mm | Manufacturer spec | Fine tuned for sealing ring compression |
6 mm connector recommended ID | 6.20–6.30 mm | Manufacturer spec | Common in FTTH microduct systems |
Microduct system air tightness requirement | Typically ≥15 bar | IEC 60794-5-20; operator specs | Good sealing helps long distance blowing |
Connector tensile strength | Typically ≥400 N | EN 50411 series | Depends on claw design and material |
Connector impact rating | Typically 15 J | EN 61300-2-12 / manufacturer test | Mainly for underground comms ducts |
Why the 8.20–8.30 mm ID?
In real world blowing, the connector ID is made slightly larger than the cable OD to balance three things: how easy it is to push the cable in, how well the seal compresses, and how efficiently air flows.
What happens when tolerances get out of hand:
Situation | Result |
Cable too big | Won’t go in |
Cable too small | Leaks air |
Connector too tight | Hard to blow through |
Connector too loose | Seal fails |

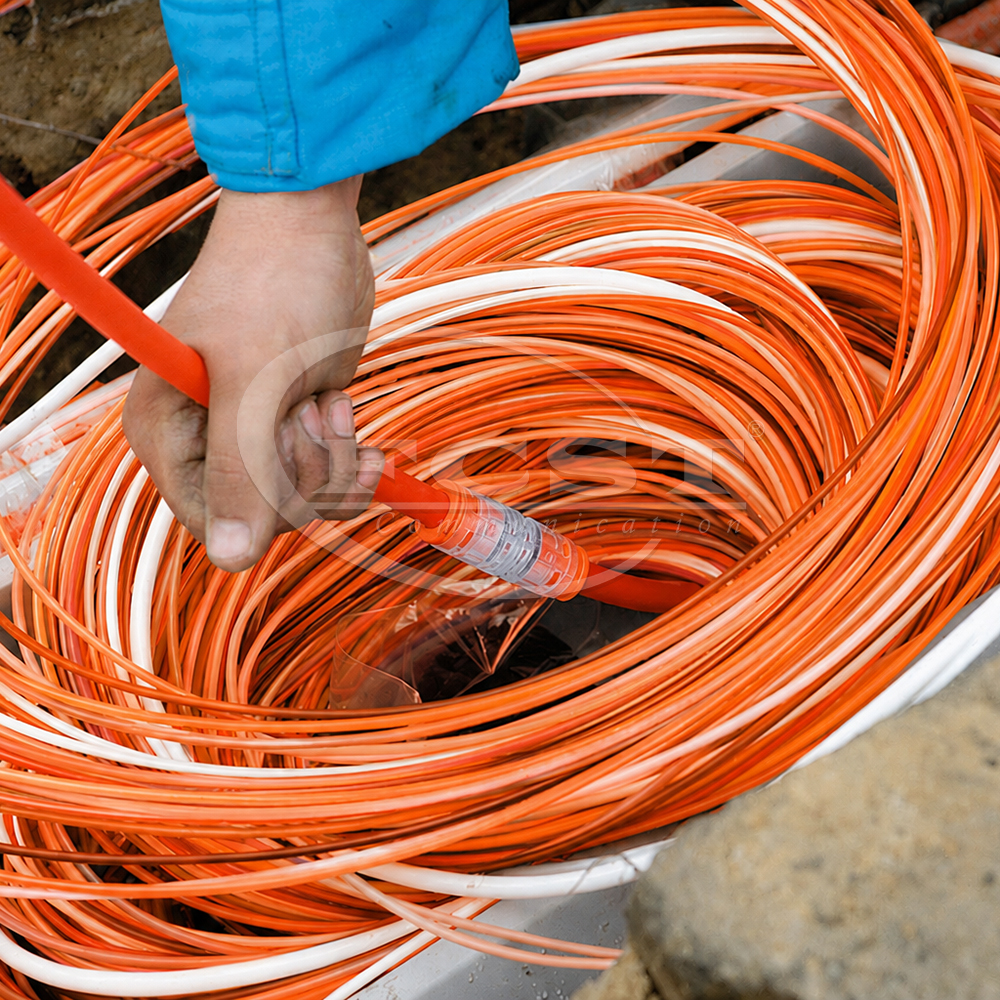

Telecom duct connectors are high precision parts. Even if two products both say “8mm system”, the real dimensions, material hardness, sealing design, and manufacturing quality can be totally different between suppliers. One brand’s “8mm” might be ID, another’s might be OD. Cheap microducts are often oval, not round. The result? Insertion fails, air leaks, blow distance tanks, connectors pop off, seal rings get damaged, water gets in over time, and cables jam.
Contractors usually find out there’s a compatibility problem only after they’ve mixed brands on site. That’s why operators are now asking for “system compatibility” more and more.
Problem | Consequence |
Air leakage | Blowing distance drops |
Higher resistance | Cable jams |
Step at connector | Fiber gets abraded |
Connector loosens | Rework needed |

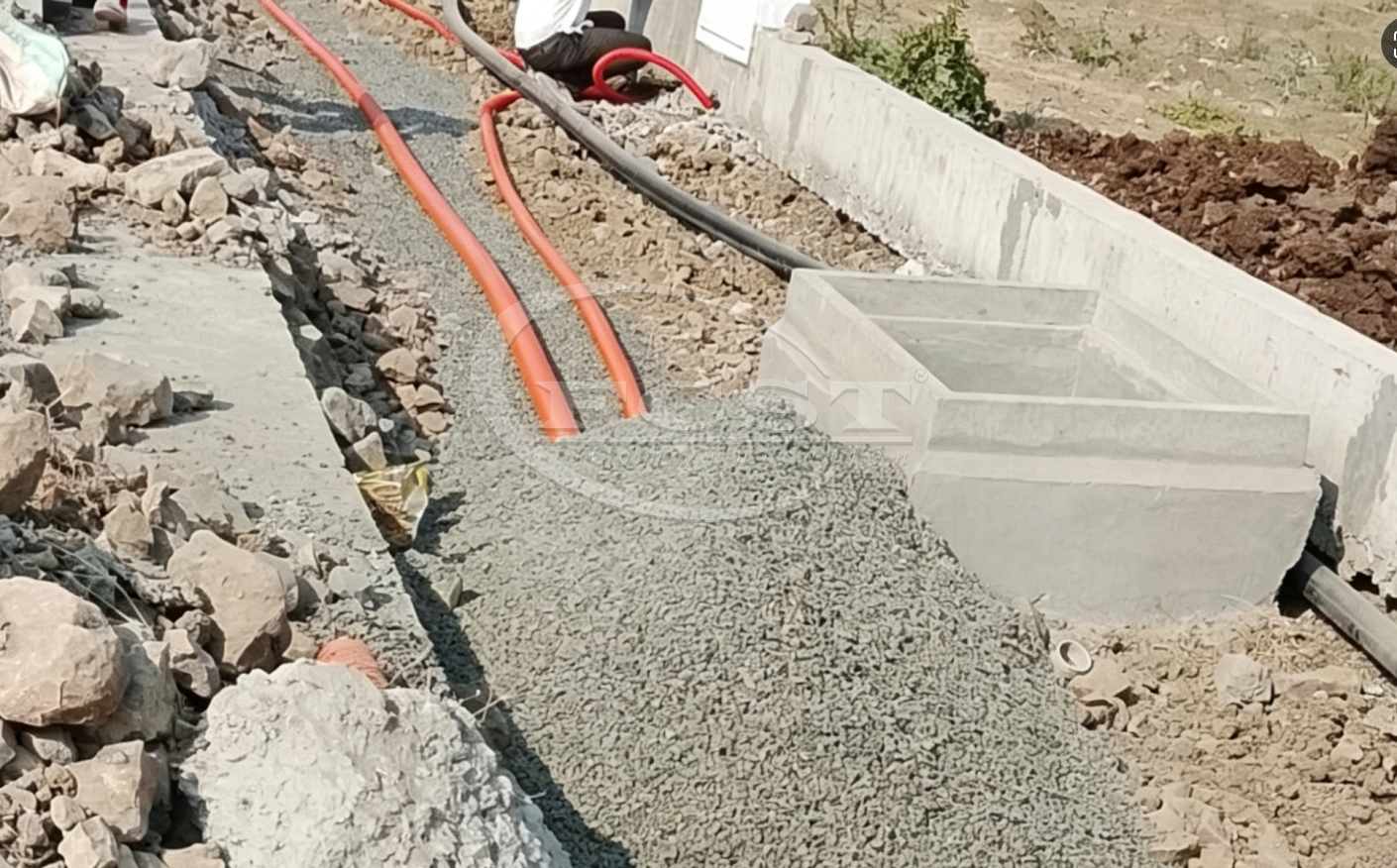

Small water seepage | Long term network failure |
Some manufacturers are now improving connector stability by using lower CTE housing materials and dual O-ring seals.
Component | Common material | CTE (×10⁻⁶/℃) | What happens |
Microduct | HDPE | 170–270 | Moves a lot – main source of gap change |
Connector body | PP (glass filled) | 100–150 | Moderate movement; adapts to microduct |
Sealing ring | Rubber / elastomer | 200–400+ | Very stretchy; expansion is usually part of the design |
Locking parts | Stainless steel / metal | 10–18 | Hardly moves; dimensions stay put |
FCST’s 15J HDPE Tube Connector significantly cuts down thermal expansion effects during installation.
Why? The 15J uses PC for the housing, with a CTE of about 60–80×10⁻⁶/℃ – much lower than HDPE’s 150–190×10⁻⁶/℃. When temperature changes, the connector actually “pulls” on the microduct, using material stress to lock it even tighter.
Also, the pre-installed safety clip and dual O rings keep the connection solid. Under temperature swings or slight movement, the O-rings (CTE 200–400×10⁻⁶/℃) stay elastic and keep constant pressure on the microduct outer wall, so you don’t lose airtightness.
This connector has passed the EN 61300-2-22 temperature change test – proven reliability under real world thermal cycling.
We manufacture the FCST-15JDB-SC series: a metal-free, transparent, 15J-certified micro-duct straight connector for 7–16 mm tubes. It is already deployed in direct burial projects across Germany, the UK, and North America.
