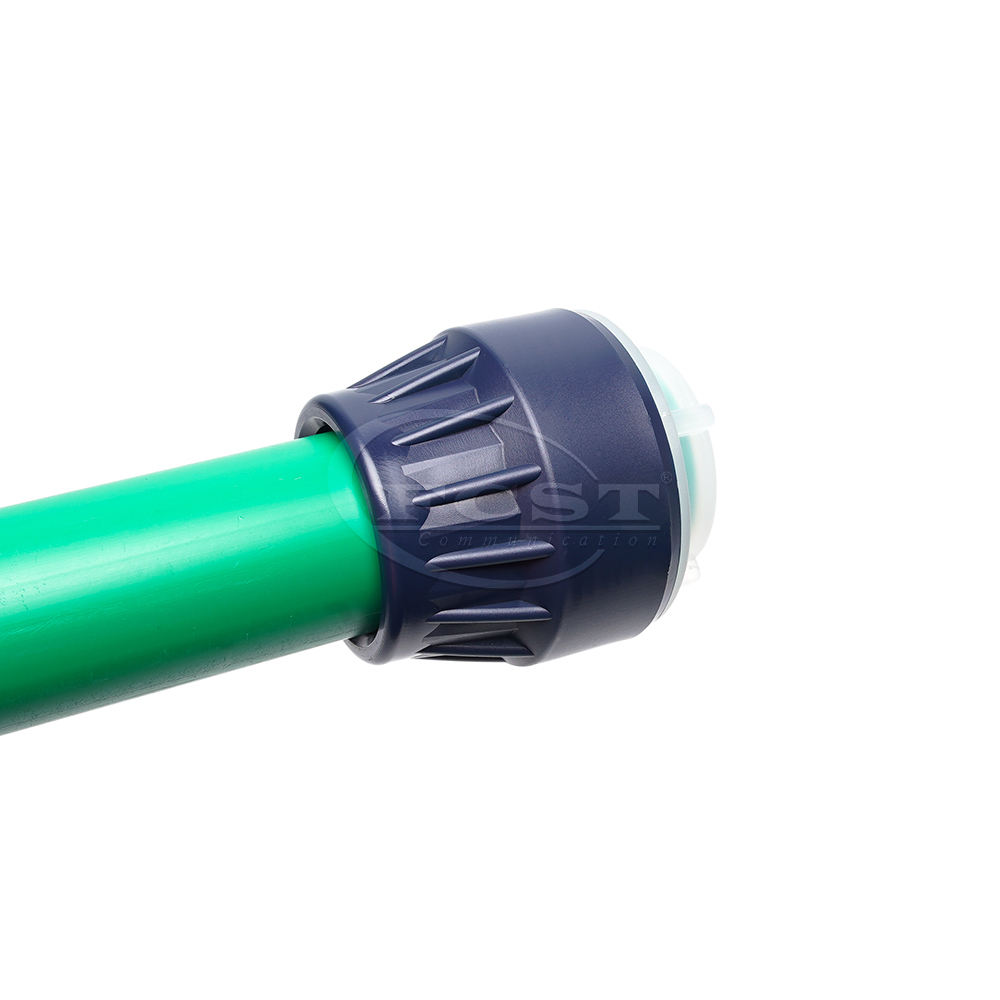

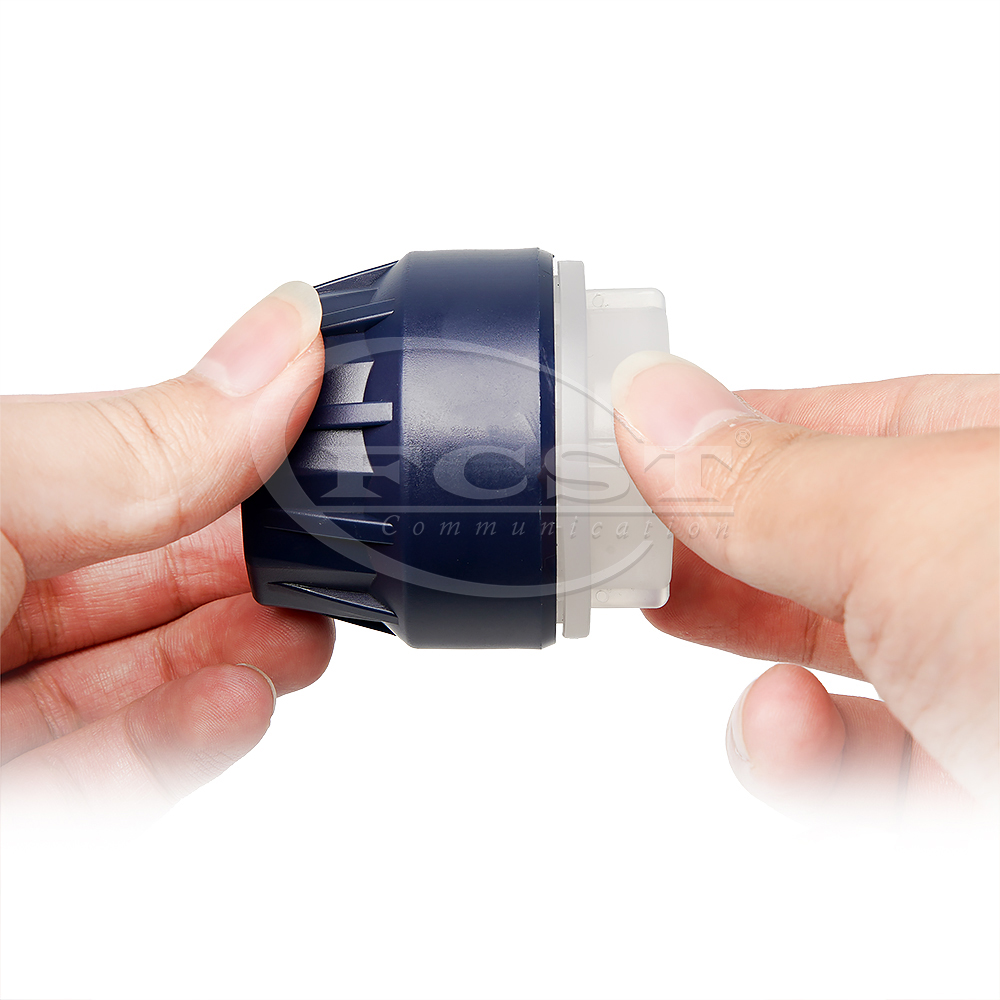

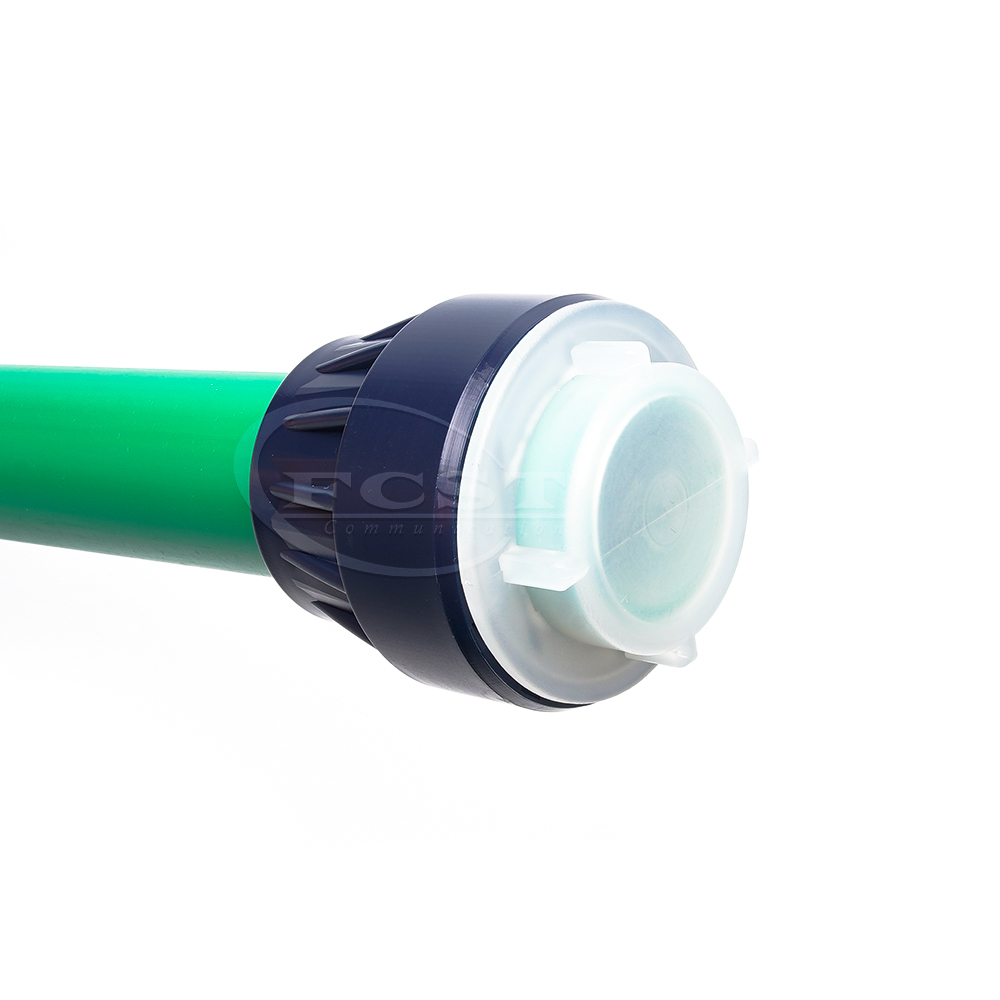

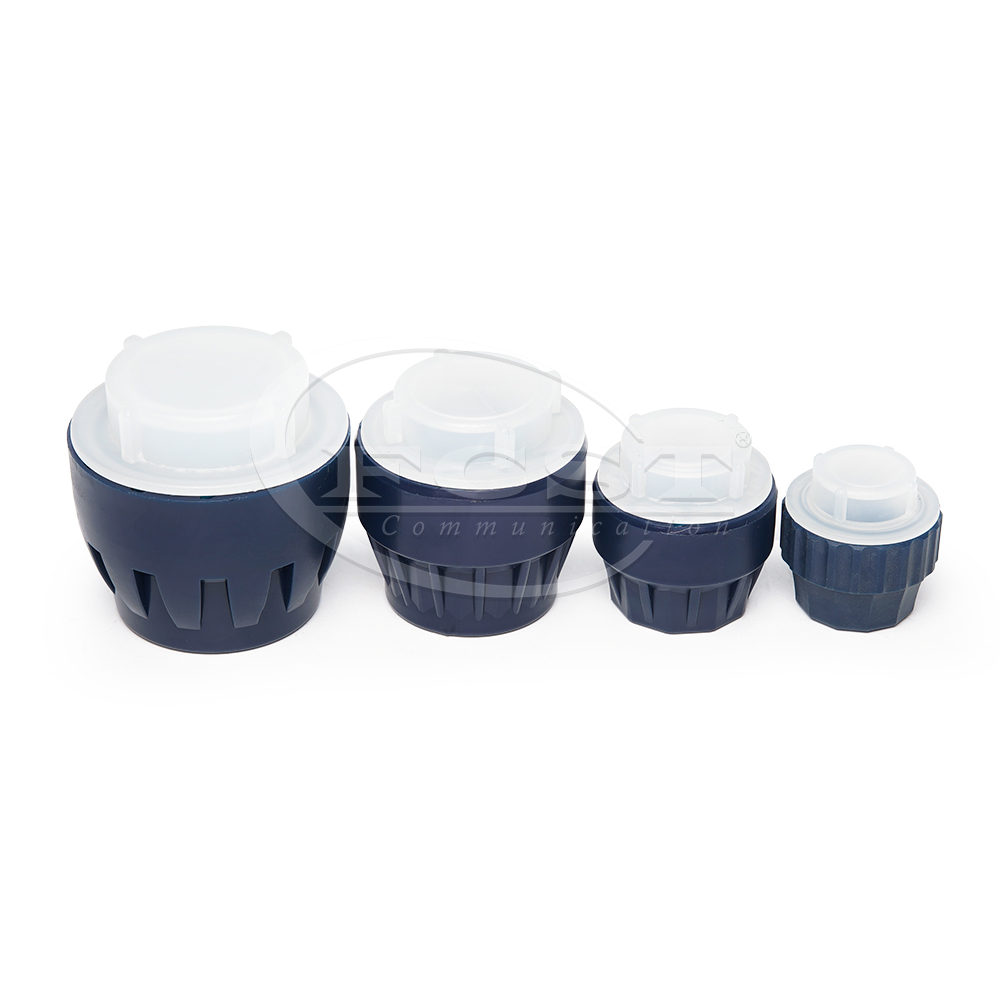

FCST-ERSB40 Push Fit Duct End Cap

For 40mm Duct,Working Pressure:20 bar.

Executive Standard

ISO9001

Service Support

sales@fcst.com

Minimum Order Quantity

100PCS

Technical Specifications

Product Advantages

For 40mm Duct.

Easy “push-in” installation.

Usage in DB(direct burial) scenarios.

Pre-lubricated O-ring is water-tight and air-tight.

Suitable for both cable pulling & jetting applications.

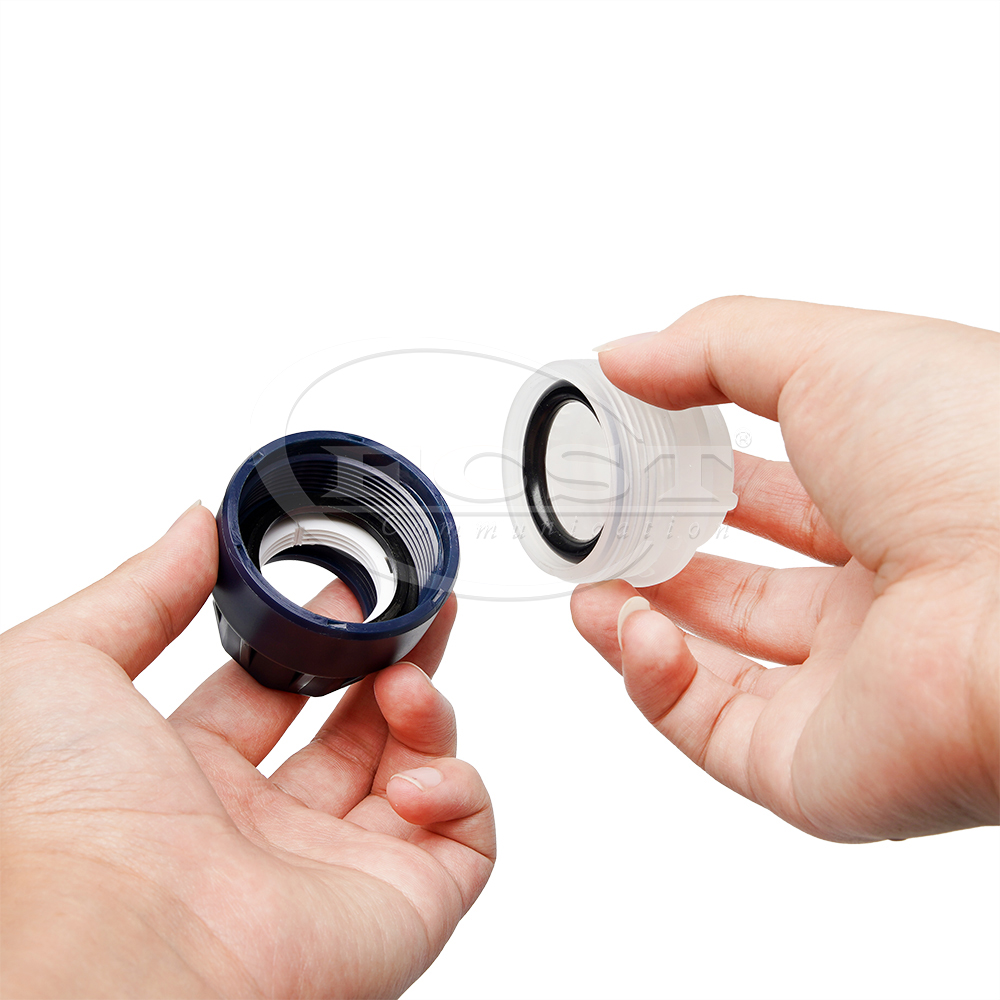

Self-locking ring design assembles in seconds and is re-enterable.

The visual confirmation of the pipe within the coupler ensures that it has been properly seated at the center stop.

Quantity

库存： 0

Add

Inquiry

Product Specifications

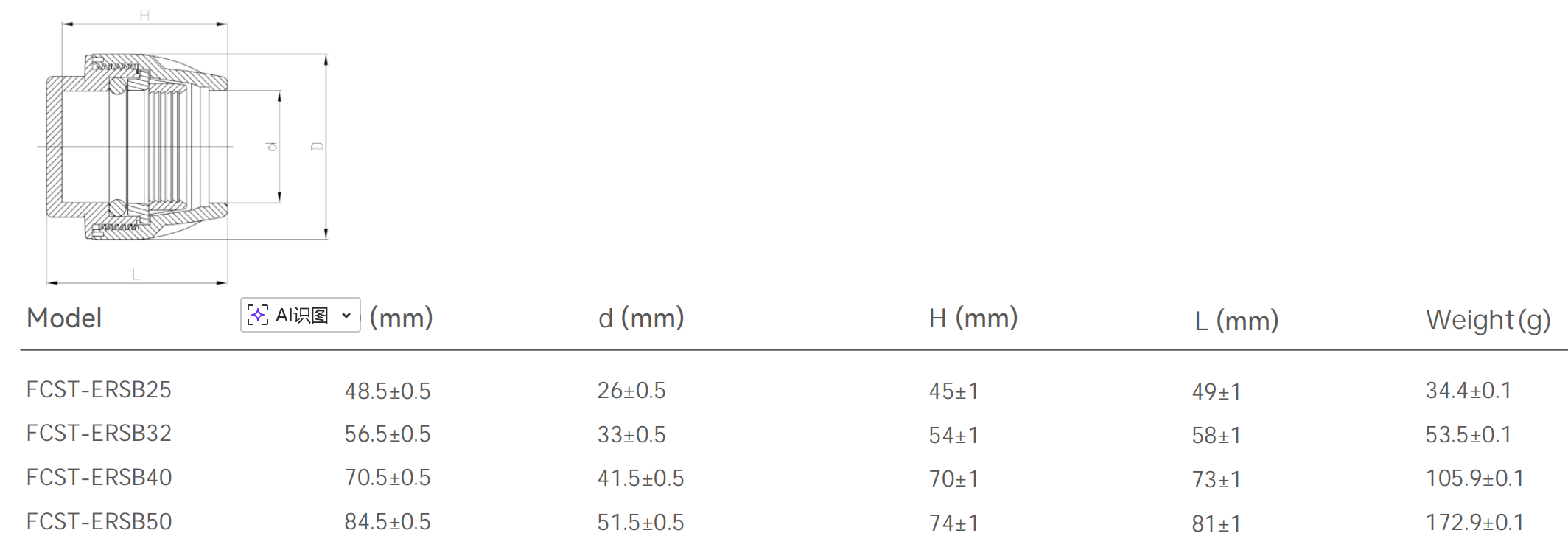

Product Structure

Product Data Download

Product FAQ

Product Specifications

Construction	Description
Material	PP
Reference Standard	JT/T496-2004、Q/KL020-2005
Appearance	Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread.
Tensile Resistance(Under Tightened State)	≥4300N
Weight(g)	53.5g(32mm)
High Temperature Resistance	-40℃~+65℃
