For 3-20 mm LSZH Microducts,EN 50411-2-8:2009、UL94-V0.
Product Advantages
Easy “push-in” installation.
For 3-20 mm LSZH Microducts.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Tested in accordance to UL94 V-0: flame resistance for in-building applications.
Quantity
库存: 0
Product Specifications
| Construction | Description |
| Tube To Connector | LSZH Microduct(indoor) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15℃ to +45℃ |
| Operation Temperature | -15℃ to +45℃ |
| Transport and Storage Temperature | -15℃ to +45℃ |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |

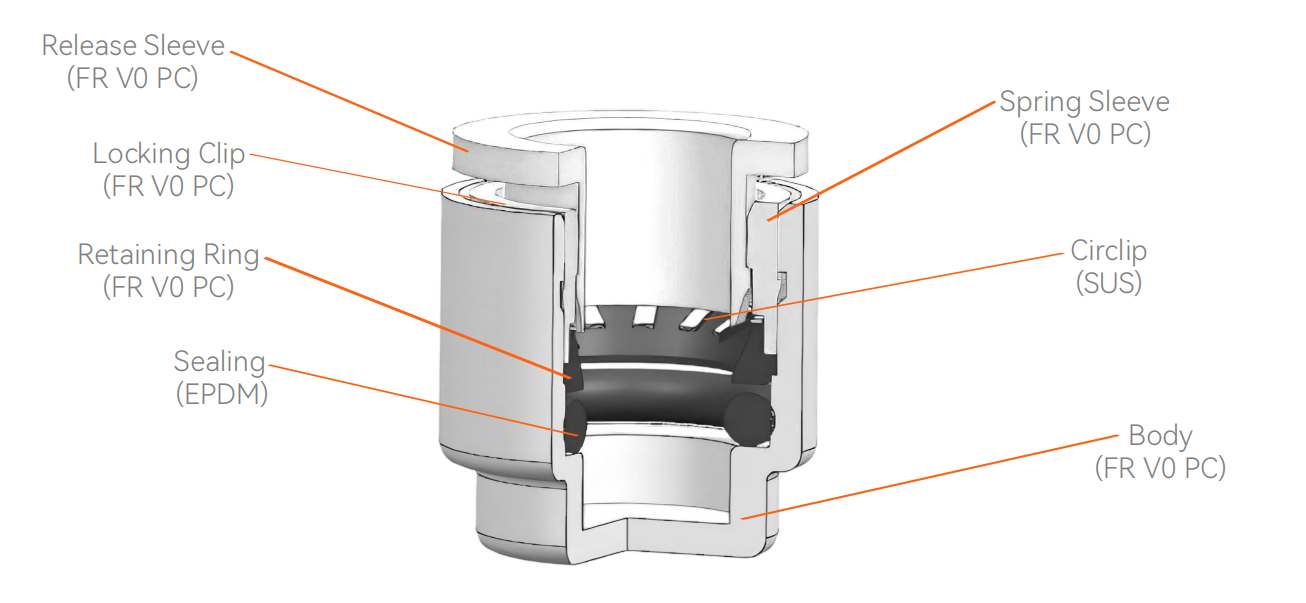

Product Structure

Product FAQ
What is the production capacity of LSZH Microduct End Caps?
Through which channels can we contact us to purchase LSZH Microduct End Caps?
What environmental certifications do LSZH Microduct End Caps comply with?
What industry standards do LSZH Microduct End Capss meet?
How long does it take to customize the LSZH Microduct End Capss?
How much non-recycled material is used in the standard packaging of LSZH Microduct End Capss?
