FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
FCST-15JDB-SC 15J Microduct Straight Coupler Use For HDPE Microduct( DB | DI | TW )
For 7/16 mm Microducts,EN 50411-2-8:2009.

Executive Standard

ISO9001|Rhos|Reach

Service Support

Minimum Order Quantity

1000PCS

Product Advantages

For 7 -16 mm microducts.

Easy “push-in” installation.

Full plastic design .(metal-free)

Crystal clear transparent body.ee)

Pre-assembled Safety Locking Clip.

Suitable for use in Direct Buried (DB) applications.

Components are made of recyclable materials to reduce CO2 dioxide emissions.

Quantity

库存: 0
Add
Product Specifications
ConstructionDescription
ConstructionDescription
Tube To ConnectorHDPE Microduct( DB | DI | TW )
FluidAir with blowing system
Working Pressure20 bar
Burst Pressure25 bar
Estimated Life25 years
Protection ClassIP68
Water Ingress Test0.5 bar during 168 hours
Installation Temperature-15°C to +50°C
Operation Temperature(after blowing)-20°C to +70°C
Transport and Storage Temperature-15°C to +45°C
Insertion ForceSize≤12mm,≤ 50 N | Size≥14mm,≤ 120 N
Impact Resistance15J
According To StandardsDIN EN 50411-2-8,EN 50411-2-5,lEC 60794-1-24, E4: 15 Joules,EN 61300-2-10,EN 61300-2-38:2006,IEC 60794-1-2 Method E1,Rohs,Reach

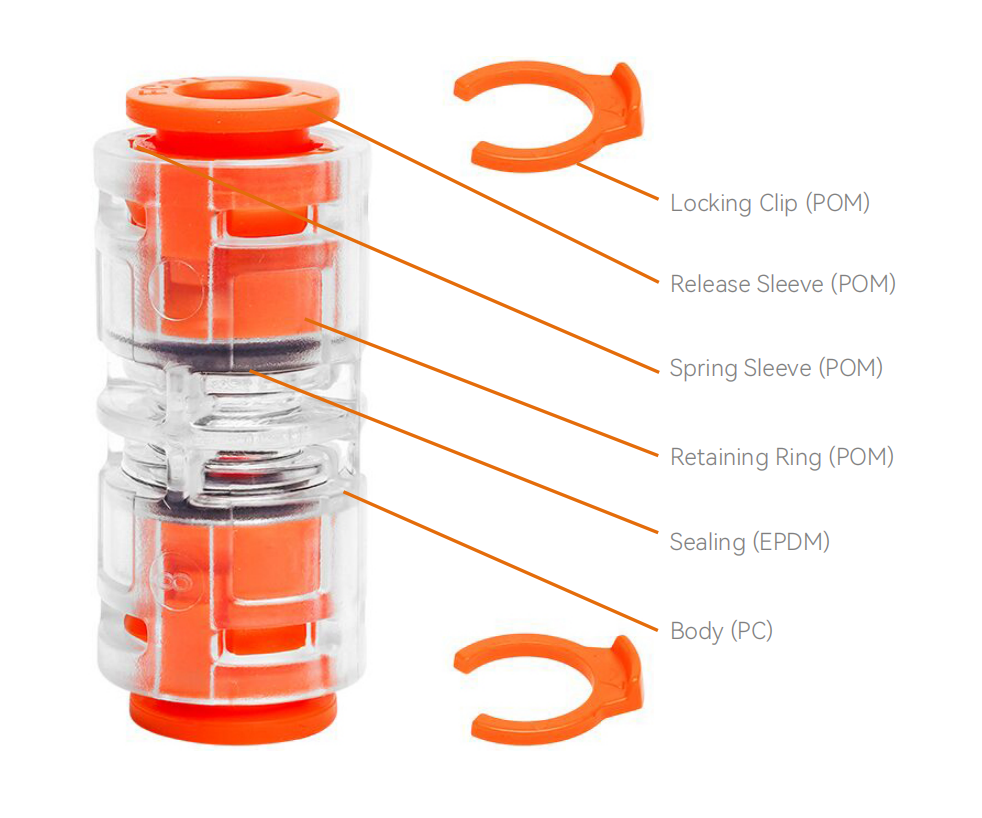

Product Structure

15J microduct connectors

Product FAQ

What is the production capacity of 15J Microduct Connector?

Which parts of 15J Microduct Connector can be customized in color?

What environmental certifications do Microduct Connector comply with?

What industry standards do 15J Microduct connectors meet?

How long does it take to customize the 15J Microduct connectors?

How much non-recycled material is used in the standard packaging of 15J Microduct connectors?
