L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
L-ERPG LSZH Microduct Reducer
For 5-14 mm LSZH Microducts,EN 50411-2-8:2009、UL94-V0.

Executive Standard

ISO9001|Rhos|UL94-V0

Service Support

Minimum Order Quantity

100PCS

Technical Specifications

Product Advantages

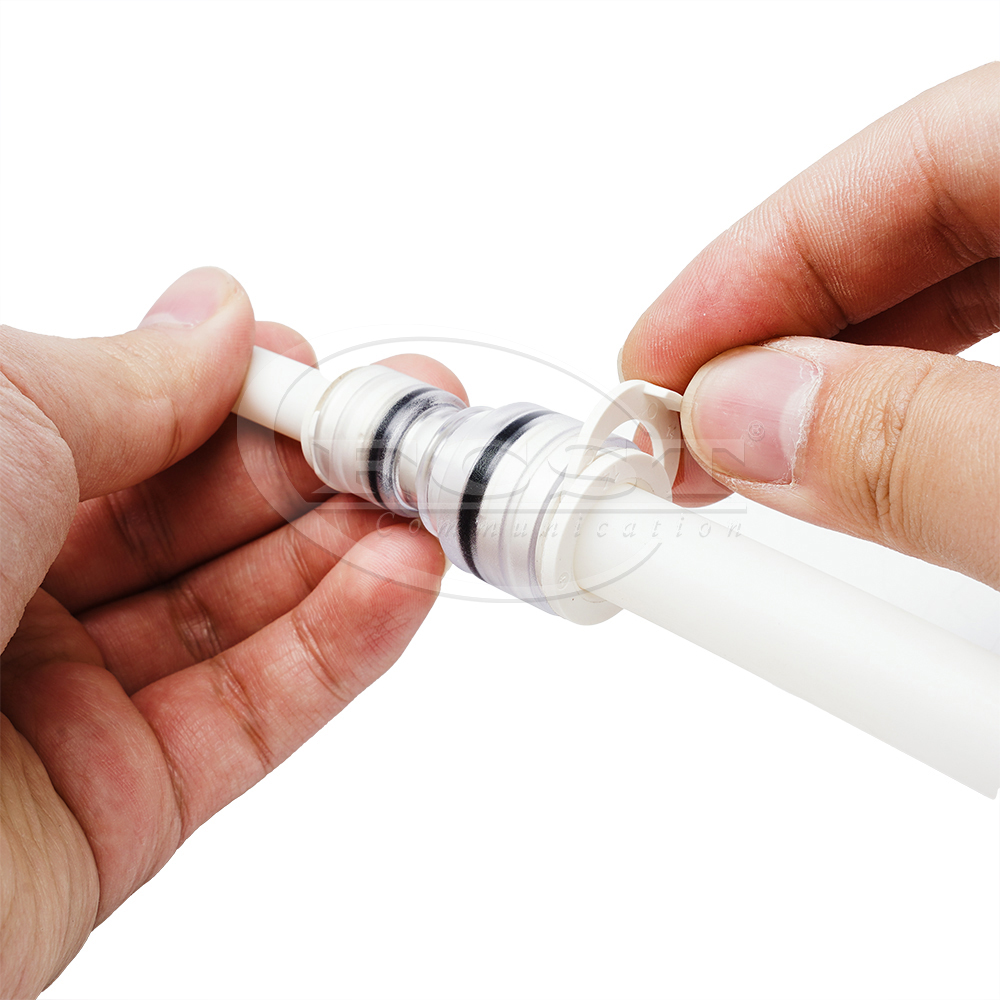

Easy “push-in” installation.

For 5-14 mm LSZH Microducts.

Crystal clear transparent body.

95% of the material is made of non-metal.

Tested in accordance to EN 50411-2-8:2009.

Locking rings to prevent accidental removal of connector.

Tested in accordance to UL94 V-0: flame resistance for in-building applications.

Quantity

库存: 0
Add
Product Specifications
ConstructionDescription
Tube To ConnectorLSZH Microduct(indoor)
FluidAir with blowing system
Working Pressure20 bar
Burst Pressure25 bar
Estimated Life25 years
Protection ClassIP68
Water Ingress Test0.5 bar during 168 hours
Installation Temperature-15℃ to +45℃
Operation Temperature-15℃ to +45℃
Transport and Storage Temperature-15℃ to +45℃
Insertion Force≤ 50 N
Impact Resistance1.5J
According To StandardsUL94 V-0,CEI EN 50411-2-8,EN 50411-2-5

Product Structure

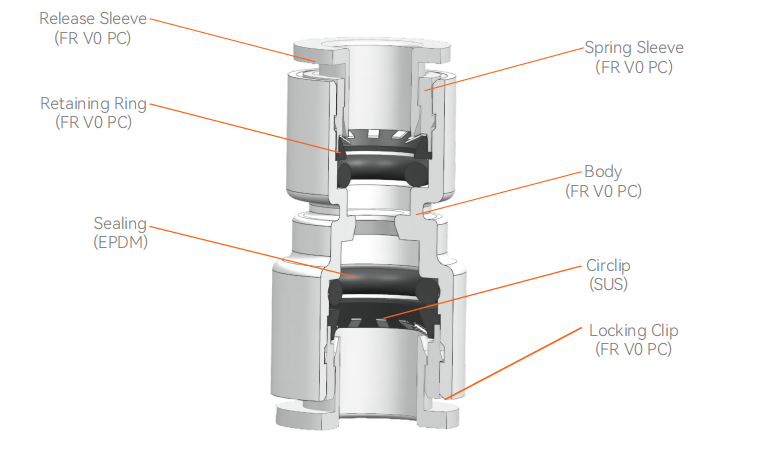

LSZH Microduct Reducer Structure

Product Data Download

Product FAQ

What is the production capacity of LSZH Microduct Reducer?

Through which channels can we contact us to purchase LSZH Microduct Reducer?

What environmental certifications do LSZH Microduct Reducer comply with?

What industry standards do LSZH Microduct Reducers meet?

How long does it take to customize the LSZH Microduct Reducers?

How much non-recycled material is used in the standard packaging of LSZH Microduct Reducers?
