Home Products Microduct Connector HDPE Silicon Core Pipe Coupler FCST-ERS40 Push Fit Duct Coupler

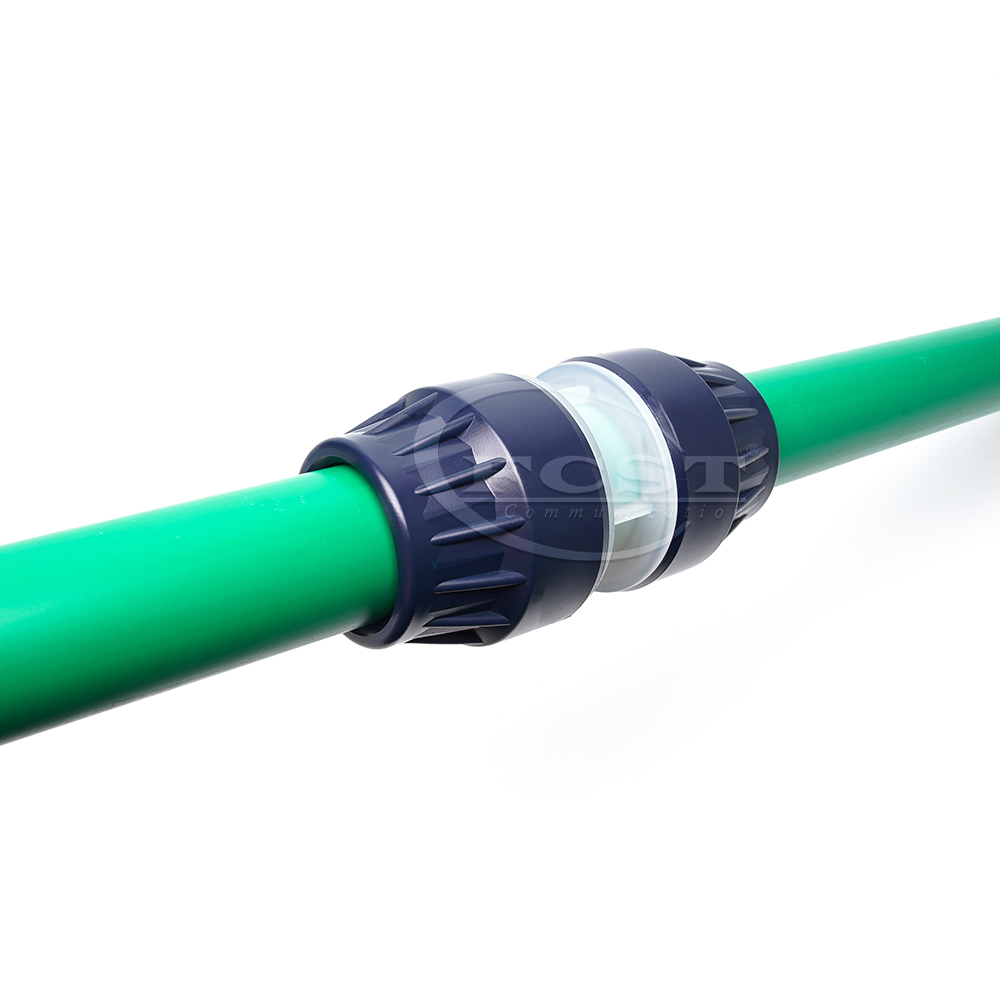

FCST-ERS40 Push Fit Duct Coupler

For 40mm Duct,Working Pressure:20 bar.

Executive Standard

ISO9001

Service Support

sales@fcst.com

Minimum Order Quantity

100PCS

Technical Specifications

Product Advantages

Compatible with 25/30/32/50mm pipes.

Pre-lubricated O-ring is water-tight and air-tight.

Suitable for both cable pulling & jetting applications.

Self-locking ring design assembles in seconds and is re-enterable.

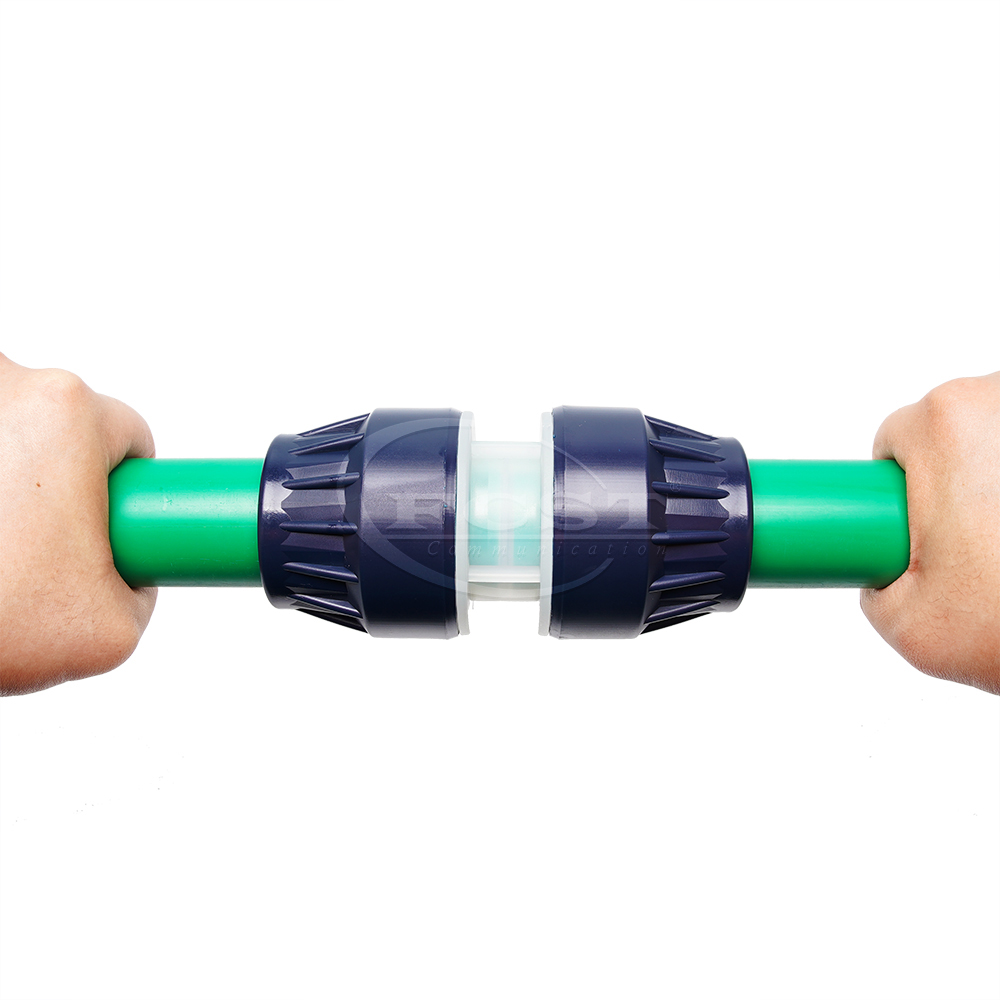

Simple, one person ‘push-on’ assembly lowers installation costs.

High strength molded plastic body is ideal for buried duct applications.

The visual confirmation of the pipe within the coupler ensures that it has been

properly seated at the center stop.

Quantity

库存： 0

Add

Inquiry

Product Specifications

Product Structure

Product Data Download

Product FAQ

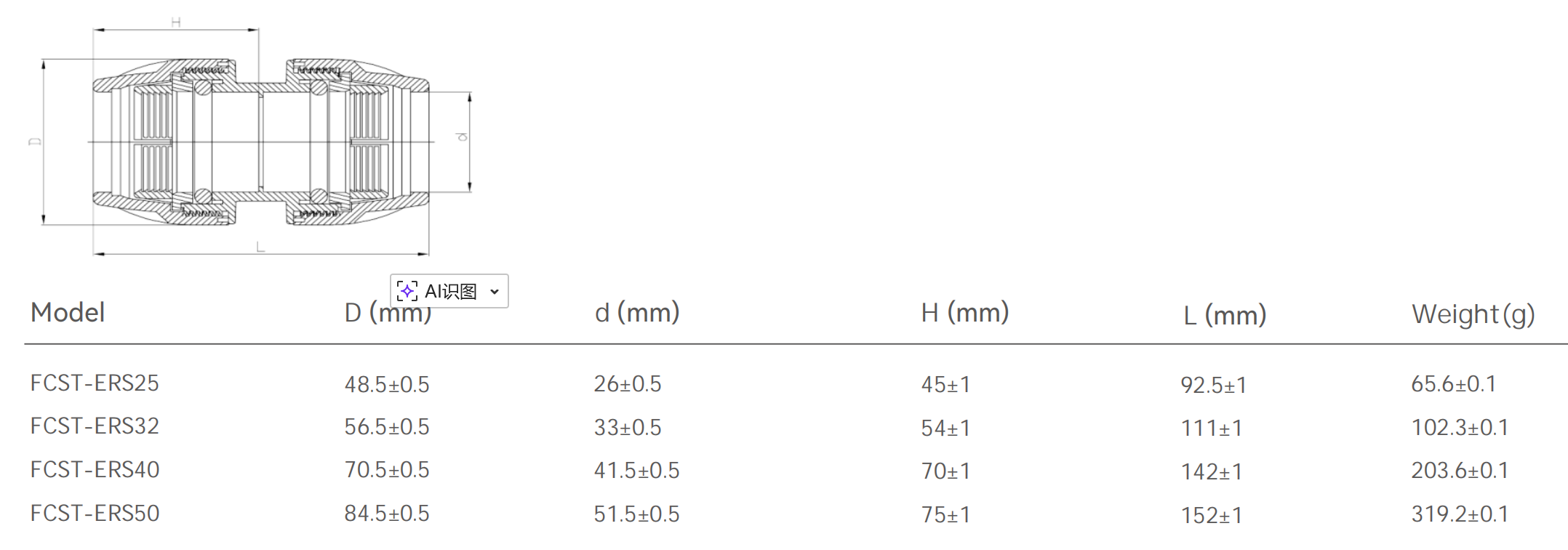

Product Specifications

Construction	Description
Material	PP
Reference Standard	JT/T496-2004、Q/KL020-2005
Appearance	Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread.
Tensile Resistance(Under Tightened State)	≥4300N
Weight(g)	102.3g(32mm)
High Temperature Resistance	-40℃~+65℃

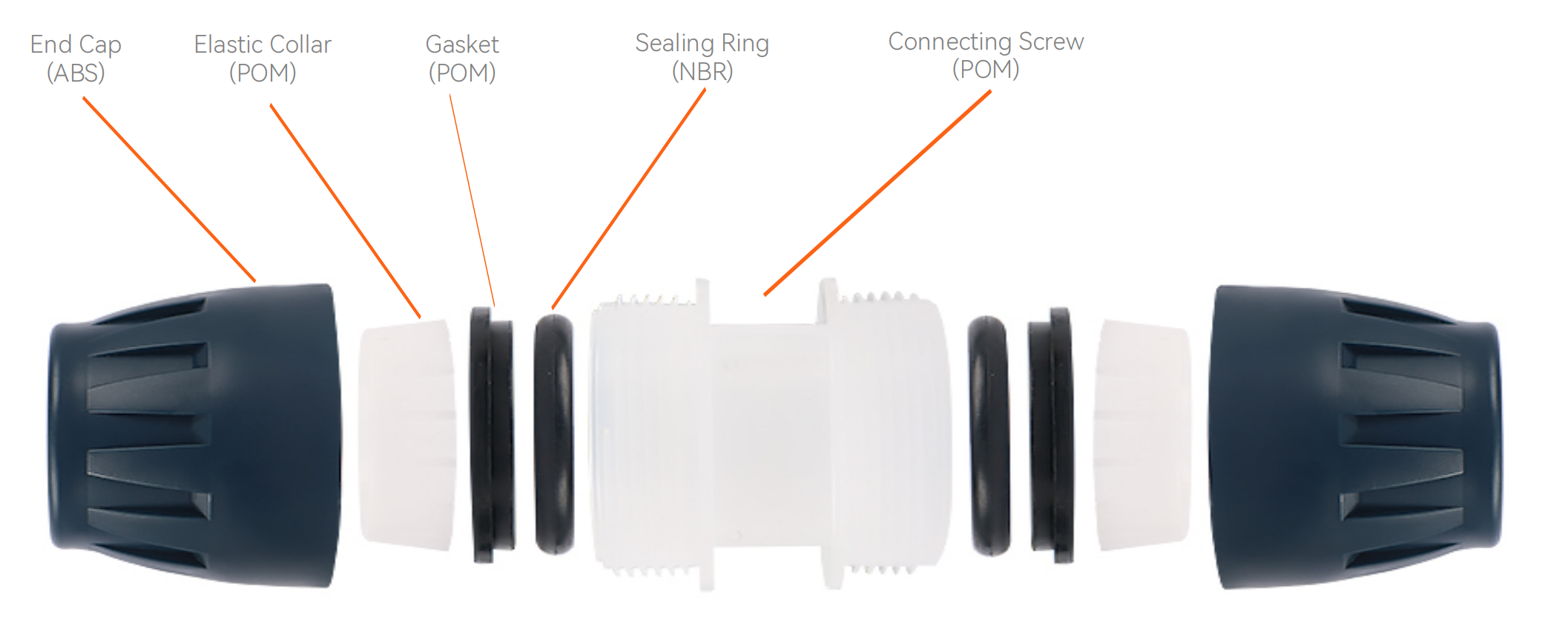

Product Structure

Product Data Download

FCST-ERS Push Fit Duct Coupler

Product FAQ

What is the production capacity of Push Fit Duct Coupler?

What transport methods does the Push Fit Duct Coupler support?

What industry standards do Push Fit Duct Coupler meet?

What is the sampling proportion of Push Fit Duct Coupler in the production process?

What trade terms are supported for imported Push Fit Duct Coupler ?

1)EXW(EXWorks)

Means that the seller delivers when it places the goods at the disposal of the buyer at the seller’s premises or at another named place (i.e., works,factory,warehouse,etc.). The sellers does not need to load the goods on any collecting vehicle,nor does it need to clear the goods for export, where sunch clearance is applicable.

2)DDP(Delivered Duty Paid)

Means that the seller delivers the goods when the goods are placed at the disposal of the buyer, cleared for import on the arriving means of transport ready for unloading at the named place of destination.

3) FCA( Free Carrier)

Means that the seller delivers the goods to the carrier or another person nominated by the buyer at the seller’s premises or another named place.

4) FAS(Free Alongside Ship)

Means that the seller delivers when the goods are placed alongside the vessel(e.g., on a quay or a barge) nominated by the buyer at the named port of shipment.

5) FOB(Free on Board)

Means that the seller delivers the goods on board the vessel nominated by the buyer at the named port of shipment or procures the goods already so delivered.

6) CFR(Cost and Freight)

Means that the seller delivers the goods on board the vessel or procures the goods already so delivered.

7)CIF（Cost, Insurance and Freight)

Means that the seller delivers the goods onboard the vessel or procures the goods already so delivered.

8) CPT(Carriage Paid To)

Means that the seller delivers the goods to the carrier or another person nominated by the seller at an agreed place (if any such place is agreed between the parties) and that the seller must contract for the pay the costs of carriage necessary to bring the goods to the named place of destination.

9) CIP(Carriage and Insurance Paid to)

Means that the seller delivers the goods to the carrier or another person nominated by the seller at an agreed place (if any such place is agreed between the parties) and that the seller must contract for and pay the costs of carriage necessary to bring the goods to the named place of destination.

10) DAT(Delivered at Terminal)

Means that the seller delivers when the goods,once unloaded from the arriving means of transport, are placed at the disposal of the buyer at a named terminal at the named port or place of destination.

11) DAP(Delivered at place)

Means that the seller delivers when the goods are placed at the disposal of the buyer on the arriving means of transport ready for unloadiFCST can choose different trading methods according to customer needs.he named place of destination.

FCST can choose different trading methods according to customer needs.
