For 3-20 mm LSZH Microducts,EN 50411-2-8:2009、UL94-V0.
Product Advantages
For 3-20 mm LSZH Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Tested in accordance to UL94 V-0: flame resistance for in-building applications.
Quantity
库存: 0
Product Specifications
| Construction | Description |
| Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15℃ to +45℃ |
| Operation Temperature | -15℃ to +45℃ |
| Transport and Storage Temperature | -15℃ to +45℃ |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |

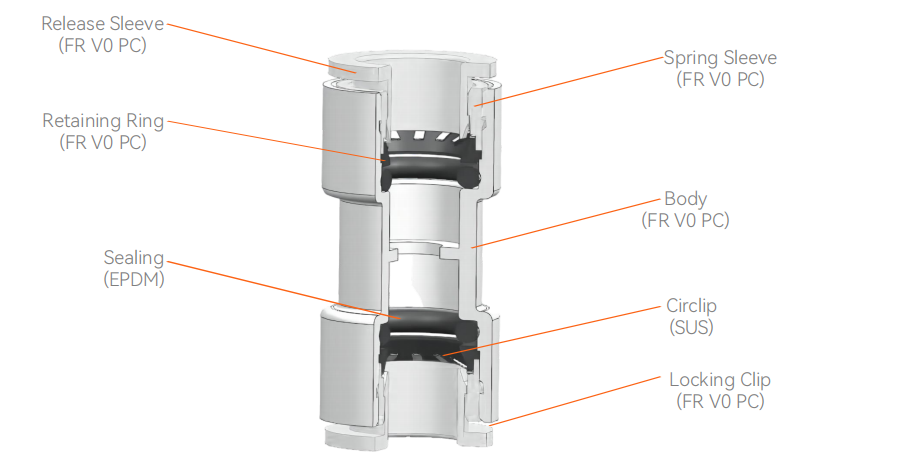

Product Structure

Product FAQ
What is the production capacity of LSZH Microduct Straight Connector?
Through which channels can we contact us to purchase LSZH Microduct Straight Connector?
What environmental certifications do LSZH Microduct Straight Connector comply with?
What industry standards do LSZH Microduct Straight Connectors meet?
How long does it take to customize the LSZH Microduct Straight Connectors?
How much non-recycled material is used in the standard packaging of LSZH Microduct Straight Connectors?
