For 3-8 mm Microducts,EN 50411-2-8:2009.
Product Advantages
For 5-8 mm Microducts.

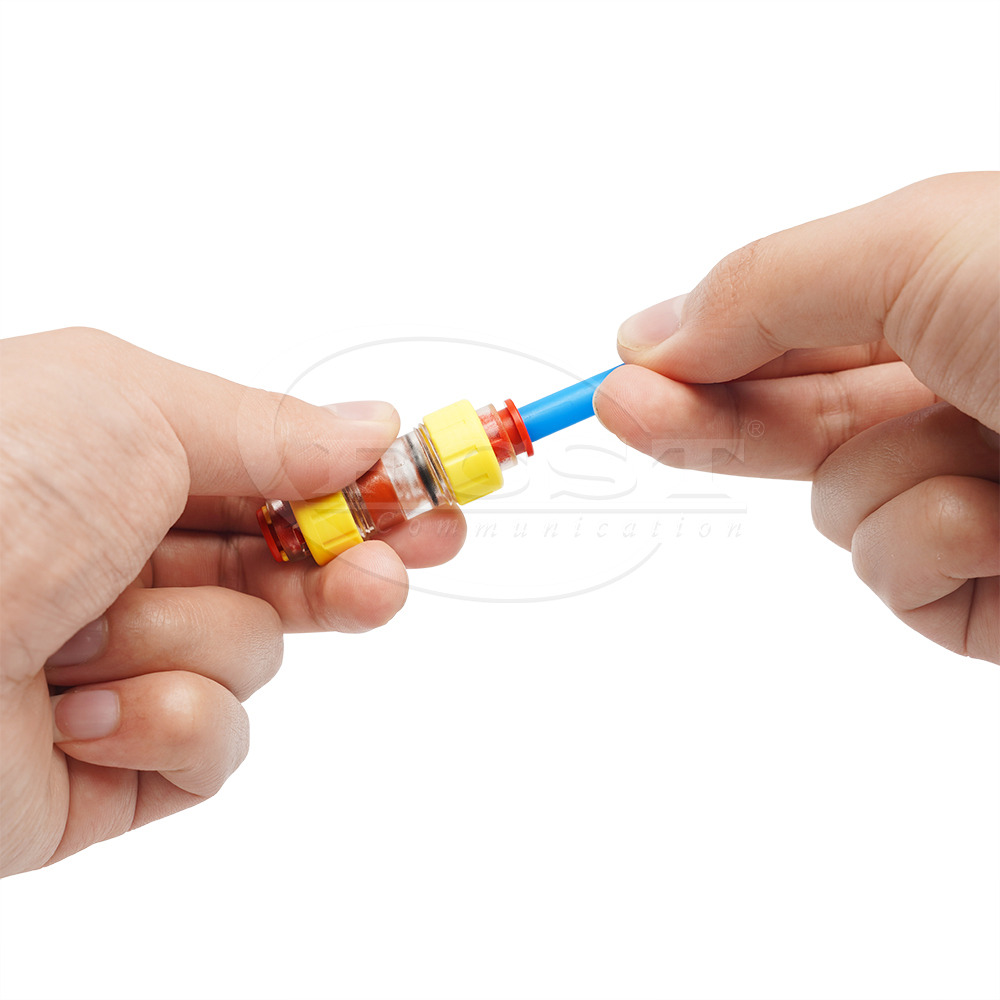

Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Gas and watertight seal inside microducts with installed fibers.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15℃ to +45℃ |
| Operation Temperature | -15℃ to +45℃ |
| Transport and Storage Temperature | -15℃ to +45℃ |
| Insertion Force | Size≤12mm,≤ 50 N |
| Impact Resistance | 1.5J |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |

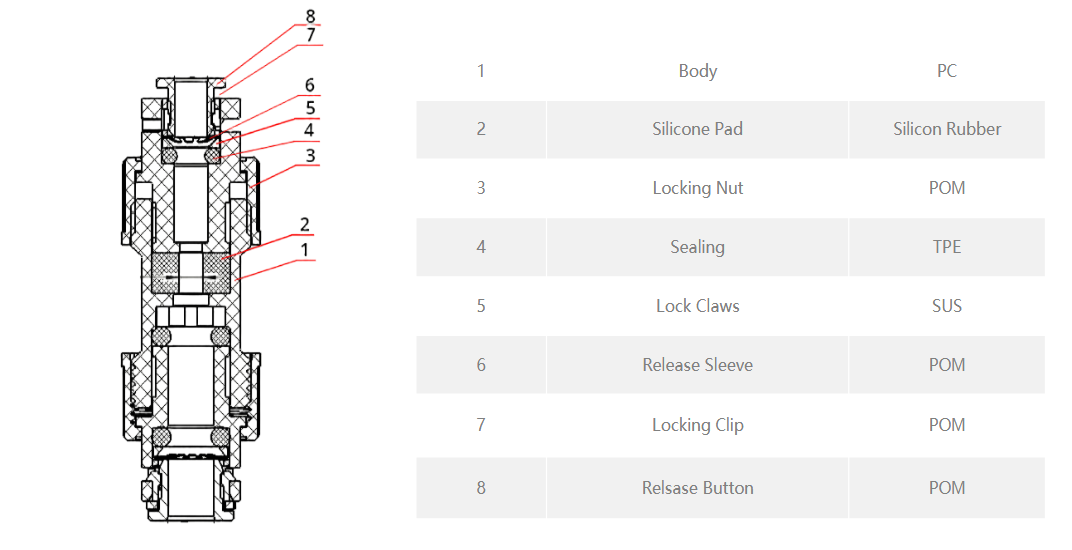

Product Structure
Product FAQ
What is the production capacity of Gas-Water Microduct Reducer?

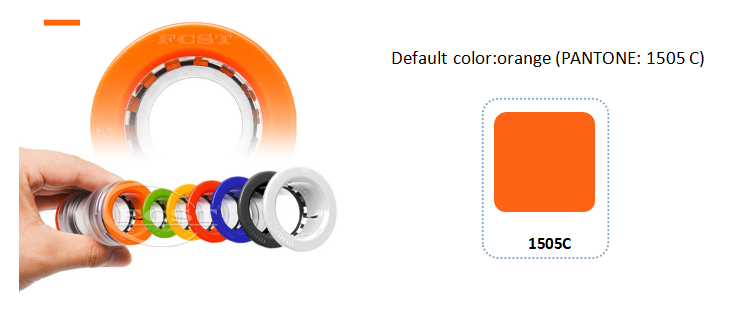

Which parts of Gas-Water Microduct Reducer can be customized in color?
What environmental certifications do Gas-Water Microduct Reducer comply with?
What industry standards do Gas-Water Microduct Reducer meet?
How long does it take to customize the Gas-Water Microduct Reducer?
How much non-recycled material is used in the standard packaging of Gas-Water Microduct Reducer?
