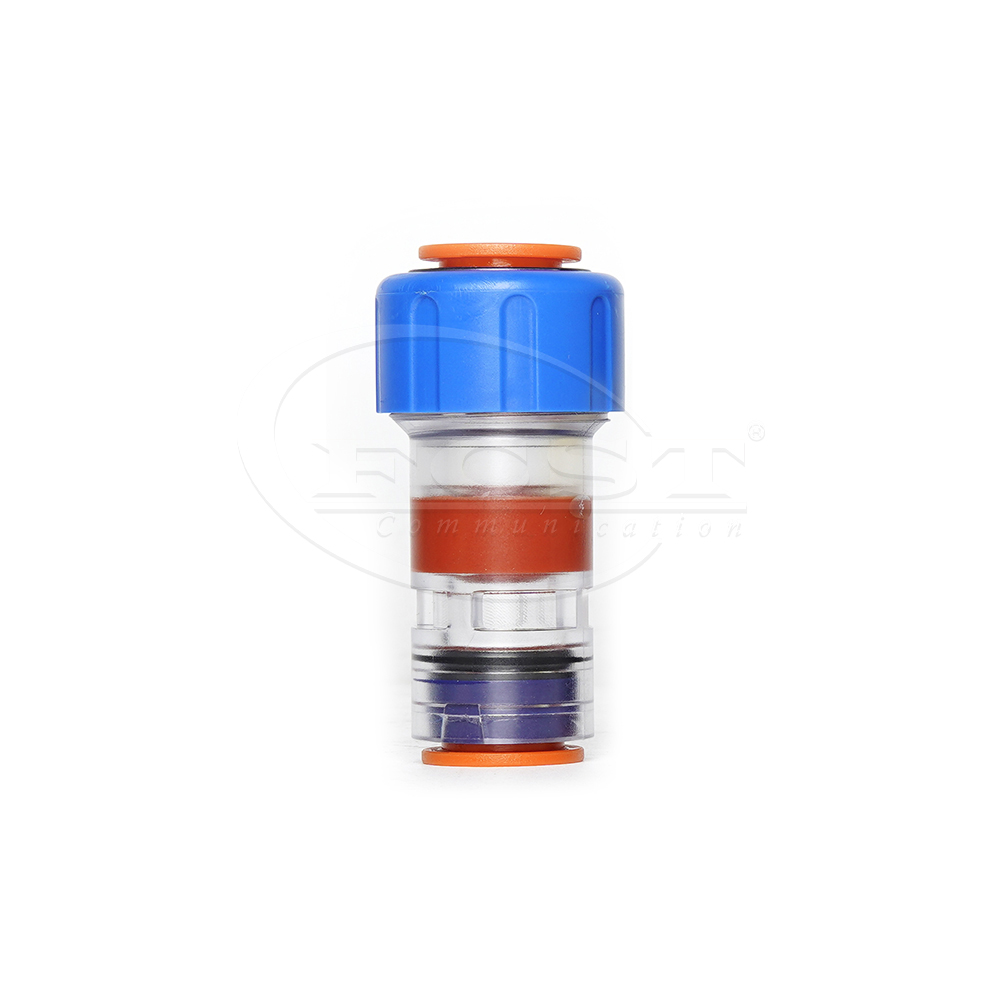

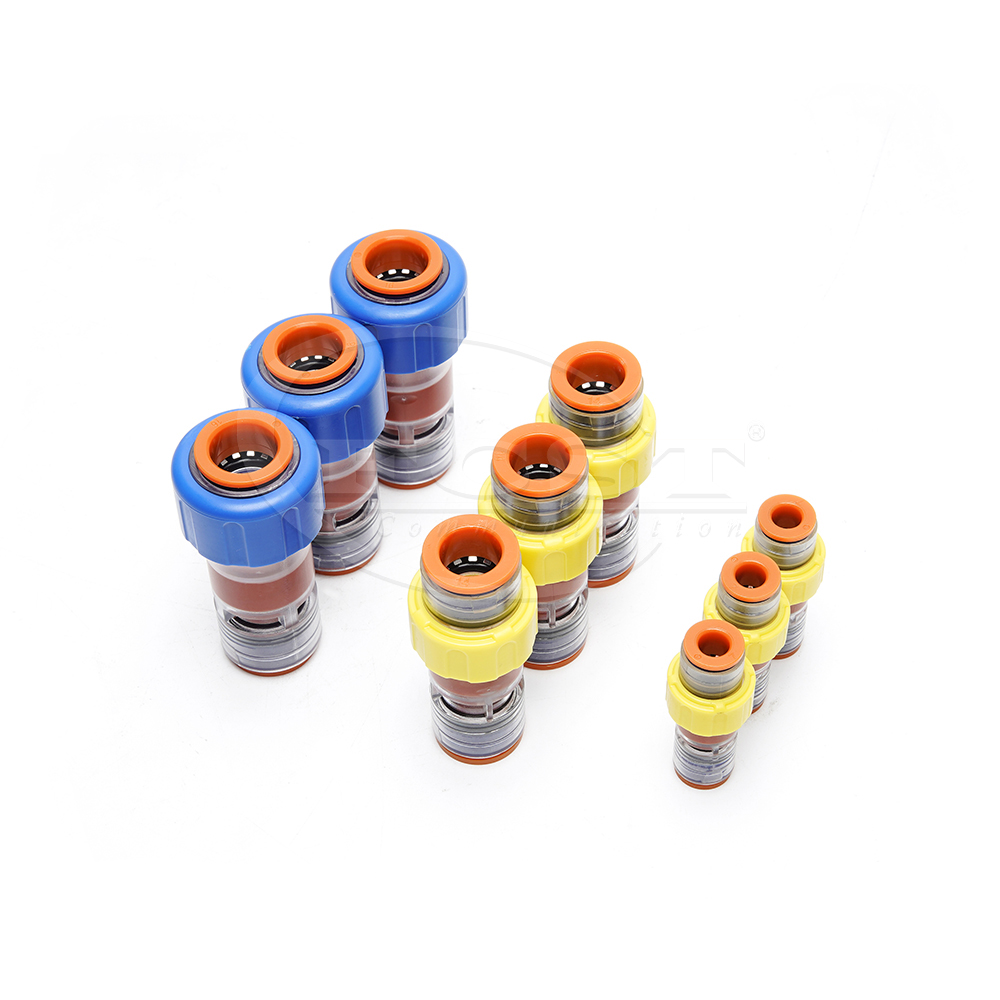

For 5-20 mm Microducts,EN 50411-2-8:2009.
Product Advantages
For 5-20 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Rugged design for direct buried and above ground use.
Quantity
库存: 0
Product Specifications
| Construction | Description |
| Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Sealing | Up to 0.5 bar |
| Installation Temperature | -45°C to +50°C |
| Operation Temperature | -40°C to +70°C |
| Transport and Storage Temperature | -40°C to +70°C |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
| EN 61300-2-38 | 2006,Method B:Pressure Loss |
| EN 50411-2-8 | Annex C: High Pressure Resistance |
| EN 61300-2-23 | 1997,Method 2:Water Immersion |
| EN 61386- 24 | Conduit Systems Buried Underground |
| EN 61300-2-38 | 2006, Method A:Sealing Performance |

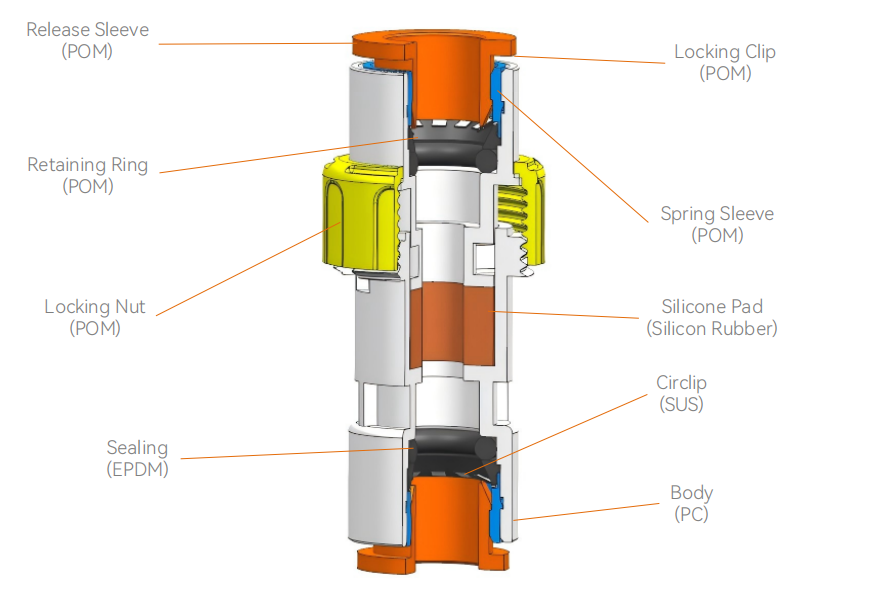

Product Structure
