For 7/16 mm Microducts,EN 50411-2-8:2009.
Product Advantages
For 7 -16 mm microducts.
Easy “push-in” installation.
Full plastic design .(metal-free)
Crystal clear transparent body.ee)
Pre-assembled Safety Locking Clip.

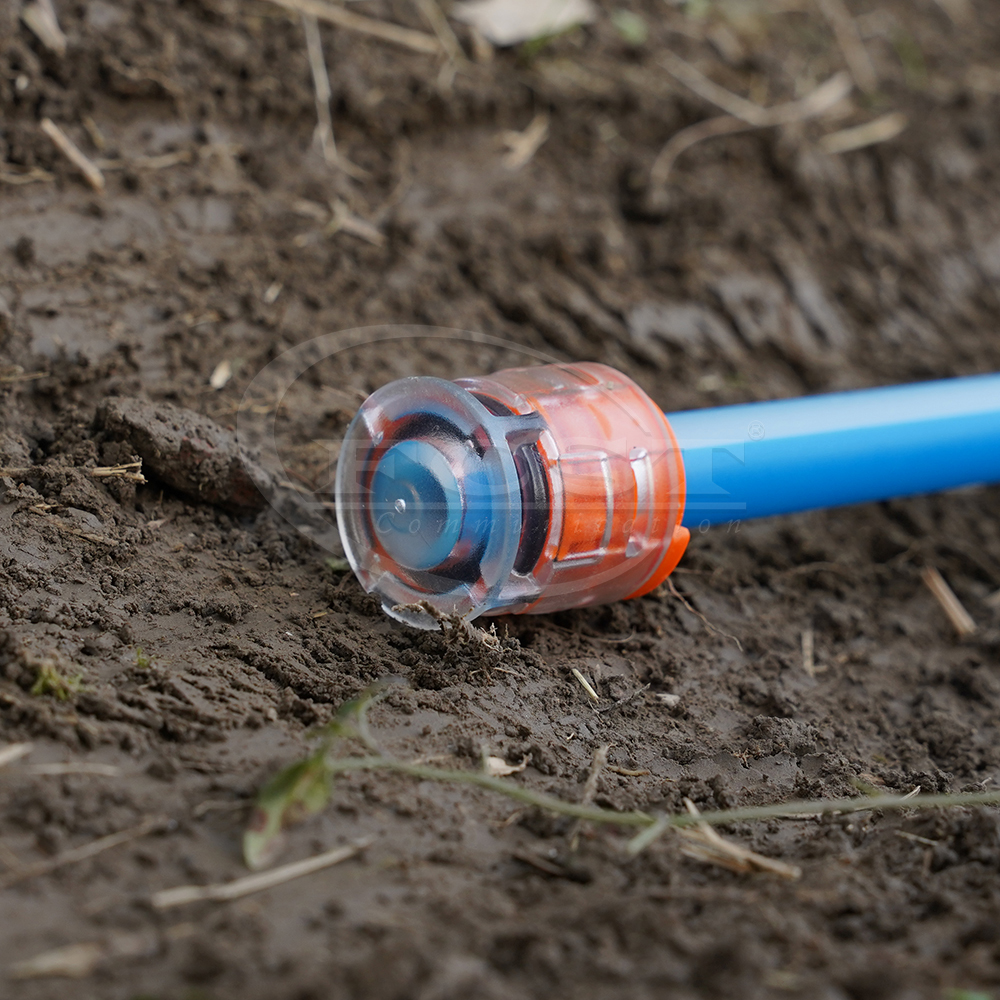

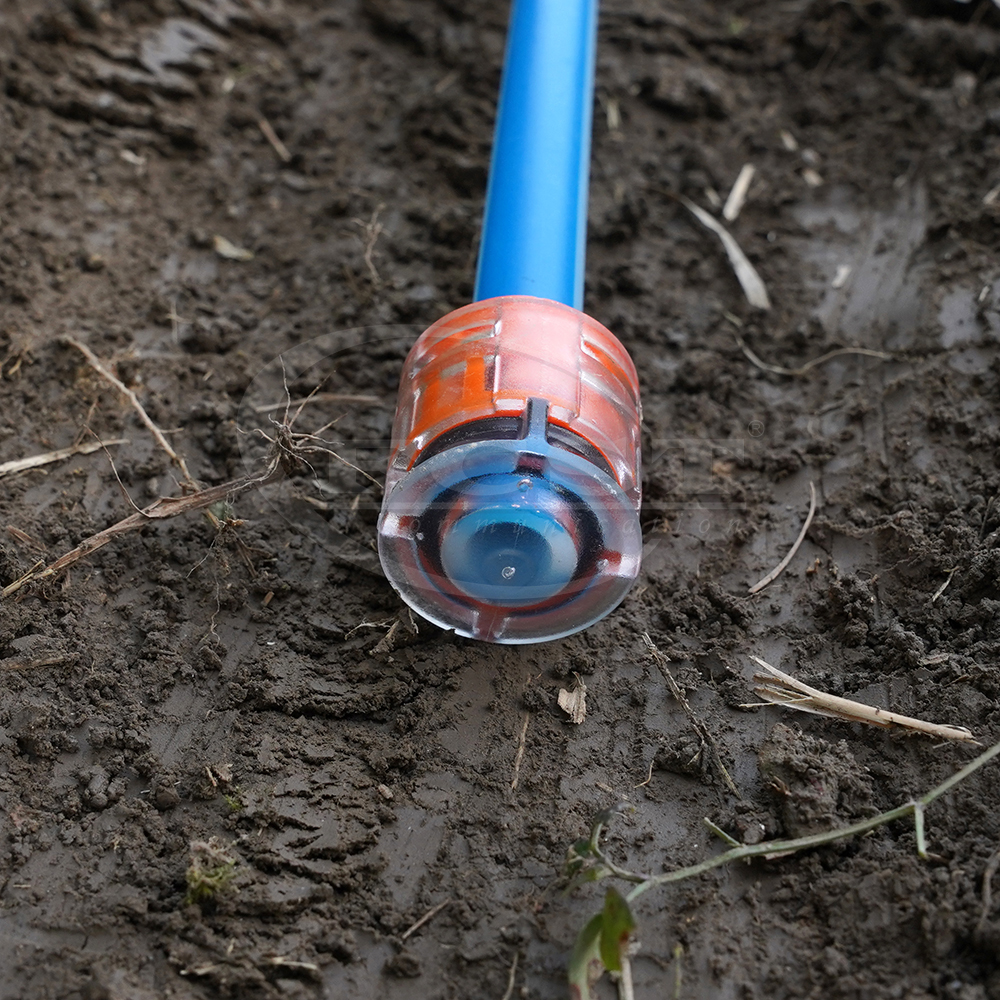

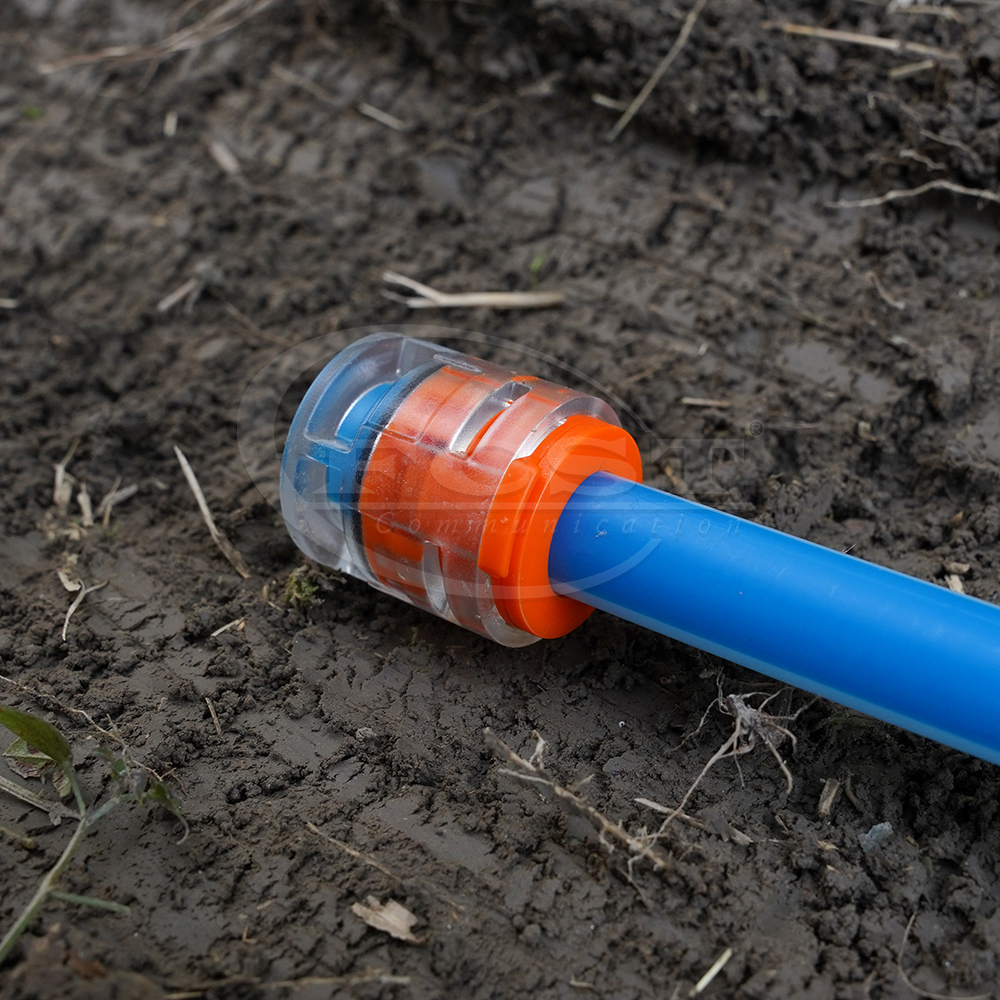

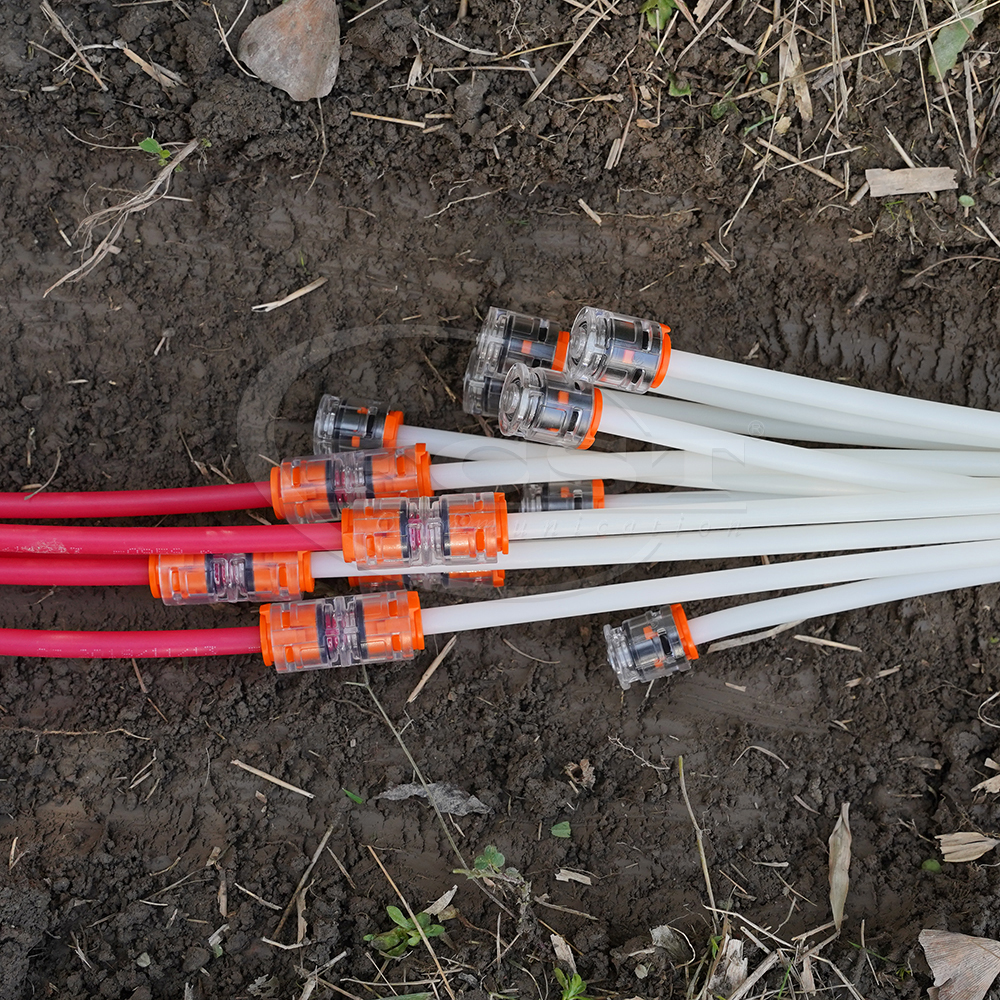

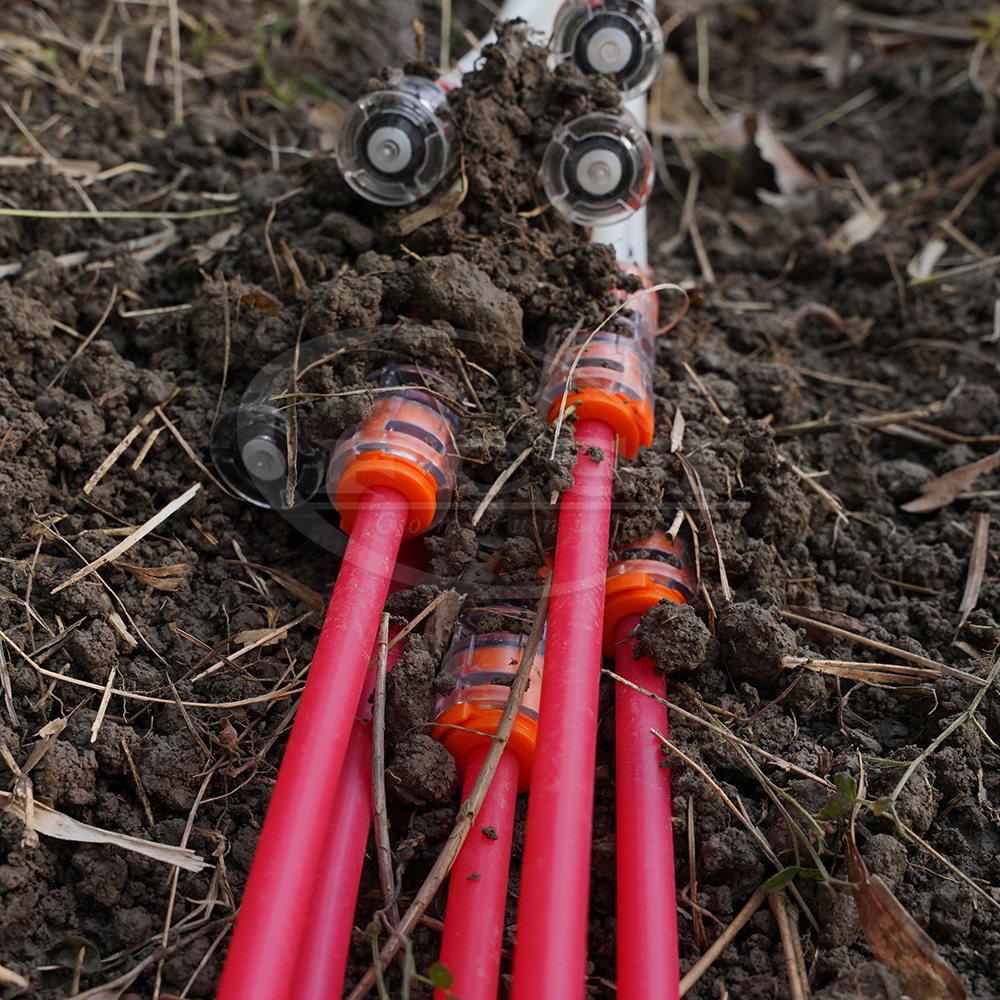

Suitable for use in Direct Buried (DB) applications.
Components are made of recyclable materials to reduce CO2 dioxide emissions.
Quantity
库存: 0
Product Specifications
| Construction | Description |
| Construction | Description |
| Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15°C to +50°C |
| Operation Temperature(after blowing) | -20°C to +70°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 15J |
| According To Standards | DIN EN 50411-2-8,EN 50411-2-5,lEC 60794-1-24, E4: 15 Joules,EN 61300-2-10,EN 61300-2-38:2006,IEC 60794-1-2 Method E1,Rohs,Reach |

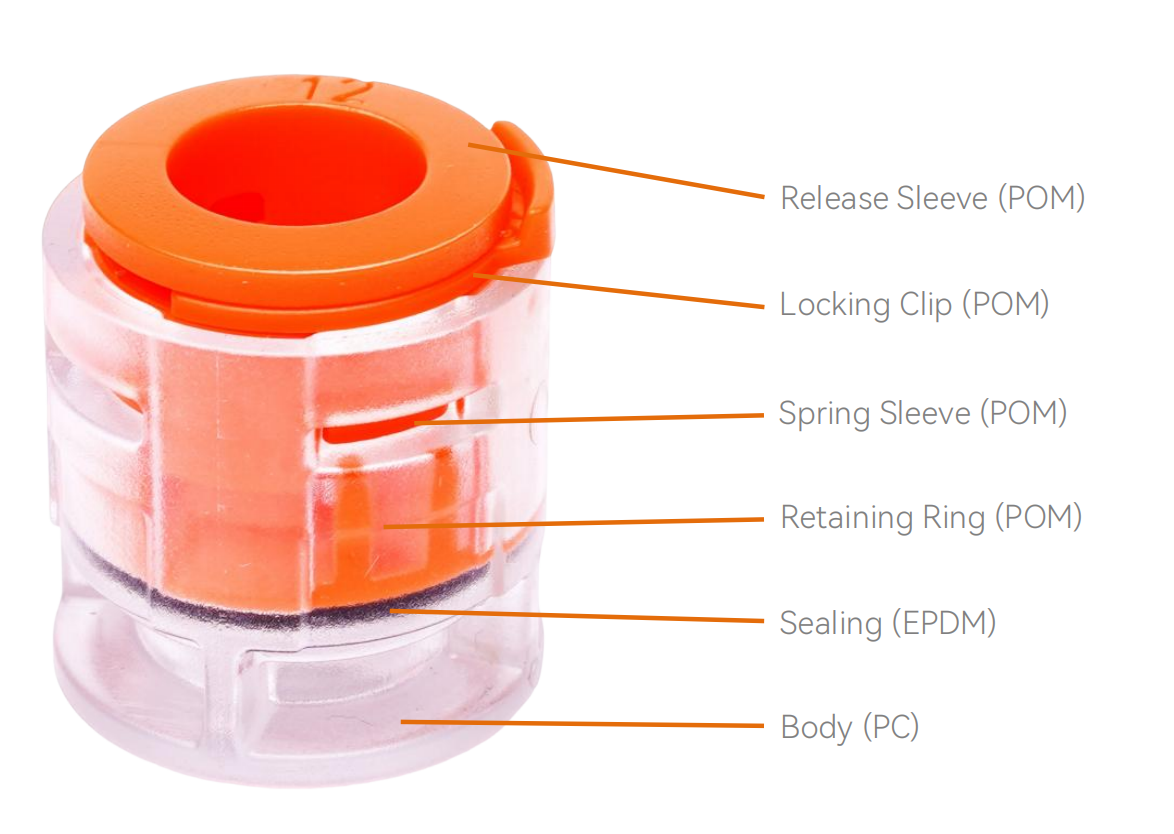

Product Structure

Product FAQ
What is the production capacity of 15J Microduct Connector?

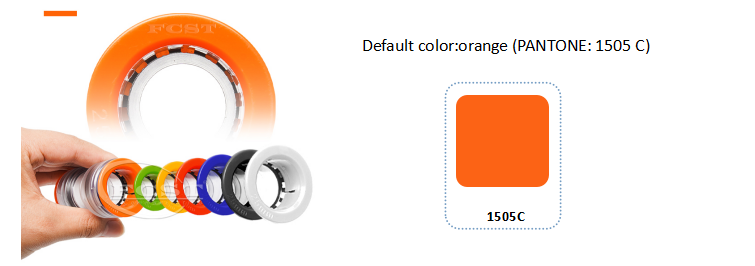

Which parts of 15J Microduct Connector can be customized in color?

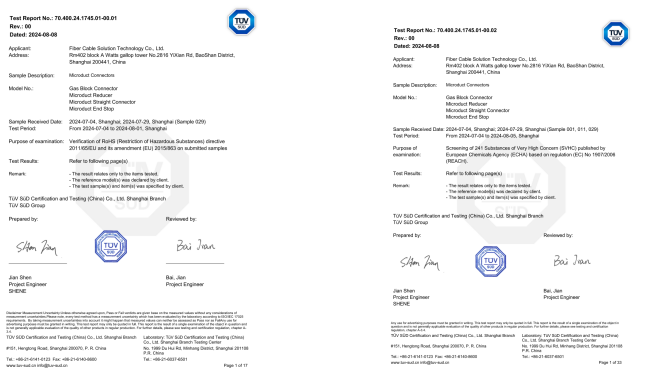

What environmental certifications do Microduct Connector comply with?
What industry standards do 15J Microduct connectors meet?
How long does it take to customize the 15J Microduct connectors?
How much non-recycled material is used in the standard packaging of 15J Microduct connectors?
