FCST-Underground Cable Installation Solution

The Fiber Blowing System from FCST provides numerous advantages over conventional fiber cable installation systems, including increased flexibility for the designers of fiber optic networks as well as significant and measurable time, cost and service benefits to the network throughout its life cycle.
solution-1

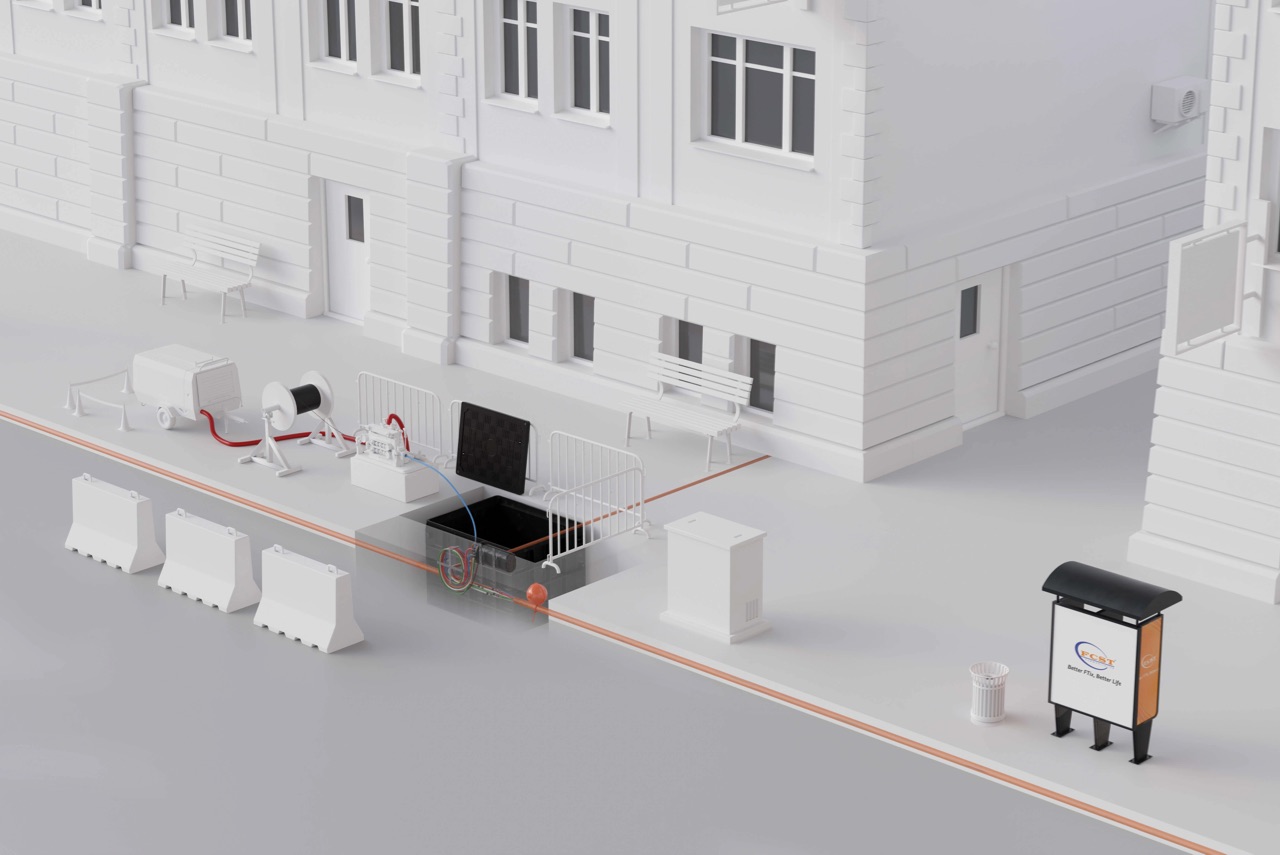

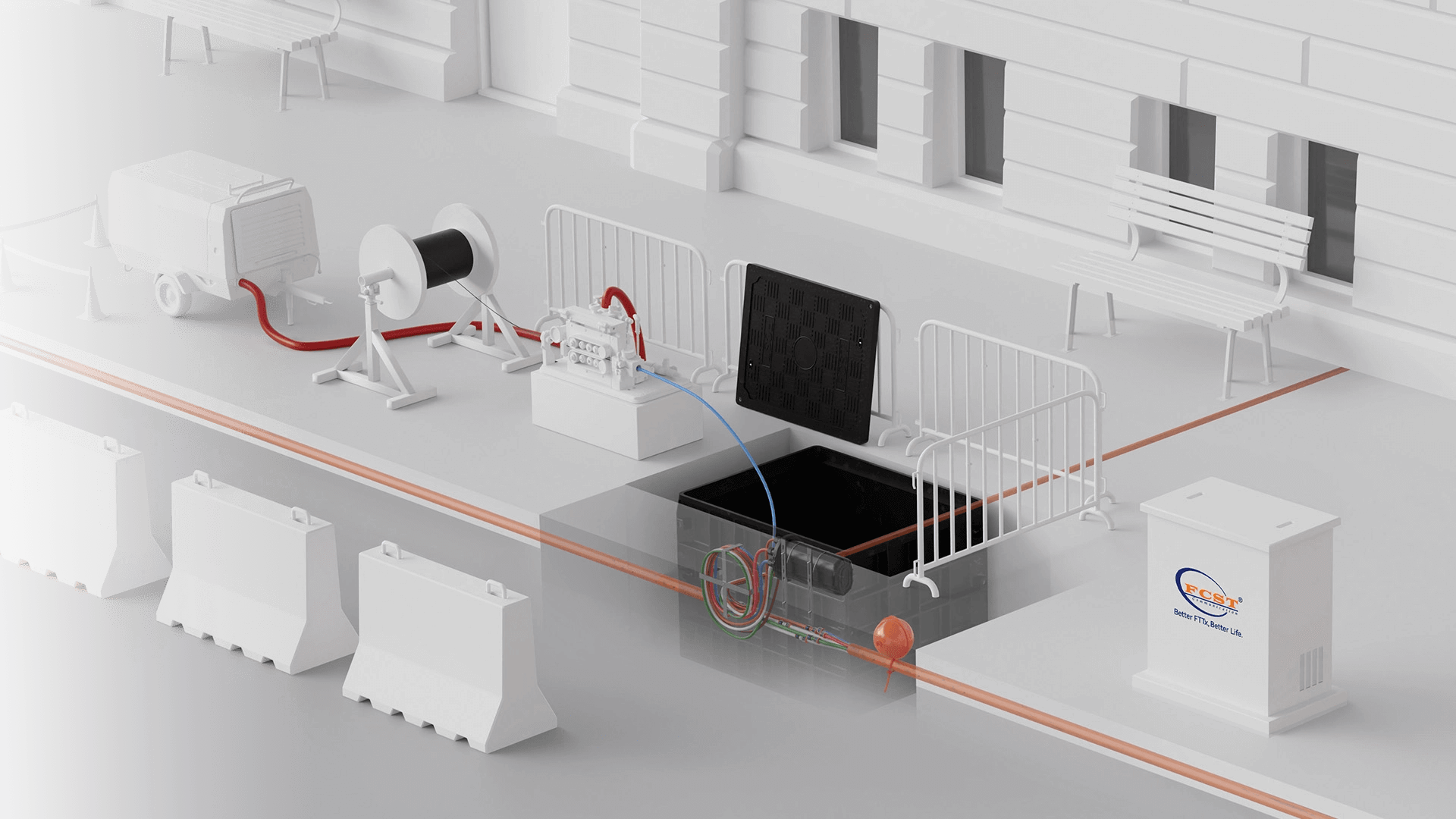

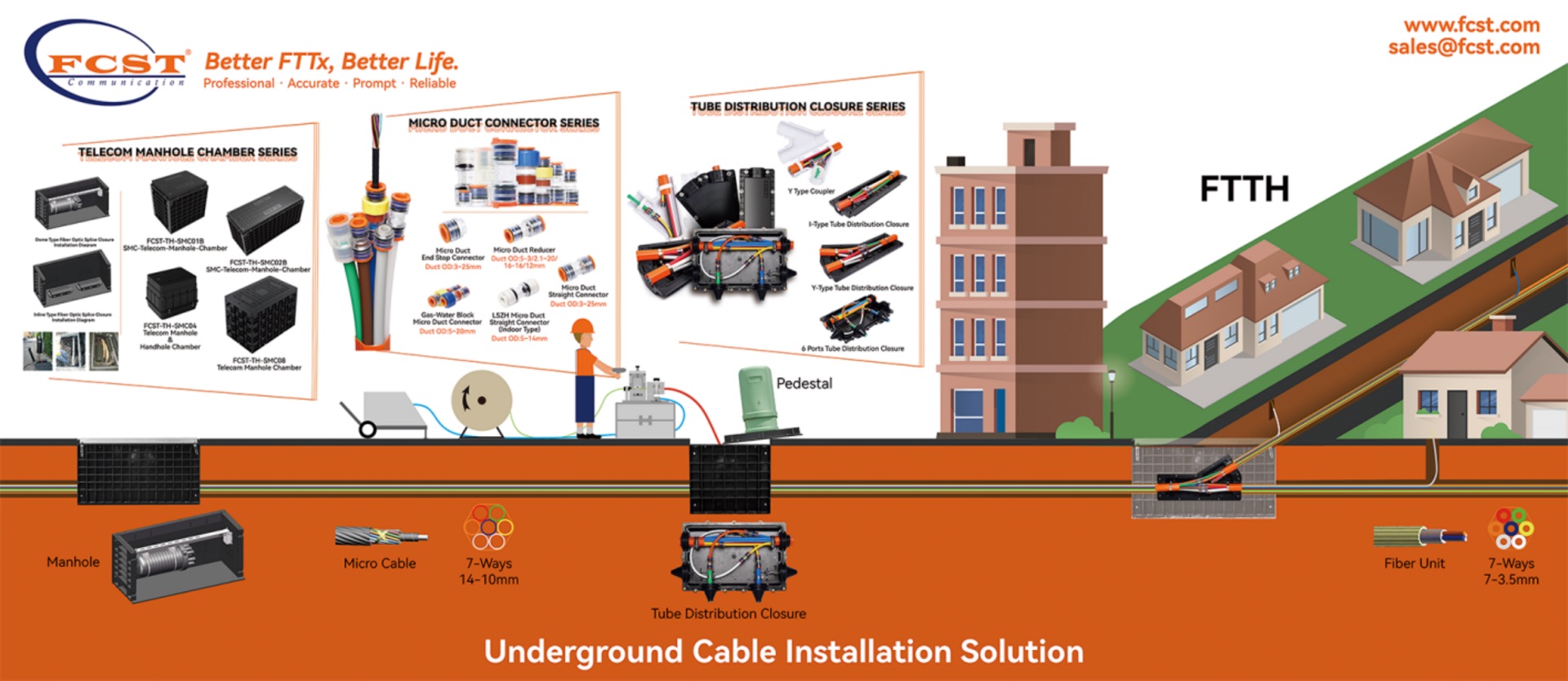

FIG1-Underground Cable Installation Solution
With the rapid development of urban construction, urban pipeline resources are becoming less and less, cost is raising up for open road, road management and urban noise restrictions increased construction costs for telecommunications operator. FCST is offering professional fiber blowing solution and related products. Including products for backbone, LAN, pipeline expansion and FTTX network.

The Fiber Blowing System from FCST provides numerous advantages over conventional fiber cable installation systems, including increased flexibility for the designers of fiber optic networks as well as significant and measurable time, cost and service benefits to the network throughout its life cycle.

Pulling Method VS Air Blowing Method

Optical fiber cables for telecommunication application have been installed in pipes/ducts for many years. The installation process is influenced by local conditions, local climate, customer’s existing procedures, and customer requirements. There are two basic methods of cable installation in a preinstalled duct – Pulling method and Blowing method. The cable installation method is selected based on site conditions and availability of machinery & resources. Table 1 shows a comparison between the two installation methods.
Table 1 : Comparison between Pulling and Blowing methods

Pulling Method

Blowing Method

Pulling rope pre-installed

No pulling rope to install

Equipment and manpower at two sides

Equipment and manpower at one side

High sidewall forces on cables and ducts may lead to cable damage

Forces on cable and duct can be monitored and controlled and minimal chance of cable damage

Mainly manual pulling is practiced.

Large compressor and/or hydraulic power pack at one side

Machine pulling needs one hydraulic power pack

Mainly used for straight duct route

Preferred for duct route with multiple bends and undulations

Suitable for short distance (few 100m) installation

Preferred for long distance (over 2km) installation


Backbone-Fiber Blowing Solution
With the rapid development of urban construction, urban pipeline resources are becoming less and less, cost is raising up for open road, road management and urban noise restrictions increased construction costs for telecommunications operator. FCST is offering professional fiber blowing solution and related products. Including products for backbone, LAN, pipeline expansion and FTTX network.

Fiber Blowing System from FCST Cable provides numerous advantages over conventional fiber optic systems, including increased flexibility for the designers of fiber optic networks as well as significant and measurable time, cost and service benefits to the network throughout its life cycle.
下拉箭头小
收起箭头

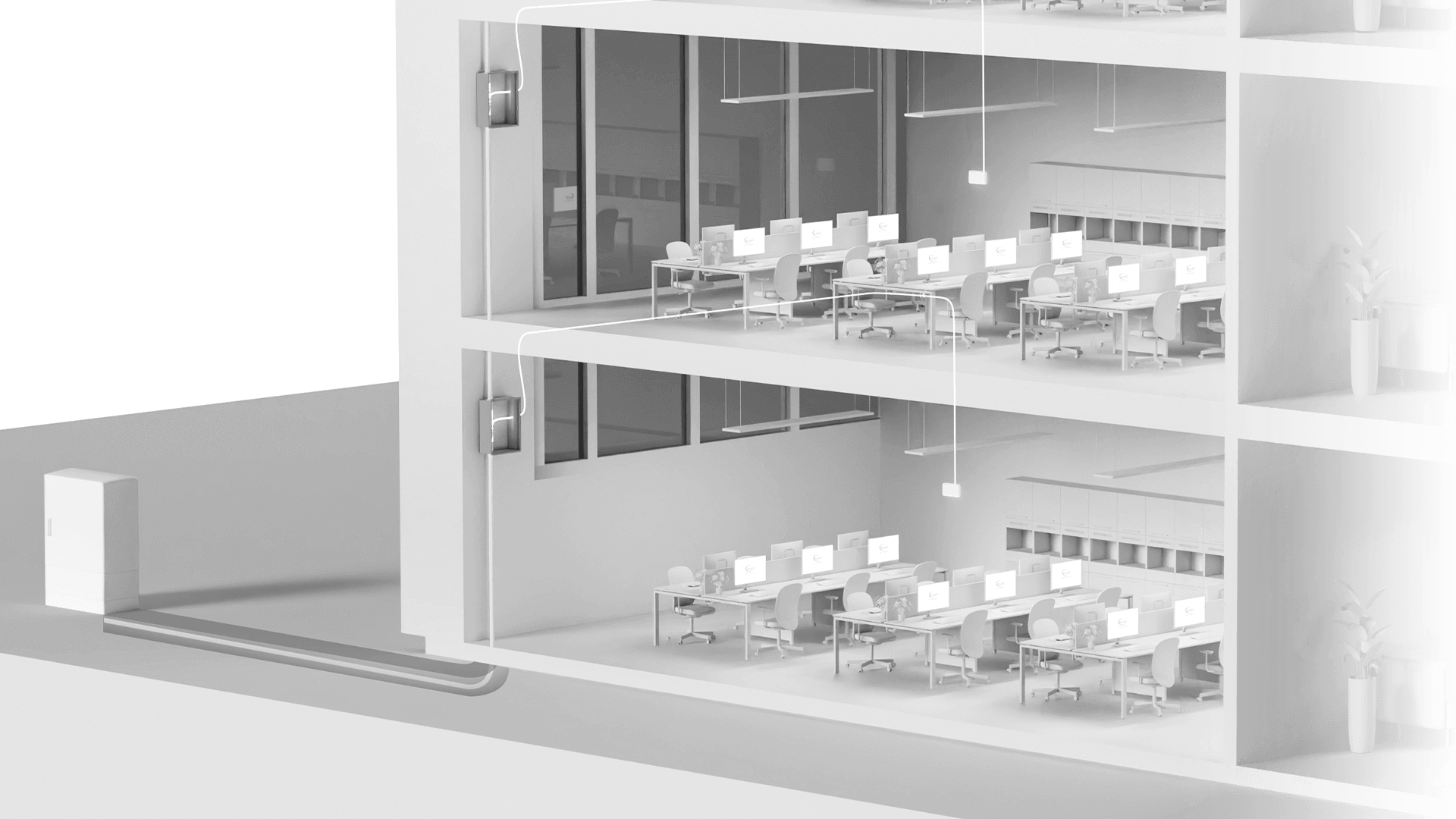

FTTB -Fiber Blowing Solution​​​​​​​
FTTB - Fiber Blowing Solution is becoming the preferred system of choice in FTTB. Blow the fiber cable into the building through a Microduct cabinet, adopting a flat network design, so that blown fiber can reach each floor and each room. It meets the functional requirements of various communication equipment in the building. On data information points, it can arbitrarily connect devices such as computers, printers, and fax machines; on voice information points, it can arbitrarily connect various types of telephones, internal communication terminals, and other equipment.
下拉箭头小
收起箭头

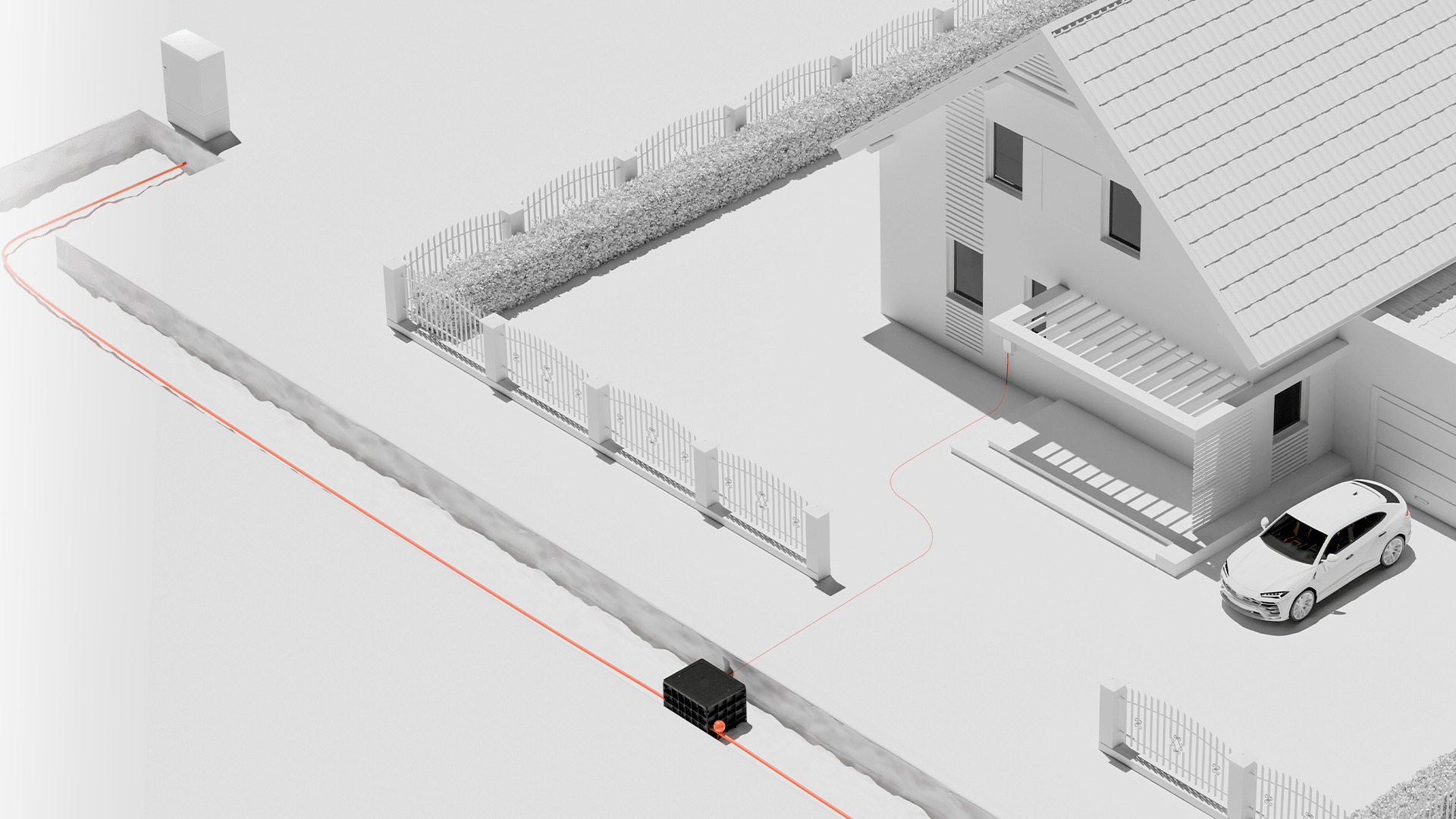

FTTH Fiber Bolwing Solution

FTTH fiber bolwing solution are fast becoming the preferred system of choice in FTTx, where cost of homes passed, speed of deployment, flexibility, and future scalability is of utmost importance. Today, blown fiber to the home is being adopted as the preferred architecture for access networks -- AKA the “last mile” – delivering telecommunications service to end-user’s premises.​​​​​​​
