Views: 500 Author: Curry Publish Time: 2026-02-28 Origin: https://www.microductcoupler.com/
Description
In the Underground Cable Installation Solution, microduct connectorsplay an indispensable core role—they are specially designed to connect and protect the microducts , ensuring the complete connecting and branching of microducts. As the "link" between microducts, the performance of microduct connectors directly determines the integrity of the entire microduct system, the stability of signal transmission, and the service life of on-site operations. When it comes to selecting the main material for microduct connector bodies, more and more manufacturers and engineers in the communication and cable industry are favoring transparent PC (Polycarbonate) material, especially SABIC PC-243R, a high-performance transparent PC grade from SABIC. Why has this material become the FCST's preferred choice for direct burial microduct connectors? Let's explore the core advantages that make transparent PC (SABIC PC-243R) outperform HDPE, PVC, PP, metal, and other alternative materials in Underground Cable Installation scenarios.
PIG1-SABIC PC-243R Specifications
Transparency: A Critical Advantage for Visual Inspection of Microduct Connecting
For hdpe microduct connectors used in Underground Cable Installation, transparency is not an additional feature, but a necessary requirement for ensuring construction quality. The core function of push-fit microduct connectors is to realize the complete splicing and branching of microducts—any deviation, looseness, or blockage at the connection will affect the smooth air-blowing of microcables and even damage the microducts and microcables. Ordinary non-transparent materials such as HDPE, PP, PA,and metal are opaque, making it impossible to observe the internal splicing status of microducts after installation; traditional transparent materials such as PP lack the toughness and environmental adaptability required for outdoor and underground communication construction. This is where SABIC PC-243R transparent PC stands out.

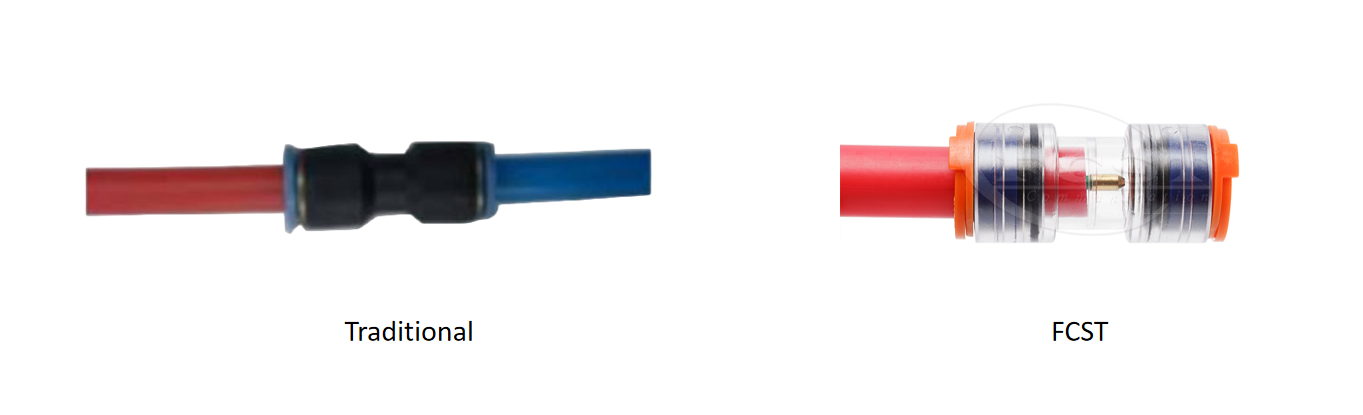

PIG2-Connector Transparency Comparison
Superior Mechanical Properties: Durability to Withstand Harsh Construction & Operation Environments
Telecom duct connector are often used in complex outdoor, underground, or tunnel environments, exposed to extrusion, impact, vibration, temperature fluctuations, and even underground pressure—their structural integrity is crucial to protecting microducts and microcables. Transparent PC (SABIC PC-243R) is a high-performance engineering plastic with outstanding mechanical properties, making it far more durable than alternative materials in Underground Cable Installation scenarios.
First, it boasts excellent impact resistance and toughness. Transparent PC is known for its high impact strength,boasting an impact strength 250 times greater than that of ordinary glass.
SABIC PC-243R remains intact even when subjected to strong impact, effectively avoiding damage in harsh construction environments. Second, it has excellent thermal stability, maintaining stable mechanical properties in a wide temperature range of -135℃ to 120℃, which is far superior to HDPE and PVC. This ensures that the connectors can work stably in cold areas, high-temperature environments, or regions with large temperature differences, without brittle fracture or deformation.
FCST conducts impact tests on Connector for microduct in accordance with the industrial standard IEC 60794-1-2:2003, Method E4. Requirement: Under visual examination without magnification, there shall be no splits or cracks on the impacted item.

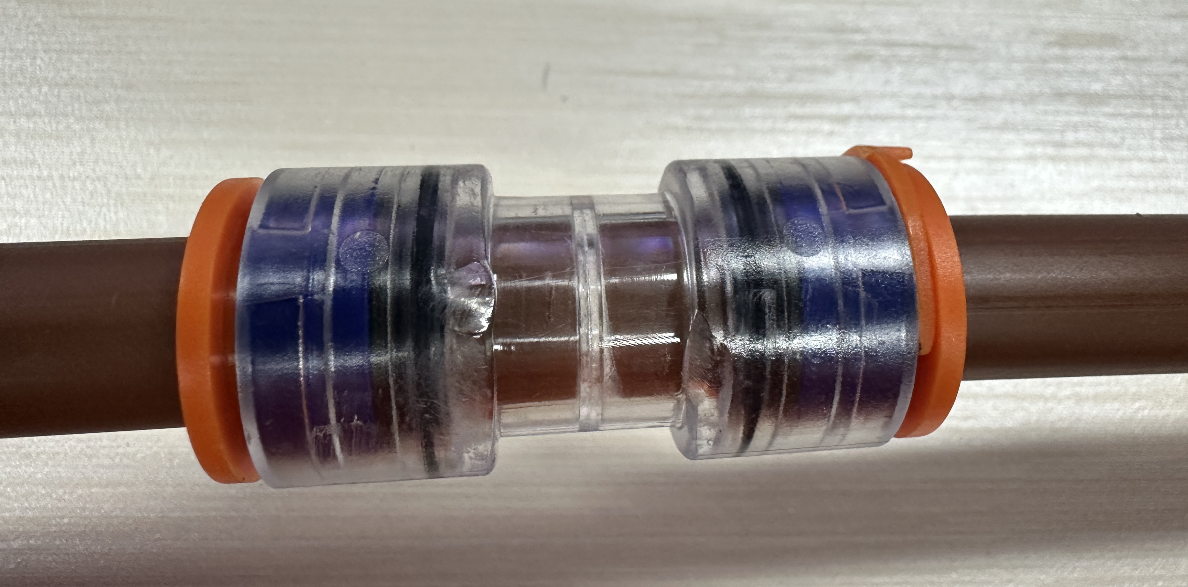

PIG3-Display after Impact Test
Exceptional Chemical Resistance & Purity: Protecting Microducts & Ensuring Long-Term Stability
Underground and outdoor environments often contain various corrosive substances, such as soil chemicals, groundwater, and chemical cleaning agents used in construction. Micro duct coupler are in long-term contact with these substances, so their chemical resistance directly affects the service life of the connectors and the integrity of the microduct system. Transparent PC (SABIC PC-243R) excels in this regard with its excellent chemical stability.
For manufacturers and engineering parties, this means fewer connector replacements, lower maintenance costs, and more reliable project quality.
FCST tests the connectors in accordance with the industrial standards EN 61300-2-34 (Resistance to solvents and contaminating fluids) and EN 61300-2-34 (Resistance to stress cracking solvents).Test criterion: After all samples are soaked for the specified duration, no visible damage shall be observed on the samples.

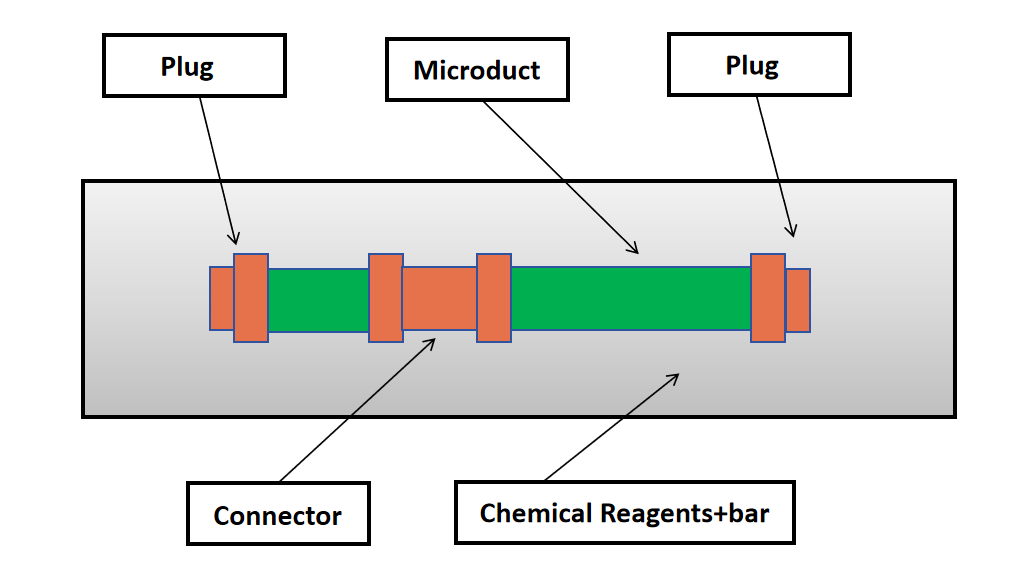

PIG4-FCST Chemical Test Principle
Choose Transparent PC (SABIC PC-243R) for Reliable Microduct Connectors
In air-blown microcable solutions, blown fibre tube connectors are the key to protecting microducts and ensuring the stable operation of microcables—their material selection directly determines the quality, efficiency, and service life of the entire project. Transparent PC, especially SABIC PC-243R, is not just a material choice for push-fit microduct connectors; it’s an investment in project reliability, construction efficiency, and long-term cost savings.
