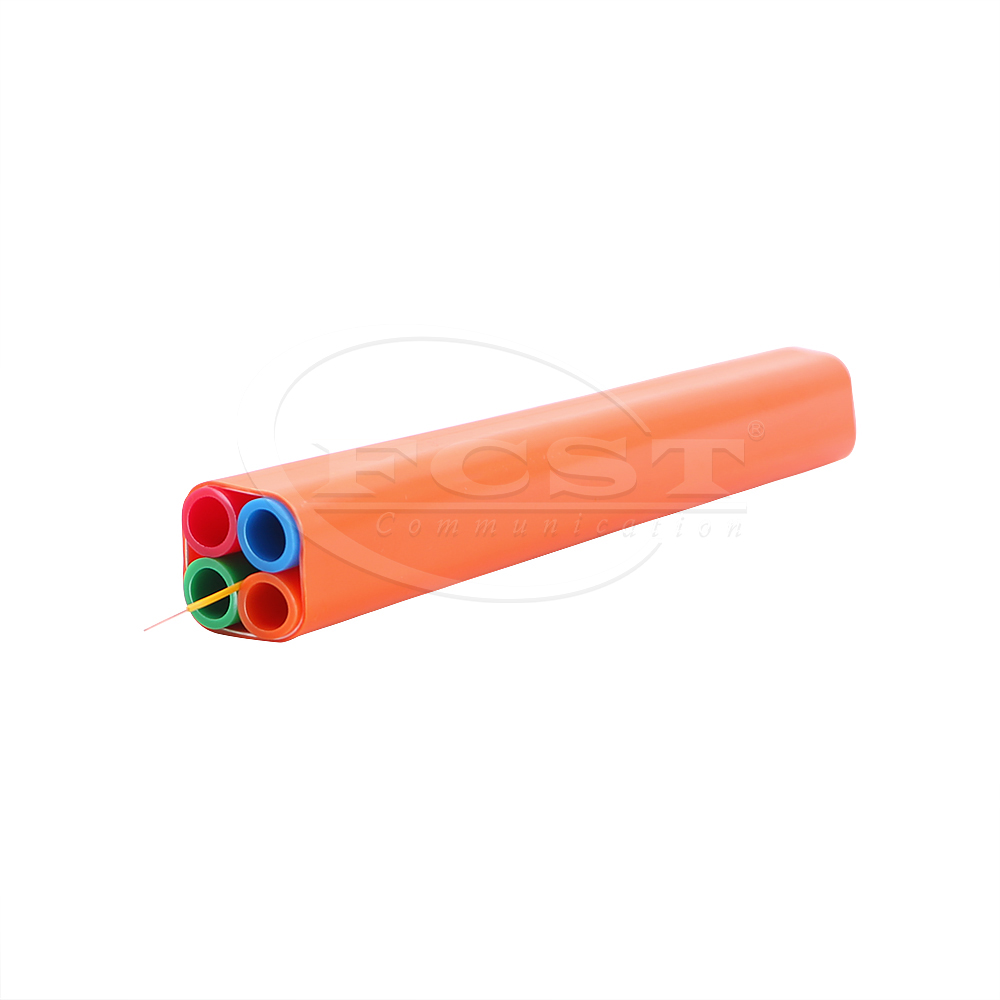

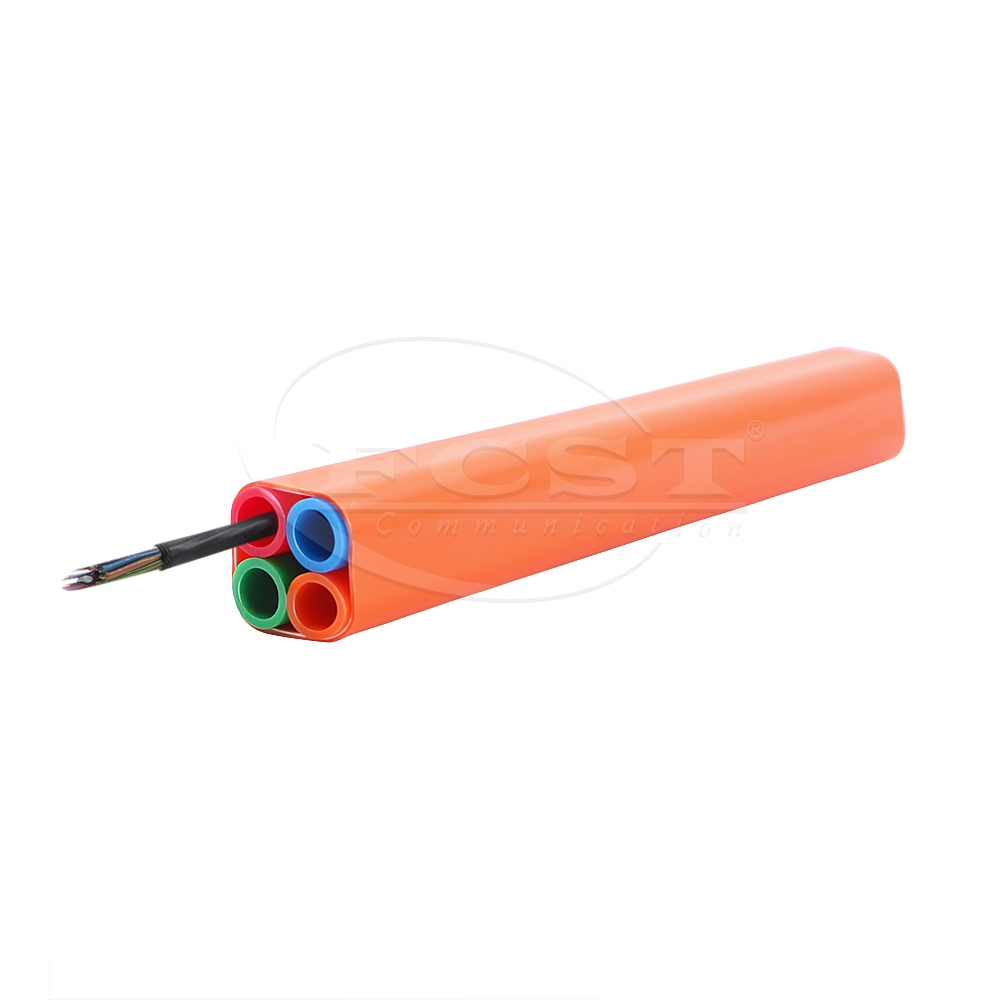

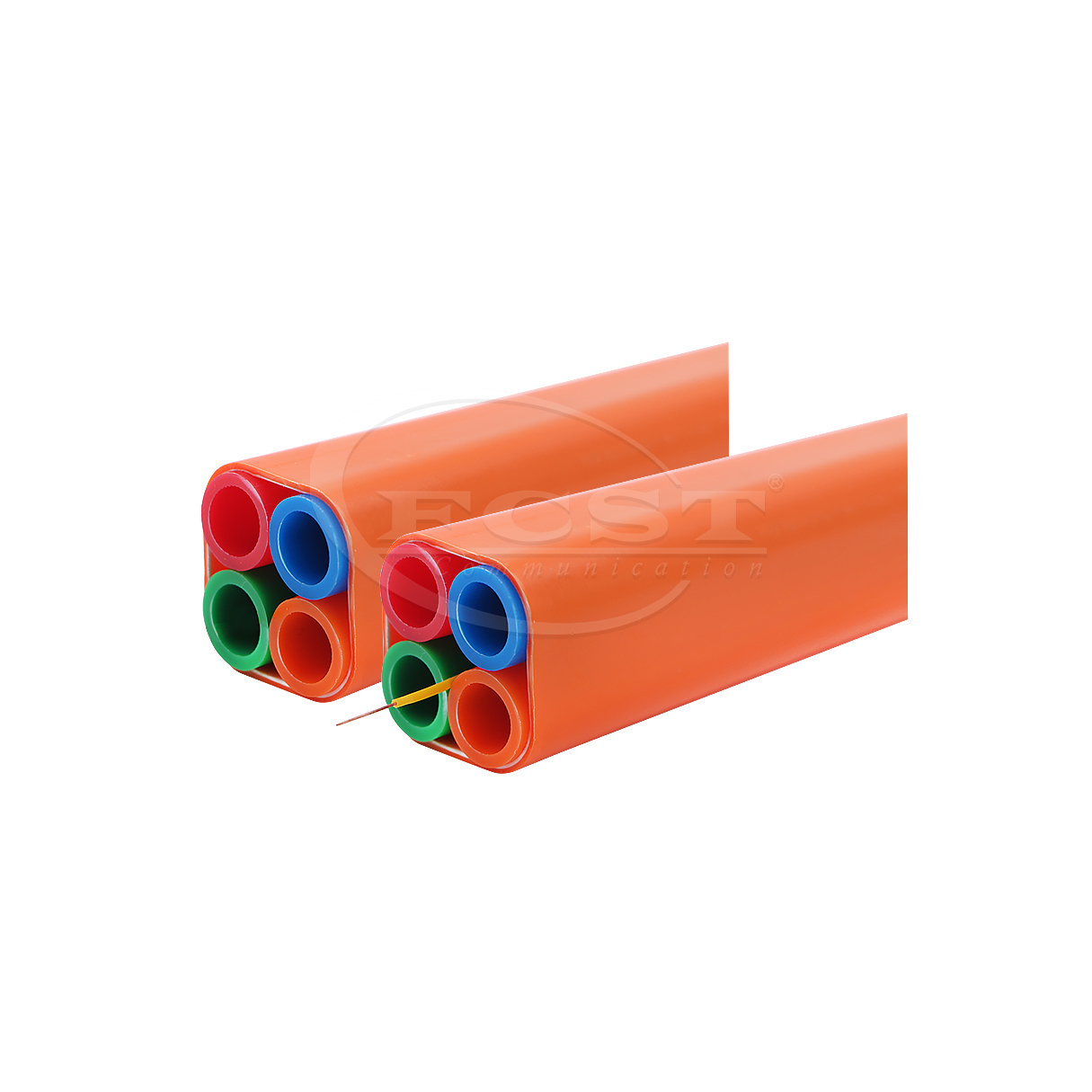

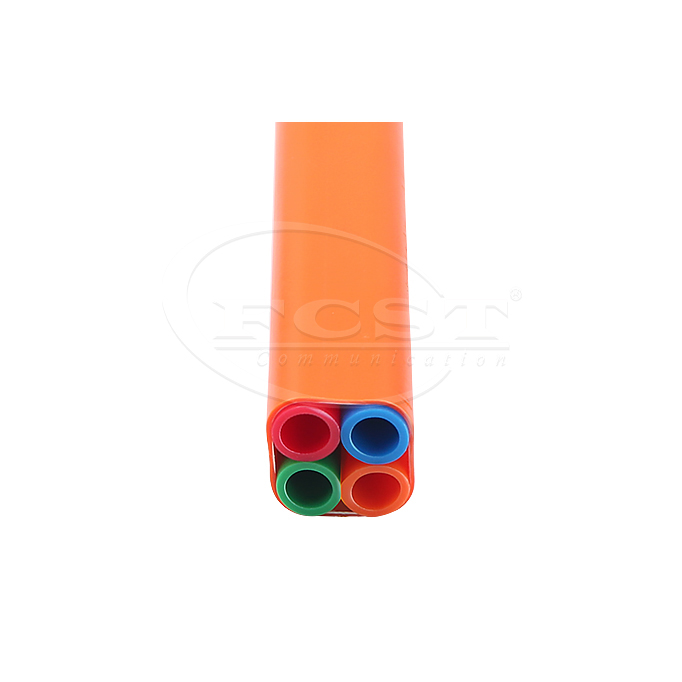

4Ways 14/10mm PE 1.2mm DB.
Product Advantages
Utilize space in an occupied duct.
Revitalize existing networks with overrides.
Substantially reduce construction costs & deployment time.
HDPE (High-Density Polyethylene) material, suitable for direct burial.
Co-extruded silicone compound inner liner and longitudinal grooves giving a coefficient of friction of less than 0.1.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Inner Micro duct 14/10mm | |
| Outer diameter | 14.0mm ± 0.1mm |
| Wall thickness | 2.00mm ± 0.10mm |
| Inner diameter clearance | A 8.5mm steel ball can be blown freely through the duct. |
| Ovality | ≤ 5% |
| Tensile strength | ≥ 1350N |
| Kink | ≤ 140mm |
| Tensile strength | ≥ 1350N |
| Tube Bundles | |
| Outer diameter | 30.4mm*30.4mm (± 0.5mm) |
| Wall thickness | 1.20mm ± 0.20mm |
| Tensile strength | ≥ 4000N |

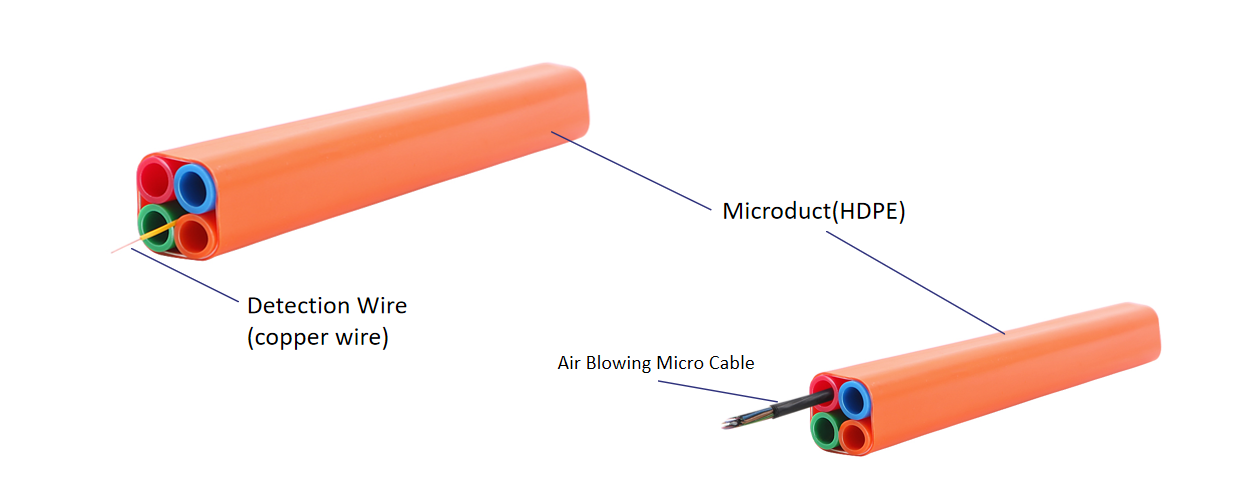

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Micro duct?
What transport methods does Micro duct support?
Product warranty regulations for Micro duct.
What industry standards do Micro duct meet?
What is the production capacity of Micro duct ?
What is the operation and storage temperature of the Micro duct?
What tests do Micro duct undergo?
How to choose the bundle tube tube and wall thickness?
