Bunchy:12-288(cores) Ribbon:up to432(cores)|PP+GF /IP68
Product Advantages
Advanced internal structure design, thus fiber suffering no attenuation.
The closure is spacious enough for winding and storing fibers.
Flip style fiber splice trays are designed.Innovative elastic integrated seal fitting.
The curved radius meets with international standard.
Easy and fast to increase and reduce splice tray.
With the function of reuse and capacity expansion for many times.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | Bunchy:12-288(cores)Ribbon:up to432(cores) |
| Material | PP+GF |
| Dimension (mm) | 450*220*160 |
| Inlets/Outlets | 3/3 |
| Installation | Pole mounting,Pedestal mountingStrand mounting,Wall-mounting |
| Net Weight（g） | 2800 |
| Protection Level | IP68 |
| Diameter Of Fiber Cable | Φ10mm~φ25mm |
| Sealing Mode | Mechanical |
| Outside Dimension（L*M*H）mm | 460*220*167 |
| Weight/PC（kgs） | 3.1 |
| Carton size（L*W*H）mm | 690*465*360 |
| Qty/CTN（pcs） | 6 |
| Weight/CTN（kgs） | 19.8 |

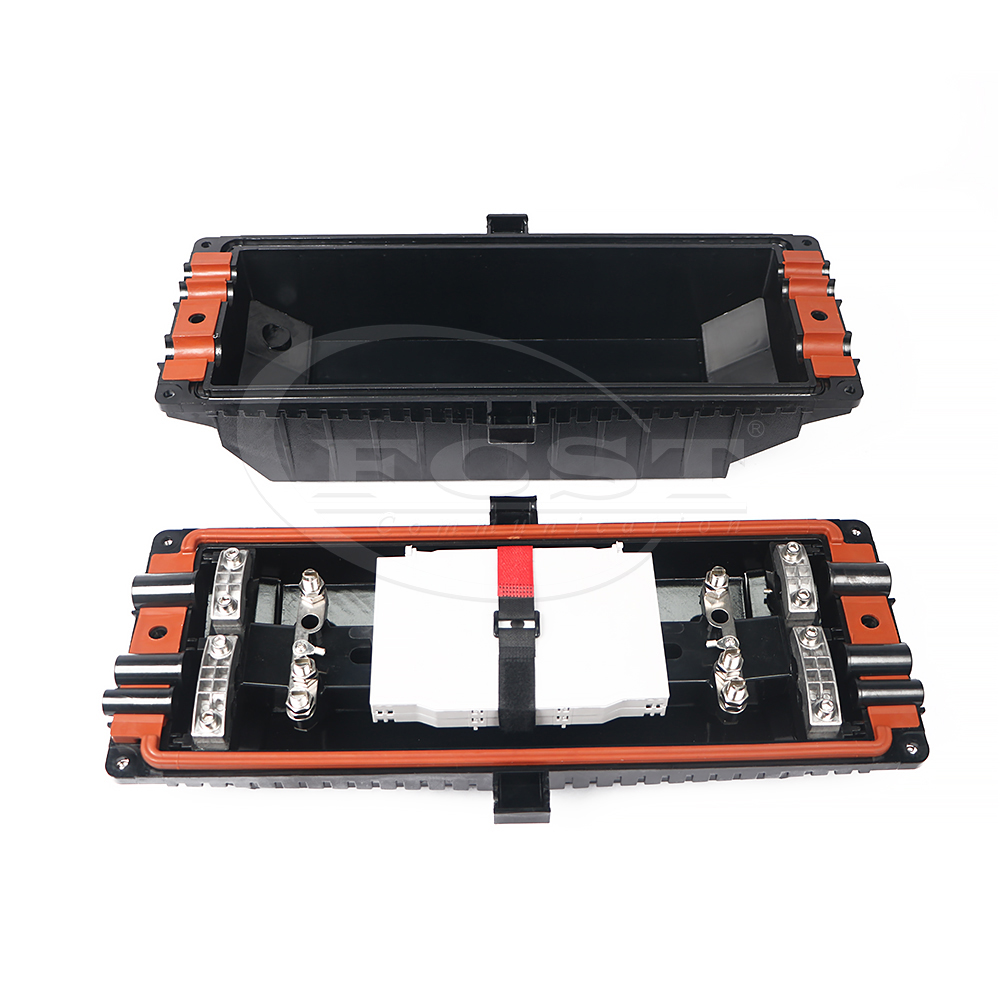

Product Structure
Product FAQ
What types of Fiber Optic Splice Closure are there?
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
What environmental certifications do Fiber Optic Splice Closure comply with?
Product warranty regulations for Closure.
What transport methods does the Closure support?
How to select the configuration of the Fiber Optic Splice Closure?
How is the packaging？
