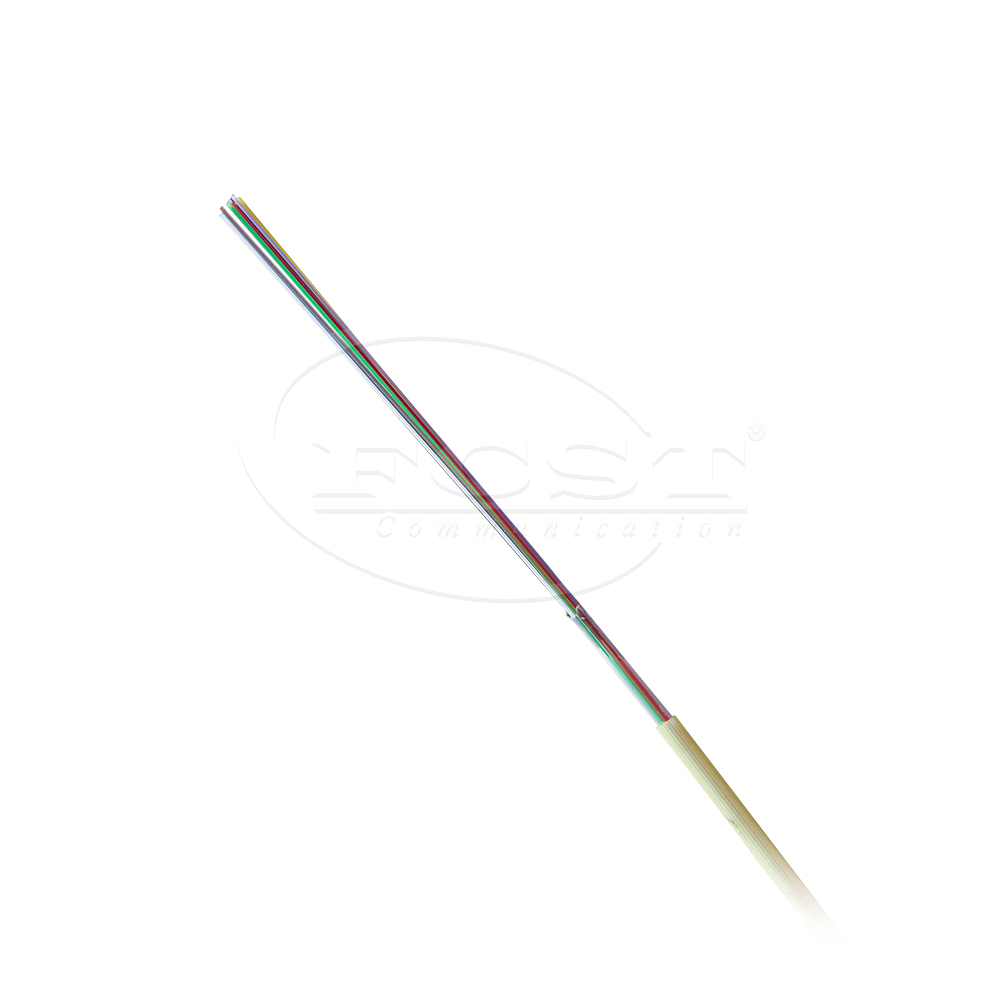

Max.8Cores,1.3mm,G.657A1,FTTH.
Product Advantages
Can be easily pushed into100m long microduct.
Designed with no gel, easy stripping and handling.
Lightweight and proper stiffness , repeat installation.
Better costs advantage compared to traditional product.
Designed with special grooves to advance blowing distance.
Complete accessories, less manpower, lower installation time.
Stable structure, good mechanical and temperature performance.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Fiber Count | 2-8 fibers G.657A1 |
| Out Diameter | 1.7mm(±0.03mm) |
| Weigth | 2.5g/m |
| Min Bend Radius | 120mm |
| Jacket Color | Yellow |
| Attenuation | 0.40db/km max@1310nm | 0.30db/km max@1550nm |

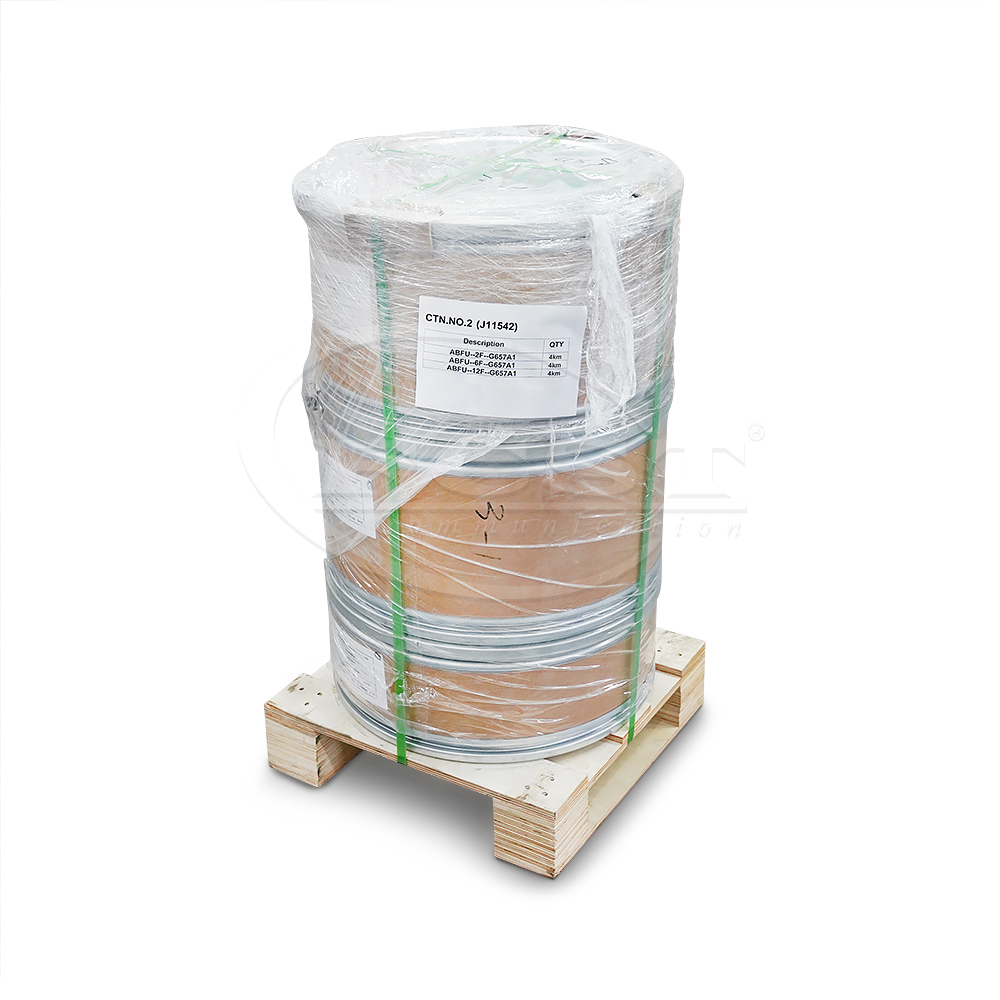

| Packaging Info. | 2000m /CNT 11KG 0.064CBM (560*560*200mm)4000m /CNT 17KG 0.095CBM (560*560*300mm)Standard delivery lengths are: 1000m, 2000m, 4000m with a tolerance of 0～+5%. |

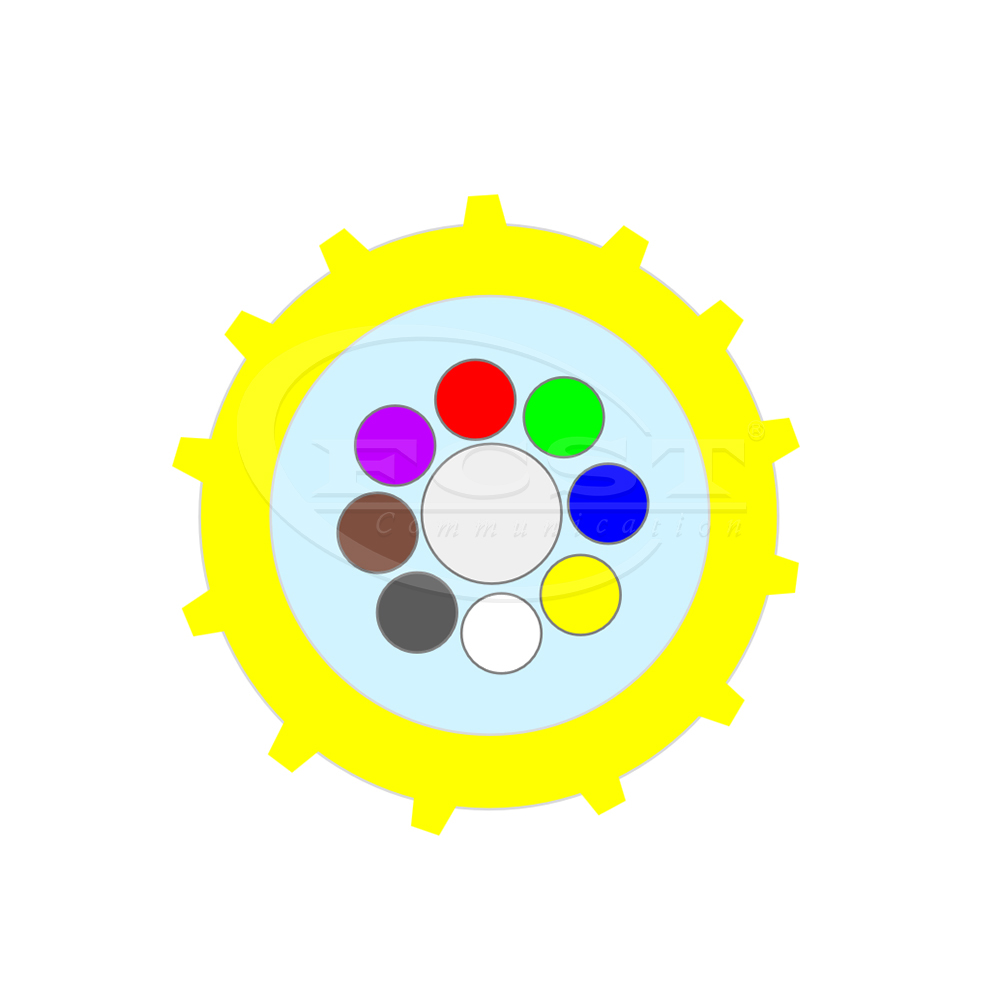

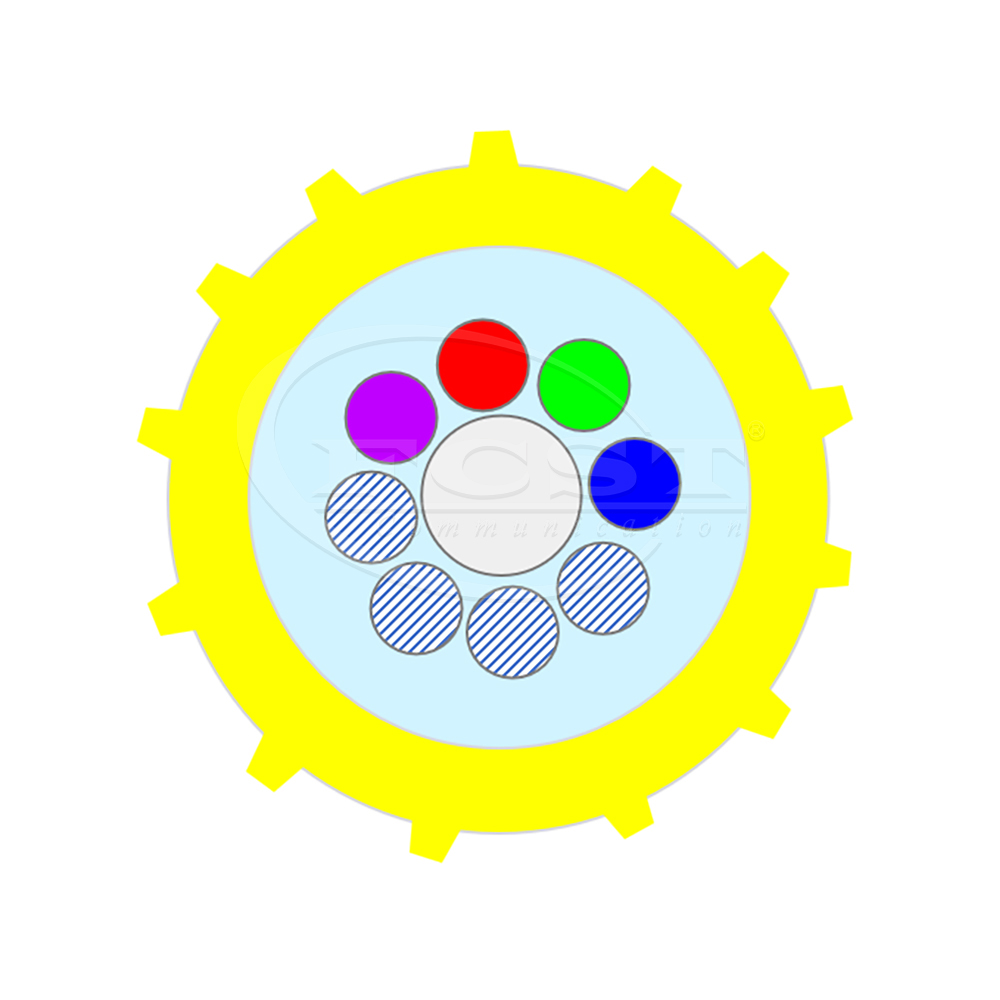

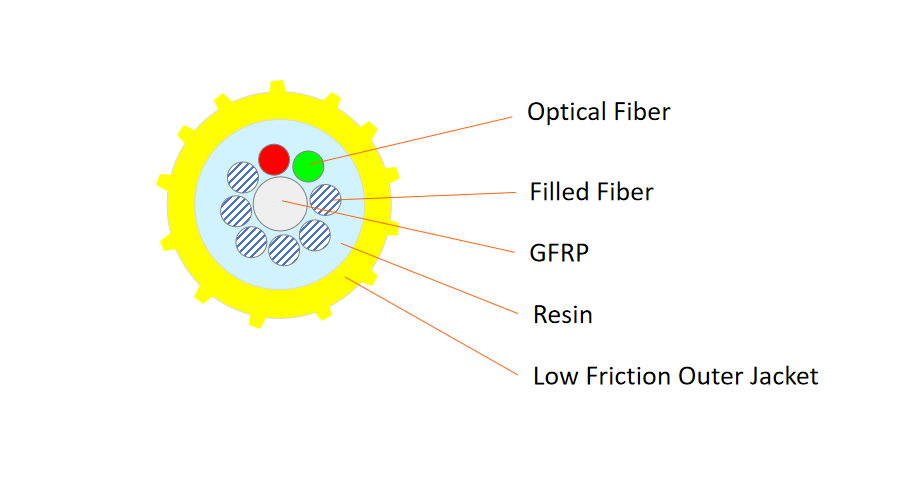

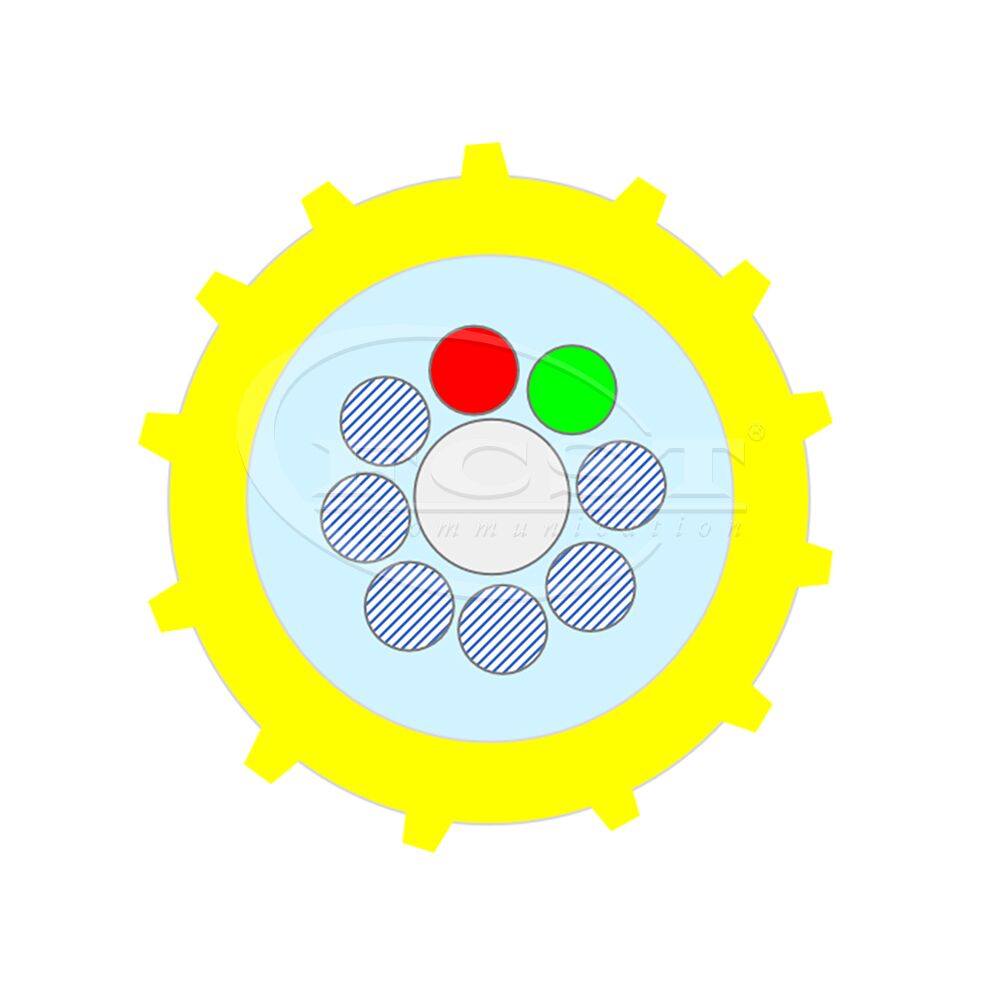

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Blowing Cable?
Product warranty regulations for Fiber Blowing Cable.
What industry standards do Fiber Blowing Cable meet?
What is the production capacity of Fiber Blowing Cable ?
What is the operation and storage temperature of the Fiber Blowing Cable?
What tests do Fiber Blowing Cable undergo?
