4-144Cores,800N/100mm,Water Blocking yarn,FTTH.
Product Advantages
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
Structure Innovation in sheath, enhancing the blowing performance
No gel in cable core for water blocking, low carbon and environmental.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Fiber Count | 4-144 fibers |
| Number of fiber/tube | 12 |
| Thickness of HDPE sheath | Nominal: 0.50mm, Average: 0.45mm, Minimum:0.40mm |
| Overall Diameter | 5.6±0.1 mm、6.4±0.1 mm、7.8±0.1 mm |
| Weight | 27kg/km、40kg/km、55 kg/km |
| Max. Tensile Strength | 500N、1000N |
| Max. Crushing Resistance | 800N/100mm |
| Min. Bending radius -Static | 12 outer Φ |
| Min. Bending radius-Dynamic | 20 outer Φ |
| Cable Fiber Attenuation （single mode） | 0.35dB/km max @1310nm 0.22dB/km max@1550nm |
| Temperature range | Storage -40～＋70℃； Installation -10～＋40℃； Operation -40～＋70℃ |
| Cable service life (estimate value) | 25 years |

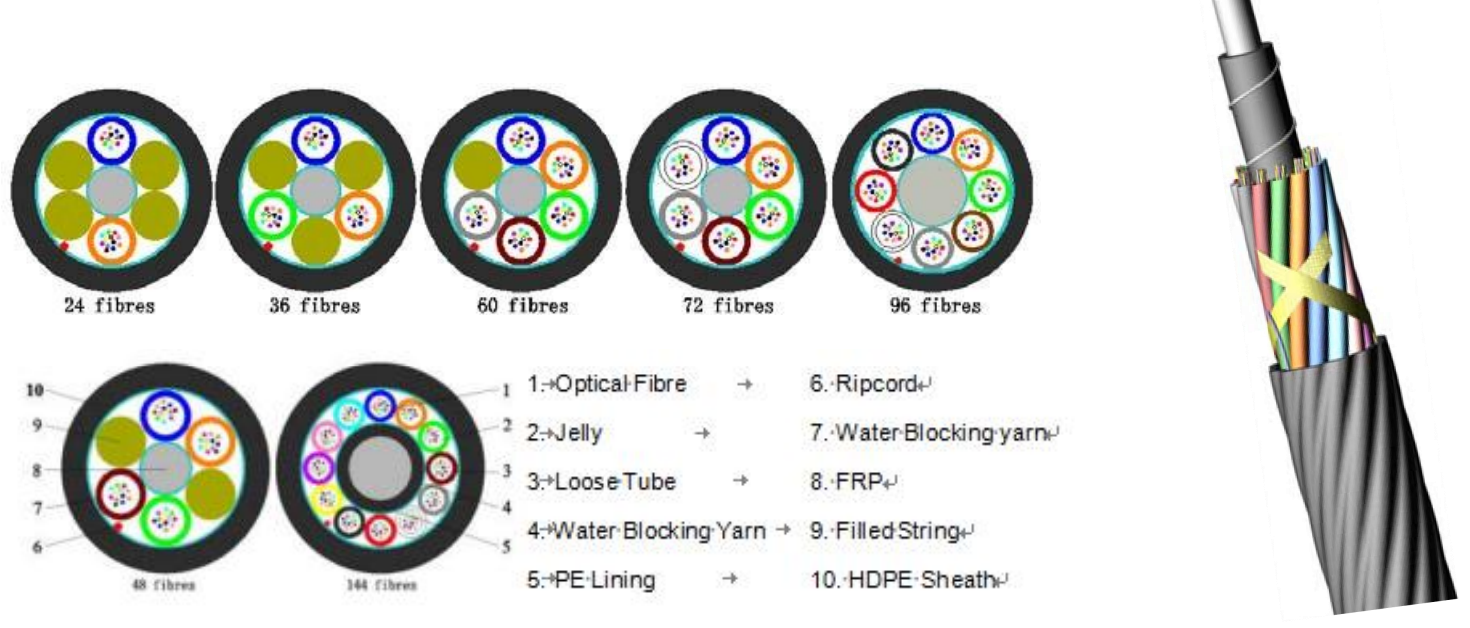

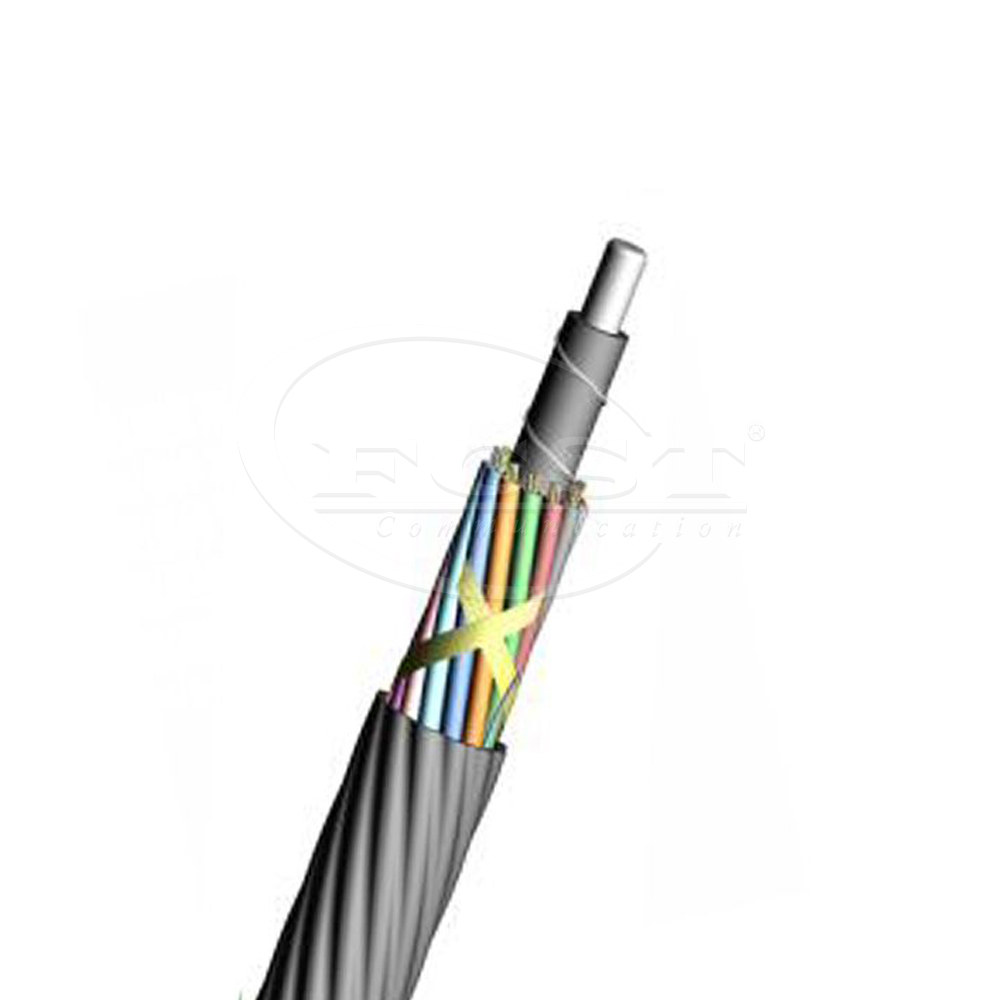

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Blowing Cable?
Product warranty regulations for Fiber Blowing Cable.
What industry standards do Fiber Blowing Cable meet?
What is the production capacity of Fiber Blowing Cable ?
What is the operation and storage temperature of the Fiber Blowing Cable?
What tests do Fiber Blowing Cable undergo?
