7 Frequency bands available ,Detection range up to <1.7m.
Product Advantages
Maximum burial depth up to 1.7 meter.
Locates the exact position of the marker.
HDPE packaging, resistant to chemical corrosion.
Withstands a temperature range of -4 to 122 °F (-20 to 50 °C).
Suitable for multiple industries (Water, Sanitary, Telecom, Gas, Electricity,Europower).
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Product Type | EX.ID version |
| Frequency | 83kHz / 87kHz / 101.4kHz / 121.6kHz / 134kHz / 145.7kHz / 169.8kHz |
| Identification Depth | 1.5-1.7m (EX.ID version) |
| Protection Level | 50 years |
| Diameter | Φ110mm丨4.330in |
| Weight | 350g(±35g) |
| Protection Level | IP68 |
| Storage Temperature | -20℃ to 70℃ |
| Operating Temperature | -20℃ to 50℃ |
| Drop Test | Can withstand the drop from 5 in (about 1.5 meters) to the concrete floor |
| Stress Resistance | Withstands 5 KN pressure without permanent damage, cracks, leaks, or electronic tag failure |
| Detector Compatibility | ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |

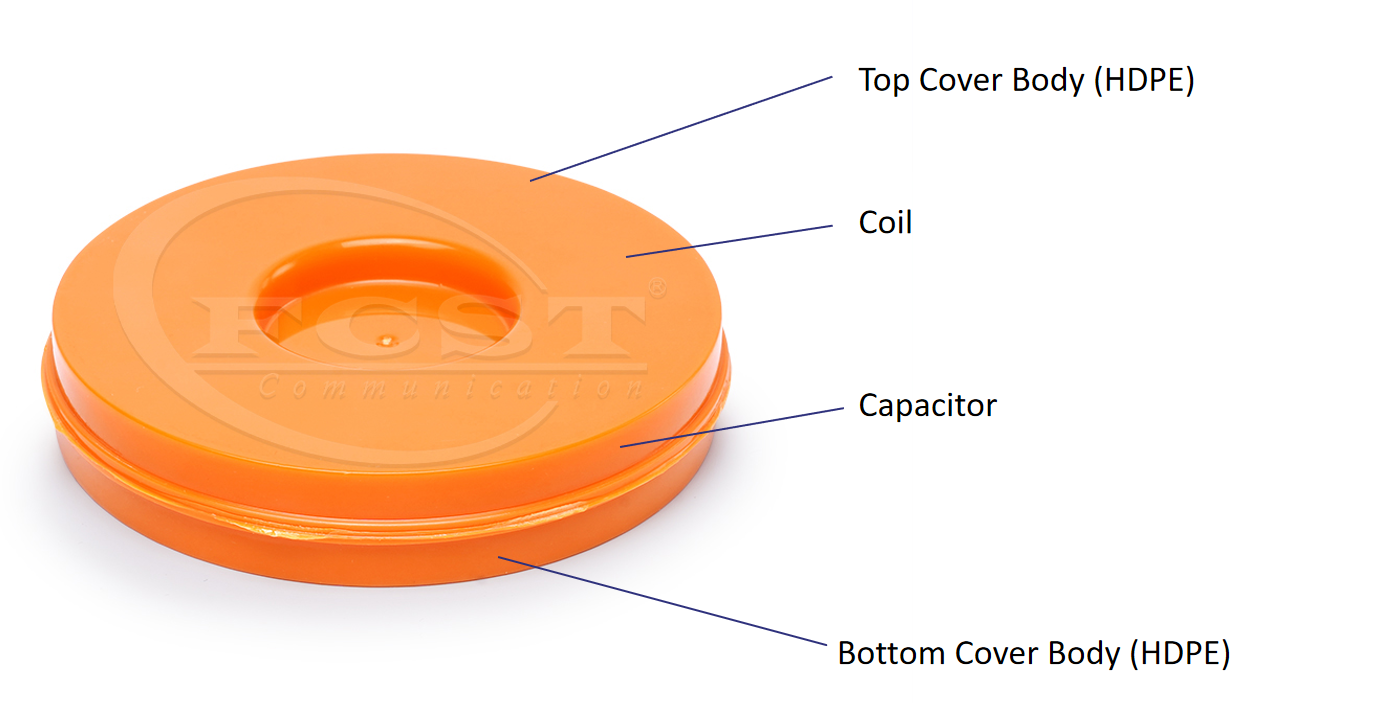

Product Structure
Product FAQ

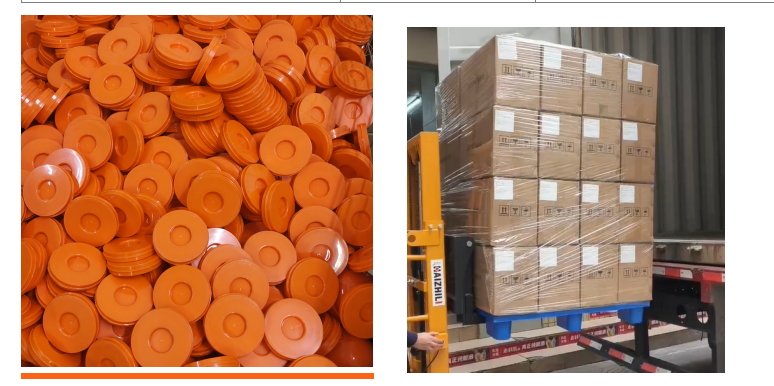

What is the packaging data of the Extended Range Disk Markers?
How is the product structure of the Extended Range Disk Markers designed?
How many groups of frequencies can the Extended Range Disk Markers be identified at?
Is the detection principle of the Extended Range Disk Markers based on magnetic detection?
What is the production capacity of Extended Range Disk Markers?
