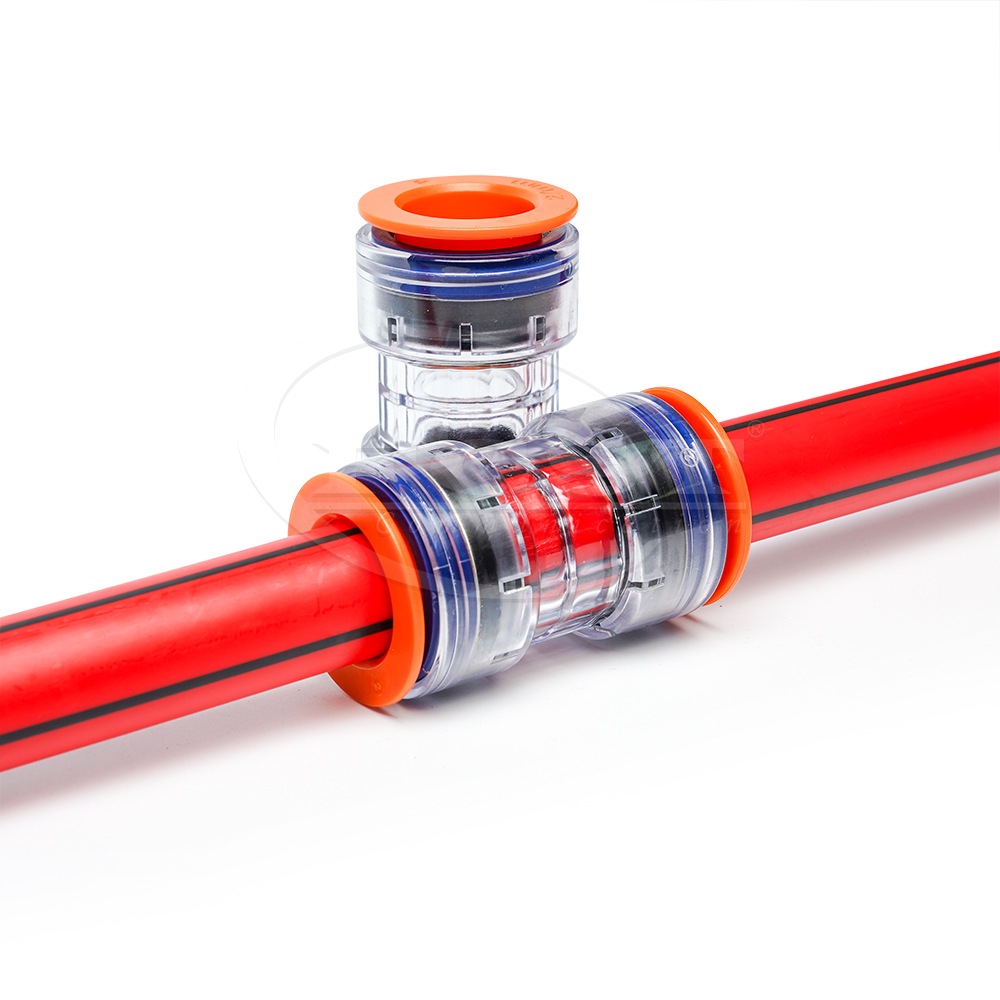

FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
FCST-ERPU27 Microduct Straight Connector
For 27mm(1.06in;3/4") Microducts,EN 50411-2-8:2009.

Executive Standard

ISO9001|Rhos|Reach

Service Support

Minimum Order Quantity

100PCS

Product Advantages

For 27 mm Microducts.

Easy “push-in” installation.

Crystal clear transparent body.

95% of the material is made of non-metal.

Tested in accordance to EN 50411-2-8:2009.

Locking rings to prevent accidental removal of connector.

Quantity

库存: 0
Add
Product Specifications
ConstructionDescription
Tube To ConnectorHDPE Microduct( DB | DI | TW )
FluidAir with blowing system
Working Pressure20 bar
Burst Pressure25 bar
Estimated Life25 years
Protection ClassIP68
Water Ingress Test0.5 bar during 168 hours
Installation Temperature-15℃ to +45℃
Operation Temperature-15℃ to +45℃
Transport and Storage Temperature-15℃ to +45℃
Insertion ForceSize≥14mm,≤ 120 N
Impact Resistance15J
According To StandardsDIN EN 50411-2-8,EN 50411-2-5,lEC 60794-1-24, E4: 15 Joules,EN 61300-2-10,EN 61300-2-38:2006,IEC 60794-1-2 Method E1,Rohs,Reach

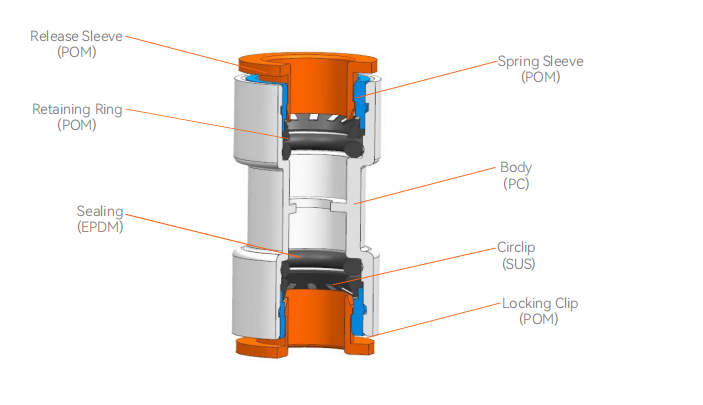

Product Structure

FCST-ERPU27 Microduct Straight Connector Structure

Product FAQ

What is the production capacity of 3/4" inch Microduct Connector?

Which parts of 27mm Microduct Connector can be customized in color?

What environmental certifications do 27mm Microduct Connector comply with?

What industry standards do 27mm Microduct connectors meet?

How long does it take to customize the 27mm Microduct connectors?

How much non-recycled material is used in the standard packaging of 27mm Microduct connectors?
