When deploying FTTx networks – especially in direct burial (DB) or direct installation (DI) scenarios – the weakest mechanical link is often the micro-duct connector. A seemingly small impact from a shovel, backfill stone, or simply freeze-thaw cycling can crack a substandard connector. The result air loss, water ingress, blown fiber failure, and costly dig-ups.
Many connector datasheets claim “high impact resistance.” But few specify the actual test standard – and even fewer pass the 15J impact test under real-world conditions (low temperature, after installation).
So, what does 15J impact resistance truly mean for micro couplers? And why should European and North American network operators, contractors, and pipe manufacturers care?
Let’s break down the engineering, the standards, and the hidden differences between a 15J-rated connector and a truly reliable one.
The 15J impact test is defined in IEC 60794-1-24 (Method E4) and EN 50411-2-8. In simple terms:
A 15 Joule impact is delivered via a 20 mm diameter steel plunger (approx. 1.5 kg) dropped from 1 meter – or equivalent energy.
The test is performed at low temperature: typically -15°C after 4 hours of conditioning.
The DB tube connector body must show no visible cracks under normal or magnified inspection.
After impact, the HDPE tube connector must still pass an air-tightness test (e.g., 0.5 bar pressure loss test).
For comparison:
Basic indoor microduct connectors: 1J (IEC 6150411-2-8)
Standard push-fit connectors: 5J (sometimes called “Duralan standard”)
15J straight micro duct connector – required for direct burial, pole mounting in cold climates, and roadside cabinets.
Why 15J? Because real-world installation tools, falling rocks, vehicle kickback, or frozen ground movement easily exceed 5J. A 15J-rated connector provides a true safety margin.
Standard polycarbonate (PC) becomes brittle below 0°C. A 5J impact at room temperature might be fine – but at -15°C, the same connector shatters.
15J at -15°C is the only reliable guarantee for winter installations in Germany, Canada, or Scandinavia.

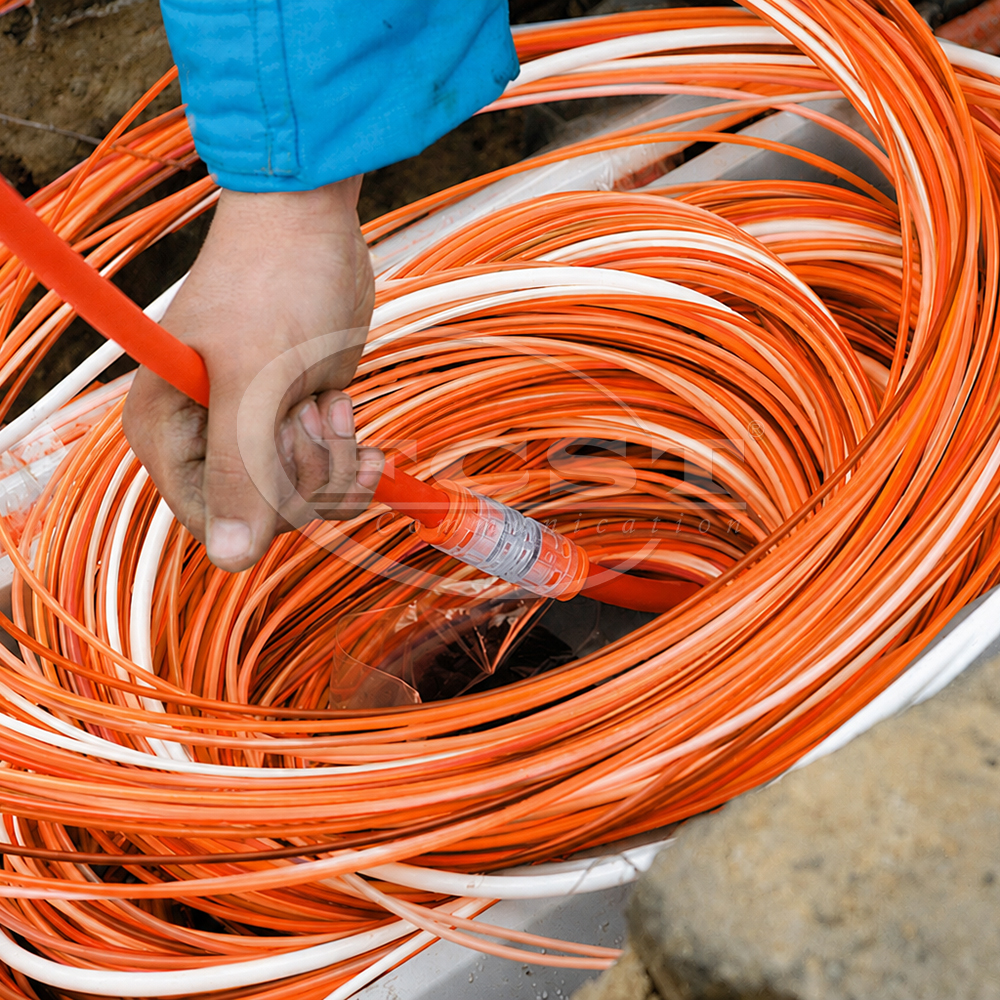

Direct-buried micro-ducts are often just 30-50 cm deep. A shovel, excavator bucket, or even a worker stepping on a stone above the connector can easily deliver >10J.
Cracked connectors lead to water ingress, blocked air paths, and failed blowing operations.
In buried environments, connectors face diesel, NaOH (pH12), HCl (pH2), and kerosene. Many plastics develop environmental stress cracking (ESC) after chemical contact. A 15J connector that isn’t chemically resistant will still fail.
True reliability requires both impact and chemical resistance – which very few products offer.
Brand | Country | Market Positioning | Key Features |
Sweden | European telecom operator-grade | Widely used in high-end European FTTH projects | |
China | Global FTTH market | Non-metallic structure, direct buried (DB), IP68, EN 50411 compliant | |
United Kingdom | Underground telecom infrastructure | Clearly promotes "5 Joule Direct Buried" solutions | |
Finland | Nordic telecom operators | Direct buried reducers and connector systems |
After analyzing field failures and talking to Tier-1 operators, we’ve identified what a real 15J micro-duct straight connector must include. The following features are not “nice to have” – they are essential for any connector deployed in DB or DI projects.
The housing uses high-flow PC compound (imported base resin) with optimized rib reinforcement. Tested at -15°C for 4 hours, then 15J impact – no cracks.
Batch quality: <6 defects per 1000 pieces – far beyond industry average.
Traditional connectors use a stainless steel circlip for tube retention. But in wet or salty soils, even stainless can corrode over 10+ years.

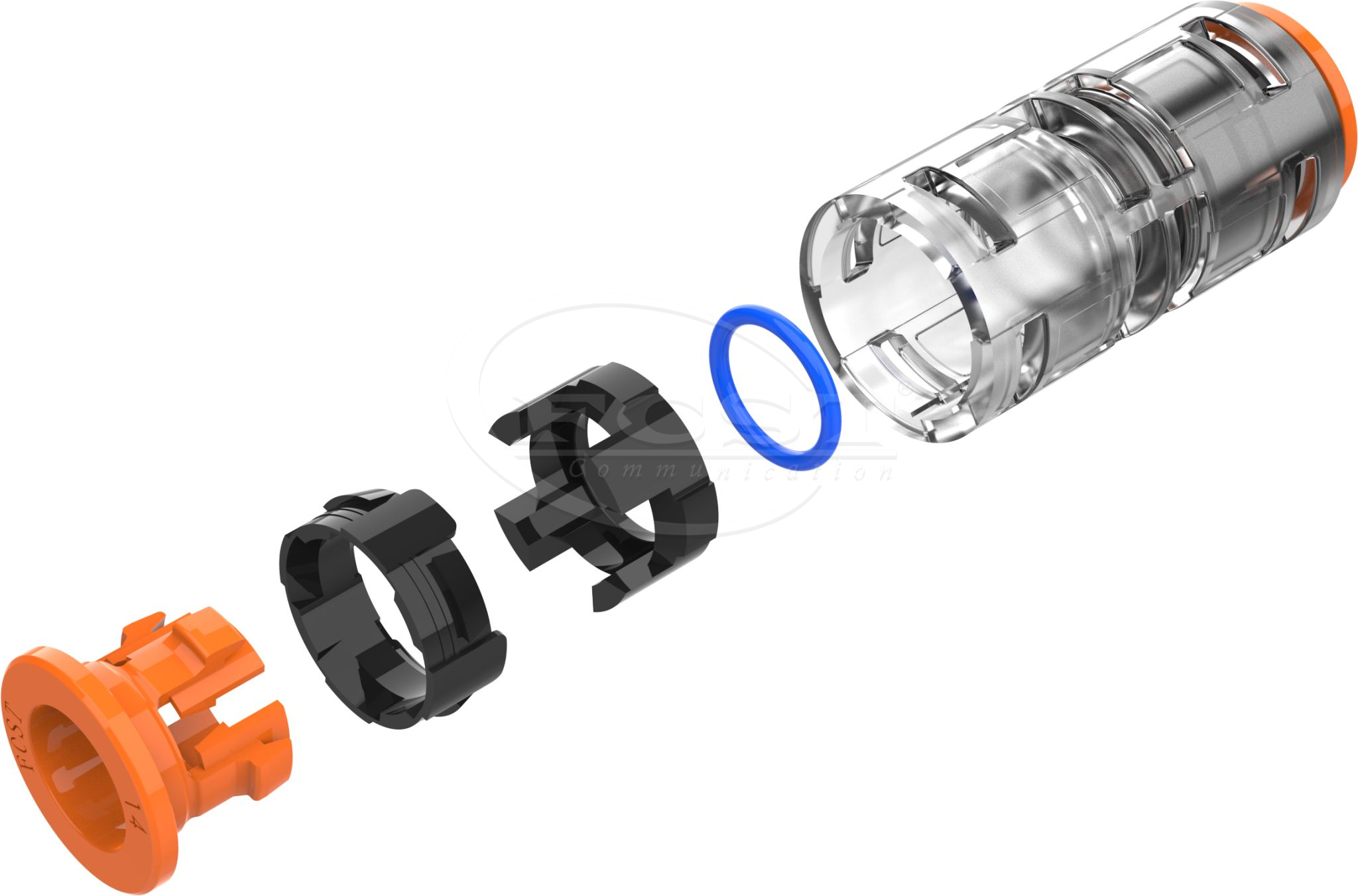

Our design replaces the circlip with a POM (acetal) integrated spring sleeve – non-metallic, corrosion-proof, and maintenance-free.
Bonus: No metal means no stray current issues in electrified railway corridors.
Most “15J connectors” have never been immersed in diesel, 5% NaCl, pH2 HCl, or pH12 NaOH for 5 days. Ours has.
Passed both solvent/pollution fluid test and stress cracking solvent test (10% detergent solution).
→ Critical for roadside cabinets, industrial zones, and agricultural land.
One of the biggest complaints from contractors: after a year in the ground, the connector’s side button is jammed with fine soil – impossible to disconnect.
Our solution that seals the side opening, preventing silt intrusion. The new spring sleeve structure also closes the side gap.
*Result: You can still reconnect or reuse the connector after 5+ years buried.

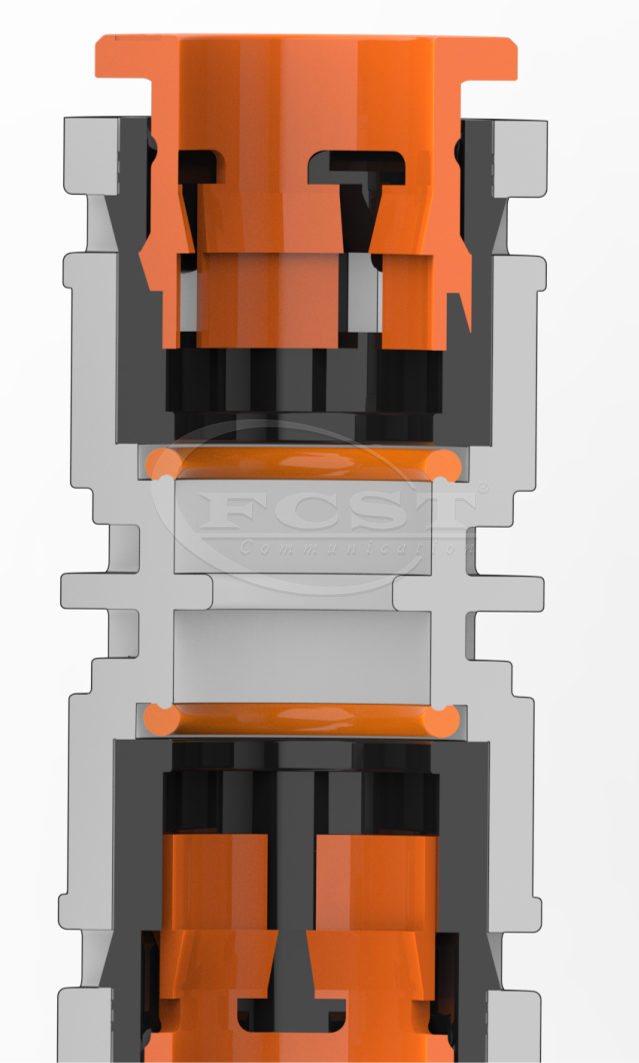

A 12mm straight connector should fit both 12/8mm and 12/10mm micro-ducts. But most competitors use a small inner stop ring that blocks the larger tube.
We enlarged the stop ring with a chamfered radius, so the tube glides in without snagging.
Contractors love this – fewer parts to stock, less confusion on site.
European and North American tenders now require sustainability metrics. Our connector uses recyclable components, reducing CO₂ footprint by an estimated 40% compared to traditional designs.
For operators with ESG targets, this matters.
If you are a pipe mill, telecom operator, contractor, or utility, here is your purchasing checklist:
Certified 15J impact at -15°C (IEC 60794-1-24 E4)
EN 50411-2-8 compliance (full suite: retention, pressure loss, re-entries)
Chemical resistance EN 61300-2-34 (8 reagents)
IP68 (0.5 bar, 168h water immersion)
Non-metallic tube retention (no rust)
Anti-silt design for direct burial
Transparent body (visual tube position check)
Universal aperture (reduces SKU)
Recyclable content + carbon footprint data
Most “15J” connectors on the market fail at least three of the above. Some fail on the first – they cannot even pass 15J at -15°C consistently.
A failed micro-duct connector doesn’t just cost the connector. It costs:
Labour to excavate and re-splice
Network downtime (SLA penalties)
Blown fiber re-installation
Reputation damage with end customers
By choosing a connector that delivers true 15J impact resistance – verified at low temperature, with chemical resistance, non-metallic retention, and anti-silt protection – you shift from “cheap” to lowest total cost of ownership.
We manufacture the FCST-15JDB-SC series: a metal-free, transparent, 15J-certified micro-duct straight connector for 7–16 mm tubes. It is already deployed in direct burial projects across Germany, the UK, and North America.
