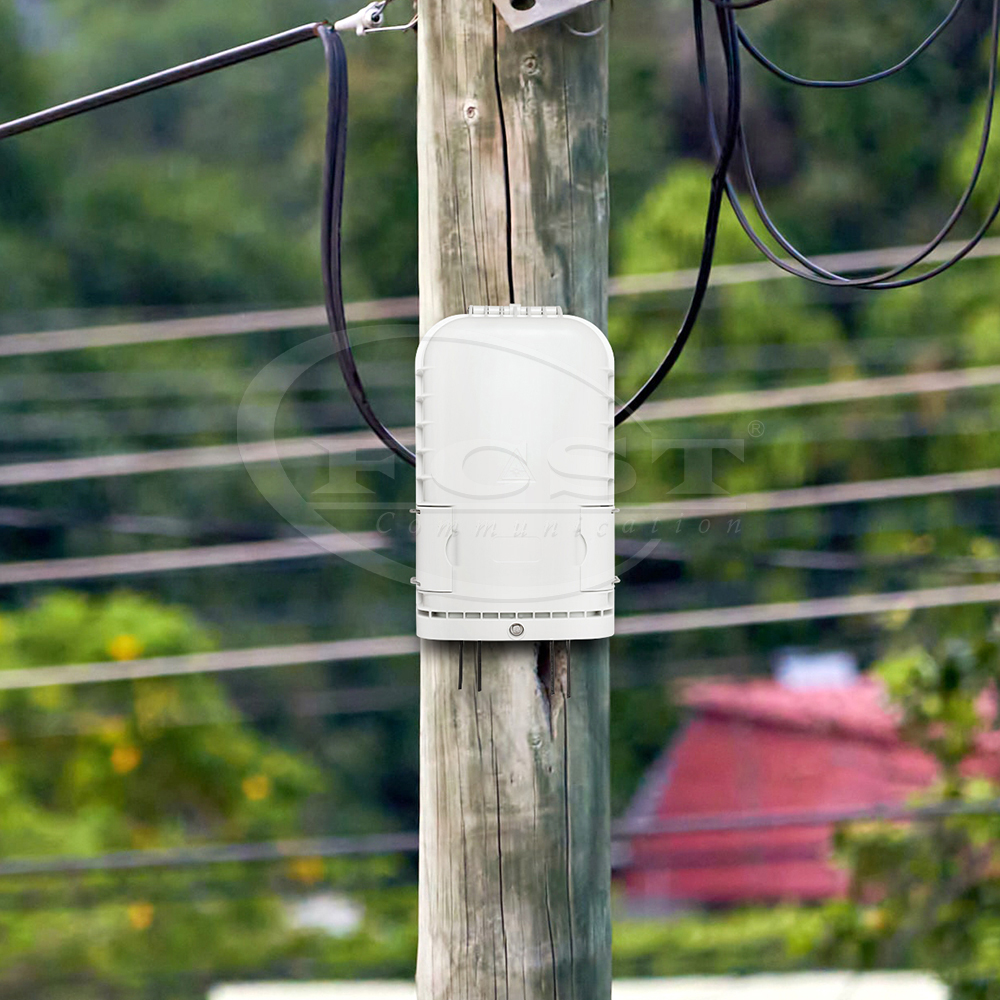

16cores, Pole mounting, Pedestal mounting, Strand mounting, Wall-mounting
Product Advantages
Water-proof design with IP-65 Protection Level.
Integrated with flap-up splice cassette and adaptor holder.
All stainless metal plate and anti-rusting bolts, nuts.
Suitable for the fusion splicer or mechanical splice.
2Pcs of 1*8 Splitter can be installed as an option.
Mechanical sealing structure and mid-span cable entry.
Fiber bend radius control more than 40mm.
16 adapter for drop cable patching.16 ports cable entrance for drop cable.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 16cores |
| Material | PC+ABS |
| Dimension (mm) | 274*175*82 |
| Inlets/Outlets | 4/16 |
| Installation | Pole mounting,Pedestal mountingStrand mounting,Wall-mounting |
| Net Weight(g) | 1850 |
| Protection Level | IP65 |

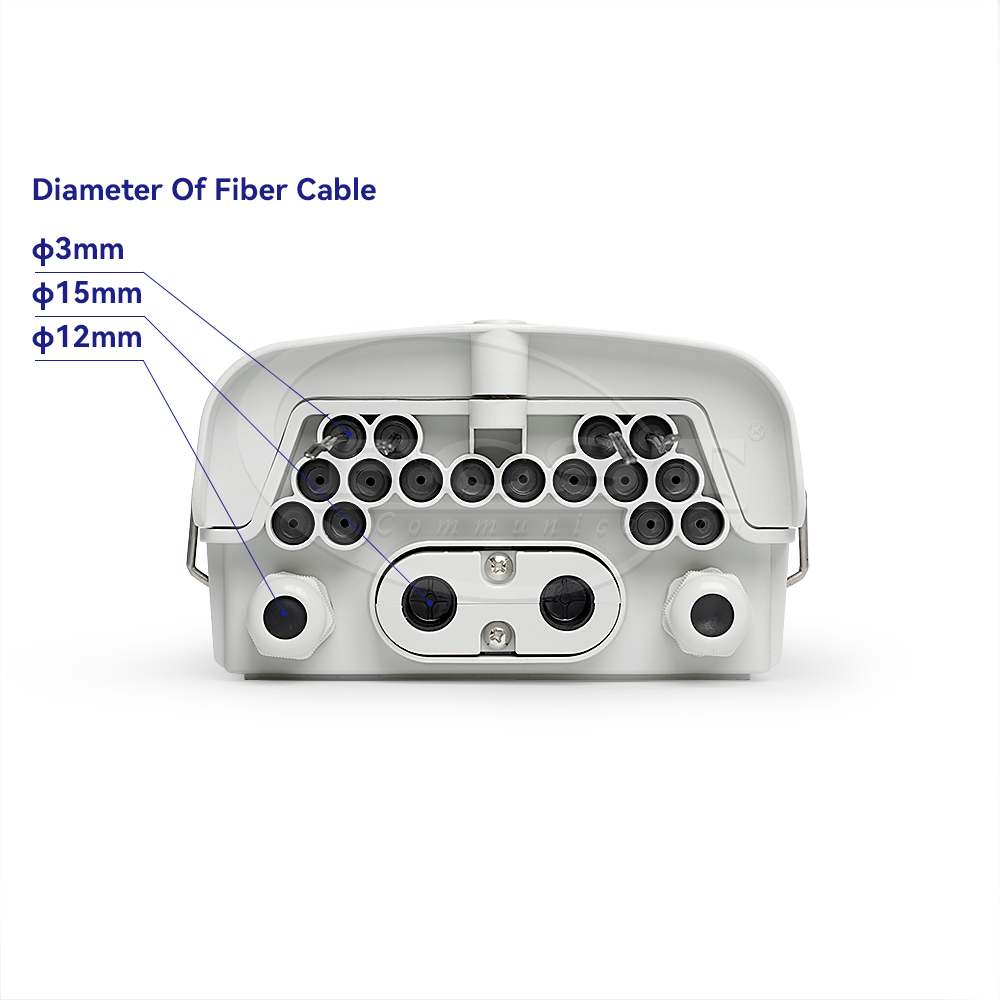

| Diameter Of Fiber Cable | Branch:Φ3mmMin Span:Φ12mmInlet and Outlet:Φ15mm |
| PLC Splitter Type | LGX Box Type |
Product Structure
Product FAQ
What types of Fiber Terminal Box are there?
What elements need to be confirmed when placing an order for a Fiber Terminal Box?
What transport methods does the Fiber Terminal Box support?
Product warranty regulations for Fiber Terminal Box.
What IP level can be achieved?
Which needs can be customized without mold-making?
What industry standards do Fiber Terminal Box meet?
What are the installation methods of Fiber Terminal Box?
What can be installed inside the Fiber Terminal Box?
What the pre-connected Fiber Terminal Box needs to confirm?
How is the packaging？
