Max.24Cores|1 In 1 Out|Wall Mounting
Product Advantages
Accepts up to 1-inch conduit.
IP55-rated for outdoor installation.
Electrical copper ground lug pre-installed.
Can hold up to two single fusion splices or one mass fusion splice.
Compatible with both simplex SC/APC adapter and duplex SC/APC adapter.
Cable clamping system accommodates a variety of cable sizes & constructions.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 2/6/24cores |
| Material | ABS/PC+ABS |
| Color | Light Gray |
| Dimensions | 232*224*74mm丨91.34* 88.19*29.13in |
| Weight(g) | 43g(Accessories not included) |
| Inlets/Outlets | 1/1 |
| Installation | Wall Mounting |
| Operating Temperature | -40℃~+60℃ |
| Diameter Of Fiber Cable | φ8-φ20mm |
| Packaging Info. | 20PCS/CNT 15.11kg0.15cbm（540*540*470mm） |

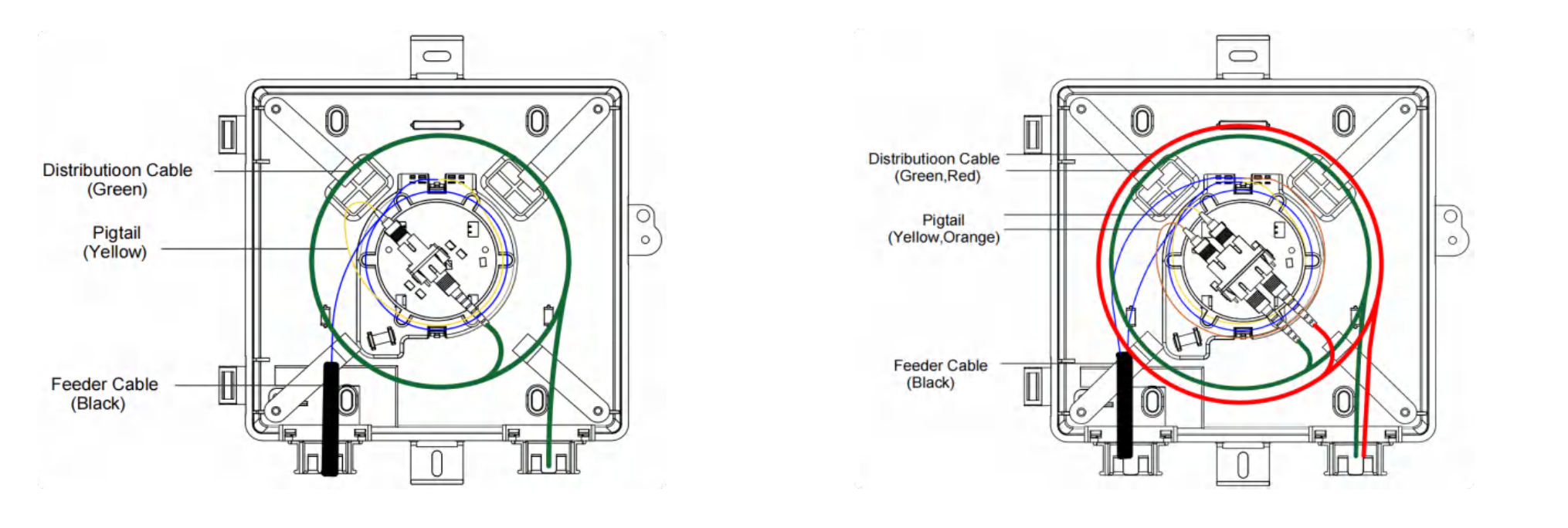

Product Structure
Product FAQ
What types of Fiber Terminal Box are there?
What elements need to be confirmed when placing an order for a Fiber Terminal Box?
What transport methods does the Fiber Terminal Box support?
Product warranty regulations for Fiber Terminal Box.
What IP level can be achieved?
Which needs can be customized without mold-making?
What industry standards do Fiber Terminal Box meet?
What are the installation methods of Fiber Terminal Box?
What can be installed inside the Fiber Terminal Box?
What the pre-connected Fiber Terminal Box needs to confirm?
How is the packaging？
