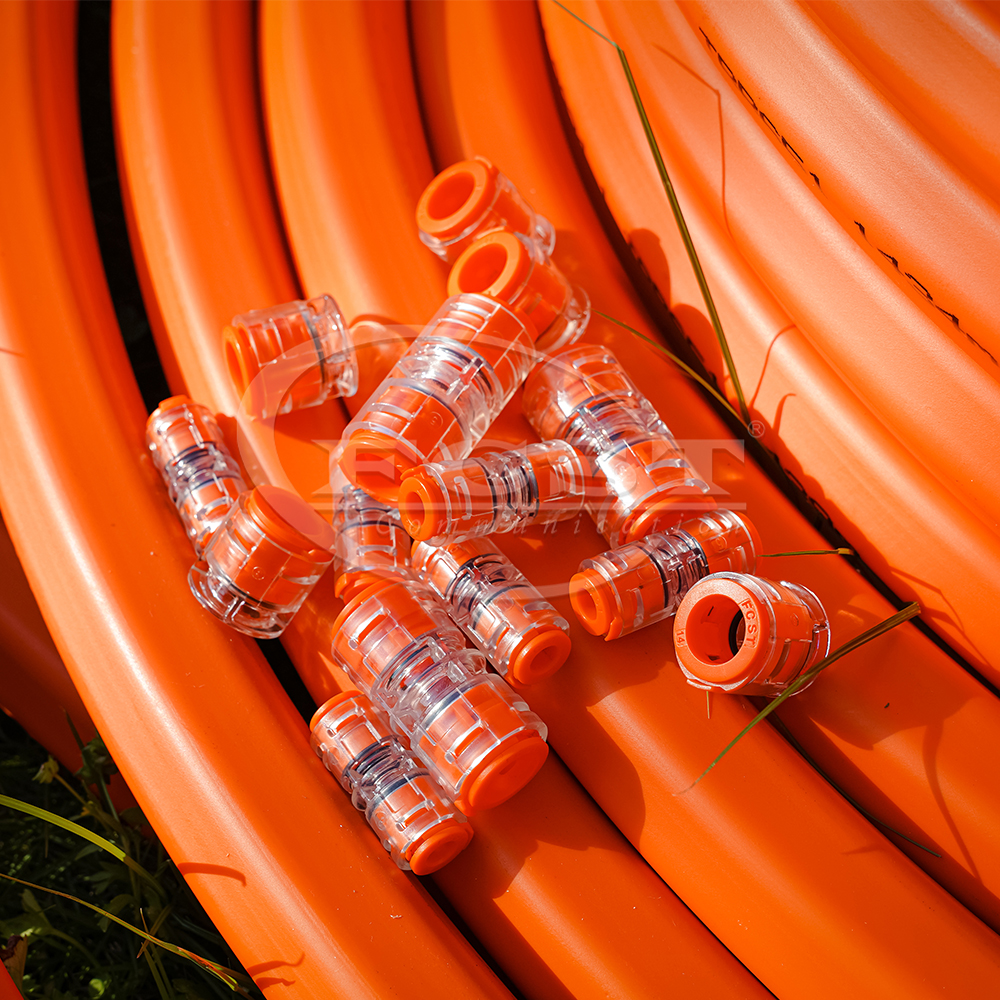

For 7-16 mm Microducts, EN50411-2-8:2009、IEC60794-1-24, E4: 15 Joules.
Minimum Order Quantity
1000PCS
Product Advantages
Pre-assembled safety locking clip.
Certified for 15 J impact resistance.
Universal bore design reduces the number of connector variants customers need to stock and manage.
Anti-sediment design; chemically resistant.
Full plastic design(metal-free)-zero rust risk.
For 7–16 mm microducts; OEM customization is available.
Suitable for direct-burial (DB) applications.
Easy push-in installation; crystal-clear transparent body.
Components are made of recyclable materials to reduce CO2 emissions.
Quantity
库存: 0
Product Specifications
| Construction | Description |
| Tube To Connector | HDPE microduct( DB | DI | TW ) |
| Fluid | Compressed air for cable-blowing systems |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar for 168 h |
| Installation Temperature | -15°C to +50°C |
| Operating temperature (after blowing) | -20°C to +70°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size ≤ 12 mm: ≤ 50 N | Size ≥ 14 mm: ≤ 120 N |
| Impact Resistance | 15J |
| Applicable standards | DIN EN 50411-2-8,EN 50411-2-5,IEC 60794-1-24, E4: 15 Joules,EN 61300-2-10,EN 61300-2-38: 2006,IEC 60794-1-2 Method E1,Rohs,Reach |
Product Structure

Product FAQ
What is the production capacity of 15J Microduct Connector?
What are the attractive points of the 15J microduct connector?
Which parts of 15J Microduct Connector can be customized in color?
Which environmental regulations do the air-blown microduct connectors comply with?
What industry standards do 15J Microduct connectors meet?
How long does it take to customize the 15J Microduct connectors?
How much non-recycled material is used in the standard packaging of 15J Microduct connectors?
