250μm/900μm cable|SC/APC Plug Type
Product Advantages
Offers an easy-to-deploy fiber solution.
Has a reusable termination capability of up to 10 times.
Features a precision metal V-groove and high-quality Zirconia ferrules.
Boasts a high success rate of connections with low insertion and back reflection.
Provides quick and easy fiber termination without the need for polishing or epoxy.
Comes in both 250μm and 900μm fiber singlemode options for installation flexibility.
Pre-stubble with machine polishing ferrules. Requires no special tools for installation.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Construction | Description |
| Cable Diameters | 250μm/900μm |
| Plug Type | SC/APC（ total length of 52mm） |
| Diameter of Fiber | 9/125μm |
| Fiber Mode | SM |
| IL | Typical≤ 0.20dB, Max≤ 0.40dB |
| RL | UPC ≤50dB, APC ≤60dB |
| Tension Test | 5N |
| OperatingTemperature | -20°C~+75°C |
| StorageTemperature | -40°C~+85°C |
| Reusable | 10times |
| Every Small Bag (pcs) | 10 |
| Packing | 1000pcs/cnt 15.5kg 0.015CBM(0.44*0.365*0.28m) |

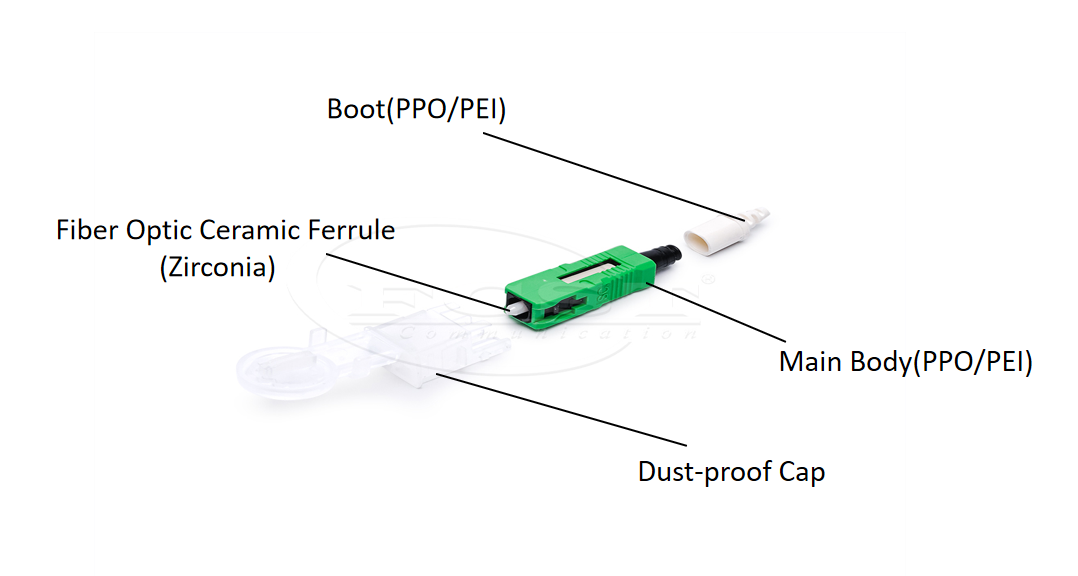

Product Structure
Product FAQ
How long should the bare fibre be cut with a fibre cleaver？
Can it suitable for LC?
If the Fast/Quick Connector is reusable?
Is this connector re-usable after being terminated ?
What size cable is this fast connector suitable for?
What factors should be considered when choosing a quick connector?
Which is better, LC or SC connector?
