Already read our general guide on microduct connector failure?
That article (What Causes Microduct Connector Failure?) explains the root causes from material, design, and environmental perspectives.
This article goes further — we focus specifically on how these failures affect fiber blowing performance, installation efficiency, and achievable blowing distance, with field symptoms, diagnostic methods, and a real FTTH case study.
In microduct networks, a micro duct coupler that looks fine can silently ruin a cable blowing job. You may still hear air flow, but insufficient pressure and unstable sealing will stop fiber short of its target — often by hundreds of meters. We examine three common failure modes: O-ring seal problems, incomplete locking, and installation errors — and answer the key question: how much blowing distance do you actually lose?

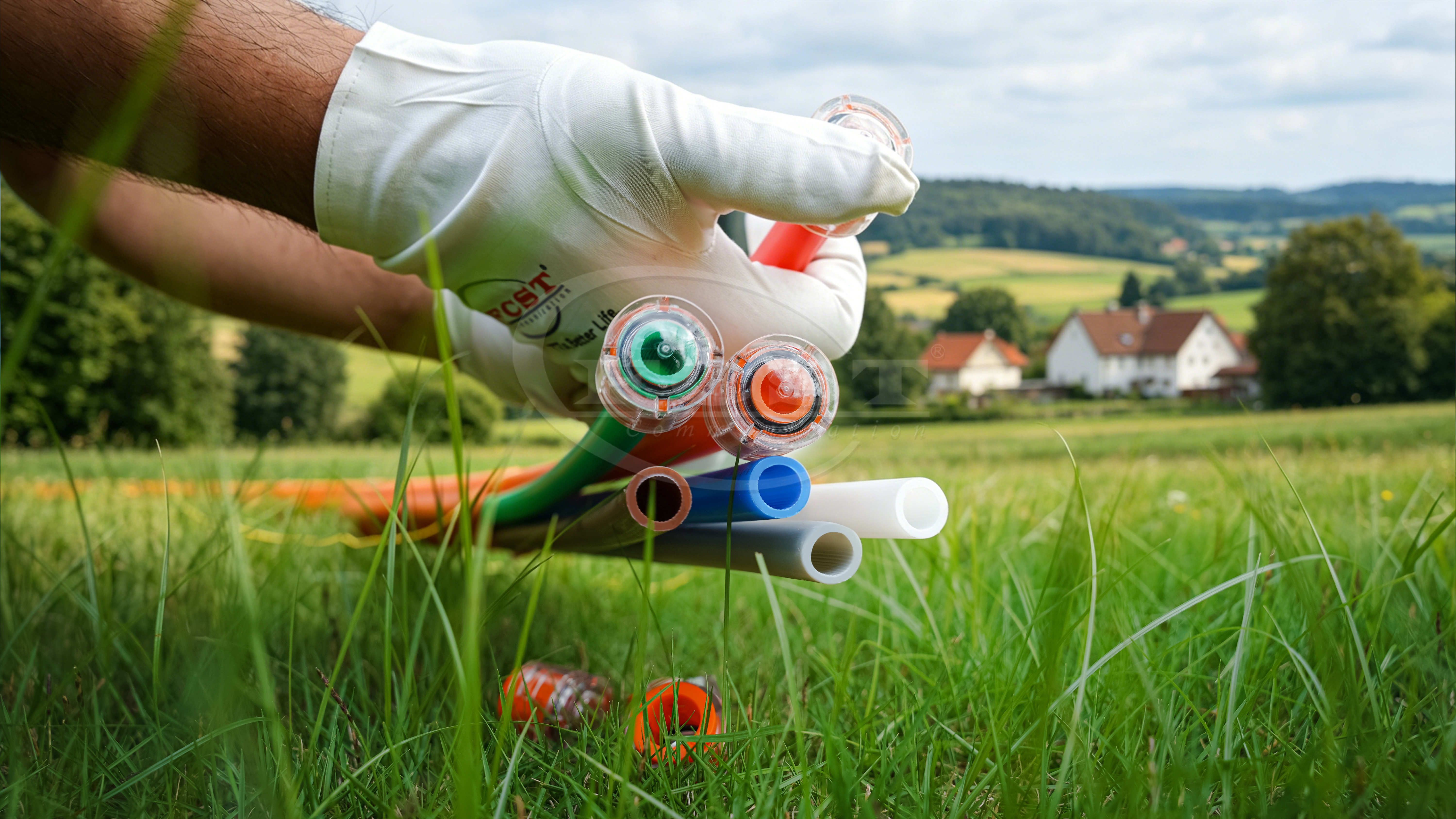

Micro duct joints rely on a dual O-ring structure to maintain air pressure inside the duct. When sealing fails, compressed air escapes before it can push the fiber cable forward. The result: lower effective pressure, slower blowing speed, and reduced maximum blowing distance.
Cause | Typical Scenario | Effect on Blowing |
|---|---|---|
Rubber aging & hardening | High ambient temperature, UV exposure | Progressive pressure loss |
O-ring damage (cuts, abrasion) | Improper microduct insertion (rough end face) | Immediate leak at tube connector |
Seal ring displacement | High-pressure airflow start/stop cycles | Intermittent pressure drop |
Contamination (dust, oil, moisture) | Unclean worksite, wet ducts | Unstable sealing under pressure |
Real-world example: In tropical regions (Southeast Asia, South America), high humidity combined with daily temperature cycling can cause standard NBR O-rings to harden within 12–18 months. Connectors with HNBR or FKM O-rings are strongly recommended for these climates.
FCST's own technical analysis confirms that low-quality microduct connectors directly cause poor sealing, air leakage, and reduced blowing distance. Read FCST's full analysis on low-quality connector impact →
According to IEC 60794‑1‑213:2024, the standardized test method for microduct internal pressure resistance involves applying pressure and checking for leakage or visible damage. The following field methods adapt this principle for quick site checks:
Visual inspection through transparent body — confirm microduct has passed both O-rings and reached the internal stop.
Low-pressure air test (2–3 bar) with soap solution at connector joints.
Pressure decay test — seal the far end and monitor pressure drop over 1 minute. A drop >5% indicates seal failure.
Sealing Condition | Pressure Loss | Blowing Distance Reduction |
|---|---|---|
Good seal | <5% | 0–10% |
Minor leak (audible hiss) | 10–20% | 20–35% |
Major leak (visible gap) | >30% | >50% or impossible |
An incompletely locked microduct push fit often looks closed. You might hear a faint click or feel some resistance, but the locking mechanism is not fully engaged. When blowing starts, internal air pressure creates an axial thrust that pushes the connector apart — or gradually loosens it.
As noted by leading microduct manufacturer Emtelle, push-fit connectors used with blown fiber or microcables require a seamless and airtight connection — which is why many operators choose threaded designs for outdoor routes.
Locking Type | Typical Application | Key Advantage | Failure Mode |
|---|---|---|---|
Snap-on | Quick-connect, indoor microducts | Tool-free, audible click | Plastic clip fatigue/breakage after repeated use |
Threaded | High-pressure blowing, direct burial | Quantifiable torque, vibration resistant | Under-torque or over-torque; thread wear |
Clamp type | Sealing caps, air-block connectors | High sealing pressure | Uneven bolt tightening → side leakage |
German manufacturer Egeplast distinguishes between direct install (DI) and direct buried (DB) applications — specifying that DB connectors must withstand at least 12 bar of pressure and resist soil movement. Threaded connectors are typically required for DB to maintain seal integrity under ground pressure.
A comprehensive guide from Spring Optical highlights that microduct connectors must maintain three core functions: pressure integrity, precise tube alignment, and environmental protection. When any of these fail — due to incomplete locking, O-ring damage, or misalignment — the result is air leakage, reduced blowing distance, water ingress, or even connector separation.
Symptom | Mechanism | Field Consequence |
|---|---|---|
Microduct push fitting gradually backs out | Axial thrust from compressed air | Loss of locking force → sudden disconnection |
O-ring compression insufficient | Gap between connector halves | Air leak → unable to build target pressure |
Locking clip fractures | Unexpected stress direction under vibration | Clip snaps → microduct coupler opens during blow |
Critical safety note: Never rely on “feeling tight.” Always verify the locking clip (often red or blue) is fully seated. For threaded connectors, use a torque wrench according to manufacturer specification — typically 2–3 N·m for small-bore push-fit microduct connectors.
During underground fiber optic cable construction, these small mistakes are the most common cause of blown fiber tube connector failure.
Microduct end face — cut vertically and smoothly. Use a duct cutter, not side cutters.
Burrs / debris removed — a burr can damage the O-ring during insertion.
Microduct insertion depth — fully inserted past both O-rings (transparent connector body helps).
Connector interior clean — no dust, moisture, or lubricant residue.
Locking mechanism verified — clip seated or torque applied.
If the microduct stops before reaching the internal stop, the second O-ring may not seal. Air can bypass the inner seal and leak through the connector body. This type of failure is not visible on a standard pressure gauge if the leak is small, but it will gradually reduce blowing distance over long routes.
European standard EN 50411‑2‑8 explicitly requires that microduct connectors allow visual inspection of full duct insertion — which is why many quality connectors feature a transparent body. Use a flashlight to verify the duct end is visible at the stop point. If not, re-insert.
Connector Issue | Immediate Effect | Typical Symptom During Blowing |
|---|---|---|
Air leakage | Reduced blowing pressure | Fiber stops before target location, machine pressure drops |
Poor sealing (intermittent) | Pressure fluctuation | Unstable blowing speed, jerky fiber movement |
Misalignment | Increased friction | High pushing force required, cable stops even with air |
Microduct deformation at connector | Local restriction | Fiber jam inside duct near connector |
Incomplete locking | Sudden pressure loss | Connector separates during blow, air blast |
Project background: FTTH deployment, planned blowing distance 650–700 meters per section. Microduct size: 7/5.5 mm. Fiber cable: 2.0 mm.
Observed problem: The contractor could not blow fiber beyond approximately 450 meters. Increasing blowing pressure from 12 bar to 15 bar made no difference — the fiber would stop at ~450 m every time.
Diagnosis process:
Pressure test at source — normal.
Walked the route with an air leak detector.
Found three microduct connectors with minor air leakage (barely audible hiss).
Two connectors had slightly damaged O-rings (installation with rough duct end).
One snap-on connector was not fully locked — the clip was only partially engaged.
Corrective action: Replaced all suspect connectors, re-cut microduct ends with a proper duct cutter, pressure-tested each joint at 10 bar for 30 seconds, and reinstalled locking clips with audible click verification.
Result: Achievable blowing distance increased to 610 meters (improvement of >35%). The route was completed without adding intermediate access points. Estimated project savings: 2 days of labor + materials for two extra handholes.
For reference, Nexans reports that optimized blown fiber systems can achieve 1500–2000 meters under ideal conditions — further illustrating how connector performance directly sets the upper limit of installation distance.
Q1: Can a microduct connector really reduce fiber blowing distance?
A: Yes. Air leakage or poor sealing reduces available blowing pressure, which directly shortens achievable distance. Even a small leak at 12 bar can cause a 20–30% distance loss.
Q2: How can I detect air leakage in a microduct connector before blowing fiber?
A: The most reliable method is pressure testing with the far end sealed. Apply 8–10 bar air, close the valve, and watch for pressure drop over 30–60 seconds. For field quick checks, use soap solution at connector joints.
Fiber Zip specifies a maximum allowable leak rate of 1cc/minute at 16 bar (218 psi) for straight microduct connectors — equivalent to approximately one bubble every three seconds in a soap solution. Any leak exceeding this rate will significantly reduce blowing distance.
Q3: What is the most common connector-related blowing problem?
A: Improper installation (incomplete insertion, rough duct end) and incomplete locking. Missing or mis-seated locking clips are a frequent root cause.
Q4: Do connector dimensions affect blowing performance?
A: Significantly. Dimensional mismatch between cable OD and connector ID increases friction and can block airflow. As a rule, connector ID should be 0.20–0.30 mm larger than cable OD.
Q5: Can I reuse a microduct connector after removing the duct?
A: It depends on the design and seal condition. Some push-fit connectors are rated for up to 10 re-uses. Always inspect O-rings and locking clips before reusing.
Q6: How do I verify full microduct insertion?
A: Use connectors with a transparent body. Visually confirm the duct end has passed both O-rings and reached the internal stop. This is the only foolproof method.
Q7: Are threaded connectors always better than snap-on?
A: Not always. Snap-on is fast and reliable for low-pressure, indoor, or short-distance blowing. Threaded is preferred for high-pressure (>12 bar), outdoor, or direct burial applications where vibration and ground movement are concerns.
