8cores|2 In 8 Out|IP65
Minimum Order Quantity
100PCS
Technical Specifications
Product Advantages
Fiber routing is reasonable. Suitable for indoor or outdoor ,wall-mounted , pole installation.
Cable sealing terminations use gel-sealing technology instead of Plain rubber seal.

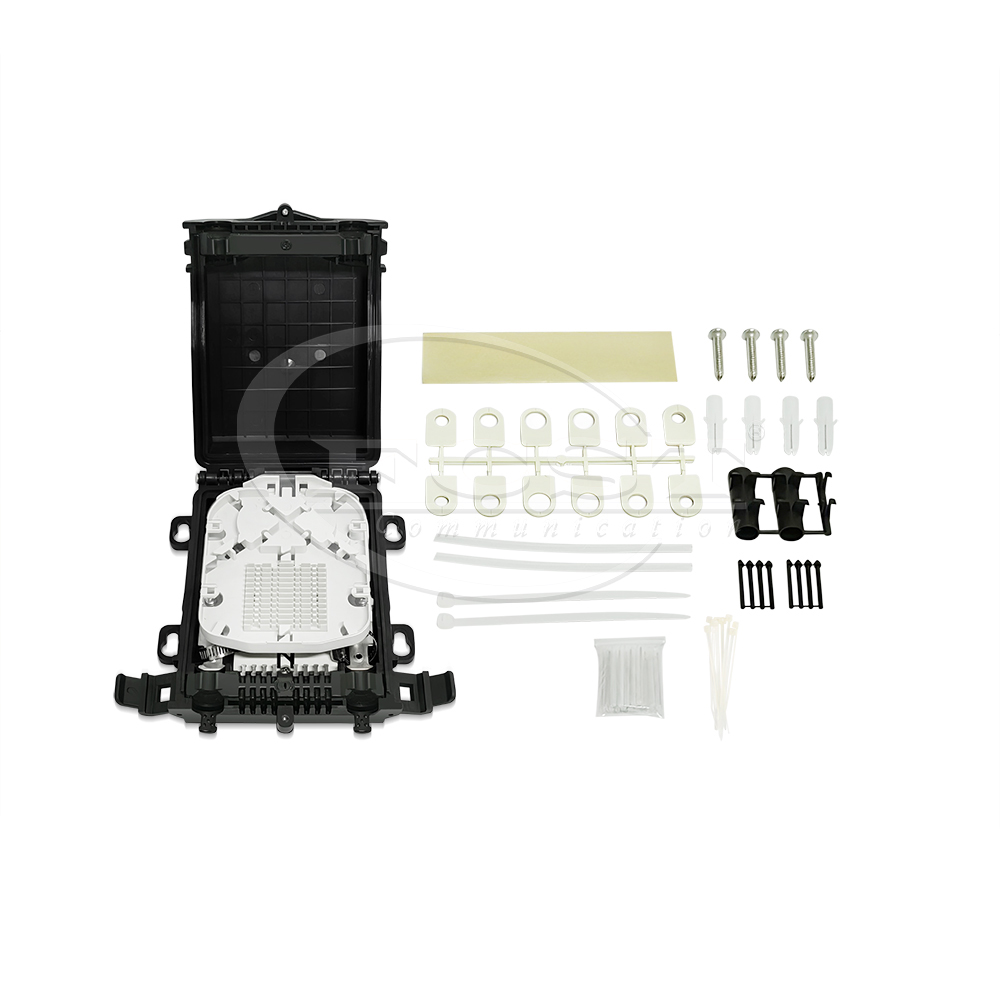

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

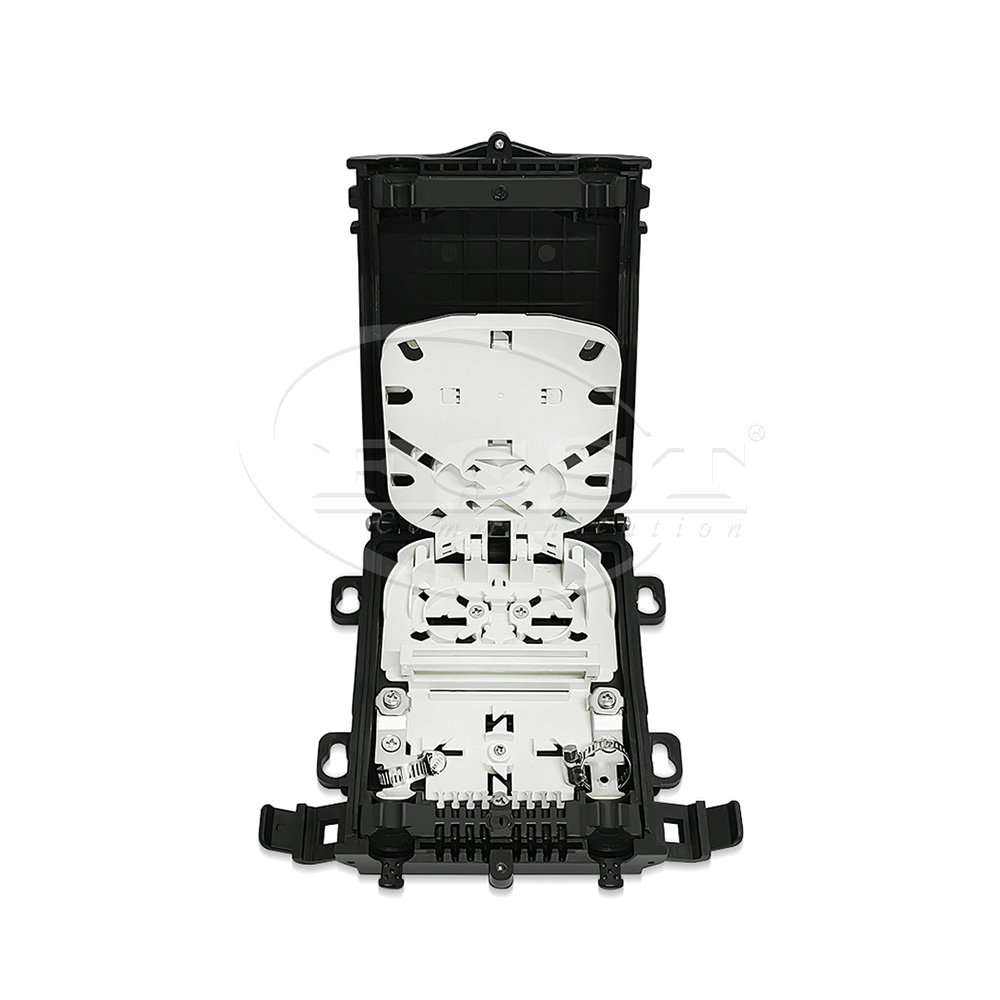

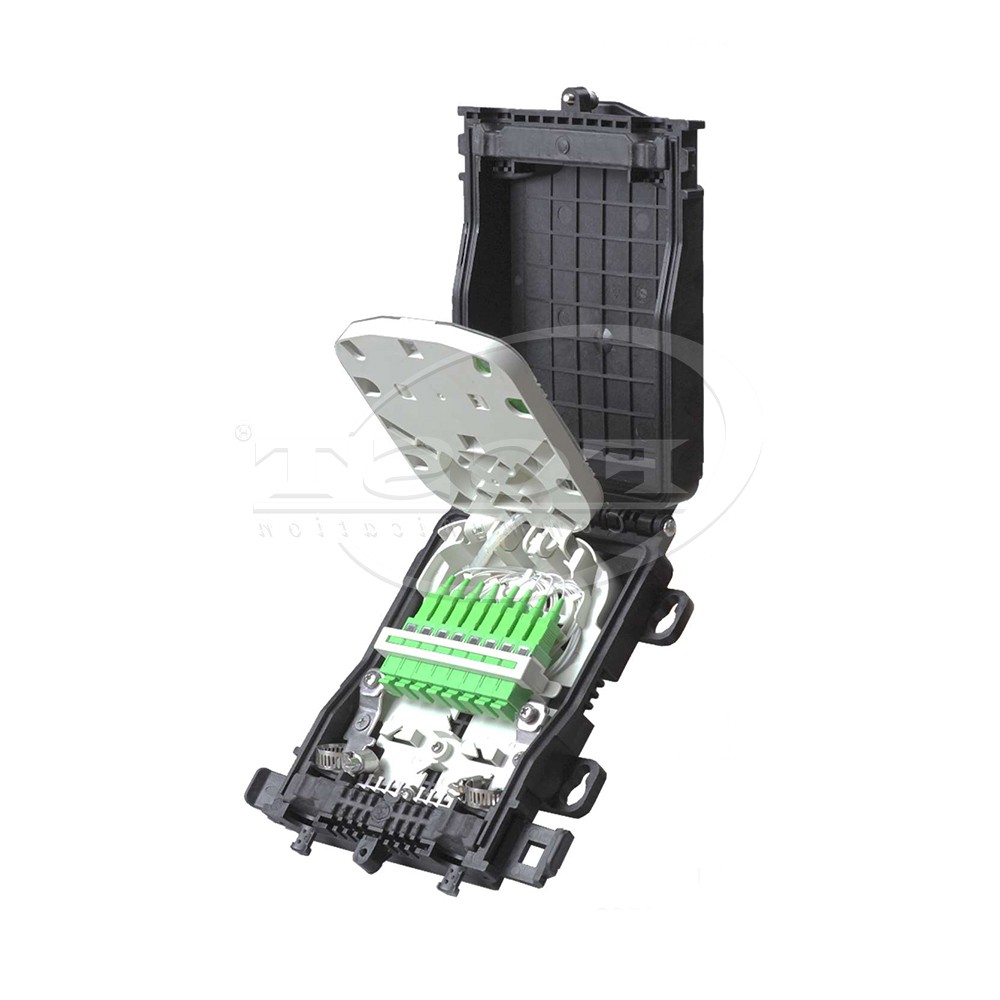

Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance,sturdiness and durability.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 12-48cores |
| Material | PP+GF |
| Dimension (mm) | 485*171*108 |
| Inlets/Outlets | 2/2 |
| Installation | Pole/Aerial/Manhole |
| Net Weight（g） | 3000 |
| Protection Level | IP67 |
| Diameter Of Fiber Cable | Φ10mm~φ25mm |
| Sealing Mode | Mechanical |

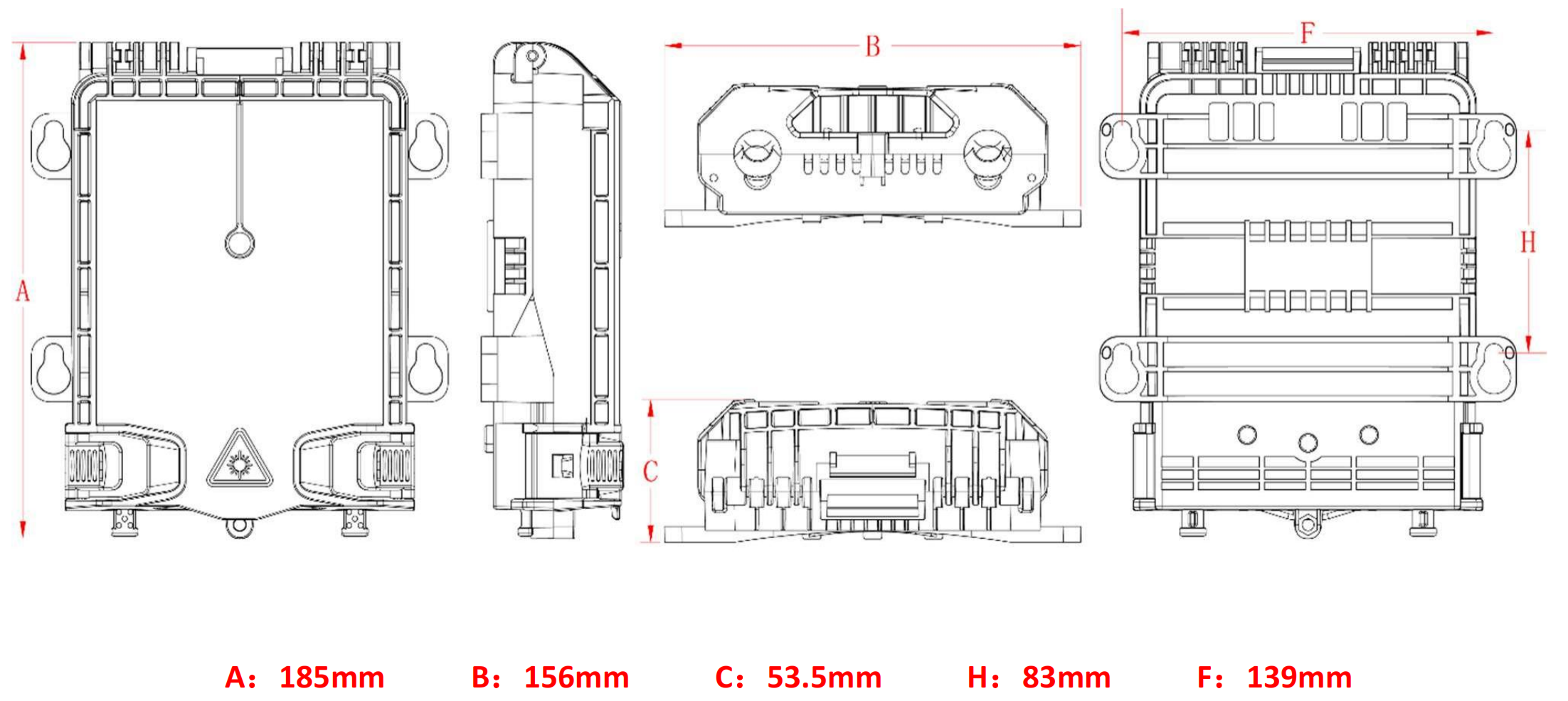

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
What transport methods does the Closure support?
How to select the configuration of the Fiber Optic Splice Closure?
How many cores can a tray hold?
How is the packaging？
