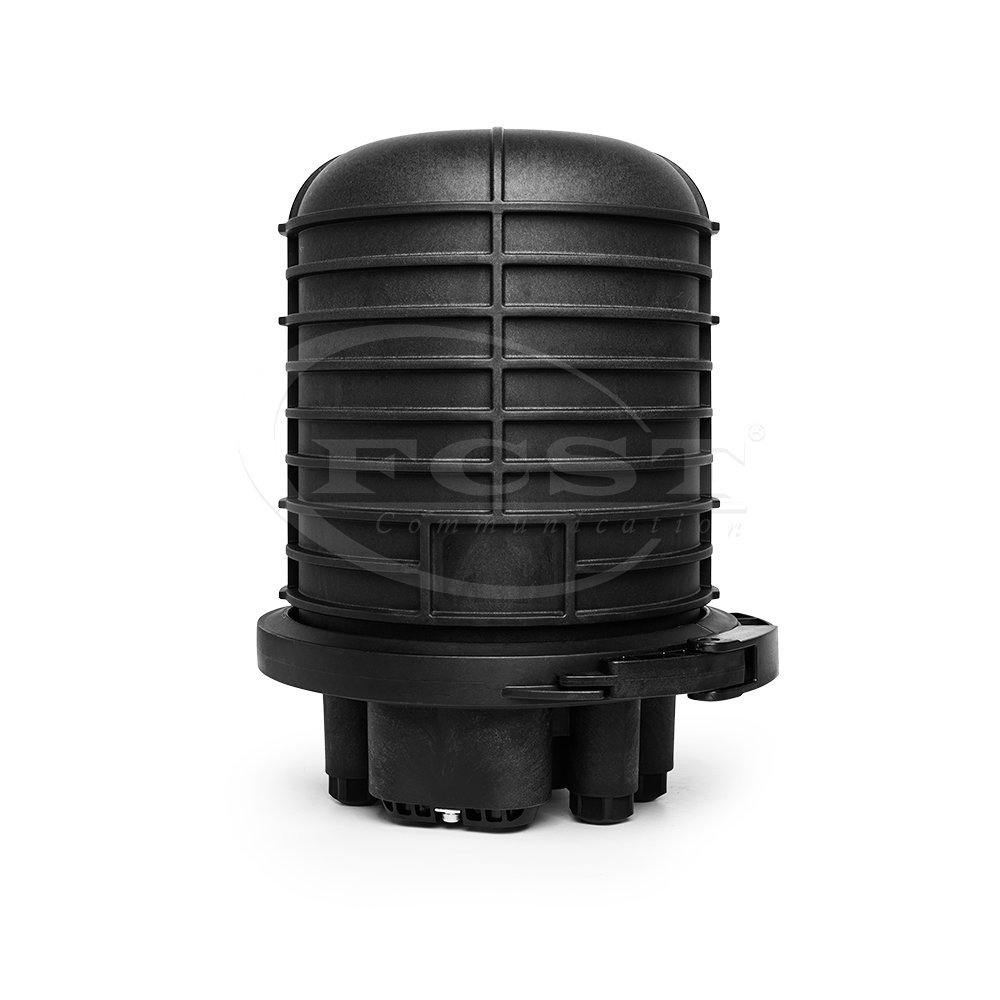

Max.144Cores,Inlets/Outlets:3/7,Dome Type.
Product Advantages
IP68 Protection grade.
Provide logo customization service.
Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
Sealing: Mechanical seal is adopted for box body and cable mouth.

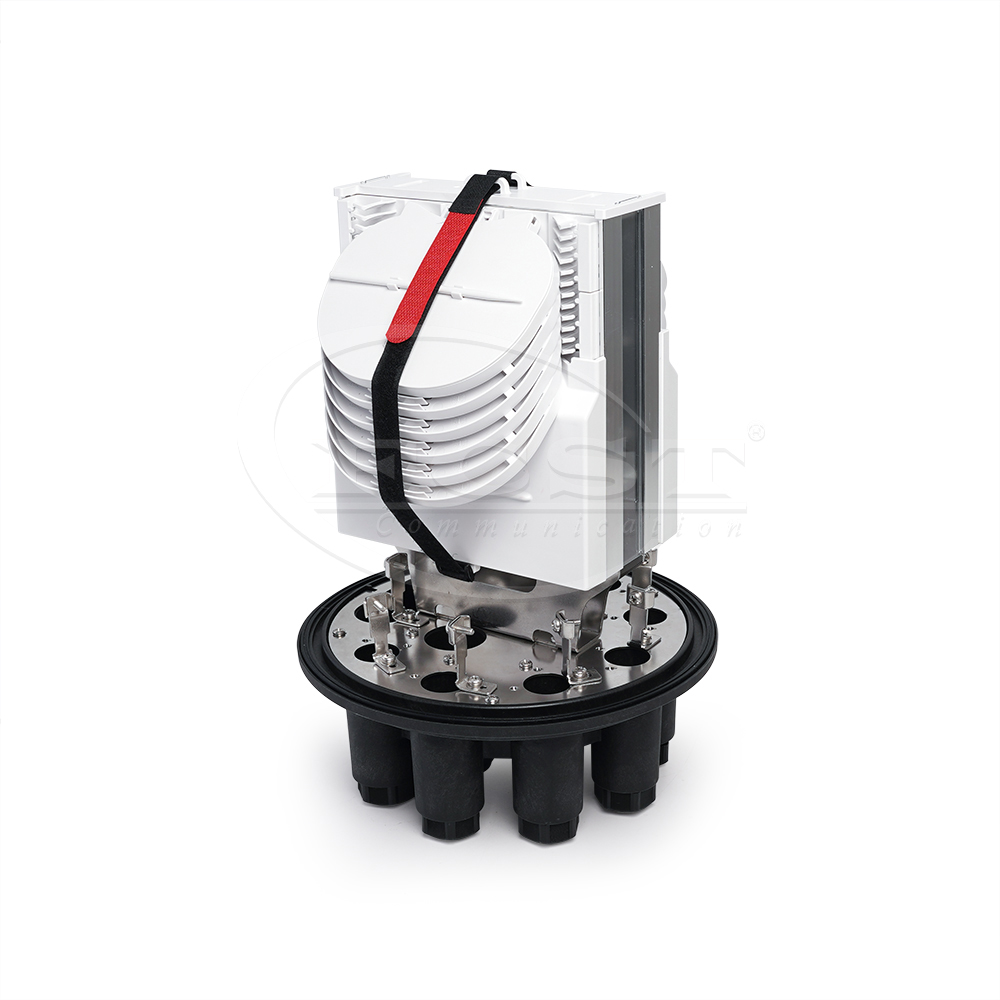

Capacity: It can install 24 pieces of 6-core fiber trays or 12 pieces of 12-core fiber trays, with the maximum capacity of 144 cores.

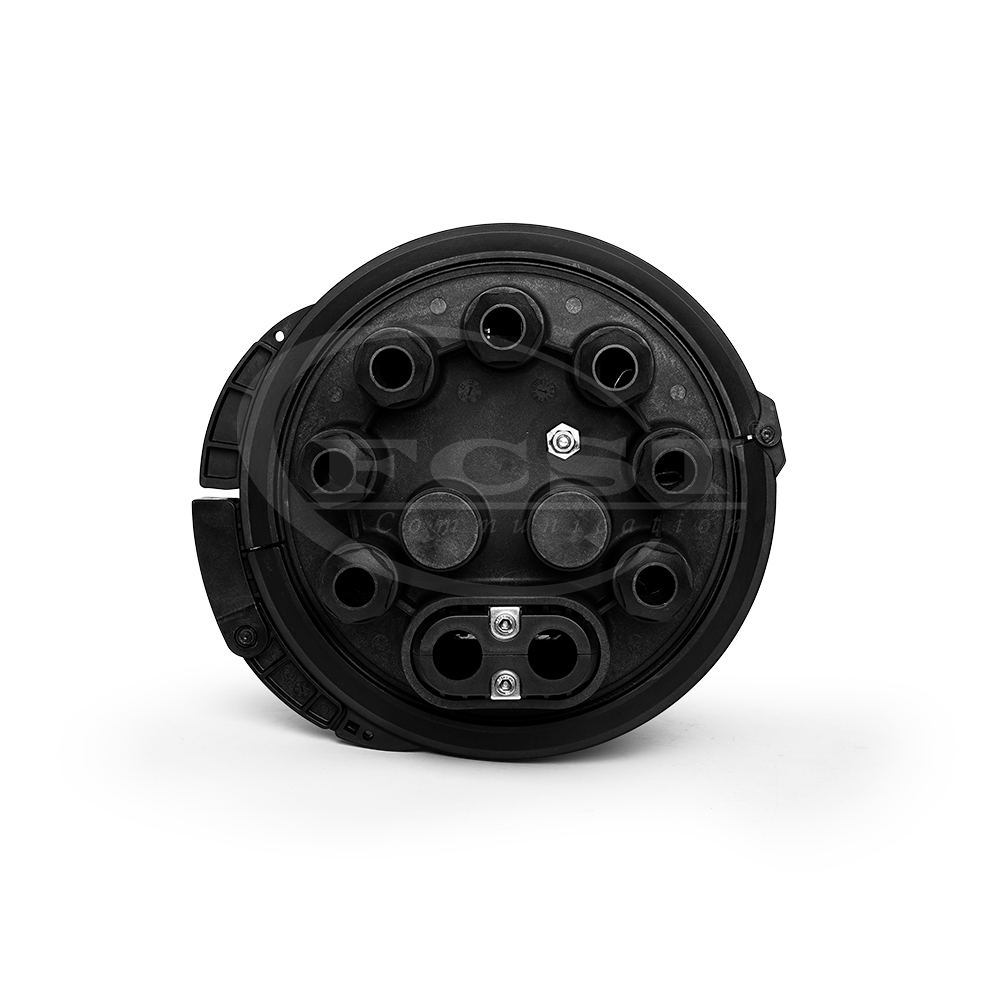

Cable diameter: 1 Uncut port support φ10~22mm cable; 7 branch ports support φ8~18mm cable; 2 drop ports support φ2*3mm soft cable.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 144Cores |
| Dimension(mm) | 370*φ300mm |
| Weight(kg) | 5.5-6.2 |
| Sealing Type | Mechanical type or middle port by heatshrink |
| Ports | 1+7+2 |
| Cable Diameter | 1*Oval port:Φ10～22mm; 7*Round port:Φ8～18mm;2* drop cable:Φ2*3mm |
| Capacity Of Tray(Single fiber) | 6/12f |
| Maximum Number Of Trays | 6f: 24pcs; 12f: 12pcs |
| Material | PP+GF |
| Protection Level | IP68 |

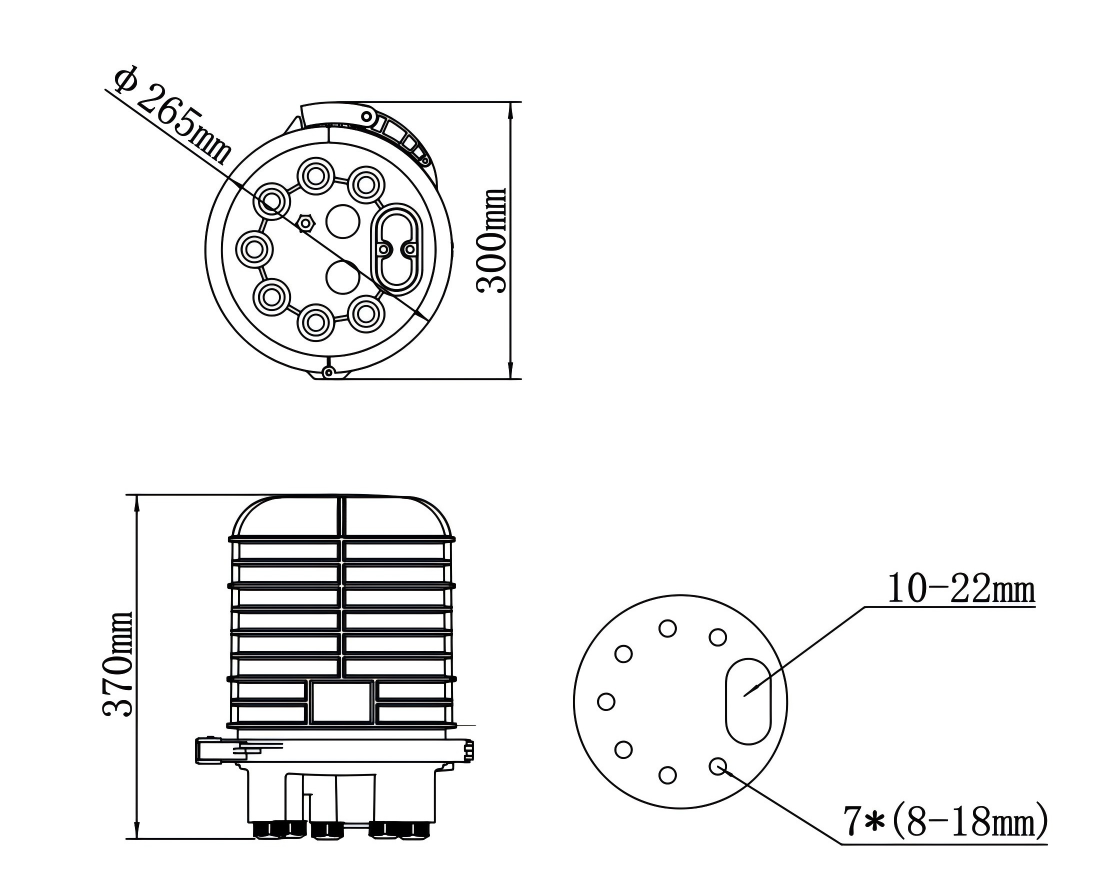

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
Does the Fiber Optic Splice Closure support PLC optical splitters or SC adaptors?
How many cores can a tray hold?
How is the packaging？
