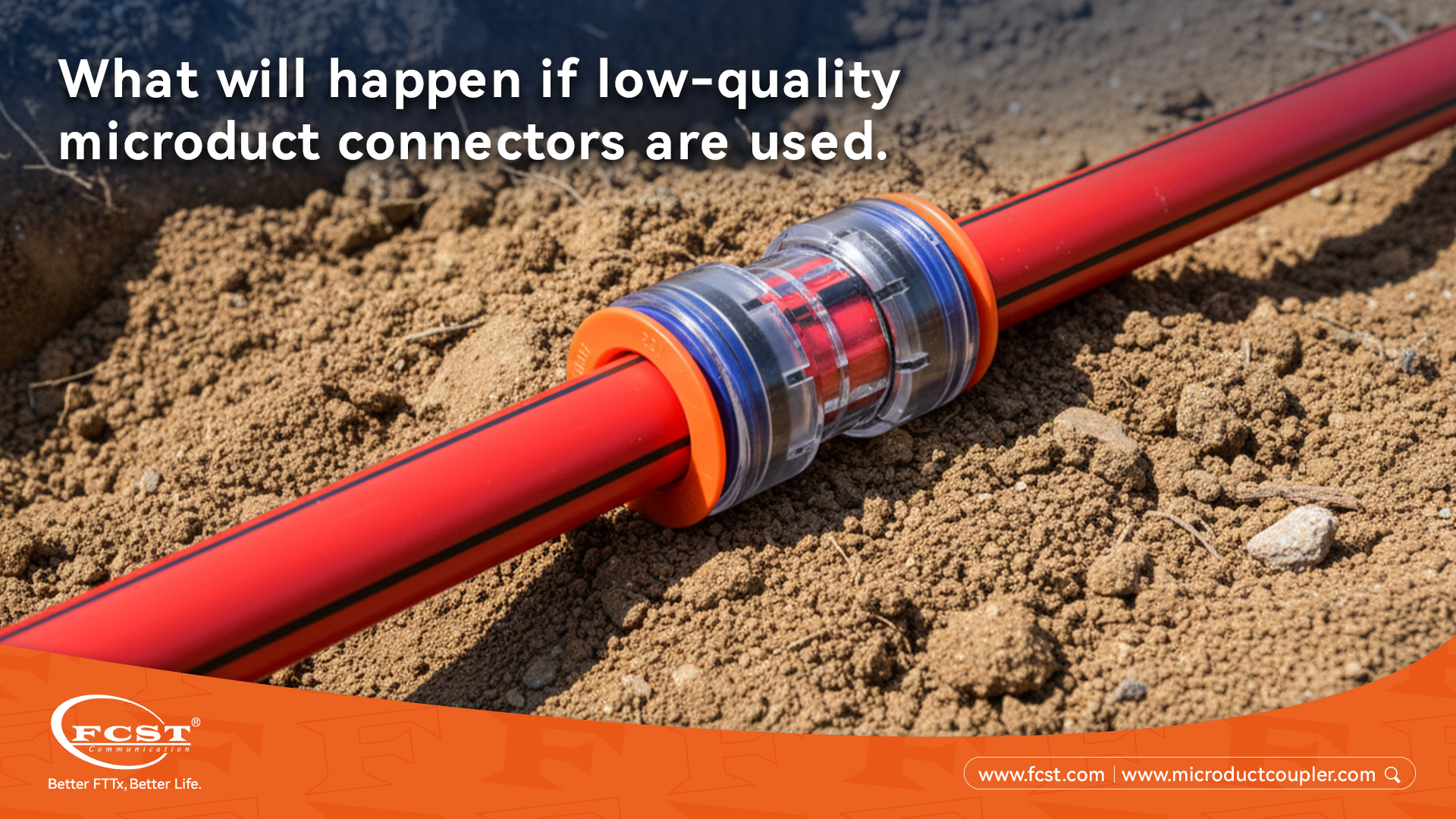

Low-quality microduct connectors cause significant loss in fiber blowing process. Workers often face trouble such as air leakage, it’s difficulte in installing fiber optical cables. Wasting time, adding repair time and extra labor are a lot of fee. Therefor, high quality microduct connectors are essential for optical cable pipeline construction. FCST’s Microduct connectors are Sturdy and highly sealed, they can solve these problems and less costing.
We can anlysis importance of the excellent connectors from the following aspects.
Low-quality microduct connectors will cause air leakage,Reduce the air-blowing process efficiency.
High quality fiber optic microduct connector will ensure connect sturdily,reduce fault ,save time and save cost.
Check and preserve connectors can find question in advance. And to reduce repair time,rapair cost.
Correct installation method,such as aviod sharp turns, micro duct is unobstructed.That can enhance performance and life time.
Certified hdpe microduct connectors can save lots of long-run cost by reducing repairment and improving speed of installation.
Low-quality microduct connectors will cause air leakage,reduce pressure of the micro duct, and it can cause fiber cable friction and twine each other.
Unstable microduct connectors for cable jetting solution
Unstable connections cause microduct to disconnect or shift during installation. This problem results from poor sealing and a loose fit. Technicians report inconsistent cable blowing lengths and frequent interruptions. The following table shows common technical problems with low-quality connectors:
Problem Type | Description |
Connection Stability and Reliability | Increased risk of disconnection and inconsistent cable blowing length due to poor sealing and fit of connectors. |
Mechanical and Environmental Issues | Mechanical stress leading to damage and environmental susceptibility causing degradation over time. |
Installation and Maintenance | Difficult installation processes and challenges in maintenance due to confined spaces and the need for frequent repairs. |
Unstable Microduct coupler can lead to the failure of pipeline laying, causing significant losses to the engineering team.
Static Electricity and Contamination
Static electricity and contamination can damage microtube optical cables. Dust, oil and salt on the fingerprint ,it will form a micro-lens on the end face of the optical fiber, which lead to scatter light. A contaminated connector may cause a loss of 0.5 to 1.5 dB, it is even greater than the loss of the entire optical cable operation.
Unclean connectors can weaken signal quality and shorten the lifespan of optical cables. Construction workers must clean the connectors, preventing static electricity accumulation and protecting the system.
Significant Losses from Poor Connectors
Reduced Blowing Efficiency
Poor-quality microconduit connectors can reduce the installation speed of optical cables. The workers noticed that the originally measured length of the optical cable was shorter. This was because the pressure in the pipeline was not enough, preventing the optical cable from reaching its destination. The team must re-plan this process or use additional force to pull out the optical cable, but this may damage the optical cable. The reduction in air-blowing efficiency leads to significant losses of time and resources. The project will take longer to complete, and workers spend more time on each installation.
Tip: Always check connector seals before starting air-blowing. A tight seal helps maintain pressure and improves cable movement.
Installation Failures and Downtime
Poor-quality joints always lead to the failure of micro-pipe laying in pipelines. Workers are also always troubled by Poor-quality joints, which lead to delays and extra work. The following table shows the common causes of installation failure and downtime:
Cause | Description |
Poorly designed connectors can be hard to install, requiring excessive force and complicating assembly. | |
Maintenance Challenges | Damaged connectors are hard to access for repairs, increasing downtime and costs due to frequent replacements. |
Teams often stop work to fix or replace faulty connectors. Downtime increases project costs and frustrates workers. Significant losses occur when crews must wait for new parts or spend time troubleshooting.
Increased Maintenance Costs
Low-quality connectors are more prone to breakage. The team must regularly inspect and replace these joints. Each inspection and replacement will result in unnecessary cost increases. Frequent malfunctions mean more spare parts and additional labor. Over time, these costs may even lead to negative profits for the project. Reliable connectors reduce maintenance requirements and help prevent significant losses. Companies that use better connectors will significantly reduce their construction costs and also greatly lower the difficulty of construction.
· Regular inspections catch problems early.
· Using durable connectors reduces the need for replacements.
· Well-maintained systems save money and time.
Connector Quality Comparison
High-Quality vs. Low-Quality Features
High-quality microduct connectors stand out because of their strong materials and advanced sealing. These features help prevent air leaks and keep moisture out. The table below shows how advanced connectors solve common problems in air-blowing engineering:
Feature | Description |
Material | High-strength materials ensure durability and resistance to environmental damage. |
Sealing | Improved sealing prevents air and moisture ingress, addressing common leakage issues. |
Temperature Range | Rated for -40°C to +85°C, ensuring performance in extreme conditions. |
Pressure Tolerance | Handles pressures up to 15 bar, preventing failures during fiber blowing operations. |
Environmental Protection | UV-stabilized and IP68-rated sealing protects against moisture and dust contamination. |
Maintenance | Regular inspection and replacement of seals every 3–5 years to prevent wear and tear. |

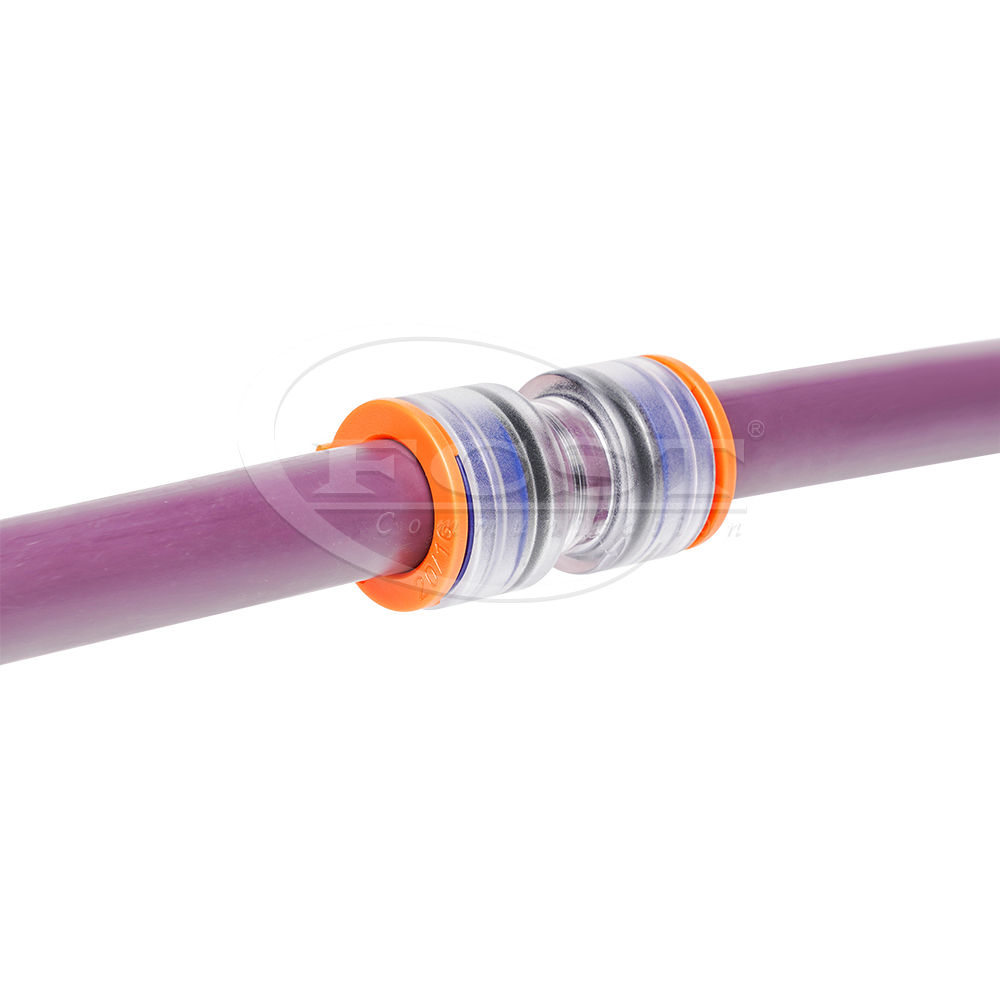

Connectors like the FCST Microduct Connector use high-strength polycarbonate and stainless steel. These materials give the connector extra strength and long life. The easy push-in design also makes installation simple and reduces mistakes.
Long-Term Reliability
Long-term reliability depends on the connector's ability to handle pressure and harsh environments. For this reason, FCST has been constantly optimizing the production process of micro-tube joints. In the production process, it adopts a full-process control of automated injection molding, fine processing, three-in-one integrated assembly and multi-link inspection, and has achieved high-quality production of joints. The 15J microtube connector developed by FCST is an important representative among them. The reliable performance of the 15J connector has been verified by the following tests.
Impact test: A 15-joule impact test is conducted in accordance with the IEC60794-1-2-11 standard to verify the resistance to external forces.
Acid and alkali chemical resistance test: simulation environment (such as oil, soap, water infiltration) material stability, soak a specific reagent on testing in 5-7 days.
Resistance to stress cracking test: assessment materials without external force will happen crack under the action of natural environment, to ensure long-term reliability.
FCST mainly follow EN 50411-2-8 (2009 edition) standard, and carries on the related test from the following aspects of joint
sealing test: inflatable to 40 kpa, immersion 15 minutes, observe whether the leak or bubbling.
Pressure drop test: pressure maintaining record pressure value after 30 minutes, 60 minutes and then reading, differential pressure shall not exceed 1.5 bar.
Retention test: 40 kpa pressure and 125 n (about 12.5 kg) weight, 60 minutes, less than 2 kpa pressure drop.
Extrusion test: 450 n pressure under 40 kpa pressure for 10 minutes, check whether the deformation or leak.
Impact test: according to the specifications are divided into 5 jiao, 15 or of 20 coke, coke use standard steel ball falling from corresponding high impact sub.
Removal of the flame retardant test: UL94V0 standards, flame shall not continue to burn after, only allowed to smoke.
High and low temperature test: in 15 ℃ and + 45 ℃ placed in the environment impact or other performance test after 4 hours.
IP protection test: use IPX8-level water immersion testing equipment to verify the waterproof performance.
FCST factory is equipped with special mould workshop, different models equipped with independent mold and production equipment. Most of the devices are non-standard customized equipment specially developed for micro-tube connectors, featuring high adaptability.
Selection Criteria
Choosing the right microduct connector is important for every project. Teams should look for connectors that match their system, use strong materials, and allow for quick installation. High-quality connectors made from durable compounds perform well in extreme conditions. Poor choices can lead to signal loss and network problems. Fast and easy installation also saves time and money.
Tip: Always check if the connector is rated for the environment and pressure of your project. This step helps avoid future repairs and keeps the network running smoothly.
Prevention Strategies
Certified Connector Use

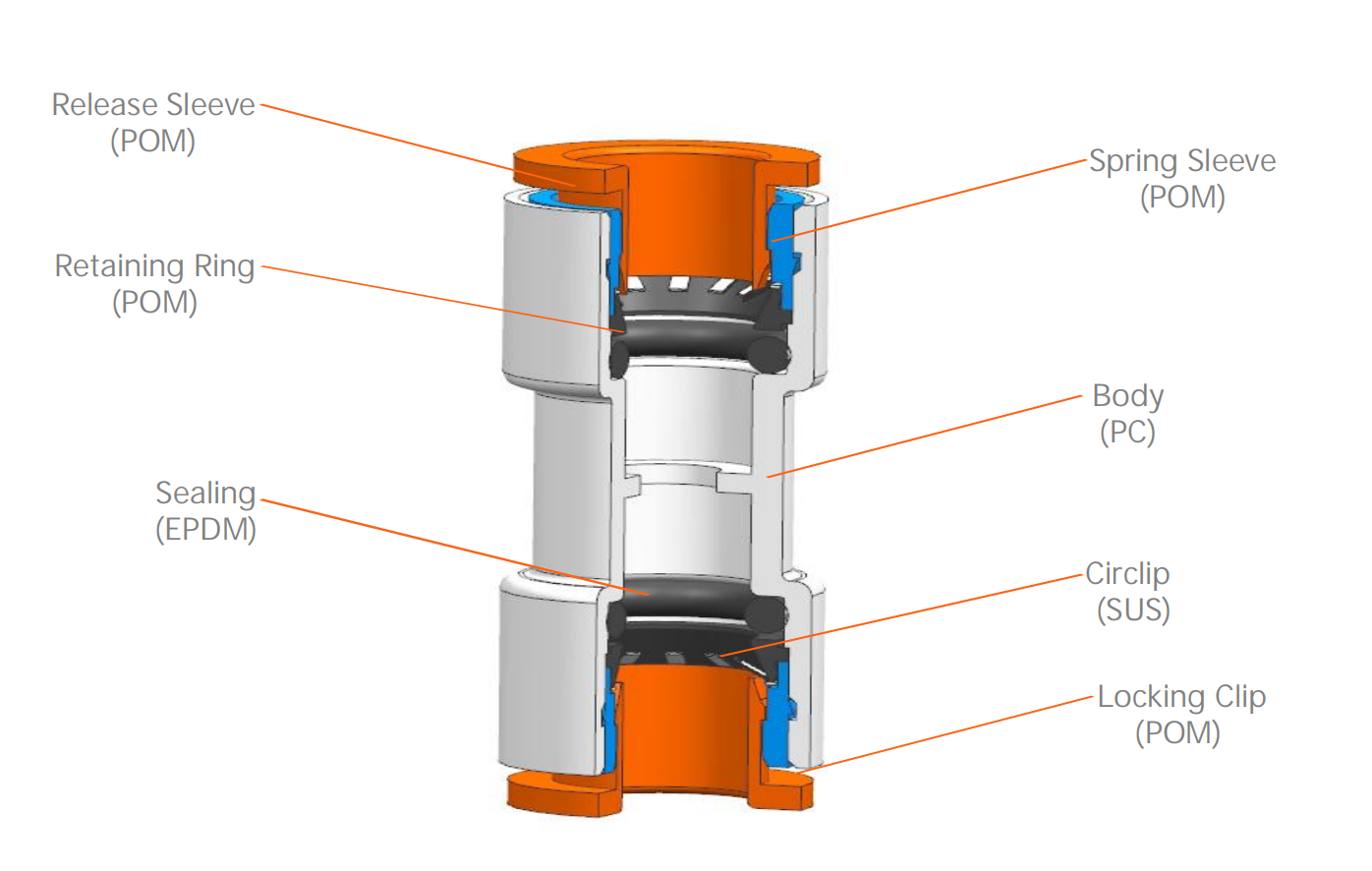

Certified microduct connectors help prevent air leaks and cable failures. The body material of FCST's Microduct connector is imported transparent PC particles (SABIC 243R), and it is strictly prohibited to add recycled materials to ensure light transmission and quality. The spring sleeve assembly automatically assembles the retaining ring, spring sleeve and retaining ring into one through an intelligent device. And it has passed strict appearance, size and sealing capacity tests. Technicians check the strength and pressure resistance capacity of the connector before installation. Using certified connectors can save costs in the long term.
The table below shows the benefits:
Aspect | Benefit |
Initial Investment | Savings of 65% to 70% compared to traditional methods |
Construction Costs | Reduced costs by connecting new users without disruption |
Labor Costs | Lowered labor costs from easier installation and expansion |
System Performance | Enhanced performance with fewer splices and less optical loss |
Efficient installation and reliable connectors simplify repairs and maintenance. Teams reuse microducts for future expansions, saving time and money.
Best Installation Practices
Proper installation reduces the risk of air leaks and cable failures. Technicians follow these steps:
Preparing the Microduct to be Connector
Installing the Connector
Locking Clip Installation
Anti-shock Cover Installation
Silicone Rubber Cover Installation
Remove Connector
Training and Quality Control
Training ensures technicians know how to install and inspect connectors. Teams learn to spot wear, leaks, rust, or loose connections. Regular inspections catch problems early. Maintenance schedules help identify issues before they cause failures. Lubrication reduces friction and keeps fittings working smoothly. Clean fittings prevent dirt and debris from causing damage.
Maintenance schedules identify problems early.
Lubrication and cleaning keep connectors in good condition.
Quality control and training protect the network and reduce costly repairs.
Low-quality connectors often cause significant losses in air-blowing engineering. Teams see wasted time, higher costs, and more repairs. High-quality connectors, like FCST’s Microduct Connector, help prevent these problems. Teams should choose quality connectors and follow best practices to protect their projects.
