In the world of industrial engineering and urban infrastructure, the telecom access manhole chamber (also known as an access hatch or inspection port) serves as the vital gateway between the exterior environment and the interior of a closed system. Whether it is a city sewer line or a high-pressure chemical reactor, manholes ensure that systems remain maintainable, inspectable, and safe.
Functions of a Telecom Composite Manhole Chamber
Inspection & Maintenance: Allowing technicians to enter for visual checks of structural integrity, corrosion, or mechanical failures.
Cleaning: Providing a point of entry for removing sludge, sediment, or chemical residue from storage tanks.
Ventilation & Safety: Acting as an auxiliary vent during maintenance or providing an emergency exit point in confined space operations.
Equipment Installation: Facilitating the insertion of internal components like mixers, heating coils, or sensors that are too large for standard nozzles.
Common Types of Telecom Manhole Chamber pit
Duct chambers are categorized based on their shape, pressure rating, and opening mechanism.
1. By Shape
Circular Manholes: The most common type, used in both underground utilities and industrial tanks. Their shape prevents the cover from accidentally falling into the opening.
Oval/Elliptical Manholes: Frequently found on the sides of pressure vessels (side-entry), allowing for easier ergonomic entry for workers.
Rectangular/Square Manholes: Mostly used in telecommunications and electrical vaults where large equipment panels need to be lowered.
2. By Pressure Rating
Atmospheric (Non-Pressure) Manholes: Used for water tanks or silos where there is no internal pressure.
Pressure Manholes: Designed to withstand high internal PSI. These feature thicker plates and heavy-duty bolting systems.
3. By Opening Mechanism
Quick-Opening Manholes: Use a lever or handwheel for fast access without tools.
Bolted Manholes: The standard for high-pressure or hazardous chemical storage, requiring a specific torque sequence for sealing.
Specifications and Standards
To ensure safety, ducting access box must adhere to international manufacturing standards.
Dimensions (Common Sizes)
Standard industrial manhole diameters usually include:
450mm (18"): Minimum for head-and-shoulder inspection.
600mm (24"): The industry standard for full-body entry with breathing apparatus.
800mm - 1000mm: Used for heavy industrial reactors requiring large tool entry.
Materials
The material must match the environment:
Stainless Steel (304/316L): For food, beverage, and pharmaceutical industries.
Carbon Steel: For oil, gas, and wastewater.
FRP (Fiberglass Reinforced Plastic): For highly corrosive chemical environments.
Regulatory Standards
ASME Section VIII: For pressure vessel manholes.
EN 124: For gully tops and manhole tops for vehicular and pedestrian areas.
API 650: For atmospheric storage tanks in the oil industry.
Industry Applications
Industry | Primary Use Case | Key Requirement |
Water & Wastewater | Access to sewer lines and pumping stations. | Corrosion resistance (H2S gas). |
Oil & Gas | Cleaning crude oil storage tanks. | Explosion-proof and pressure-rated. |
Food & Pharma | Internal cleaning of fermentation/mixing tanks. | Sanitary finish (Ra < 0.4μm) and "dead-leg" free. |
Telecommunications | Protection of fiber optic cables and joints. | Heavy load-bearing (for road traffic). |
Chemical Processing | Inspection of glass-lined or alloy reactors. | Chemical compatibility with gaskets (PTFE/Viton). |

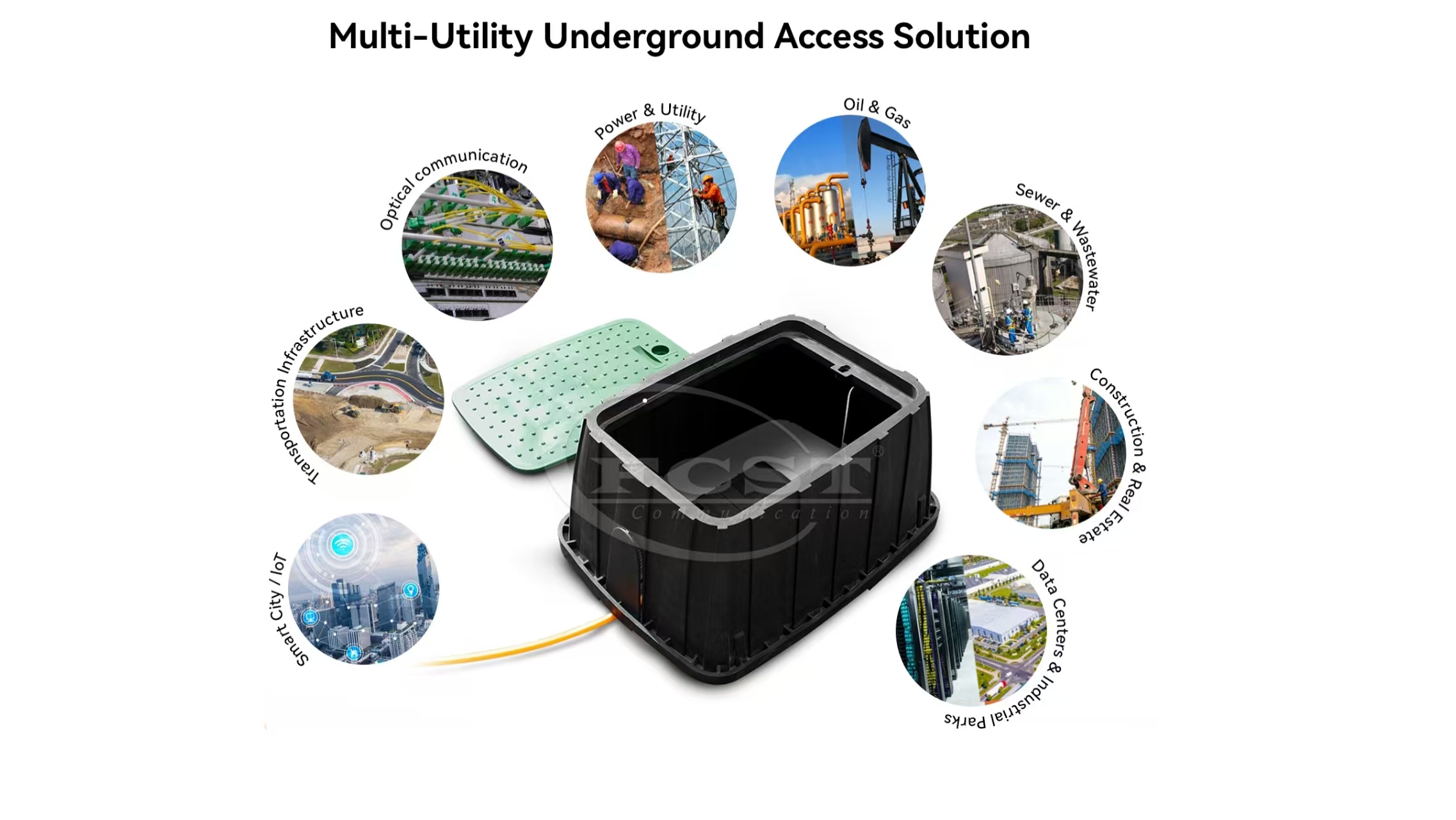

FCST Modular Inspection Chamber
FCST manhole chamber adopts the integrated inspection well design, replacing traditional cast-in-situ concrete and brick-built inspection wells. It is well adapted to construction in narrow road conditions and suitable for a wide range of scenarios and industries.By using integrated pre-assembled modules, on-site concrete pouring work is minimized, greatly improving construction efficiency.Our underground and wall-mounted electricity meter boxes and cabinets are widely used in streets, photovoltaic power stations, wind farms and other scenarios.
Summary
Underground telecom vault are the backbone of industrial "Confined Space" management. Selecting the right type—whether it’s a 600mm stainless steel quick-open hatch for a brewery or a bolted carbon steel port for an oil refinery—is crucial for operational efficiency and personnel safety.
