In global FTTH, FTTD, municipal fiber networks and data center microcable blowing deployment projects, reliable mechanical tensile performance of microduct connectors is the core guarantee for stable long-distance cable blowing, pipeline laying and long-term underground operation. IEC60794-1-2 Method E1, the international unified tensile strength test standard for optical cable and microduct accessory systems, has become a core compliance threshold for microduct connectors to enter mainstream telecom markets worldwide. As the authoritative mechanical testing clause under the IEC 60794 optical cable general specification, it strictly verifies the connection firmness, structural tensile resistance and anti-separation performance of microduct connectors, directly judging whether products can withstand construction traction, pipeline tension and long-term ground settlement load without disconnection, leakage or structural failure.

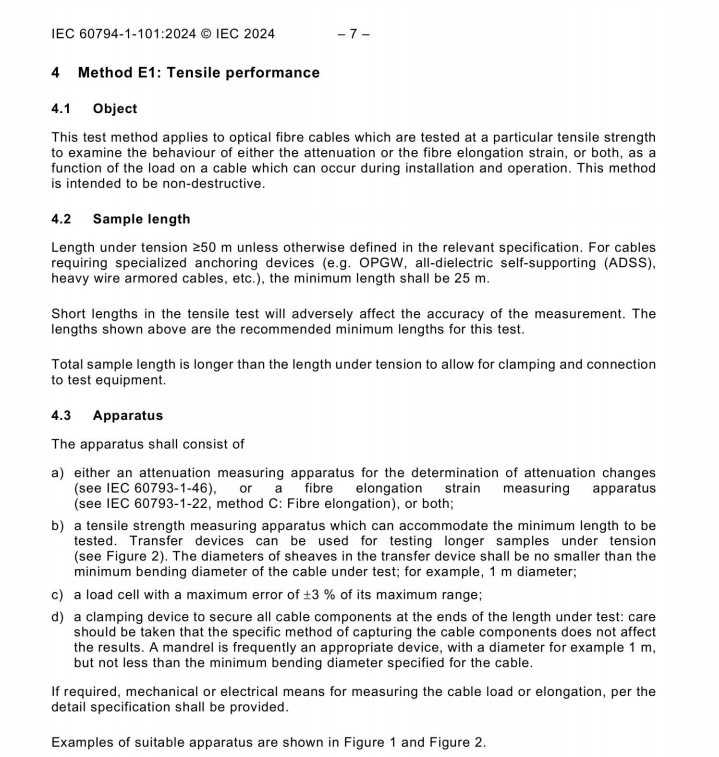

PIG1-IEC60794-1-2 Method E1
FCST’s full-series microduct connectors are fully developed and manufactured in strict accordance with every clause of IEC60794-1-2 Method E1. Our products achieve a 100% pass rate in standard tensile strength testing, delivering all-round mechanical compliance certification. With outstanding tensile resistance, our fiber duct connectors eliminate hidden risks of joint separation during cable blowing and underground laying, providing solid structural safety and complete market access credentials for your global fiber communication projects.
1.1 Test sample quantity: 6pcs
1.2 Ambient temperature: 23℃±3℃
1.3 Pre-conditioning: Storage time at ambient temperature 24 h
1.4 Test tension：
Size | Tensile force |
7MM | ≥200N |
8MM | ≥200N |
10MM | ≥400N |
12MM | ≥450N |
14MM | ≥500N |
16MM | ≥550N |
18MM | ≥675N |
20MM | ≥770N |
Size | Tensile force |
10-7MM | ≥200N |
12-10MM | ≥400N |
14-8MM | ≥200N |
14-12MM | ≥450N |
16-14MM | ≥500N |
1.5 Microduct extension rate: 100 mm/min
1.6 Tensile load: 0.8W and 1.0W (W: microduct weight/km)

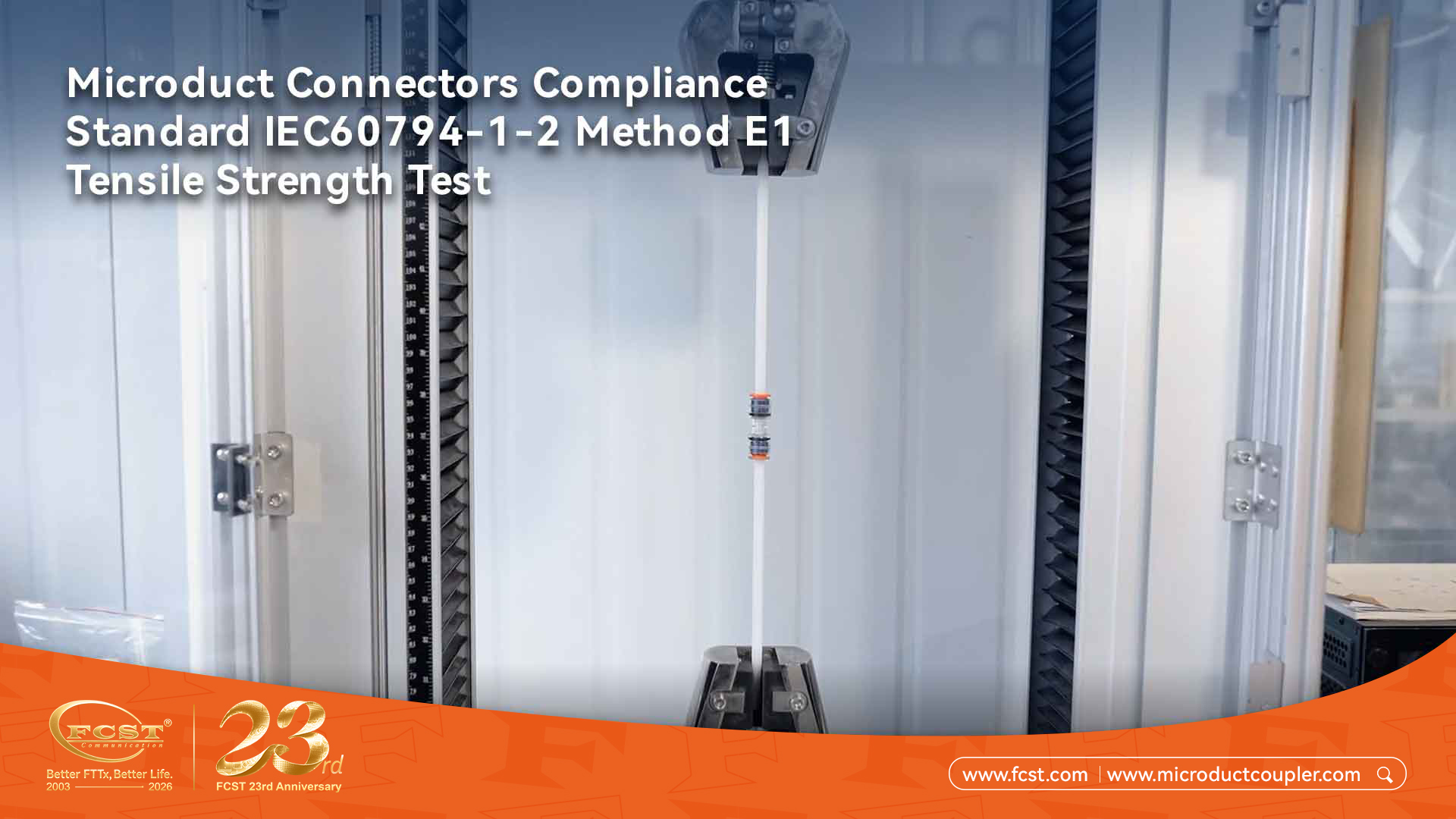

PIG1-IEC60794-1-2 Method E1 Tensile Strength Test
2.1 Test assembly consists of original microduct matched with supporting FCST hdpe microduct couplings, retaining complete original wall thickness, lock structure and sealing assembly.
2.2 Pre-conditioning: Specimen placed under standard environment of 23℃, 50% RH for 24 hours before formal tensile test to eliminate material internal stress interference.
2.3 Assembly standard: Connector fully locked in place as field construction specification, no incomplete fastening, no gap assembly.

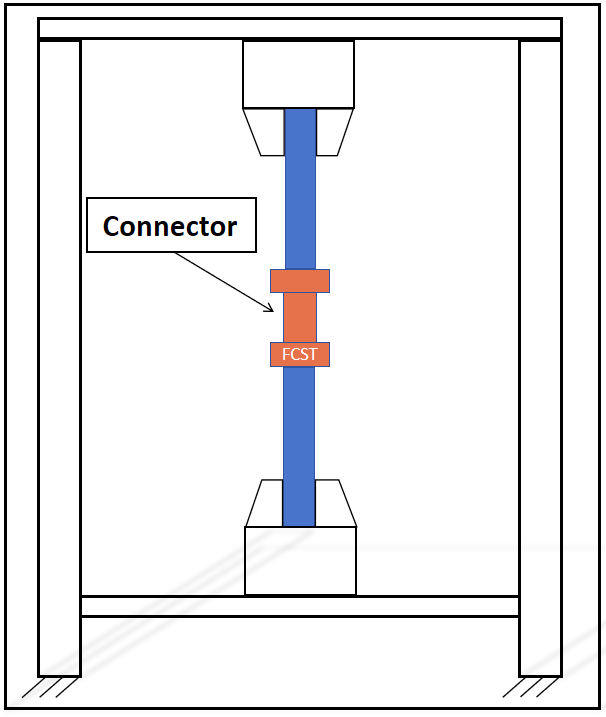

3.1 Fix two ends of the microduct fitting assembly onto the upper and lower chucks of the universal tensile tester, ensure clamping without crushing microduct pipe wall.
3.2 Start the tester at uniform extension speed, gradually increase tension up to specified maximum test load
3.3 Maintain full tensile load stably, record real-time displacement, pipe separation and connector deformation data throughout holding period.
3.4 Full test recording items: Maximum bearing tension value; connector displacement elongation; joint separation gap; cracking, fracture or slip of lock structure.
4.1 After load release, the tensile force value displayed by the tester shall exceed the standard value specified for the corresponding dimension.The test is deemed passed if the measured value exceeds the standard requirement; otherwise, the test fails.

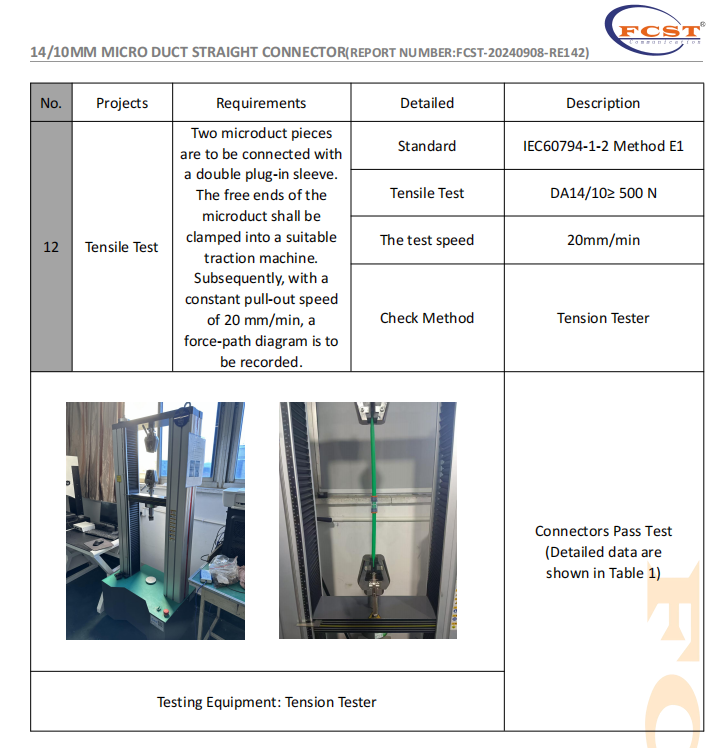

PIG2-IEC60794-1-2 Method E1 Tensile Strength Test Report Screenshot
IEC60794-1-2 Method E1 is the unified mechanical test method under the global IEC optical cable standard system, specially applicable to microduct fiber unit accessories including db mciroduct fittings. This tensile test simulates all real tension scenarios on site: traction force during high-speed microcable blowing, horizontal pipeline stretching, vertical shaft hanging load, ground settlement and soil extrusion tension in buried pipelines.
Qualified tensile performance certified by this standard effectively avoids core project faults: micro conduit connectors pull-off during cable blowing leading to project rework, pipeline joint separation causing water/mud intrusion into microducts, long-term tension damage cutting off fiber transmission channels. FCST’s fully compliant tensile-certified HDPE Tube Connectors protect fiber network integrity, reduce post-construction maintenance costs and guarantee long-term stable operation of municipal, data center and residential FTTH fiber infrastructure.
Contact us now to obtain full official IEC60794-1-2 E1 tensile test reports, free product samples and customized microduct system matching solutions. Let fully mechanically compliant FCST microduct accessories become your competitive advantage to expand high-end global fiber broadband markets.
