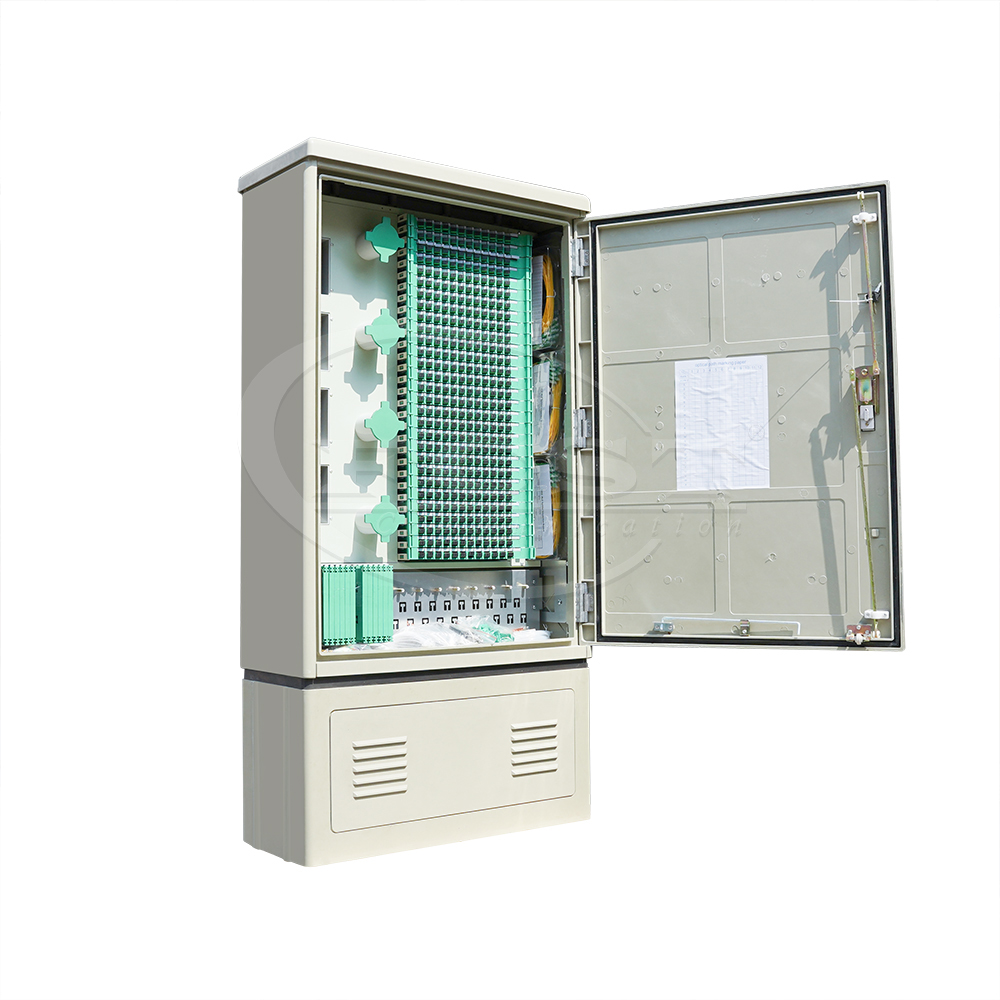

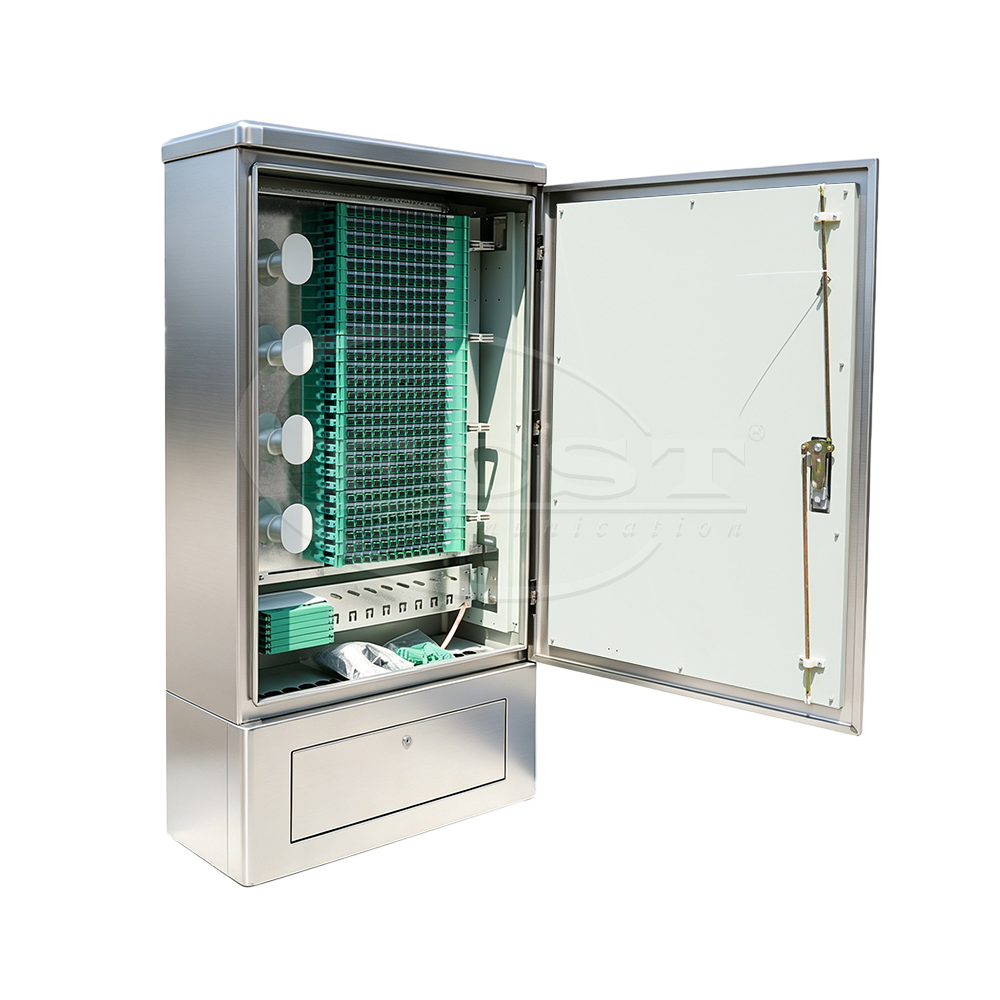

Max.288Cores, Outdoor fixed installation | IP65 | SMC / Stainless Steel/Cold rolled steel plate
Product Advantages
Capacity up to 288 fiber.
Installation is quick and convenient.
High intensity and anti-erosion performance.
Pre-connectorized fiber pigtails installed for rapid deployment.
Able to counter abrupt climate change and extreme environment.
Built-in direct splice unit is capable for providing direct connection function.
With secure and reliable fastening and grounding protection devices for the optic fiber.

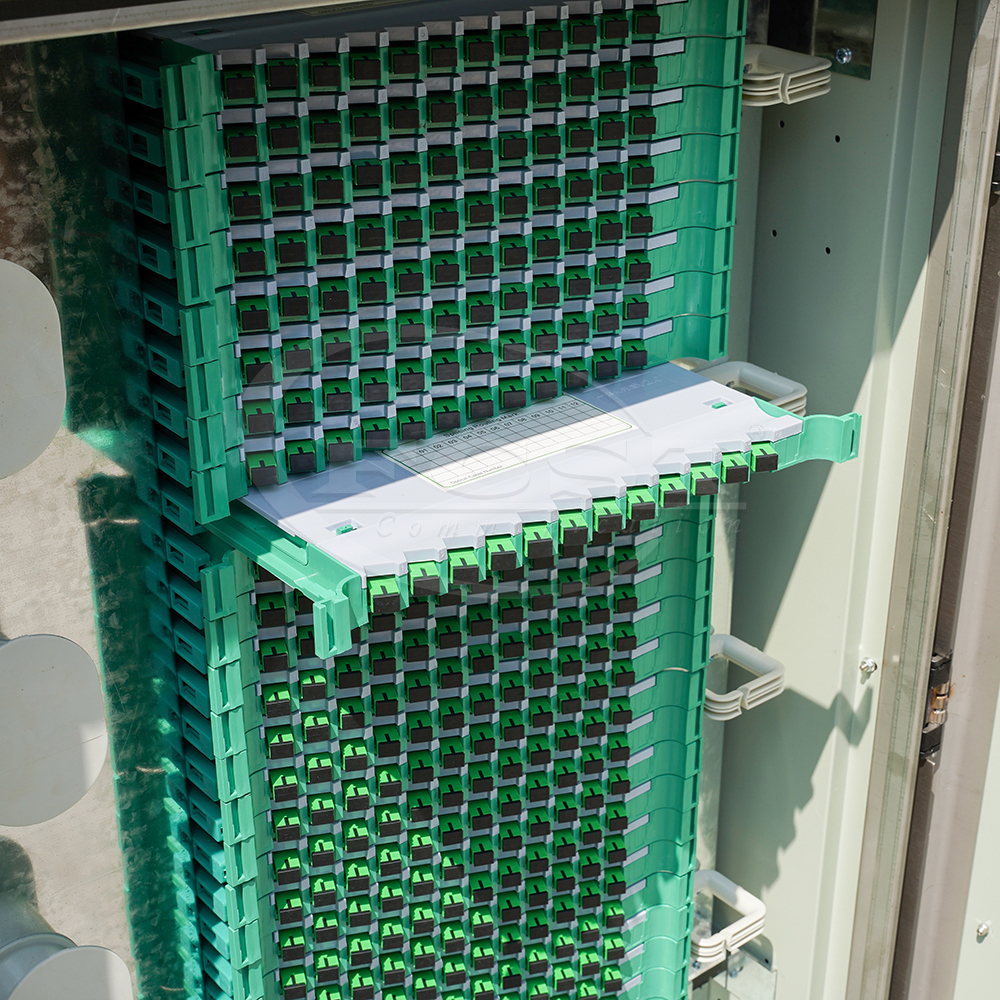

Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 288Cores (SMC:Max.348 cores丨Stainless Steel:Max.336 cores) |
| Material | SMC/Stainless Steel/Cold rolled steel plate |
| Length | 750mm丨29.530in(SMC Type) |
| Width | 320mm丨12.600in(SMC Type) |
| Height | 1450mm丨57..090in(SMC Type) |
| Weight | SMC:58kg Stainless Steel:55kg |
| Adapter | SC/LC/FC/ST etc. |
| Installation | Outdoor fixed installation |
| Max. Number Of Trays | 29PCS |
| Splitter Type | Box Type PLC |
| IP Level | IP65 |

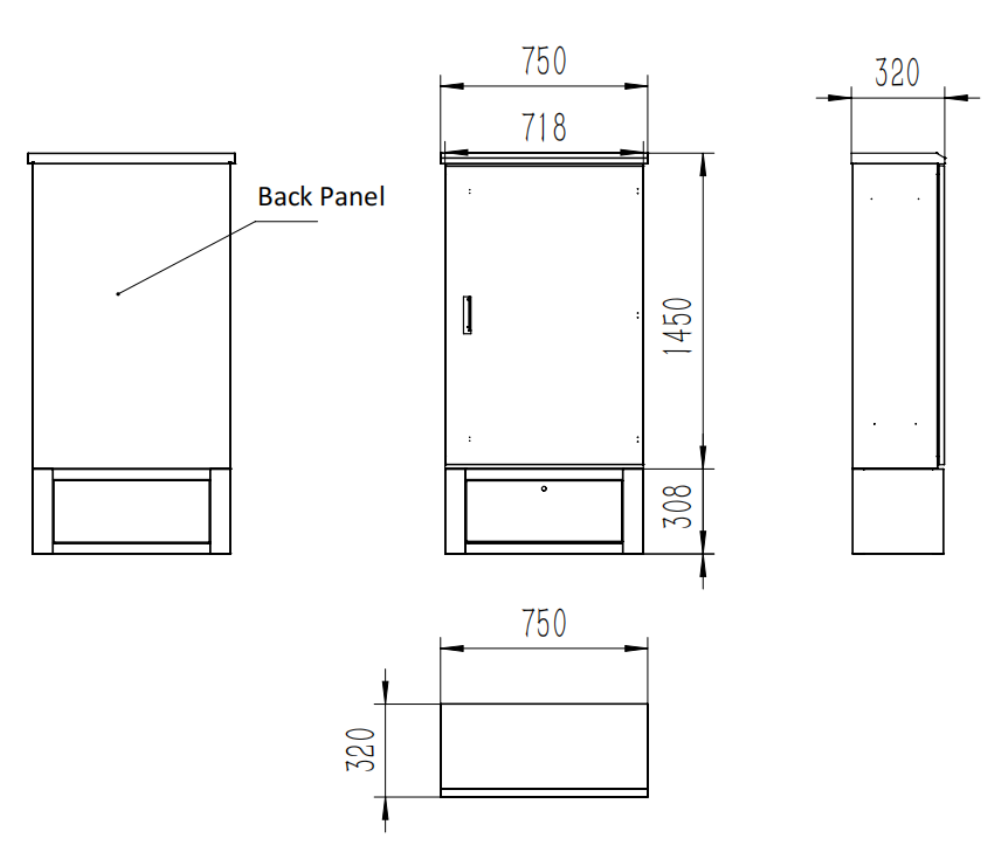

Product Structure
Product FAQ
How many subscribers can a 288-core fiber distribution cabinet support?
What IP rating is recommended for outdoor fiber distribution cabinets?
Does the cabinet provide grounding protection for metallic cables?
Can the cabinet be wall-mounted or pole-mounted?
Can this cabinet be used as a fiber distribution hub for 5G networks?
