Duct Width:≤62mm Duct Height:≤47.5mm, |ABS |IP67
Product Advantages
Protection Level:IP67.
Proven gel sealing system.
No pressure relief valve required.
Robust construction with high mechanical strength.
Easy handling at all temperatures,Tool-less installation or re-entry.
Sealing rings can be customized according to the size of microduct.
Cable configuration changes possible with a minimum of extra accessories.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Micro Duct Diameters | Duct Width:≤62 Duct Height:≤47.5 |
| Material | ABS |
| Length | 570mm丨22.441in |
| Width | 180mm丨7.087in |
| Height | 110mm丨4.330in |
| Net Weight(g) | 2220g |
| Protection Level | IP67 |
| Port Supports | 1 in 1 out |
| Temperature Range | -40°C to +60°C |
| Packing | 10pcs/cnt 29.5kg 0.156CBM (595*405*650mm) |

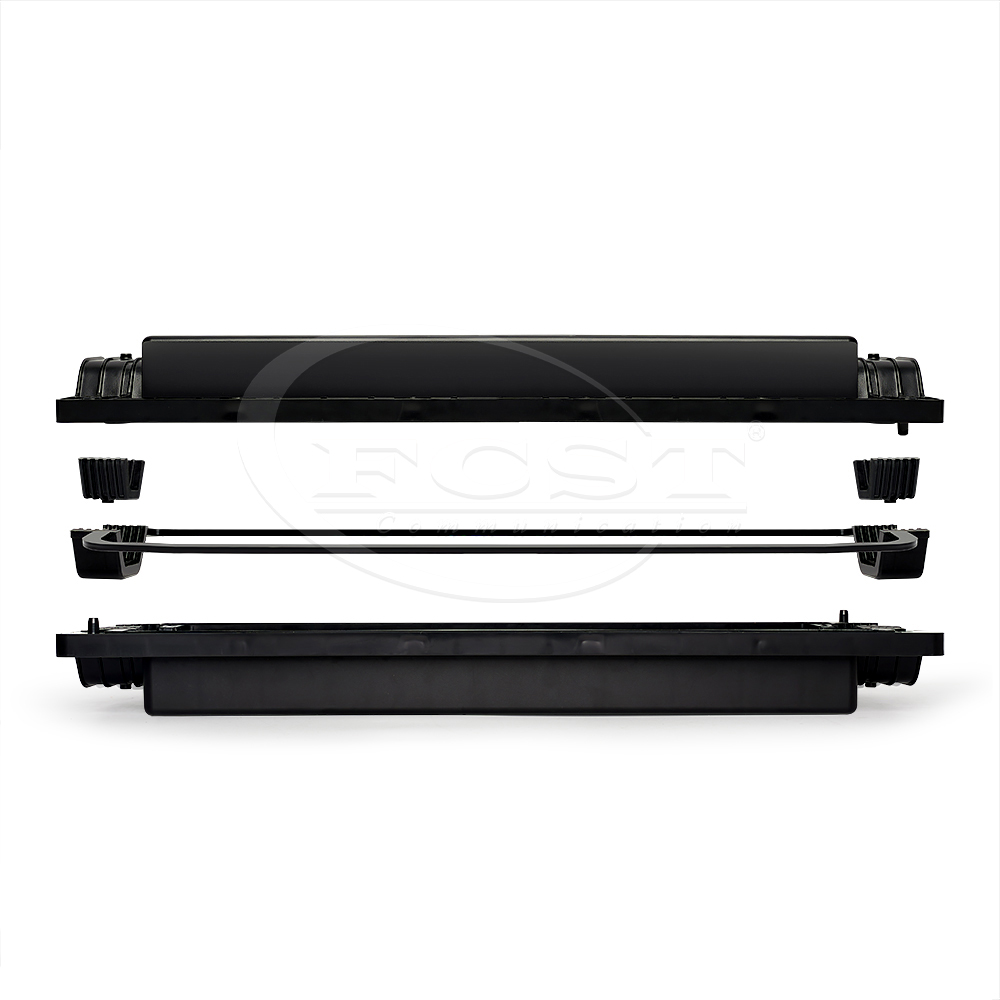

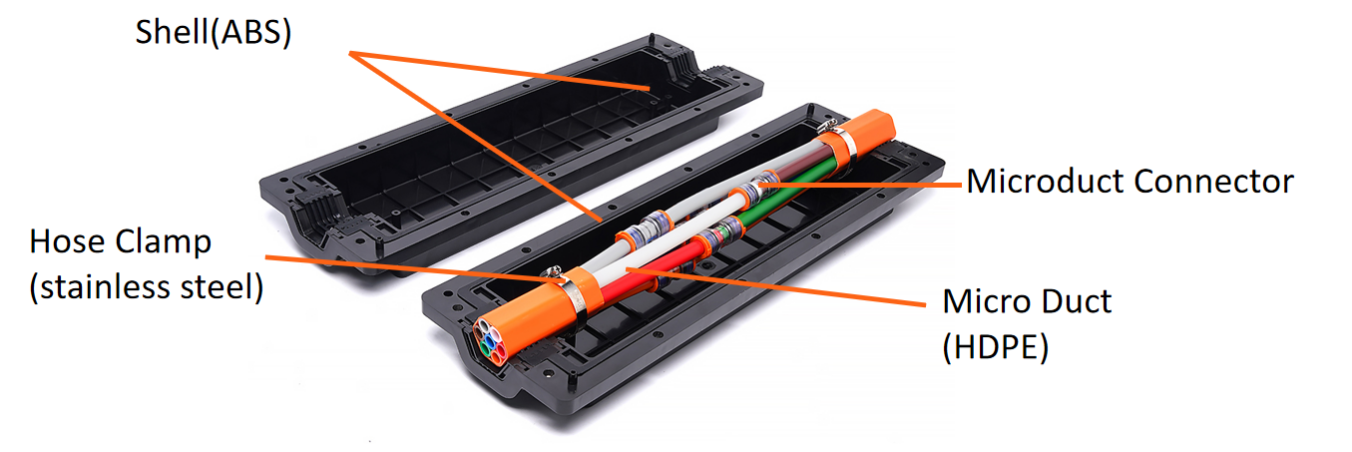

Product Structure
Product FAQ
What is the protection level about the Micro Duct Closure ?
Is the closure re enterable without special tools?
What materials are used?
What is the operating temperature range?
How many ports does it support?
