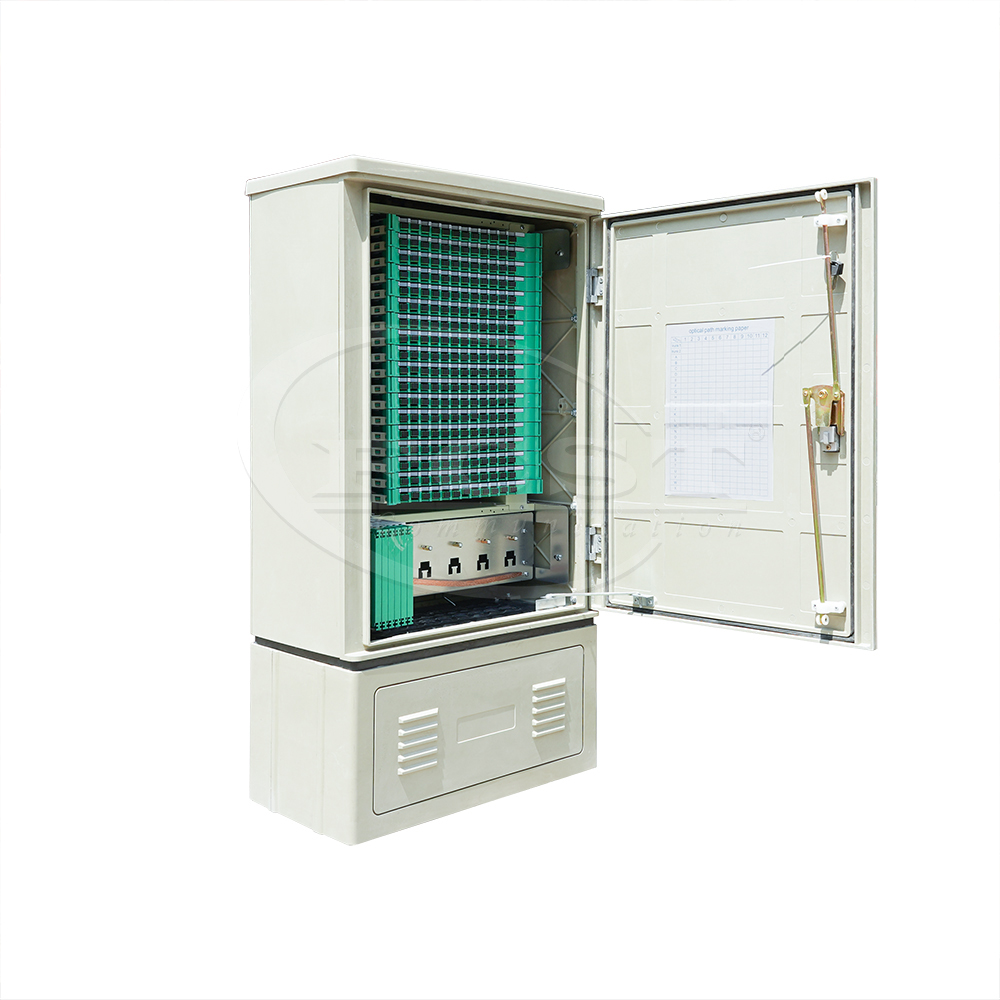

Max.144Cores, Outdoor fixed installation | IP65 | SMC / Stainless Steel/Cold rolled steel plate
Product Advantages
Capacity up to 144 fiber.
Installation is quick and convenient.
High intensity and anti-erosion performance.

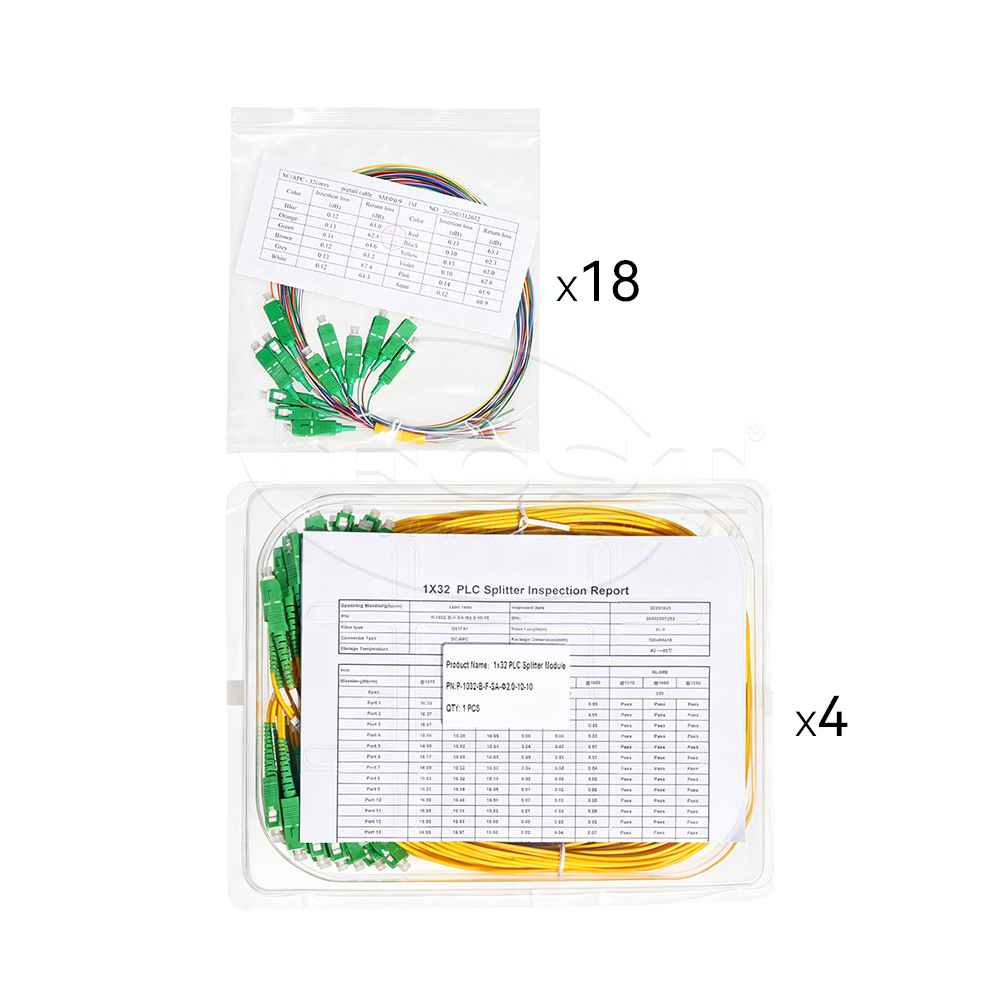

Pre-connectorized fiber pigtails installed for rapid deployment.
Able to counter abrupt climate change and extreme environment.
Built-in direct splice unit is capable for providing direct connection function.
With secure and reliable fastening and grounding protection devices for the optic fiber.

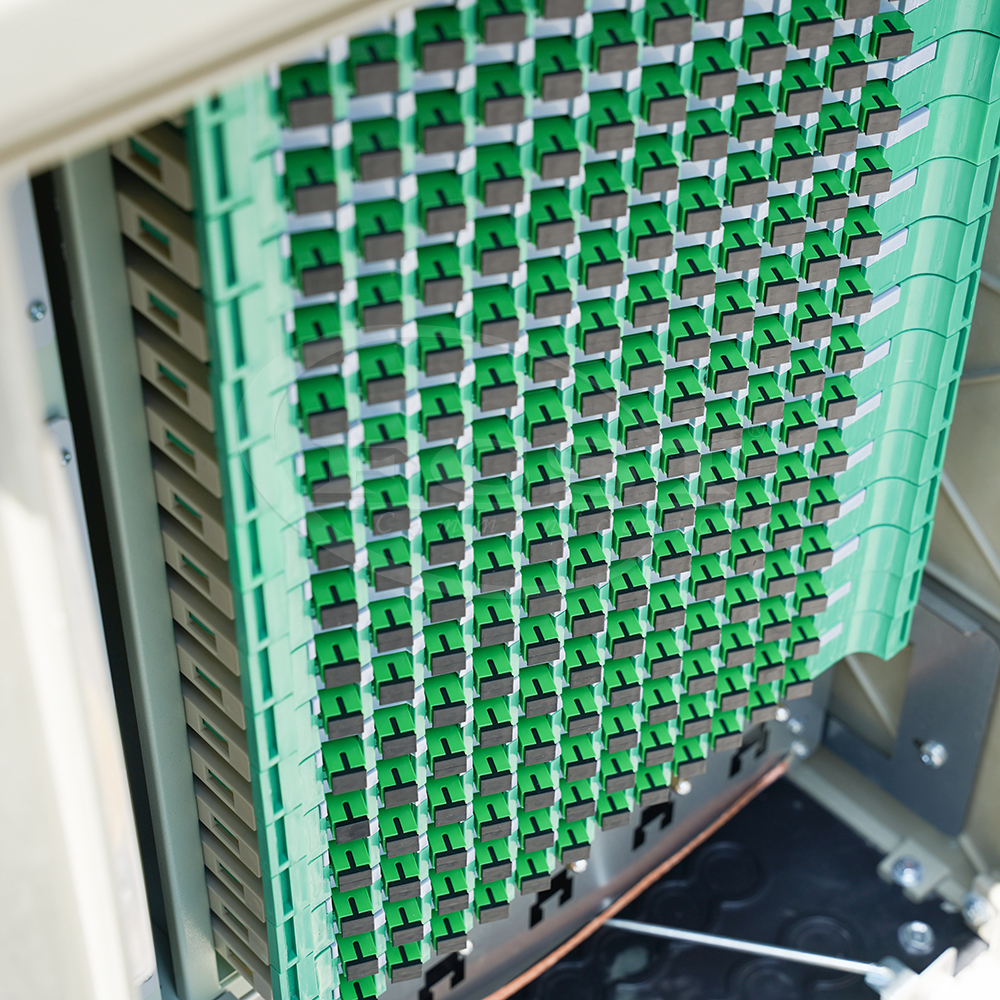

Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 144Cores (SC,Max.216 cores) |
| Material | SMC/Stainless Steel/Cold rolled steel plate |
| Length | 555mm丨21.850in(SMC Type) |
| Width | 310mm丨12.200in(SMC Type) |
| Height | 1050mm丨41..340in(SMC Type) |
| Weight | SMC:31kg |
| Adapter | SC/LC/FC/ST etc. |

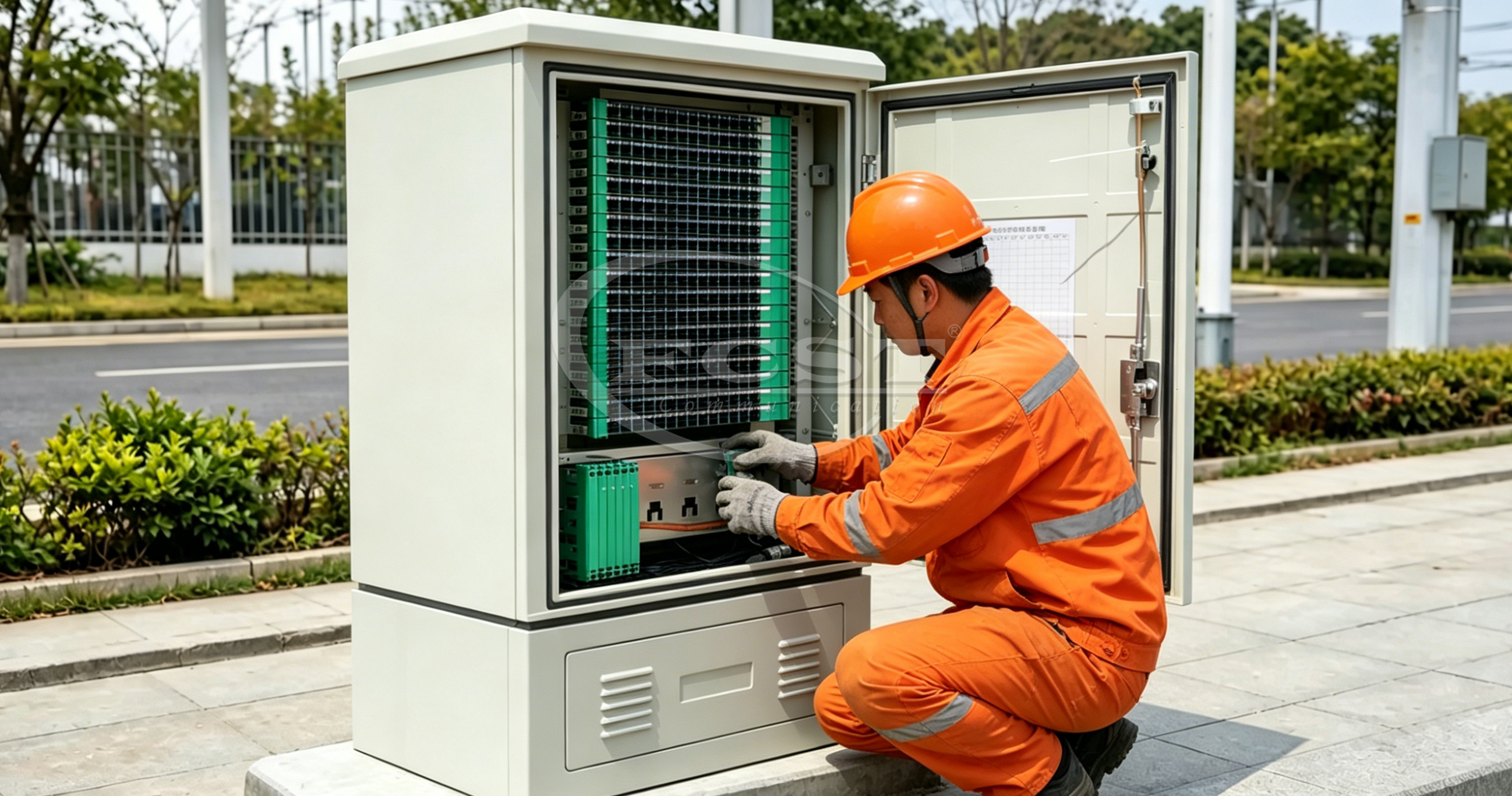

| Installation | Outdoor fixed installation |
| Max. Number Of Trays | 18PCS |
| Splitter Type | Box Type PLC |
| IP Level | IP65 |

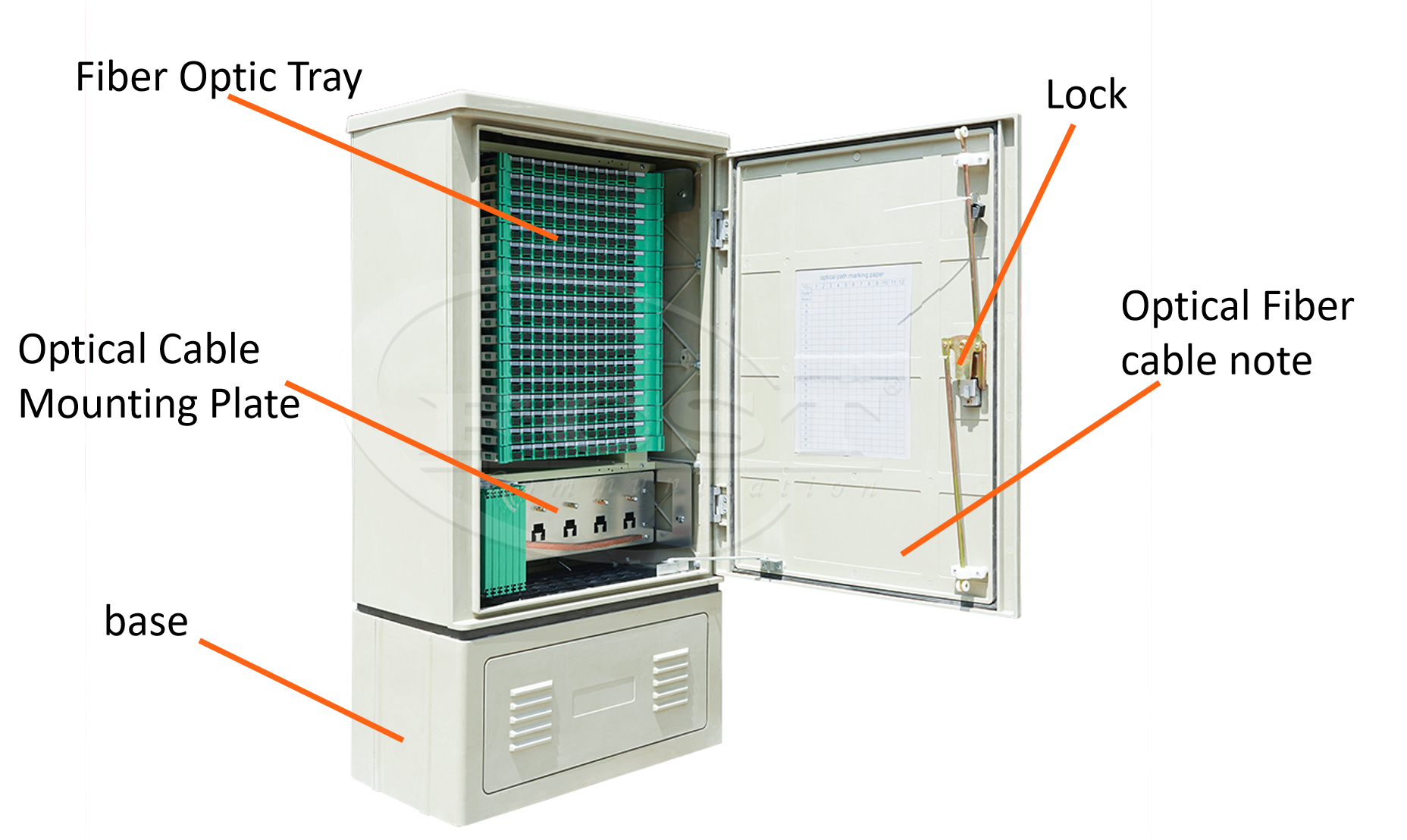

Product Structure
Product FAQ
What is the maximum fiber capacity of the FCST03501 cabinet?
Can this cabinet be used for FTTH distribution and splitter applications?
Is this an active or passive fiber cabinet?
What is the difference between a fiber distribution cabinet and a fiber distribution box?
