24-144 Cores|2 In 2 Out|Aerial,Buried,Pipe-lined|Inline Type.
Product Advantages
Provide service with whole process from blueprint to product to the customer.
Meet customer’s requirement to customize logo in suitable place for existing product.
Meet customer’s requirement to make reasonable modify and customization for existing product.
Provide free design according to the requirement of customer after signed cooperative agreement.
Quantity
库存： 0
Product Specifications
| Construction | Description | Description |
| Model | FCST01155-1 | FCST01155-2 |
| Material | PP/ABS | PP/ABS |
| Applicable Cable Dia. | Φ12.2-Φ22mm | Φ12.2-Φ22mm |
| Outlet&Inlet | 2 Inlets and 2 Outlets | 2 Inlets and 2 Outlets |
| Max Capacity of Splice Tray | 24 Fibers(Single Fiber) | 24 Fibers(Single Fiber) |
| Max Capacity | Axial turning way:144 Fibers(Single Fiber),432 Fibers(12 Fibers/Ribbon) | Axial turning way:96 Fibers(Single Fiber),216 Fibers(12 Fibers/Ribbon) |
| Max Capacity | Lateral turning way:96 Fibers(Single Fiber),192 Fibers(Ribbon) | Lateral turning way:96 Fibers(Single Fiber) |
| Cable Sealing Method | Unvulcanized Butyl Rubber Sealing | Unvulcanized Butyl Rubber Sealing |
| Application Environment | Aerial,Buried,Pipe-lined | Aerial,Buried,Pipe-lined |
| Dimension | 498*217*134mm | 400*174*113mm |

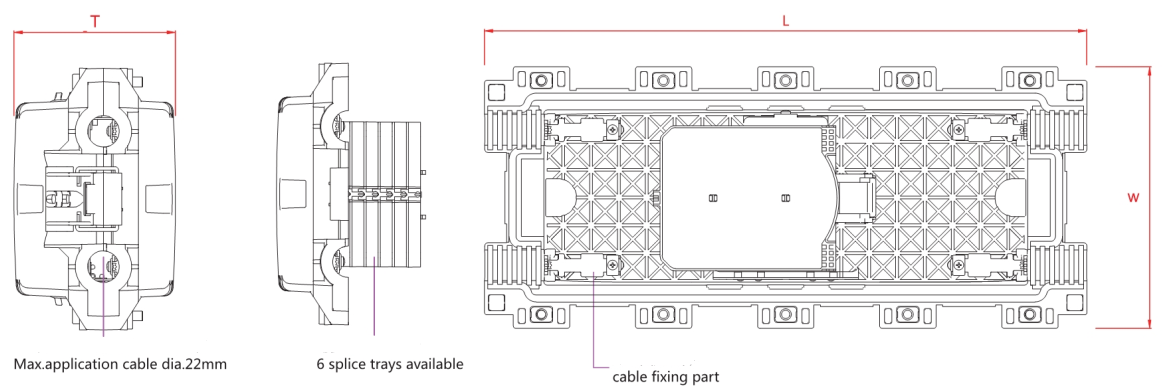

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
Does the Fiber Optic Splice Closure support PLC optical splitters or SC adaptors?
How many cores can a tray hold?
How is the packaging？
