A microduct connector may be small, but a buried connection is not easy to inspect or replace.
In underground fiber construction, DB straight tube connectors can be exposed to backfill, groundwater, pressure during fiber blowing, temperature changes and long-term soil conditions. A microduct push fit that works well in a protected installation may not be the right choice for direct burial.
For contractors, OSP engineers and procurement teams, five specifications are worth checking before selecting a direct burial microduct connector:
15 J impact resistance, IP68 water protection, 20 bar working pressure, metal-free construction, and installation visibility.
A direct burial microduct connector joins microducts in underground installations where the connection remains exposed to the surrounding environment after the trench is closed.
Unlike a microduct coupler installed inside a protected fiber optic distribution cabinet or enclosure, a direct-buried connector needs to withstand:
· Mechanical impact during installation and backfilling
· Water and moisture
· Air pressure during fiber blowing
· Long-term exposure to soil
· Installation errors that may be difficult to correct later
The five specifications below provide a practical starting point when comparing microduct push-fit couplers.
Backfilling is one of the first situations where a buried connector can be exposed to mechanical stress.
Rock, aggregate and construction activity can place impact loads on a DB microduct fitting after the microduct has been installed. If the direct buried micro pipe connector is damaged, the problem may not become obvious until the duct is tested or fiber is blown through it.
For a direct burial application, check the connector's tested impact resistance, not simply whether the supplier describes it as “durable.”
· Impact resistance: 15 J
· Test method: IEC 60794-1-24 Method E4
· Performance standard: EN 50411-2-8
The FCST direct burial connector is designed around a 15 J impact-resistance requirement.
Water is another consideration once a microduct connection goes underground.
Groundwater, rainwater and wet soil can surround a buried connector for extended periods. If water enters the connection, it can affect the duct system and complicate future fiber installation.
For this reason, IP68 protection is an important specification for direct burial applications.
When comparing products, don't stop at a “waterproof” claim. Check the IP rating, test conditions and available test report.
Microduct connectors are part of the pressure system during air-blown fiber installation.
If a connection does not maintain a proper seal, air can escape from the joint. This can reduce blowing efficiency and make troubleshooting more difficult, particularly on longer routes with multiple connections.
The pressure rating should therefore be part of the connector specification.
When selecting a connector for fiber blowing, check the working pressure, rather than evaluating the product only by its maximum or burst pressure.
Material selection becomes more important when a push-in microduct connector is going to remain underground for years.
Metal components can introduce corrosion concerns when exposed to moisture and soil conditions. Eliminating metallic components from the buried connection removes that particular failure consideration.
The FCST direct burial connector uses a 100% metal-free construction.
· Body: Polycarbonate (PC)
· Locking mechanism: POM
· Seal: EPDM
The original specification identifies the connector as a metal-free design using PC, POM and EPDM materials.
For underground projects, material selection should be considered together with impact resistance, sealing performance and pressure requirements.
Not every installation problem comes from the connector material itself.
A microduct that is not fully inserted can create a weak connection. Once the trench is closed, checking or correcting that connection becomes considerably more difficult.

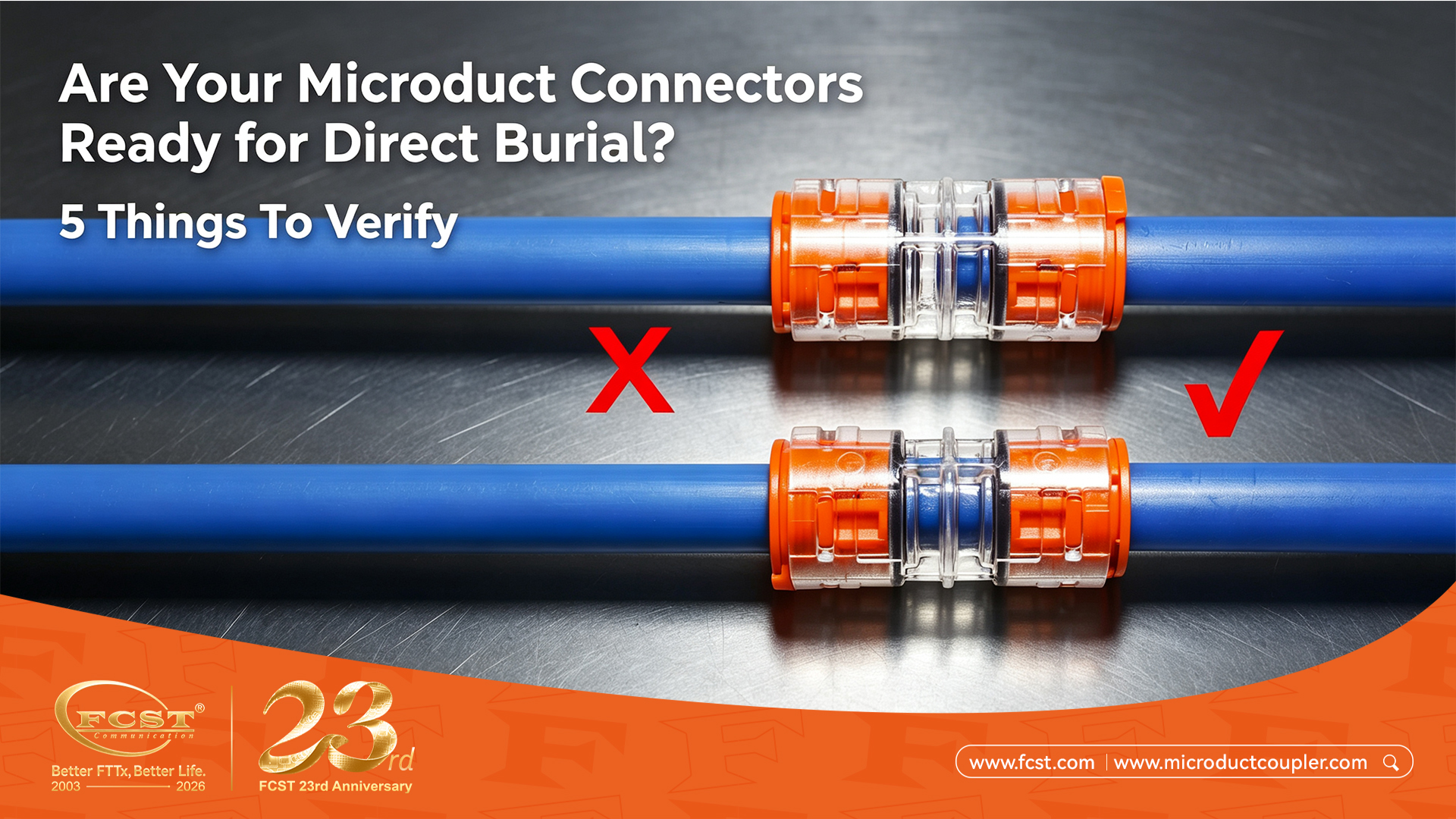

A clear connector body allows the installer to visually confirm microduct insertion before burial.
The FCST micro duct connector uses:
· Clear polycarbonate body
· Pre-assembled locking clip
The transparent body provides visual confirmation during installation, while the locking clip helps secure the microduct after insertion.
For crews working quickly across long fiber routes, being able to verify the connection before backfilling can reduce installation uncertainty.
A standard microduct connector and a direct burial connector may look similar, but they are not necessarily designed for the same installation conditions.
Feature | Standard Connector | Direct Burial Connector |
Application | Protected environments | Underground / direct burial |
Impact resistance | Application dependent | 15 J |
Water protection | Application dependent | IP68 |
Working pressure | Application dependent | 20 bar |
Construction | May include metal | 100% metal-free |
Installation check | May be limited | Clear body |
For a buried fiber route, the micro duct joints should be specified according to the environment it will remain in—not simply according to the application of the hdpe micro duct fitting before installation.
Before approving a blown fibre push-fit connector for an underground fiber project, check five things.
Ask for the tested impact rating and the applicable test method.
Check the IP rating, test conditions and supporting documentation.
Confirm both the working and burst pressure ratings.
Check whether the connector contains metal components and what materials are used for the body, locking mechanism and seals.
Look for features that allow installers to confirm proper microduct insertion and locking before burial.
These checks are more useful than comparing connector prices alone.
If you're sourcing direct burial microduct connectors, ask the supplier:
1. What is the tested impact resistance?
2. What are the IP68 test conditions?
3. What are the working and burst pressure ratings?
4. Does the connector contain any metal components?
5. Can the installer visually confirm that the microduct is fully inserted and locked?
A reliable supplier should be able to support the key specifications with technical documentation.
The FCST-15JDB-SC is designed for direct burial microduct applications where impact resistance, water protection and pressure performance are required.
· 15 J impact resistance
· IP68 water protection
· 20 bar working pressure
· ≥25 bar burst pressure
· 100% metal-free PC/POM/EPDM construction
· Clear polycarbonate body
· Pre-assembled locking clip
The microduct push fitting is intended for underground fiber infrastructure, including FTTx, FTTH and OSP applications.
Need specifications, test documentation or application information? Contact FCST.
A direct burial microduct connector joins microducts in underground installations and is designed for exposure to moisture, mechanical impact and installation pressure.
The FCST direct burial connector is specified for 15 J impact resistance, with IEC 60794-1-24 Method E4 referenced in the product specification.
Yes. IP68 protection helps limit water ingress when a connector is exposed to underground moisture and groundwater.
The FCST direct burial connector is specified for 20 bar working pressure and ≥25 bar burst pressure.
A metal-free design eliminates metallic components from the buried connection and avoids corrosion associated with those components. FCST uses PC, POM and EPDM in its direct burial connector.
