144 cores (single core)|346*298*681
Product Advantages
Provide protection for optical cable distribution,which is waterproof and dustproof;
Internal metal parts are electrostatic sprayed with uniform color and elegant appearance;
Independent optical fiber splicing area,adapter connection area and cable wiring parking area,easy to operate and maintain;
The box body is upper and lower structure.After opened,it can be operated on both sides of the front and back without shielding;
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 144 cores (single core) |
| Dimension (mm) | 346*298*681 |
| Weight(kg) | ≥ 40 |
| Fiber Optic Disk Additional Loss(dB) | ≤0.01 |
| The Max.Range of Microduct Entrance(mm) | 50 |
| Floor Mounting Hole Distance(mm) | 260 |

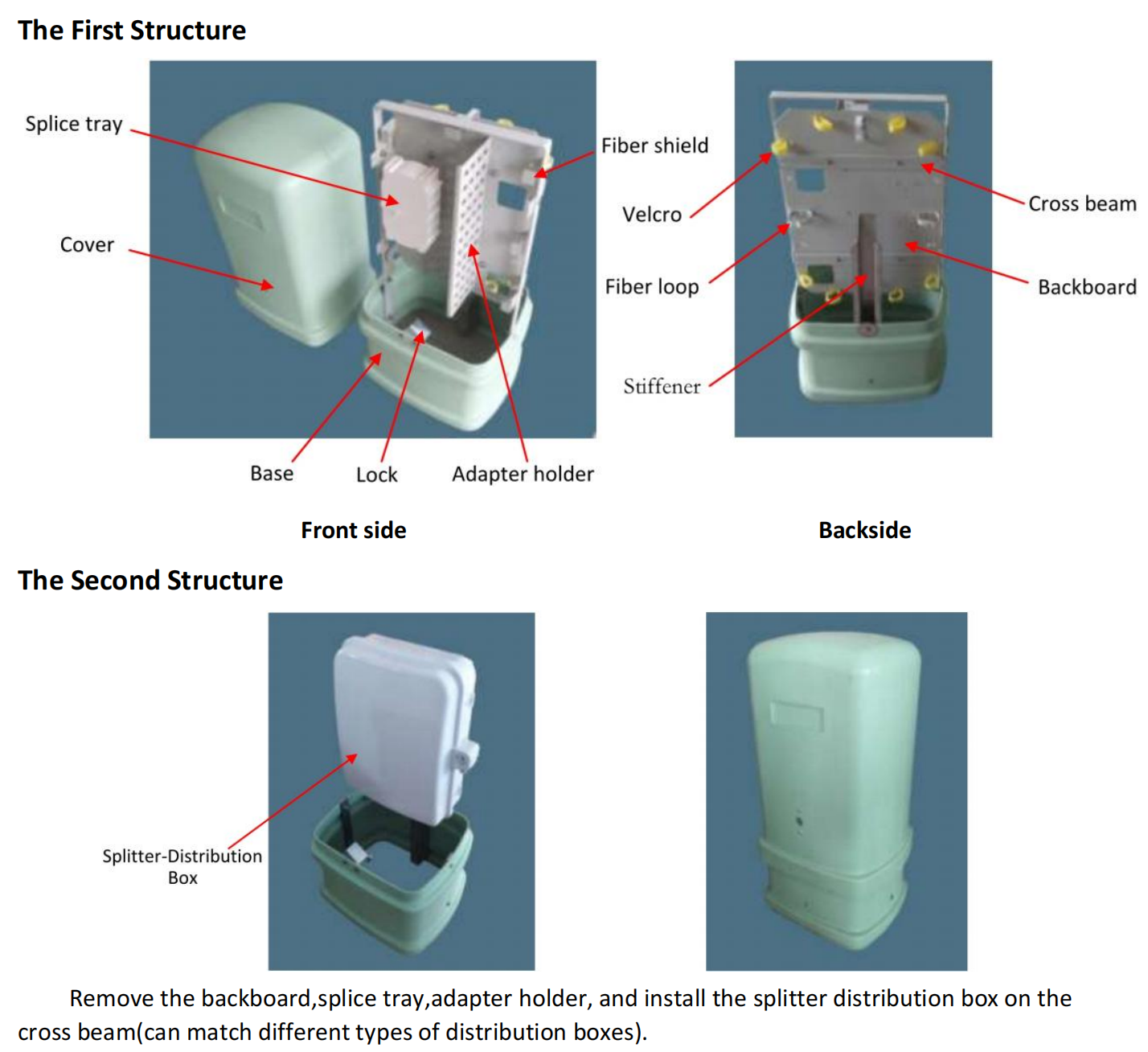

Product Structure
Product FAQ
What types of pedestal are there?
What elements need to be confirmed when placing an order for a pedestal?
How many cores can be a pedestal contained?
When does the a pedestal need to come with a terminal box?
How to choose the terminal box inside the a pedestal?
What material is pedestal made of?
What transport methods does pedestal support?
Product warranty regulations for pedestal.
What is the production capacity of pedestal ?
What are the production processes?
How is the packaging？
