Available for 1.00", 1.25", 1.50" and 2.00" Duct. Max. Pressure: 250 PSI
Product Advantages
Suitable for both cable pulling and jetting applications.
Pre-lubricated O-ring ensures watertight and airtight sealing.
Self-locking ring design enables assembly in seconds and is re-enterable.
Clear midsection provides visibility during installation and eliminates guesswork on site.
Designed to accommodate multiple HDPE pipe series with the same nominal OD.( SDR 11
| SDR 13.5 | SCH 40 | SCH 80).
Non-metallic construction delivers excellent corrosion resistance for buried or encased
applications, with good dielectric properties.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Material | Body:ABS | Sealing:EPDM |
| Reference Standard | JT/T496-2018、UL 514B / CSA C22.2 No. 18.3、NEMA TC 7、ASTM F2160 |
| Max. Pressure | 250PSI |

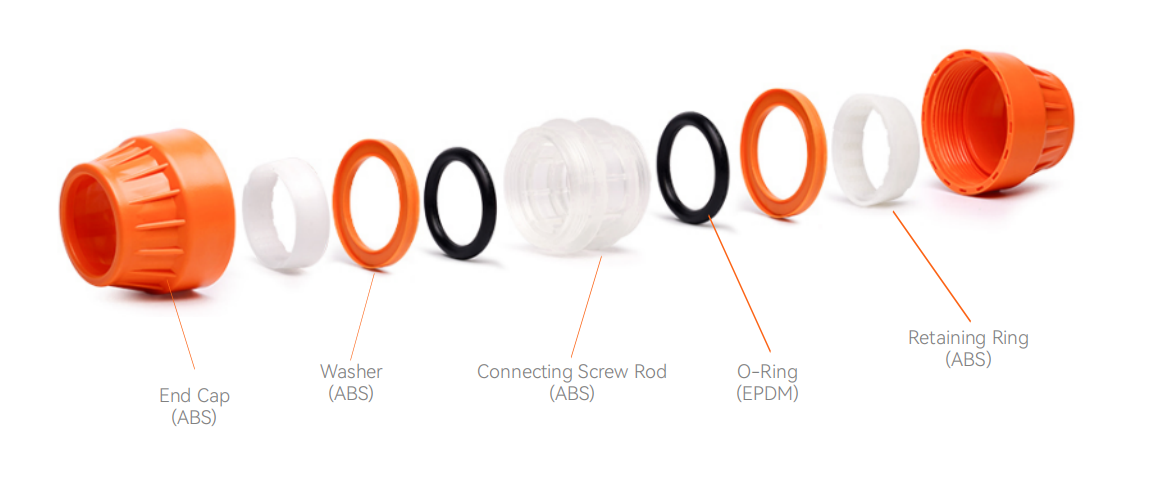

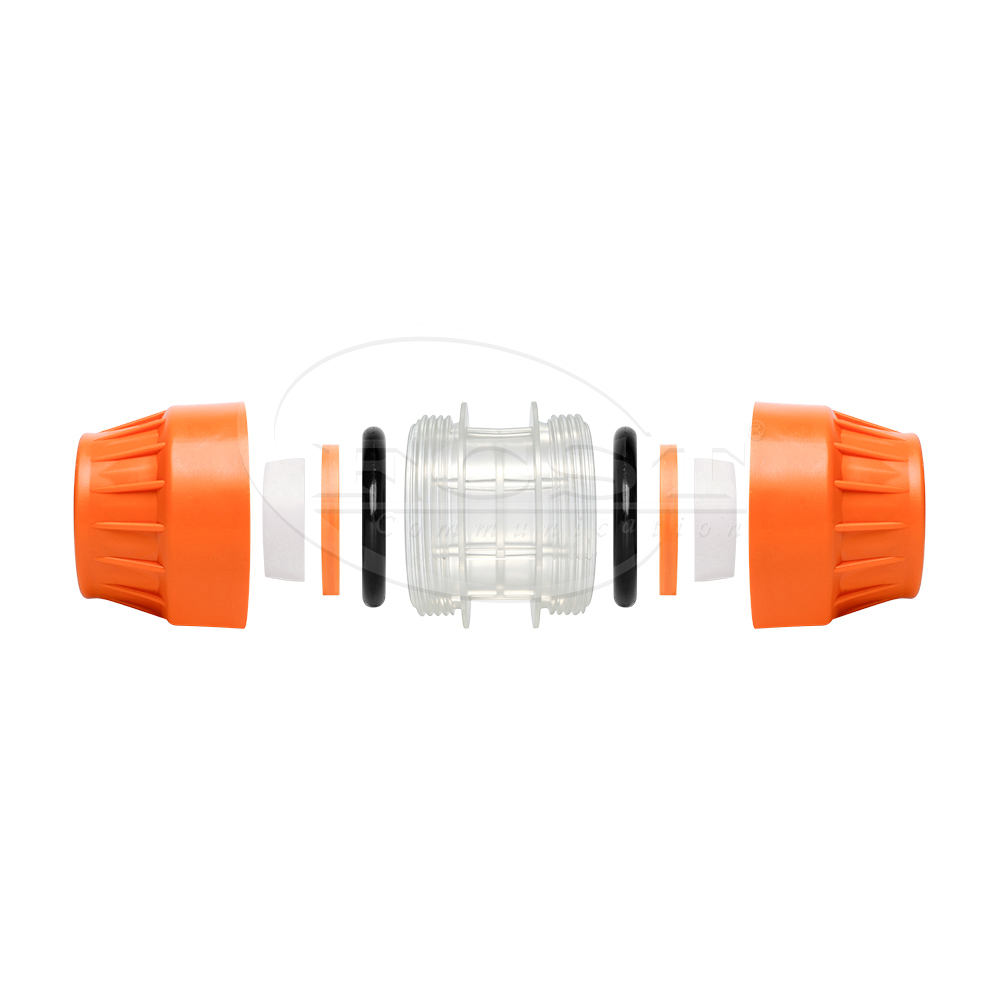

Product Structure
Product FAQ
Q1 What duct sizes does the FCST-2ERS support?
Q2 Can the FCST-2ERS be used for both cable pulling and jetting?
Q3 Does installation require special tools?
Q4 How does the coupler seal the duct connection?
Q5 Can the connection be re-entered after installation?
