8Cores(SC),gel-sealing technology
Product Advantages
IP65 Protection Level.
Made of high quality engineer PP material.

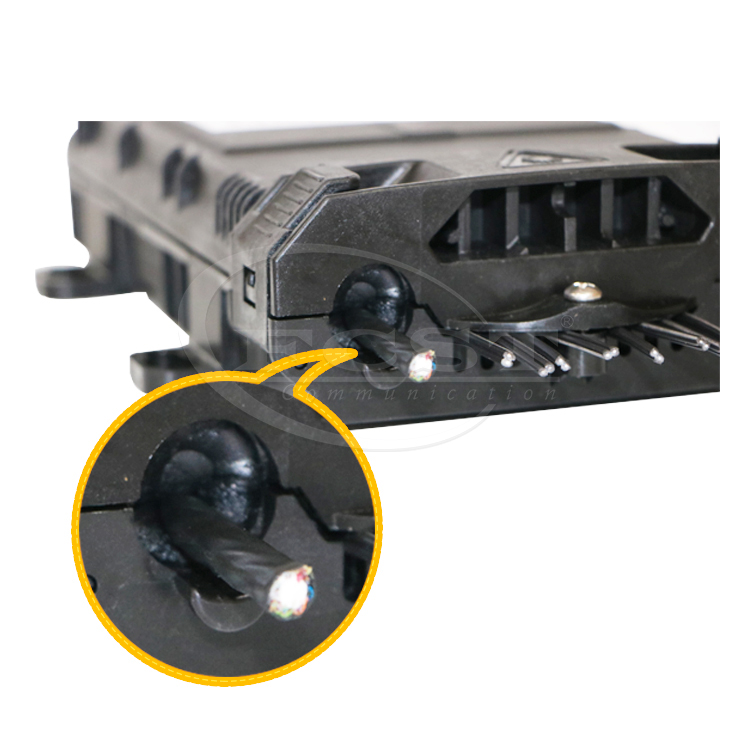

Cable sealing terminations use gel-sealing technology.
Suitable for indoor or outdoor ,wall-mounted , pole installation.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 8Cores |
| Material | PP |

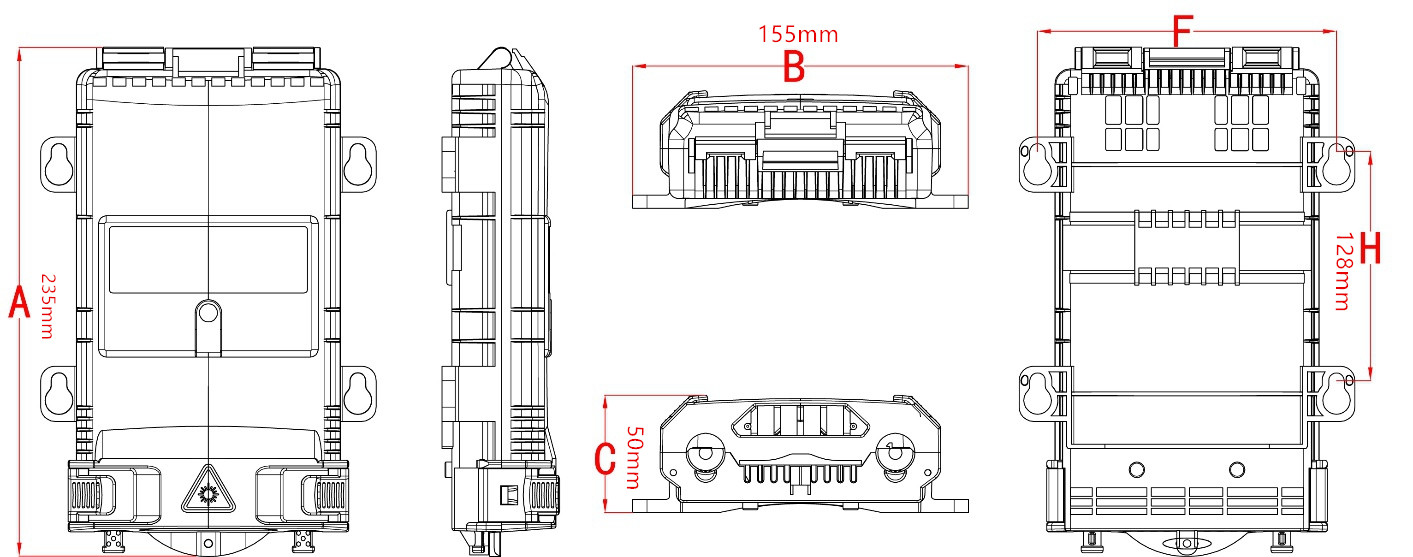

| Dimension (mm) | 155*235*50 |
| Inlets/Outlets | 2/8 |
| Installation | Pole-mounting/Wall-mounted |
| Net Weight(g) | 470 |
| Protection Level | IP65 |
| Optional Accessories | Pigtail，Adapter |
| Input Cable Method | Cutting |
| PLC Splitter Available | Yes |
| PLC Splitter Type | Tube splitter |

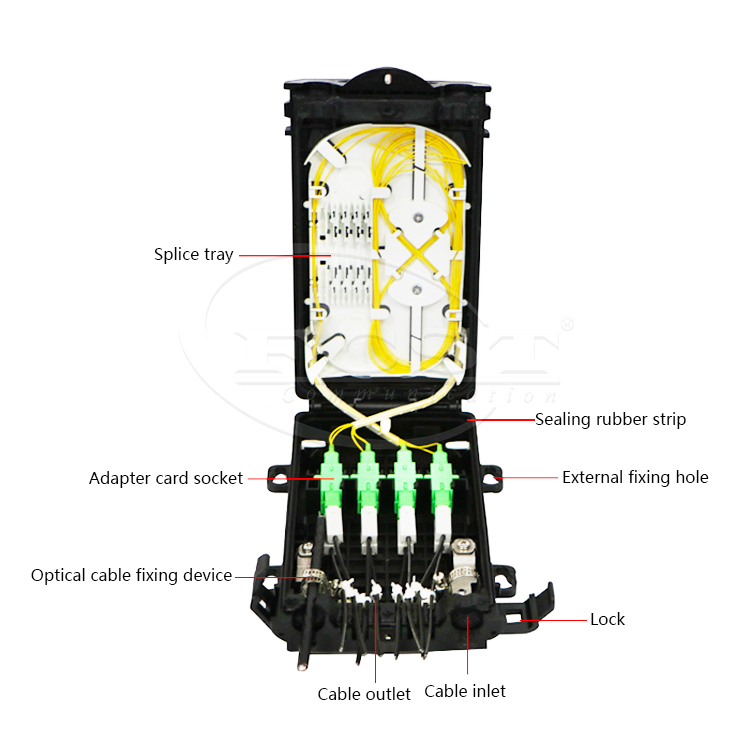

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
Does the Fiber Optic Splice Closure support PLC optical splitters or SC adaptors?
How many cores can a tray hold?
How is the packaging？
