550*φ230mm,Easy to put the terminal box inside.
Product Advantages
Self-locking cover mechanism, with additional padlock.
Stainless steel metal frame and anti-rusting components.
Removable cable entry plate with 3*20mm cable entrance,better performance for humidity-proof.

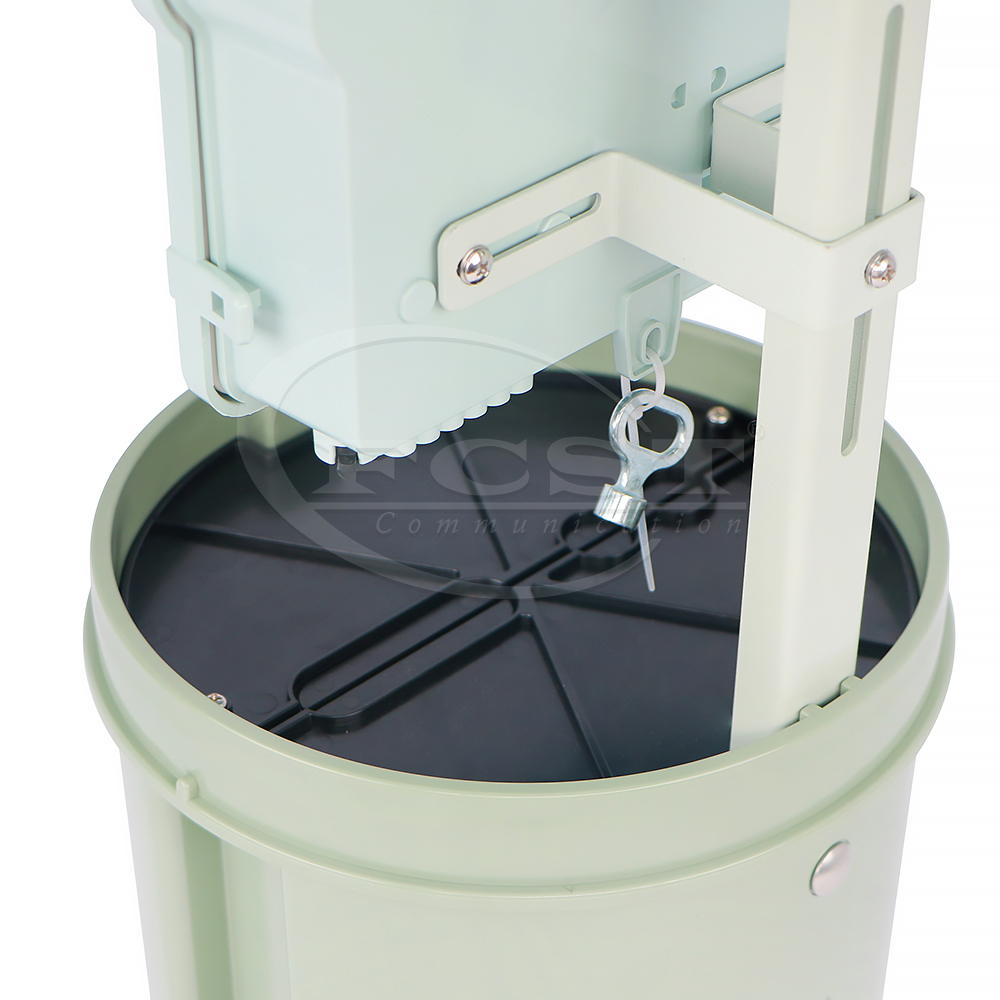

Spacious inner space with universal mounting bracket, suitable for all types of FAT less than 210mm.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| FAT Max. Capacity | 12Cores(SC) |
| Material | Non-metallice ABS |
| Dimension (mm) | 550*φ230 |
| Net Weight(g) | 2110 |
| The Max.Range Of Microduct Entrance(mm) | 20 |
| Protection Level | IP55 |

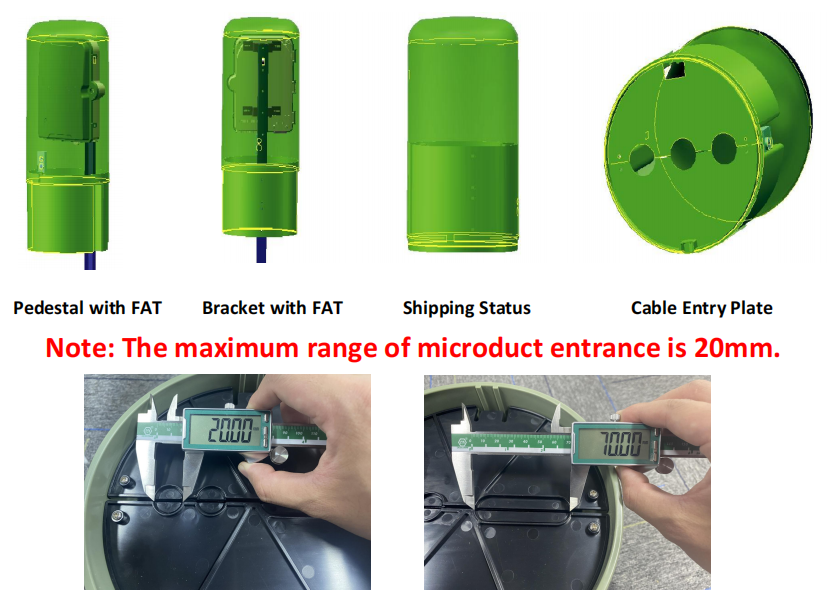

Product Structure
Product FAQ
What types of pedestal are there?
What elements need to be confirmed when placing an order for a pedestal?
How many cores can be a pedestal contained?
When does the a pedestal need to come with a terminal box?
How to choose the terminal box inside the a pedestal?
What material is pedestal made of?
What transport methods does pedestal support?
Product warranty regulations for pedestal.
What is the production capacity of pedestal ?
What are the production processes?
How is the packaging？
