48 cores(Branch 16 cores),Compatible with Fast Connect Cable.
Product Advantages
Total enclosed structure.
Protection level up to IP65.
Max. Capacity:48 cores.(Branch 16 cores)
Wet-proof, water-proof, dust-proof, anti-aging.
Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 48 cores(Branch 16 cores) |
| Material | PC+ABS |
| Dimension (mm) | 319.3*214*133 |
| Inlets/Outlets | 4/16 |
| Reinforced Adapter | 16 pcs SC/UPC or SC/APC |
| Net Weight (g) | 1600 |
| Protection Level | IP65 |
| Installation | Pole mounting,Strand mounting,Wall-mounting |
| Into The Largest Cable Diameter (mm) | Φ8~14 |
| Maximum Size Of Branch Hole(mm) | Φ16 |

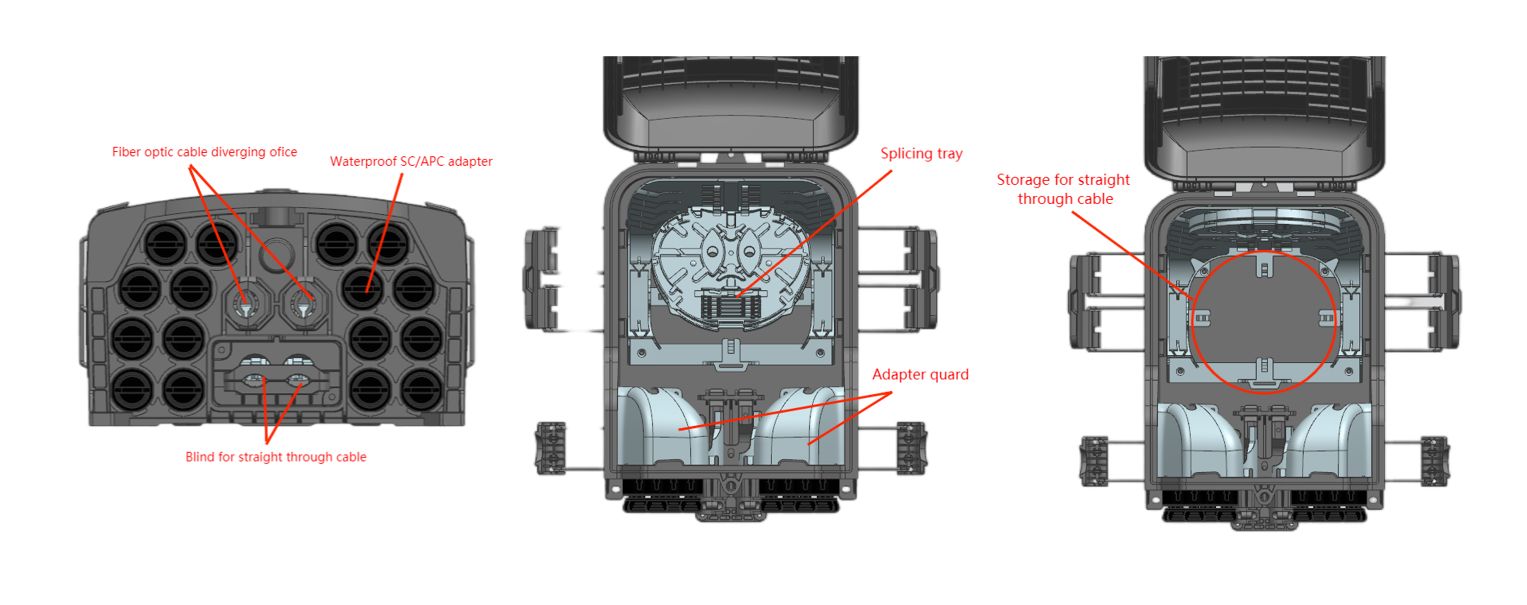

Product Structure
Product FAQ
What types of Fiber Terminal Box are there?
What elements need to be confirmed when placing an order for a Fiber Terminal Box?
What transport methods does the Fiber Terminal Box support?
Product warranty regulations for Fiber Terminal Box.
What IP level can be achieved?
Which needs can be customized without mold-making?
What industry standards do Fiber Terminal Box meet?
What are the installation methods of Fiber Terminal Box?
What can be installed inside the Fiber Terminal Box?
What the pre-connected Fiber Terminal Box needs to confirm?
How is the packaging？
