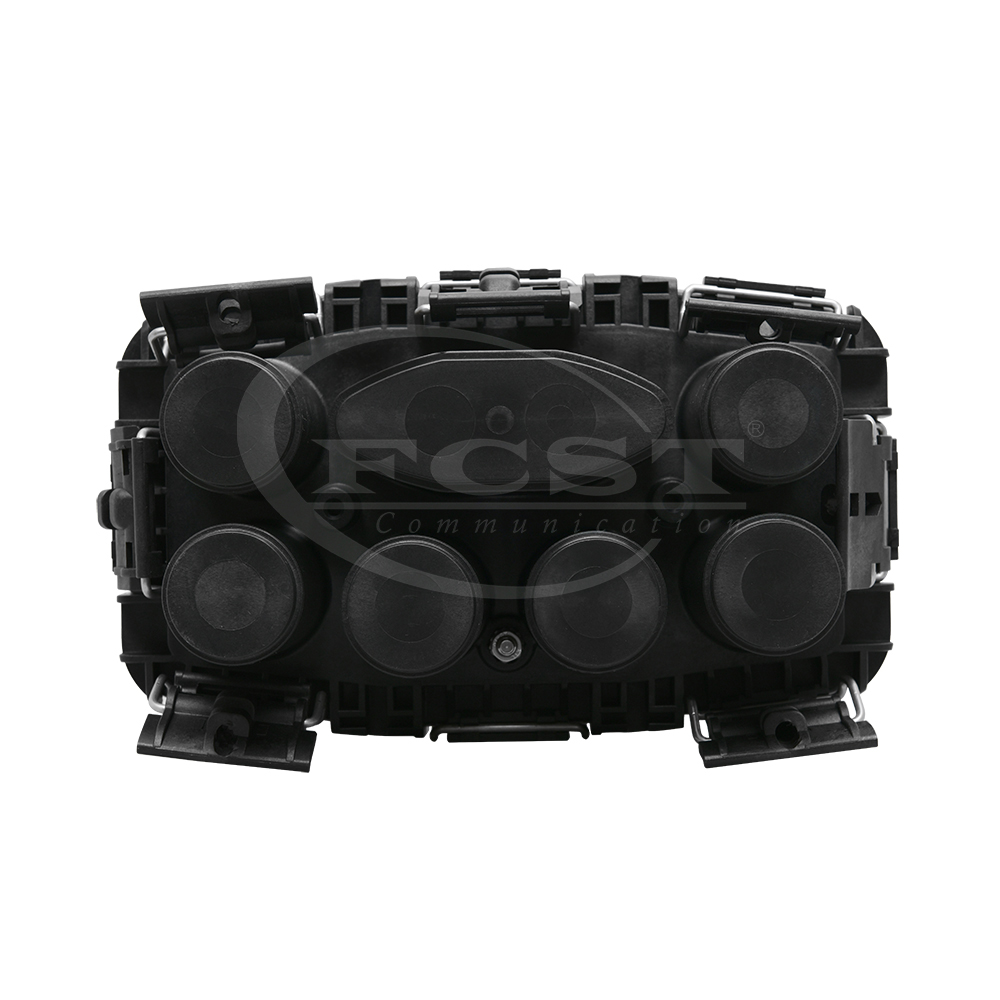

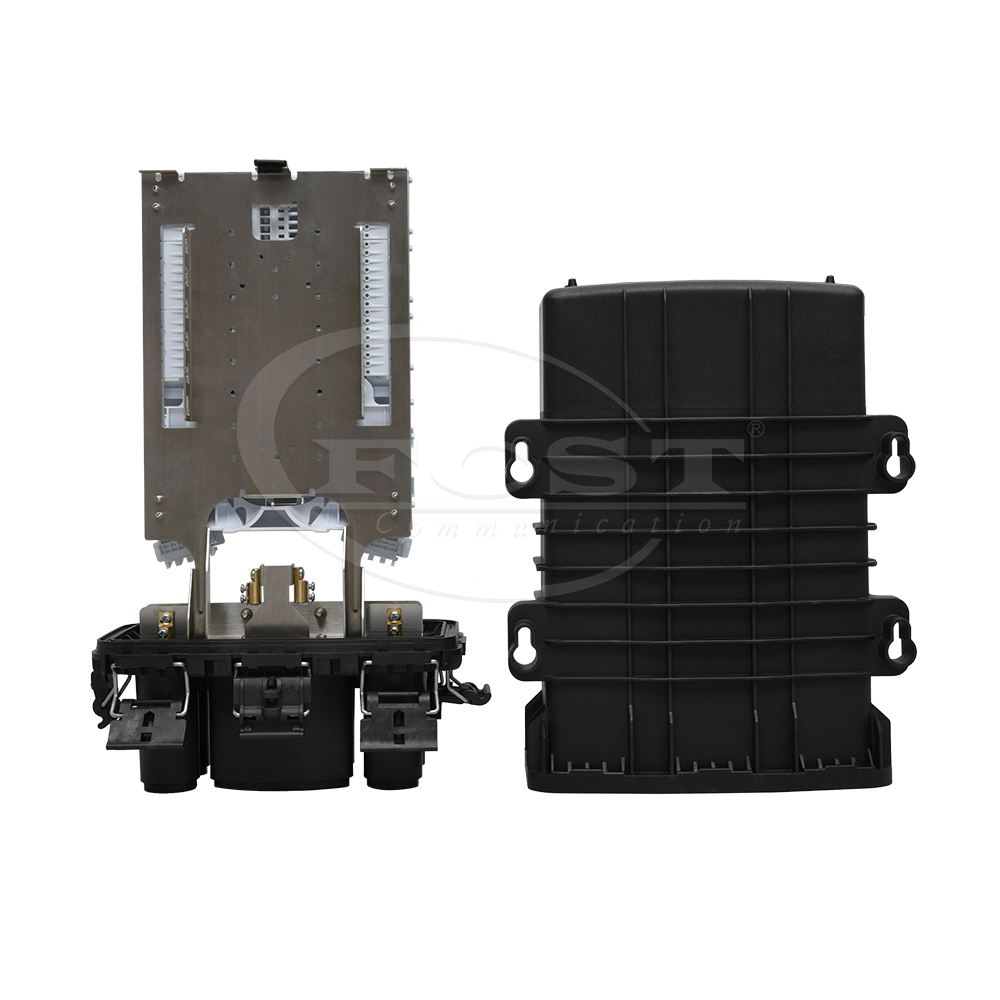

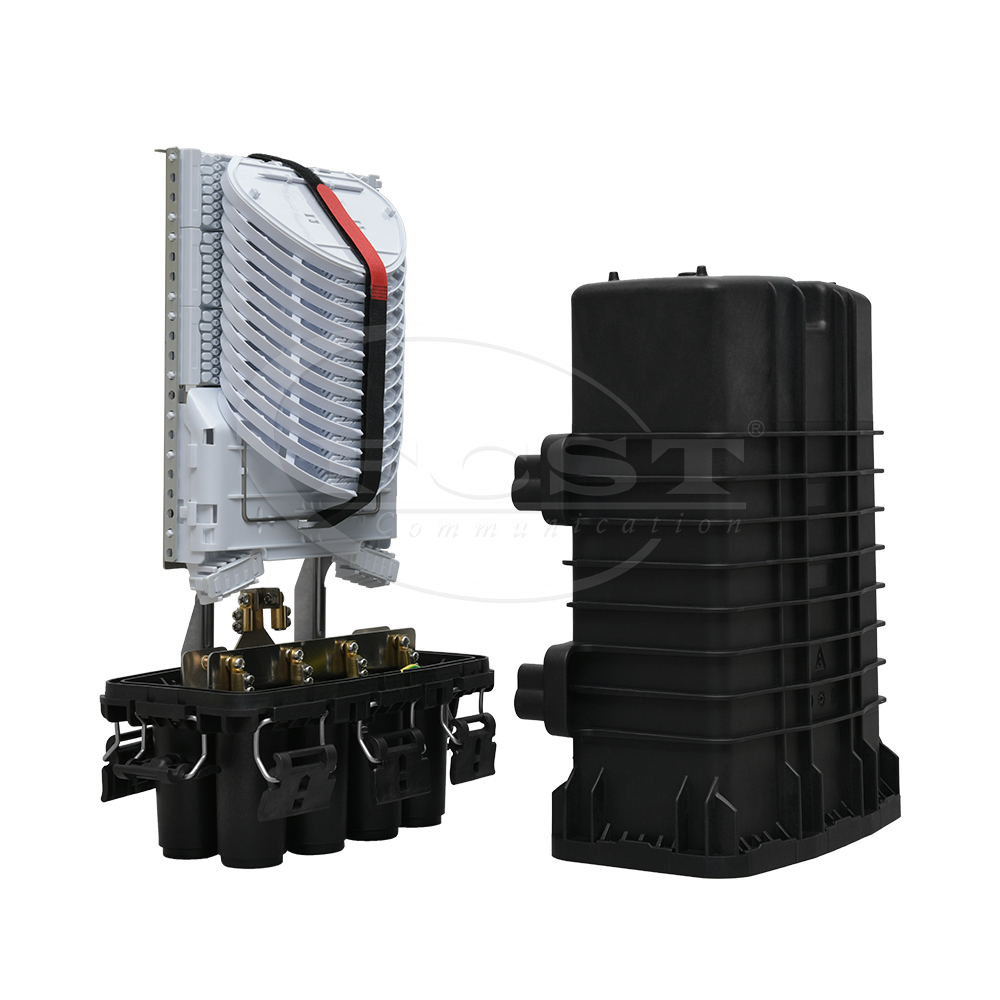

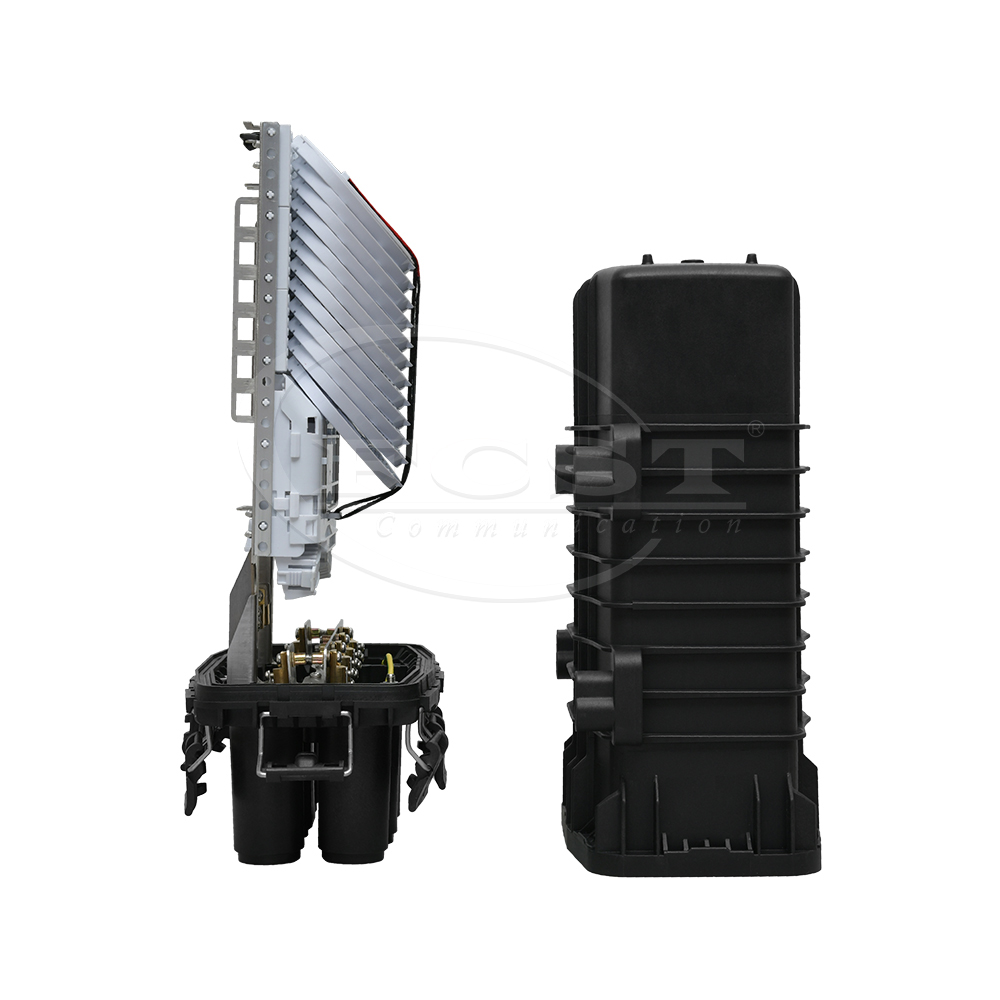

Max.144Cores,Inlets/Outlets:1/6,Dome Type.
Product Advantages
IP68 Protection grade.
Easy installation with no special tool required.
Sealing mode: heat shrink seal is adopted for cable ports.
Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
Made of modified engineering plastic with high strength, anti impact and anti corrosion.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | 96F ( if with 4F tray, total 24pcs)144F ( if with 12F tray, total 12 pcs) |
| Material | Dome, Base:modified PPClamp:Nylon +GFTray: ABSMetal parts:Stainless steel |
| Length | 450.5mm丨17.736in |
| Width | 278mm丨10.945in |
| Height | 162.6mm丨6.402in |
| Weight | 5600g |
| Inlets/Outlets | 1/6 |
| Installation | Aerial, wall, pole, underground, pipeline etc |
| Diameter Of Fiber Cable | 1 oval port for 2 pcs 10~30 mm cable6 round ports each for 1 pc 6~ 33mm cable |
| Sealing Mode | Heat-shrink |

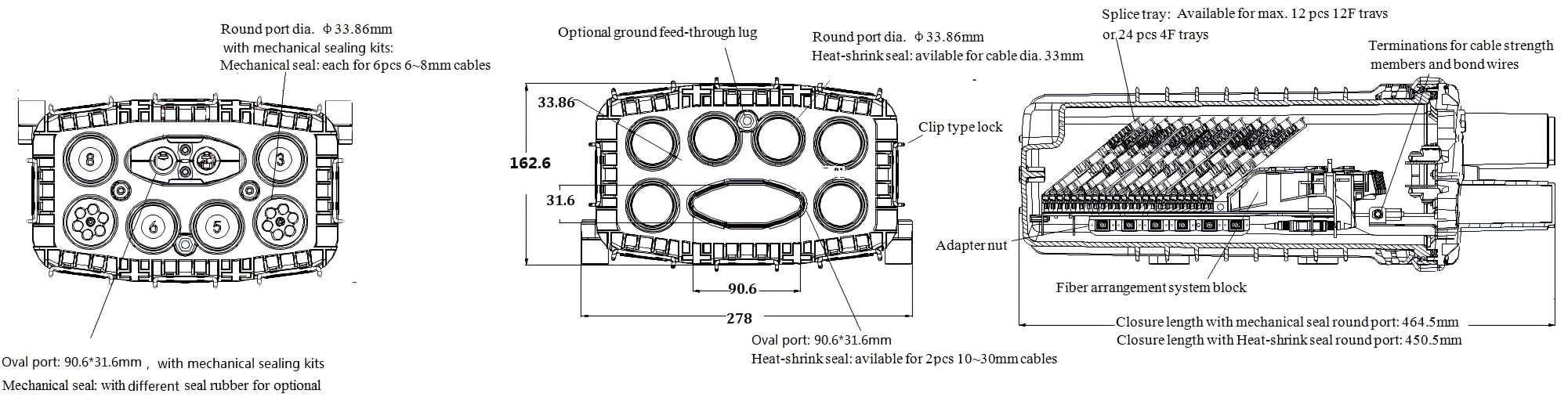

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
Does the Fiber Optic Splice Closure support PLC optical splitters or SC adaptors?
How many cores can a tray hold?
How is the packaging？
