8cores(SC/APC),Pole mounting,Pedestal mounting, Strand mounting,Wall-mounting.
Product Advantages
Fiber routing is reasonable.
Suitable for indoor or outdoor ,wall-mounted , pole installation.
Cable sealing terminations use gel-sealing technology instead of Plain rubber seal.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Capacity Of FOSC(Bunchy) | 66 cores |
| Max. Capacity | 8cores(SC/APC) |
| Material | PP |
| Dimension (mm) | 336.5*195*128 |
| Inlets/Outlets | 4/8 |
| Installation | Pole mounting,Pedestal mountingStrand mounting,Wall-mounting |
| Net Weight（g） | 2050 |
| Protection Level | IP67 |
| Diameter Of Fiber Cable | Φ11mm~φ16mm |
| Operating Temperature | -40℃～+65℃ |

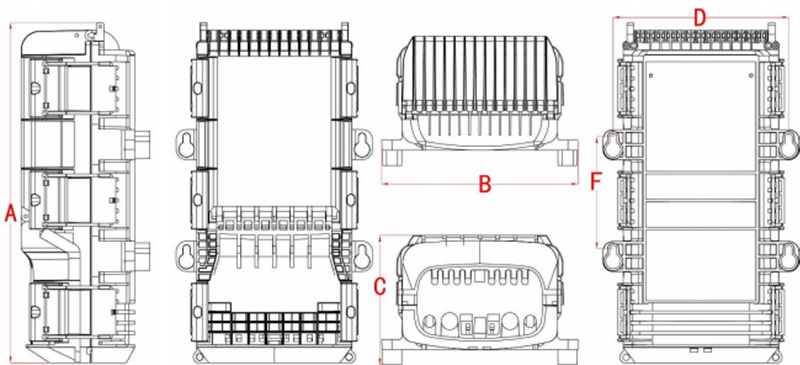

Product Structure
Product FAQ
What types of Fiber Terminal Box are there?
What elements need to be confirmed when placing an order for a Fiber Terminal Box?
What transport methods does the Fiber Terminal Box support?
Product warranty regulations for Fiber Terminal Box.
What IP level can be achieved?
Which needs can be customized without mold-making?
What industry standards do Fiber Terminal Box meet?
What are the installation methods of Fiber Terminal Box?
What can be installed inside the Fiber Terminal Box?
What the pre-connected Fiber Terminal Box needs to confirm?
How is the packaging？
