Max.96Cores,Inlets/Outlets:4/4,Inline Type.
Product Advantages
Innovative elastic integrated seal fitting.

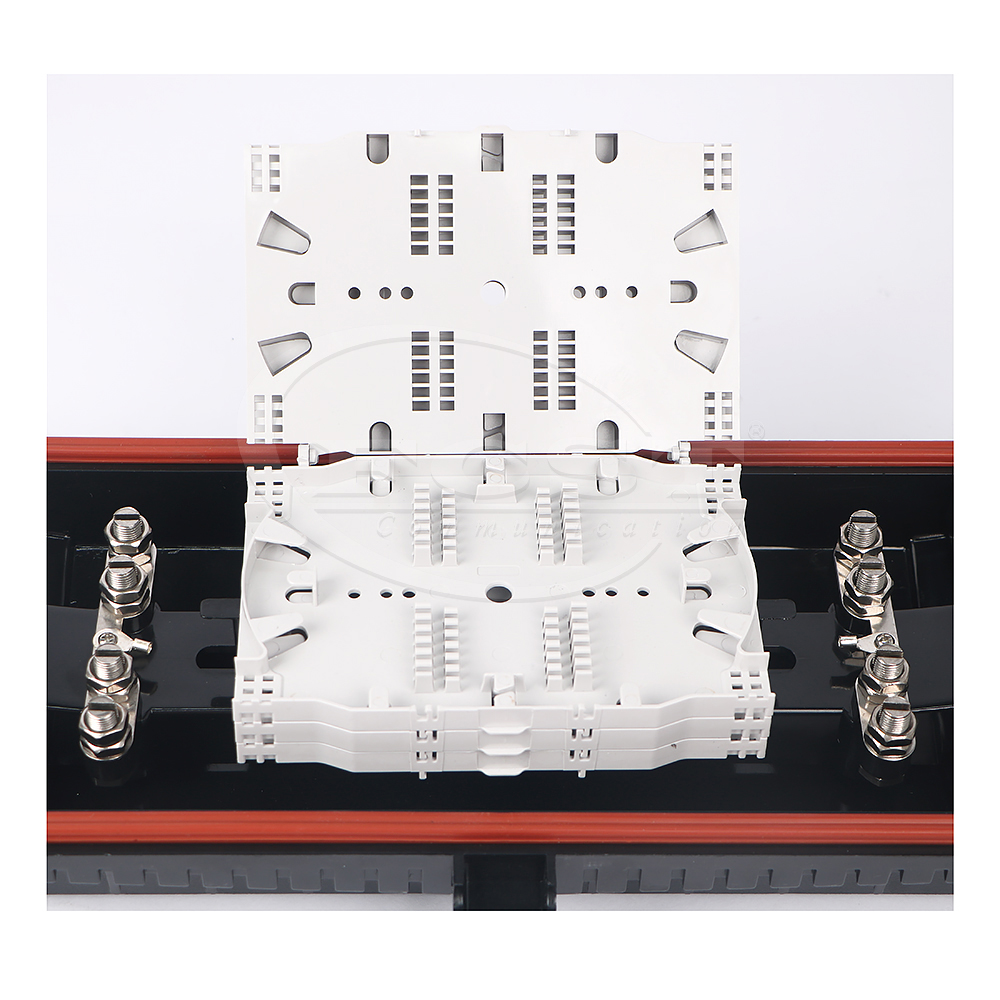

Flip style fiber splice trays are designed.
Easy and fast to increase and reduce splice tray.
The curved radius meets with international standard.
The closure is spacious enough for winding and storing fibers.
With the function of reuse and capacity expansion for many times.
With the function of electric connection and disconnection for electrical for the fiber optic cables.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Max. Capacity | Bunchy: 12~96CoresRibbon: max. 144Cores |
| Material | PP+GF |
| Dimension (mm) | 450*220*110 |
| Inlets/Outlets | 4/4 |
| Installation | Aerial/Manhole |
| Net Weight(g) | 3800 |
| Protection Level | IP67 |
| Diameter Of Fiber Cable | Φ7mm~φ20mm |
| Sealing Mode | Mechanical |

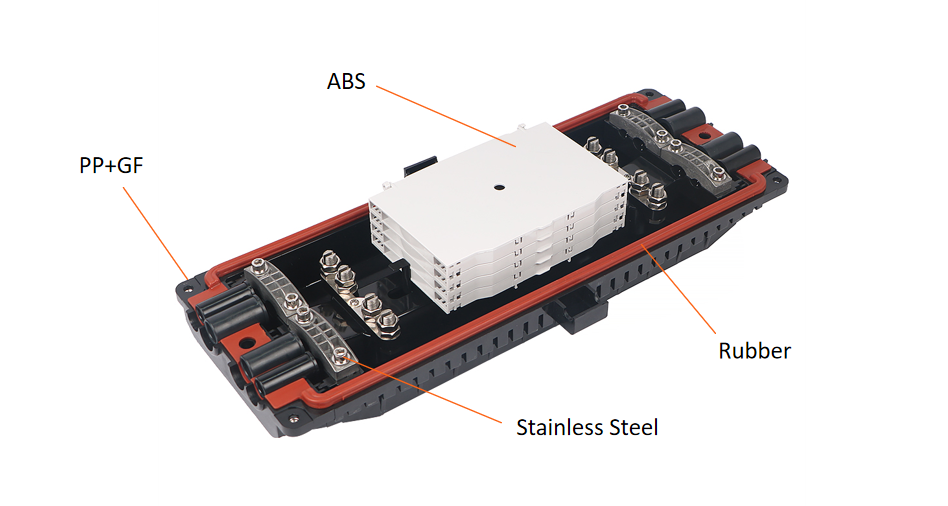

Product Structure
Product FAQ
What elements need to be confirmed when placing an order for a Fiber Optic Splice Closure?
Product warranty regulations for Closure.
Does the Fiber Optic Splice Closure support PLC optical splitters or SC adaptors?
How many cores can a tray hold?
How is the packaging？
