G.652D, G.657A2|20mm/0.787in cable
Product Advantages
Low insertion loss and high return loss.
Cost effective solution for outdoor termination.
Mechanical performance: IEC 61754-4 standard.
IP68 water proof, dust proof and corrosion resistant.
Applicable cable diameter: 2.0*3.0mm FTTH Drop Cable.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Fiber Cable | 2.0*3.0mm rubber-insulated optical cable |
| Fiber Type | G.652D, G.657A2 |
| Mode | SM&MM |
| Fiber Diameter | 125um |
| Coating Diameter | 250um |
| Waterproof Rating | IP68 |
| Length | 130mm丨5.118in |
| Diameter | 20mm丨0.787in |
| Operation Time | About 50(no fiber cut) |
| Insertion Loss | Averagely:≤0.3dB, Max.:≤0.5dB |
| Return Loss | UPC≥50, APC≥55 |
| Reusable Times | ≥10 times |
| Tensile Strength | >45N |
| Temperature | -40~+85C |
| On-line Tensile Strength Test (20 N) | ΔIL≤0.3dB |
| Mechanical Durability(500 times) | ΔIL≤0.3dB |
| Drop-off test (drop-off height4m, once per direction, totally 3 times) | ΔIL≤0.3dB |

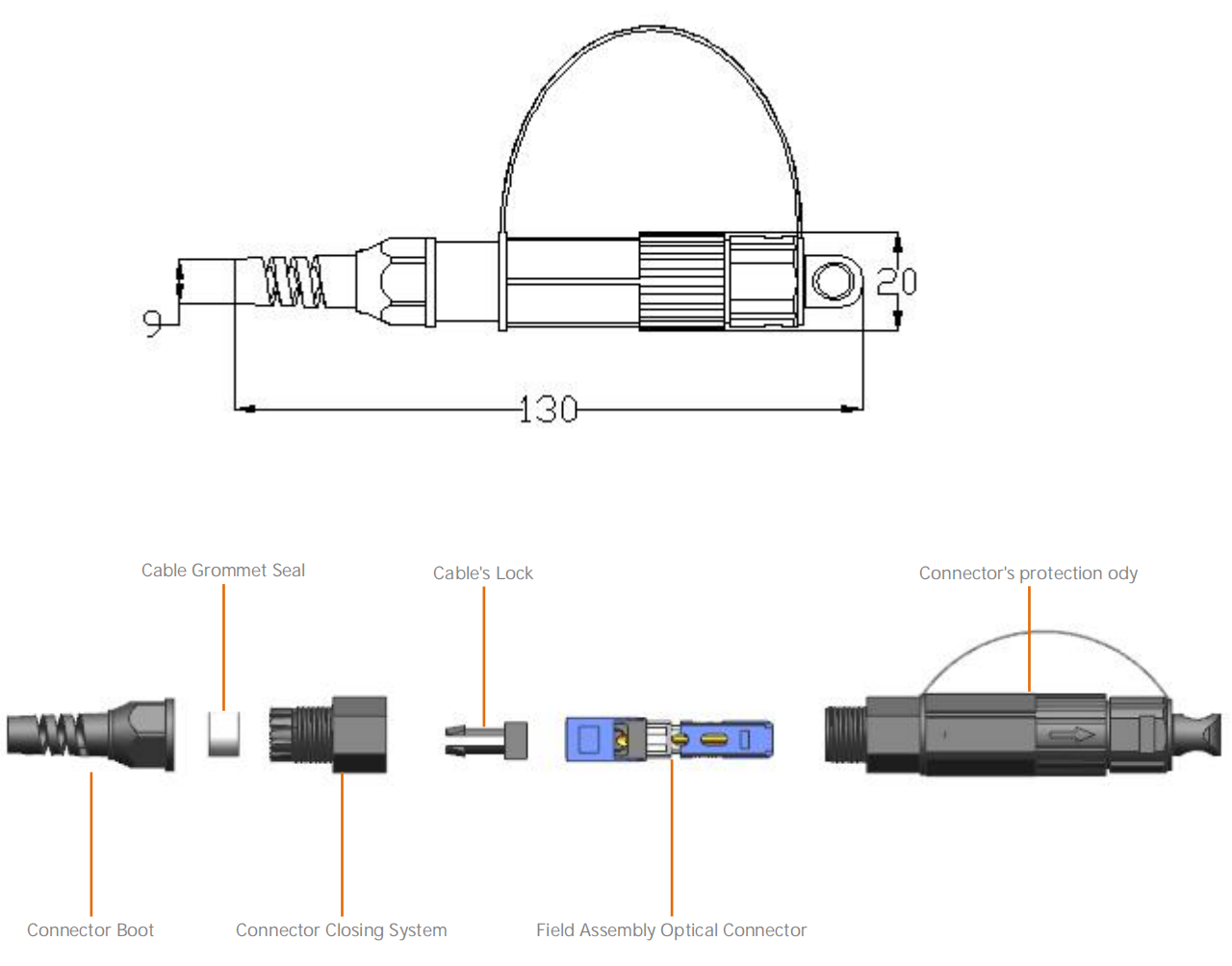

Product Structure
Product FAQ
How long should the bare fibre be cut with a fibre cleaver？
Can it suitable for LC?
If the Fast/Quick Connector is reusable?
Is this connector re-usable after being terminated ?
What size cable is this fast connector suitable for?
What factors should be considered when choosing a quick connector?
Which is better, LC or SC connector?
