Product Specifications
ConstructionDescription
Tube To ConnectorHDPE Microduct( DB | DI | TW )
FluidAir with blowing system
Working Pressure20 bar
Burst Pressure25 bar
Estimated Life25 years
Protection ClassIP68
Water Ingress Test0.5 bar during 168 hours
Installation Temperature-15℃ to +45℃
Operation Temperature-15℃ to +45℃
Transport and Storage Temperature-15℃ to +45℃
Insertion ForceSize≥14mm,≤ 120 N
Impact Resistance15J
According To StandardsDIN EN 50411-2-8,EN 50411-2-5,lEC 60794-1-24, E4: 15 Joules,EN 61300-2-10,EN 61300-2-38:2006,IEC 60794-1-2 Method E1,Rohs,Reach

Product Structure

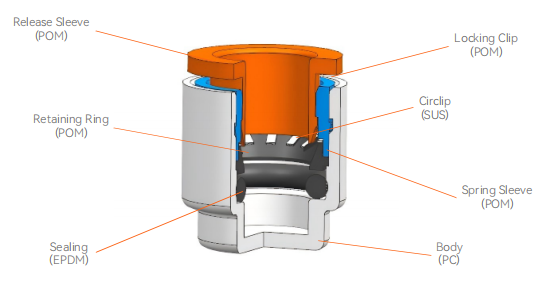

FCST-ERPUB27 Microduct End Caps Structure

Product FAQ

What is the production capacity of 27mm Microduct End Caps?

Which parts of 27mm Microduct End Caps can be customized in color?

What environmental certifications do 27mm Microduct End Caps comply with?

What industry standards do 27mm Microduct End Caps meet?

How long does it take to customize the 27mm Microduct End Caps?

How much non-recycled material is used in the standard packaging of 27mm Microduct End Caps?
