G.657A2 (B6a2)|PC/APC/UPC|10/20/50/100/200m
Product Advantages
Pre-terminated so no field splicing/mechanical termination, tool-less installation.
Armored low friction outer sheath provides ruggedized protection for the patch cord or pigtail.

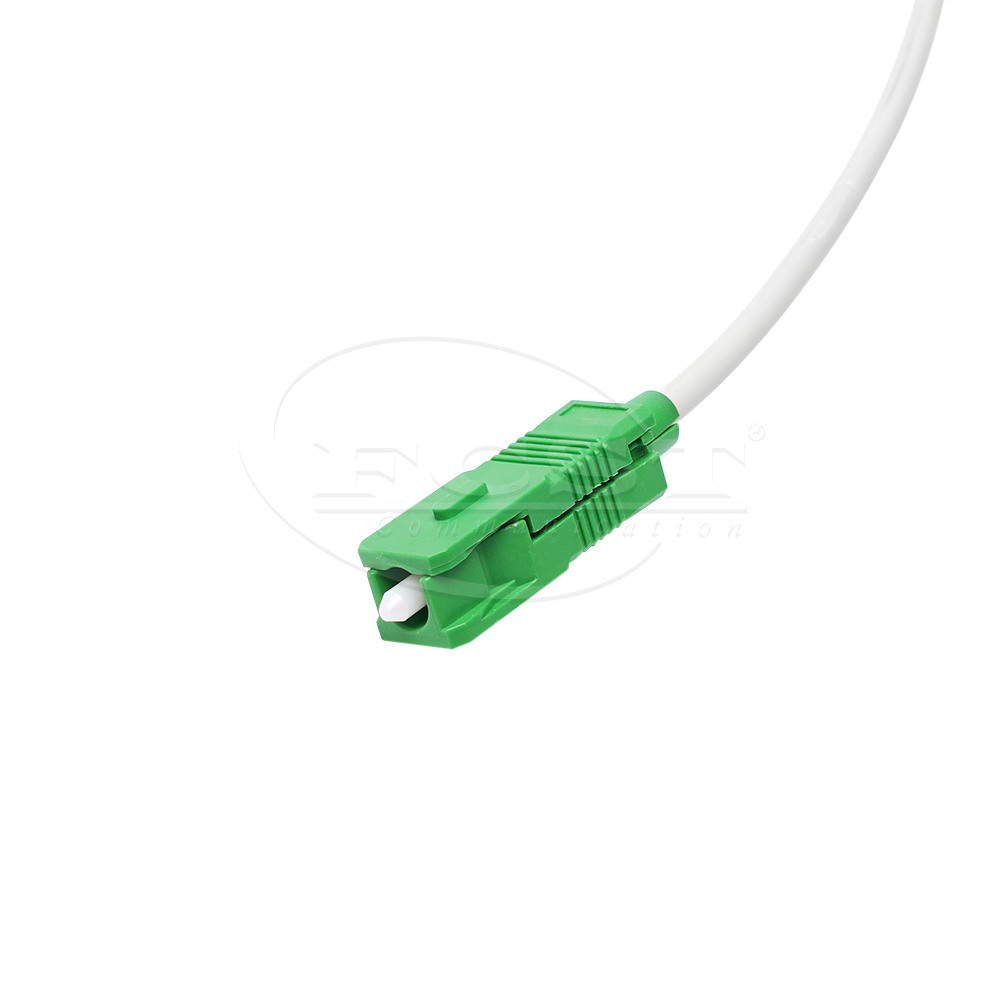

REACH & RoHS compliant. Industry-standard SC Flexible connector. Suitable for all types of indoor and outdoor implementations.(duct required for aerial and direct bury)

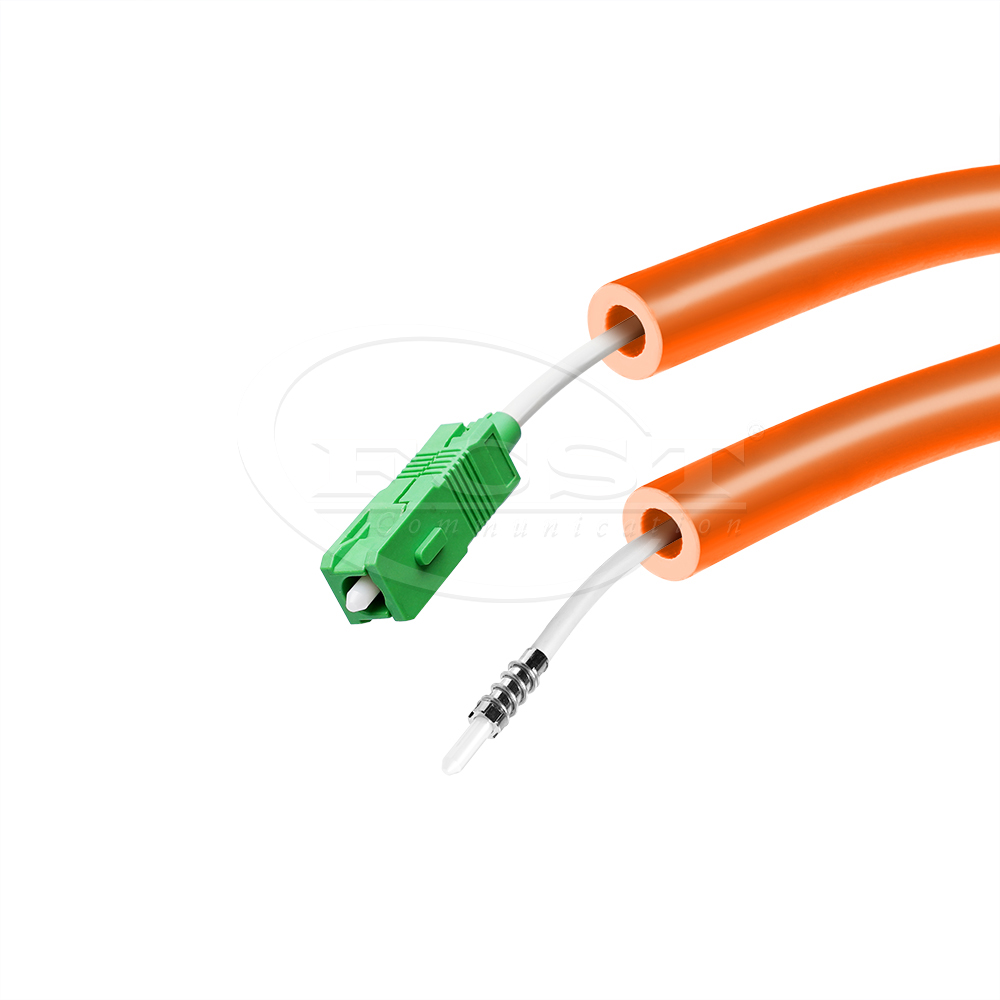

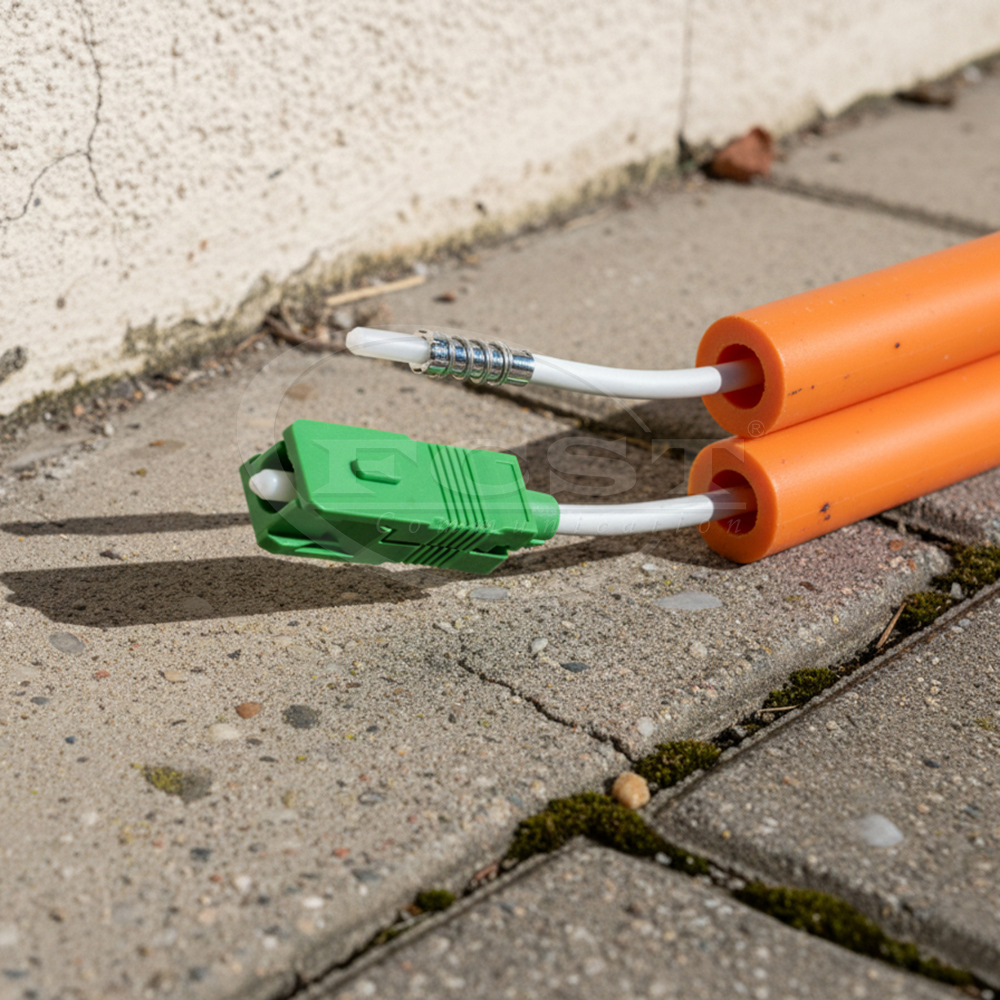

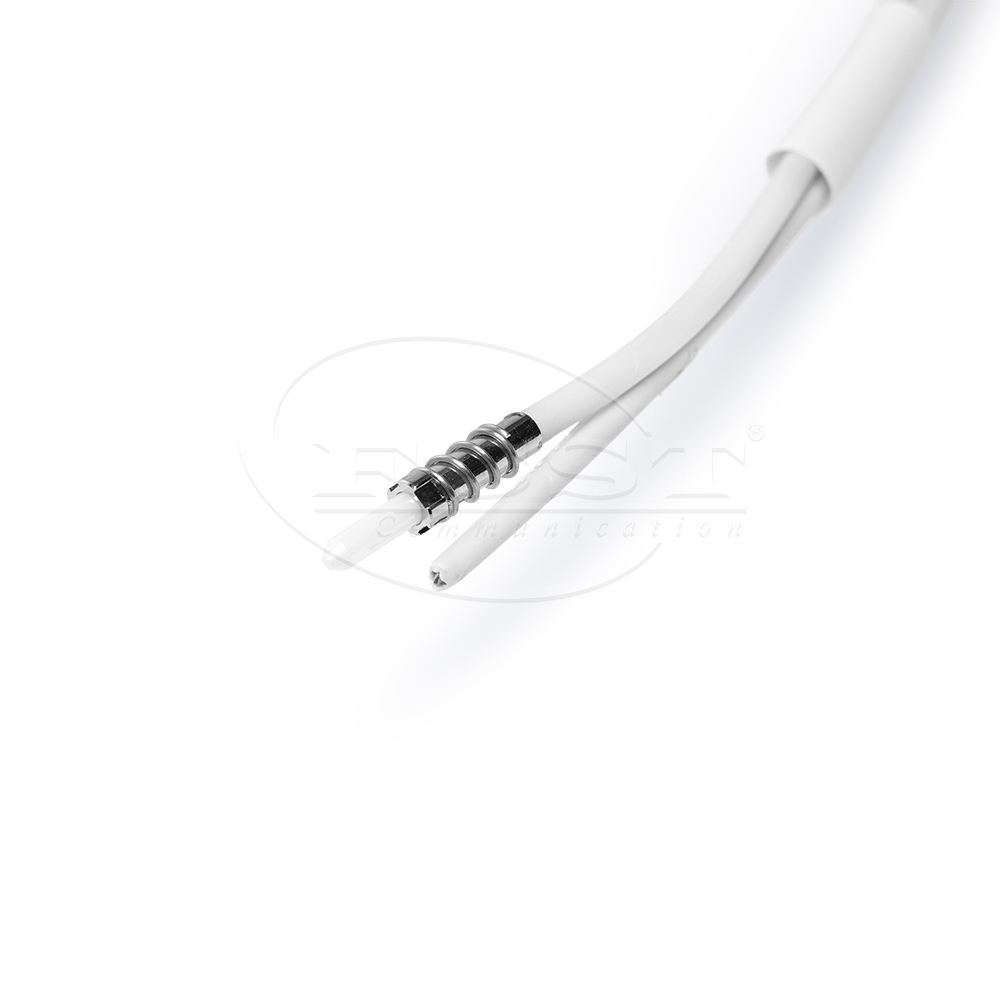

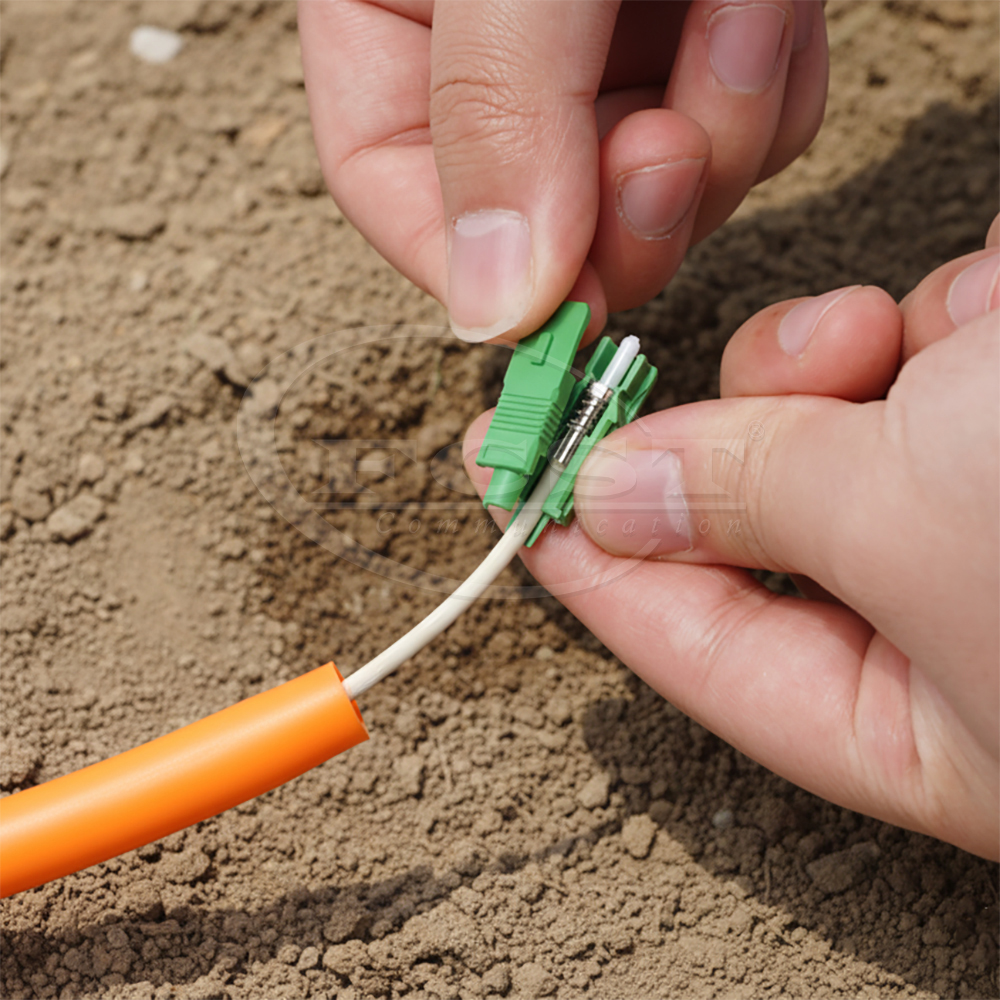

Smooth wall protective sleeve is easily removed and two pieces of outer housing are snapped into place. Installs inside microducts with bores as small as 5.5 mm (9/64 in) I.D.
Tech-friendly pre-terminated pushable connectors rapidly decrease deployment times and reduce installation costs by eliminating in-field splicing.
Quantity
库存： 0
Product Specifications
| Construction | Description |
| Fiber | G.657A2 (B6a2) |
| Cable Diameter | Φ3.0mm |
| Connector Types End A | SC/LC |
| Connector Types End B | SC/LC |
| Cable Length | 10/20/50/100/200m（Length can be customized） |
| Polish Type | PC/APC/UPC |
| Insertion Loss | Typ.≤0.15 dB,Max.≤0.30 dB |
| Return Loss | PC≥45 dB,UPC≥50 dB,APC≥60 dB |
| Repeatability | ≤0.10 dB |
| Changeability | ≤0.20 dB |
| Durability (1000 Mating) | ≤0.20 dB |
| Stainless steel | SUS304,φ1.7±0.05mm Outer Diameter,0.25mm Thickness |
| Aramid Yarn | 4x1100D |
| Jacket | LSZH/OFNR/TPU/OFNP |
| Cable Wight | 12.5 KG/KM |
| Operation Temperature | -40 ~ +80℃ |
| Storage Temperature | -40 ~ +85℃ |

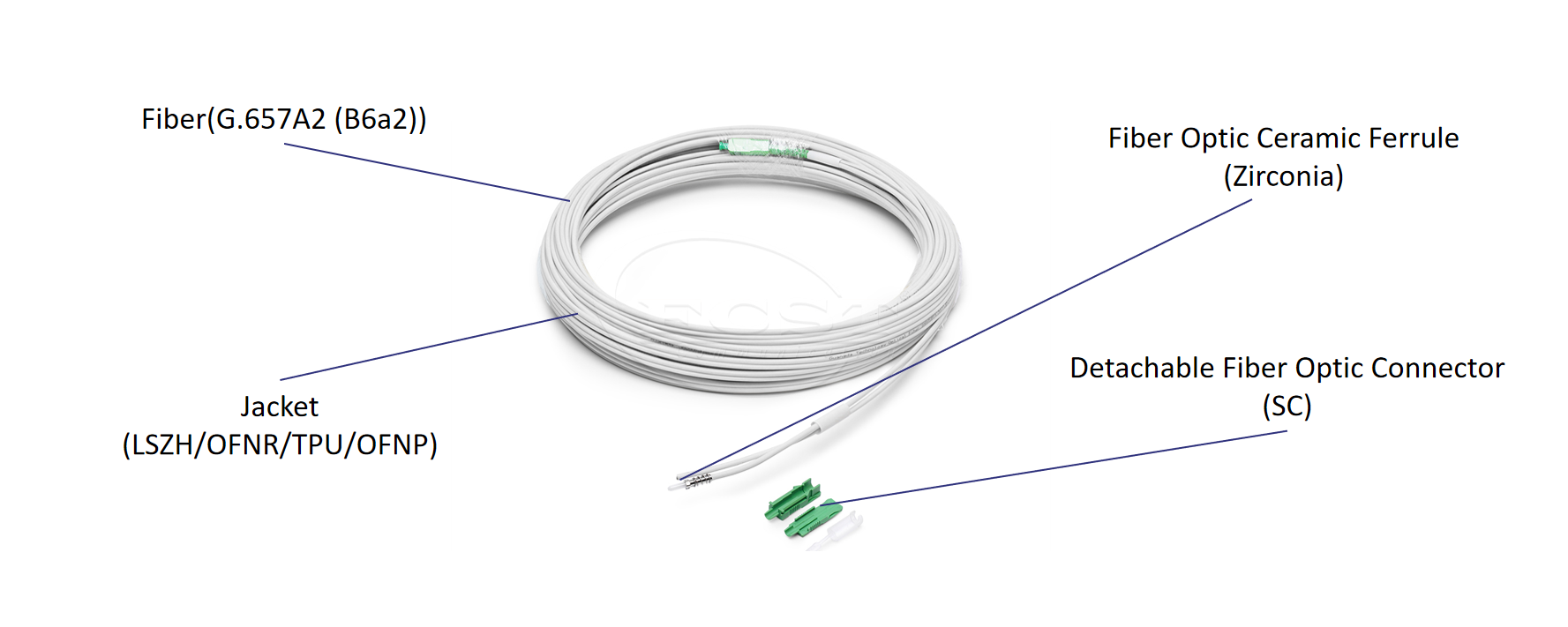

Product Structure
Product FAQ
What standards do your fiber optic patch cords comply with?
What insertion loss and return loss can you guarantee?
What cable jackets are available for different installation environments?
Product warranty regulations for Cable Lubricant ,Can you customize length, connector type, and color?
What is your lead time and MOQ for overseas orders?
What size microduct is this fiber optic patch cord suitable for?
