3M™ Dynatel™ Locators 1420X(E) Markers locator

Outdoor; Indoor for charging and configuring with a PC

Executive Standard

ISO9001

Service Support

sales@fcst.com

Minimum Order Quantity

1PCS

Technical Specifications

3M™ Dynatel™ Locators

Product Advantages

eceiver with Bluetooth®wireless technology.

Integrated USB port is compatible with USB Type-C®Connector.

Internal GPS that can be saved internally or directly to a memory stick that is compatible with USB Type-C®connector Write/read/locate 3M™ iD Markers.

Locate 3M™ Electronic Marker System (EMS).

EMS Path Marking Antennas (3M™ Dynatel™ 7420X and 7420XE Series Locators).

Multiple EMS antennas for maximum locate capabilities (3M™ Dynatel™ 7420X and7420XE Series Locators).

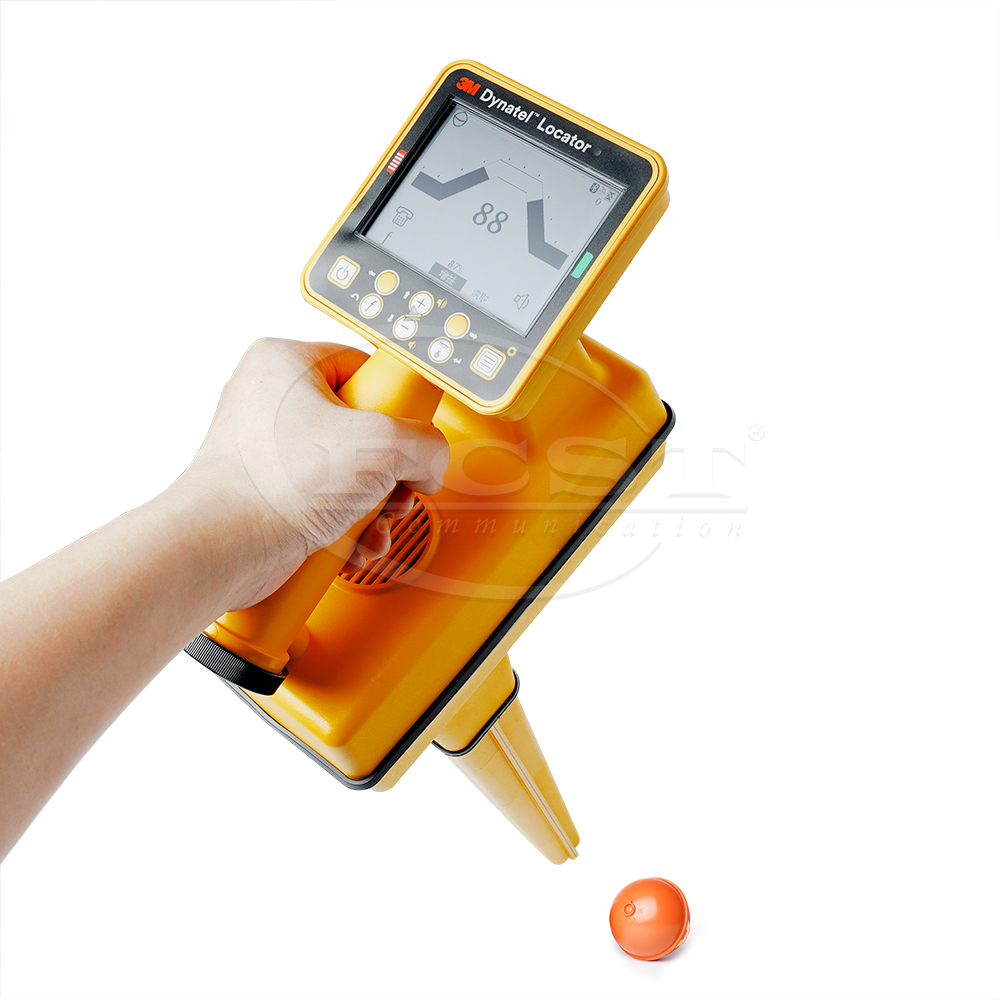

Large LCD display with image driven graphical interface.

Quantity

库存： 0

Add

Inquiry

Product Specifications

Product Structure

Product Data Download

Product FAQ

Product Specifications

Construction	Description
Operating Environment	Outdoor; Indoor for charging and configuring with a PC
Operating Temperature	-4° F to 122° F (-20° C to 50° C)
Storage Temperature	-4° F to 158° F (-20° C to 70° C)
Regulatory	3M™ Dynatel™ Locators 1420X/7420X Series (FCC Part 15)3M™ Dynatel™ Locators 1420XE/7420XE Series (CE)
Environmental Standard	IP54
Maximum Altitude	6500 ft. (2000 m)

Product Structure

Product Data Download

3M™ Dynatel™ Locators

Product FAQ

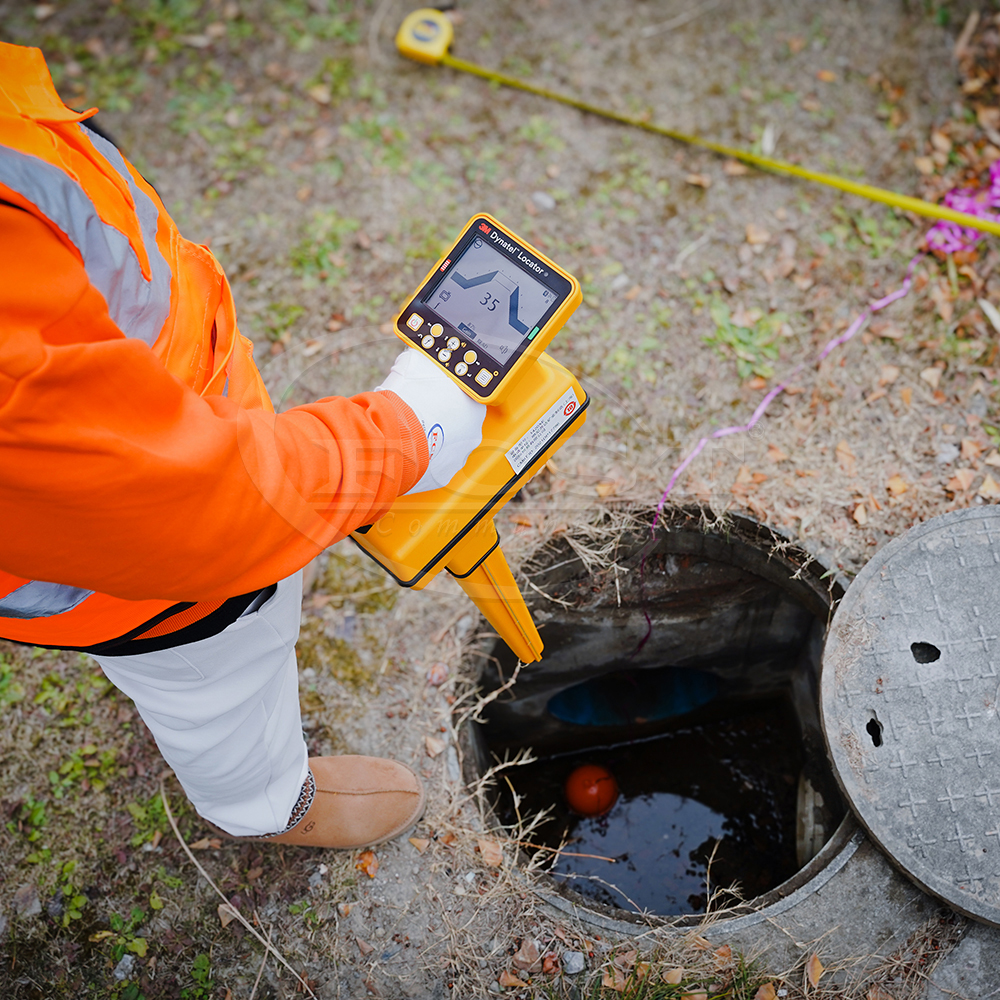

In which scenarios is the 3M™ Dynatel™ Locators 1420X(E) suitable?

What are the 3M™ EMS Path Marking Tape & Rope Frequencies

3M™ EMS Path Marking Tape & Rope Frequencies (3M™ Dynatel™ 7420X and 7420XE Series)
TEL: Telecommunications	48.8 kHz
PWR: Power US & European Power	34.9 kHz
GAS: Gas	53.9 kHz
WTR: Water	73.5 kHz
WW: Wastewater/Sanitation	41.4 kHz
RW: Reclaimed Water	44.9 kHz

What Receiver Electrical Specifications do the 3M™ Dynatel™ Locators 1420X(E) support?

Receiver Electrical Specifications

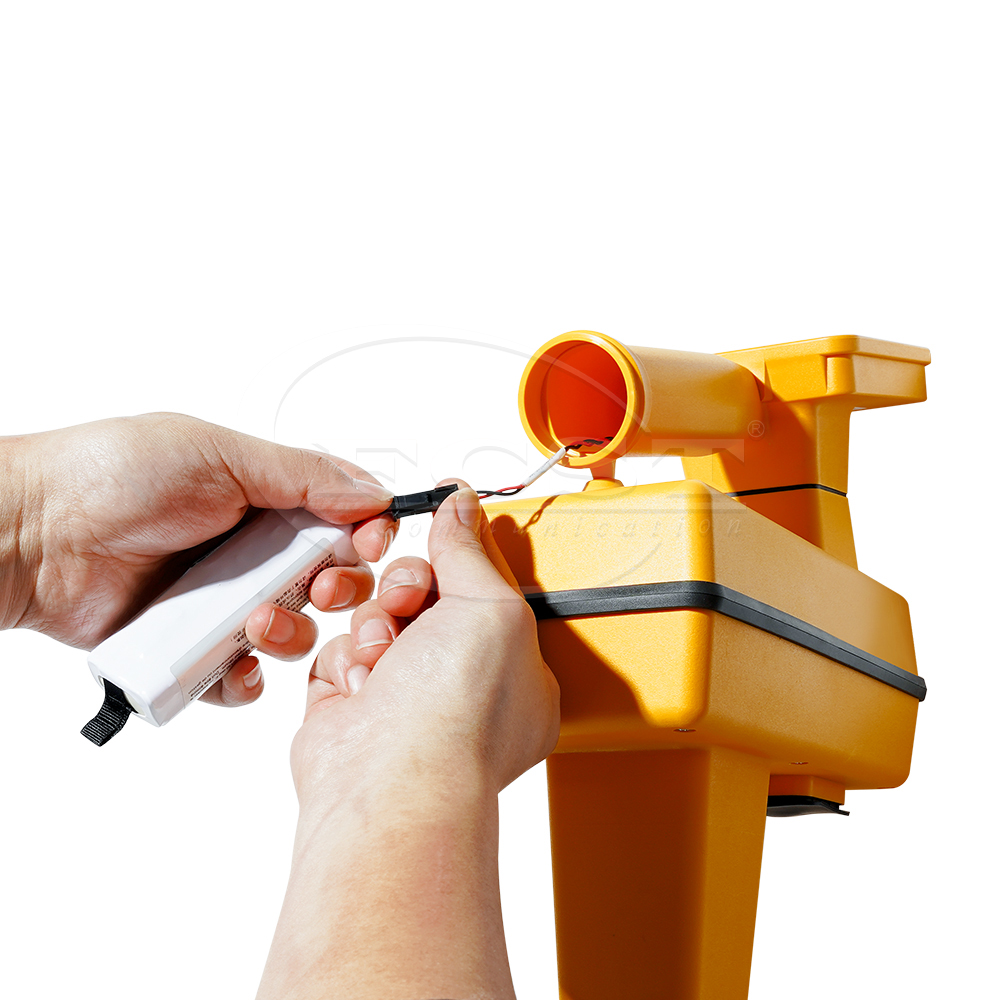

Power	3M™ Rechargeable Battery Pack (Alkaline 8xAA size battery pack for backup) 1
Battery Life	8 hours typical2
Charging time	3 hours with 3A USB Type-C® Connector AC Adapter 15W3
Display	4.4” Diagonal LCD Display (Menu driven GUI)
Speaker	0.25W
Headphone Jack	Standard mini phone jack (used along with USB Type-C® adaptor)
Connectivity	Bluetooth® wireless technology - Dual-mode Bluetooth 5.0.
Profiles support GAP, GATT, SPP.	Bluetooth 5.0 wireless module at 2.4 GHz.
USB port is compatible with USB Type-C® Connector.	GPS Mapping
GPS Interface (internal, 3 m) CEP50 (Autonomous Position Accuracy)	External GPS Devices-Defer to Published Specifications of Device
Gain Control	Manual and Automatic

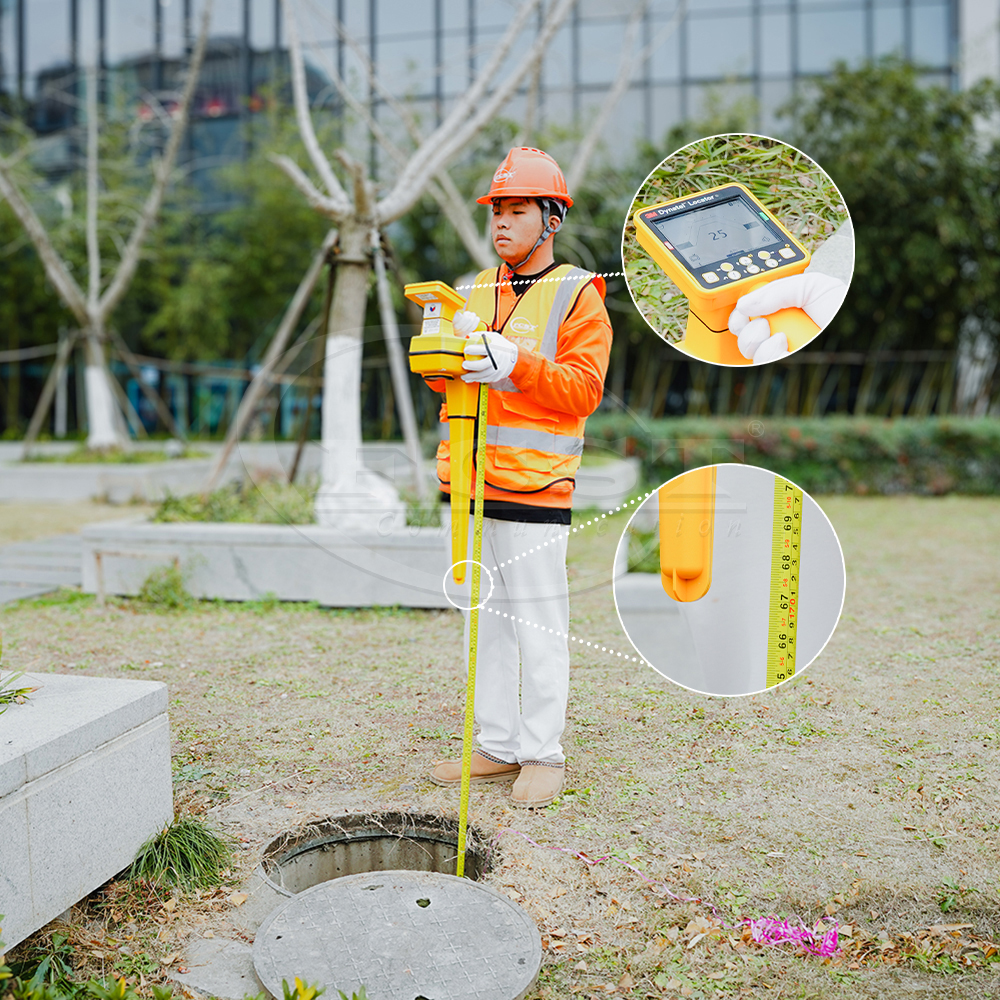

Marker Depth Accuracy	± 10% ± 2 inch (5 cm) up to specified depth of marker4

What trade terms are supported for imported 3M™ Dynatel™ Locators 1420X(E) ?

1)EXW(EXWorks)

Means that the seller delivers when it places the goods at the disposal of the buyer at the seller’s premises or at another named place (i.e., works,factory,warehouse,etc.). The sellers does not need to load the goods on any collecting vehicle,nor does it need to clear the goods for export, where sunch clearance is applicable.

2)DDP(Delivered Duty Paid)

Means that the seller delivers the goods when the goods are placed at the disposal of the buyer, cleared for import on the arriving means of transport ready for unloading at the named place of destination.

3) FCA( Free Carrier)

Means that the seller delivers the goods to the carrier or another person nominated by the buyer at the seller’s premises or another named place.

4) FAS(Free Alongside Ship)

Means that the seller delivers when the goods are placed alongside the vessel(e.g., on a quay or a barge) nominated by the buyer at the named port of shipment.

5) FOB(Free on Board)

Means that the seller delivers the goods on board the vessel nominated by the buyer at the named port of shipment or procures the goods already so delivered.

6) CFR(Cost and Freight)

Means that the seller delivers the goods on board the vessel or procures the goods already so delivered.

7)CIF（Cost, Insurance and Freight)

Means that the seller delivers the goods onboard the vessel or procures the goods already so delivered.

8) CPT(Carriage Paid To)

Means that the seller delivers the goods to the carrier or another person nominated by the seller at an agreed place (if any such place is agreed between the parties) and that the seller must contract for the pay the costs of carriage necessary to bring the goods to the named place of destination.

9) CIP(Carriage and Insurance Paid to)

Means that the seller delivers the goods to the carrier or another person nominated by the seller at an agreed place (if any such place is agreed between the parties) and that the seller must contract for and pay the costs of carriage necessary to bring the goods to the named place of destination.

10) DAT(Delivered at Terminal)

Means that the seller delivers when the goods,once unloaded from the arriving means of transport, are placed at the disposal of the buyer at a named terminal at the named port or place of destination.

11) DAP(Delivered at place)

Means that the seller delivers when the goods are placed at the disposal of the buyer on the arriving means of transport ready for unloadiFCST can choose different trading methods according to customer needs.he named place of destination.

FCST can choose different trading methods according to customer needs.
